SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-403

DIAGNOSIS

Required Special Tool:

• MB991223: Test Harness Set

STEP 1. Verify the hazard warning light.
Q: Which turn-signal light does not illuminate?

Front turn-signal light (LH) : Go to Step 2.
Front turn-signal light (RH) : Go to Step 8.
Rear combination light (LH) : Go to Step 14.
Rear combination light (RH) : Go to Step 20.
Combination meter (LH) : Go to Step 26.
Combination meter (RH) : Go to Step 28.
Combination meter (both RH and LH) : Go to Step 30.
Front turn-signal light (LH) and combination meter (LH)

Go to Step 32.

LH side only : Refer to Inspection Procedure K-1 "Turn-

signal lights does not flash when the turn-signal light
switch is turned on

P.54Bb-392

."

RH side only : Refer to Inspection Procedure K-1 "Turn-

signal lights does not flash when the turn-signal light
switch is turned on

P.54Bb-392

."

Both LH and RH sides : Refer to Inspection Procedure K-2

"Hazard warning light does not illuminate

P.54Bb-

399

."

STEP 2. Check the front turn-signal light bulb (LH).
(1) Remove the front turn-signal (LH) light bulb.
(2) Verify that the front turn-signal light bulb (LH) is not

damaged or burned out.

Q: Is the front turn-signal (LH) light bulb in good

condition?
YES :
Go to Step 3.
NO :  Replace the front turn-signal (LH) light bulb. Verify

that the turn-signal lights illuminate normally.

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-404

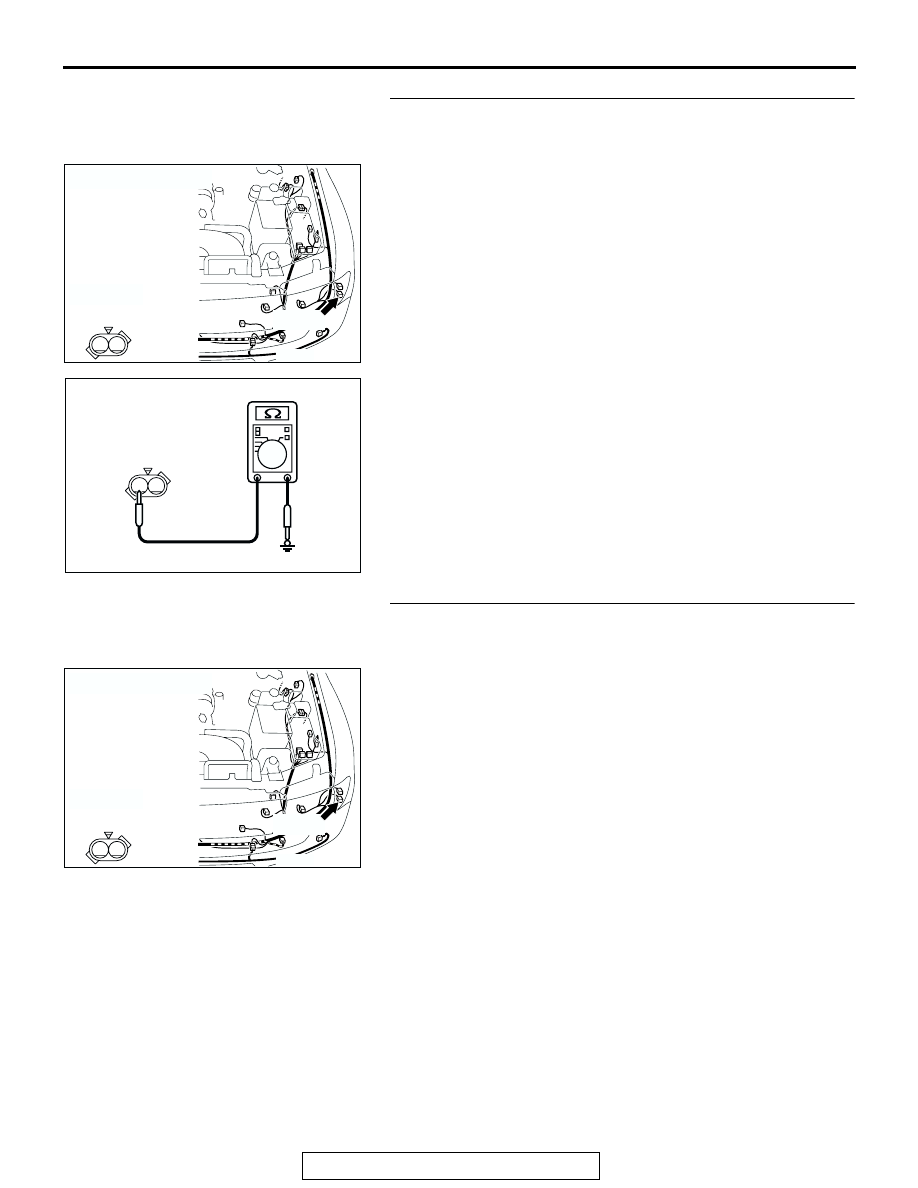

STEP 3. Check the ground circuit to the front combination
light (LH). Test at front combination light (LH) connector A-
19.
(1) Disconnect front combination light (LH) connector A-19 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 6.
NO :  Go to Step 4.

STEP 4. Check front turn-signal light (LH) connector A-19
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is the front turn-signal light (LH) connector A-19 in good

condition?
YES :
Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

Verify that the turn-signal lights illuminate

normally.

AC204167

CONNECTOR : A-19

HARNESS
SIDE

A-19(B)

A-19(B)

AH

1

2

AC204786

1

2

AB

CONNECTOR A-19
(HARNESS SIDE)

AC204167

CONNECTOR : A-19

HARNESS
SIDE

A-19(B)

A-19(B)

AH

1

2

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-405

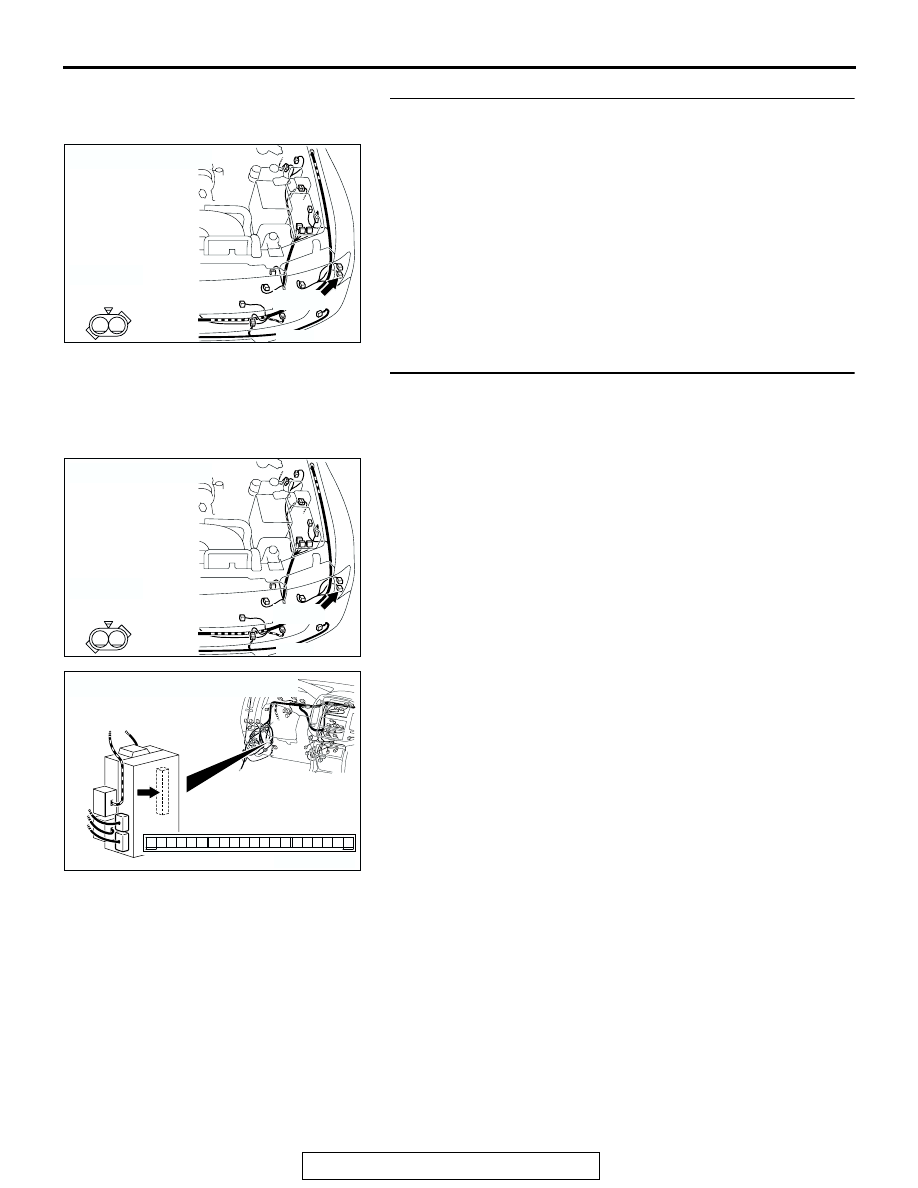

STEP 5. Check the wiring harness between front turn-
signal light (LH) connector A-19 (terminal 2) and ground.
Q: Is the wiring harness between front turn-signal light

(LH) connector A-19 (terminal 2) and ground in good
condition?
YES :
Replace the socket. Verify that the turn-signal lights

illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lights illuminate normally.

STEP 6. Check front turn-signal light (LH) connector A-19
and ETACS-ECU connector D-222 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q:  Are front turn-signal light (LH) connector A-19 and

ETACS-ECU connector D-222 in good condition?
YES :
Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

Verify that the turn-signal lights illuminate

normally.

AC204167

CONNECTOR : A-19

HARNESS
SIDE

A-19(B)

A-19(B)

AH

1

2

AC204167

CONNECTOR : A-19

HARNESS
SIDE

A-19(B)

A-19(B)

AH

1

2

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-406

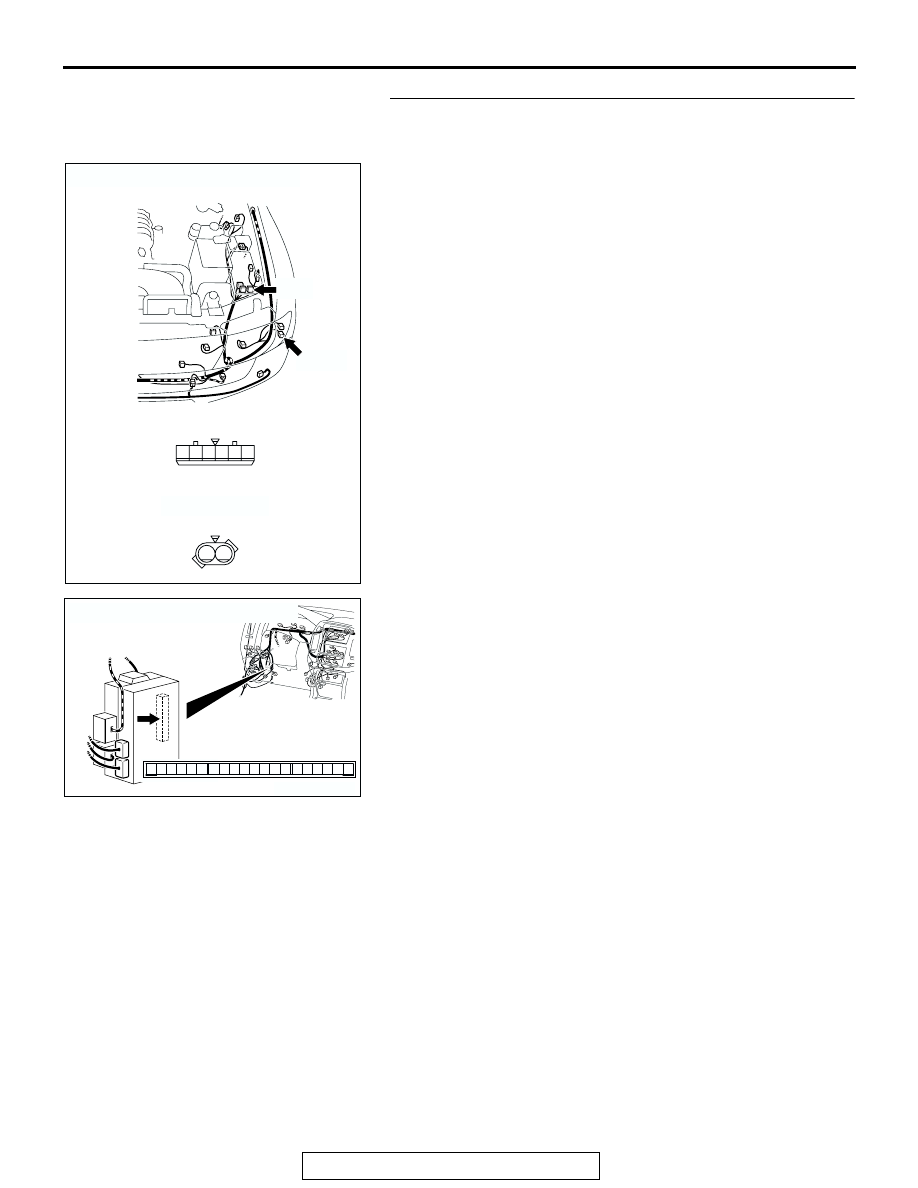

STEP 7. Check the wiring harness between front turn-
signal light (LH) connector A-19 (terminal 1) and ETACS-
ECU connector D-222 (terminal 15).

AC204185

CONNECTORS : A-16, A-19

A-19(B)

A-16

AD

A-16

HARNESS SIDE

A-19(B)

1

2

5 6

2 3 4

1

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222
