SYMPTOM PROCEDURES
TSB Revision
SWS SYMPTOM PROCEDURES
54Bb-299

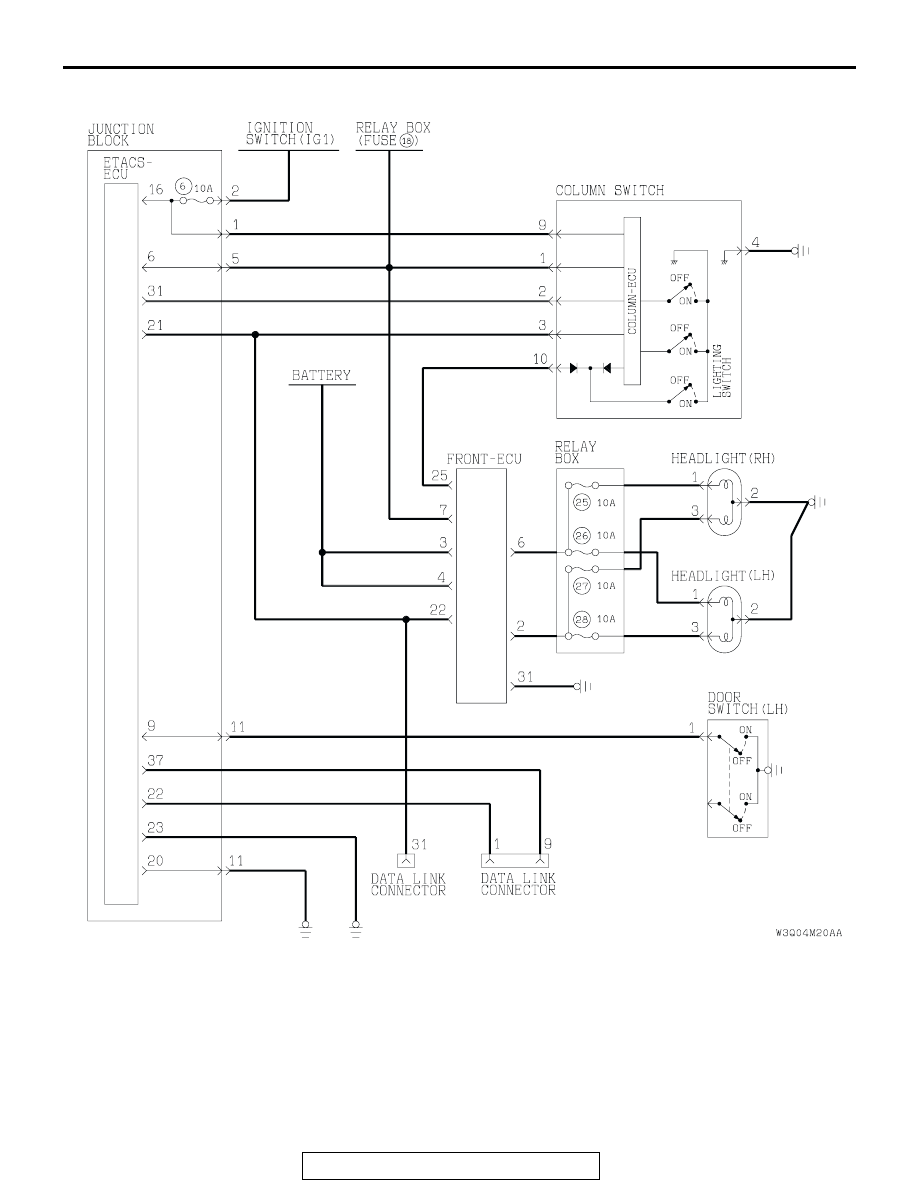

Headlight automatic-shutdown function

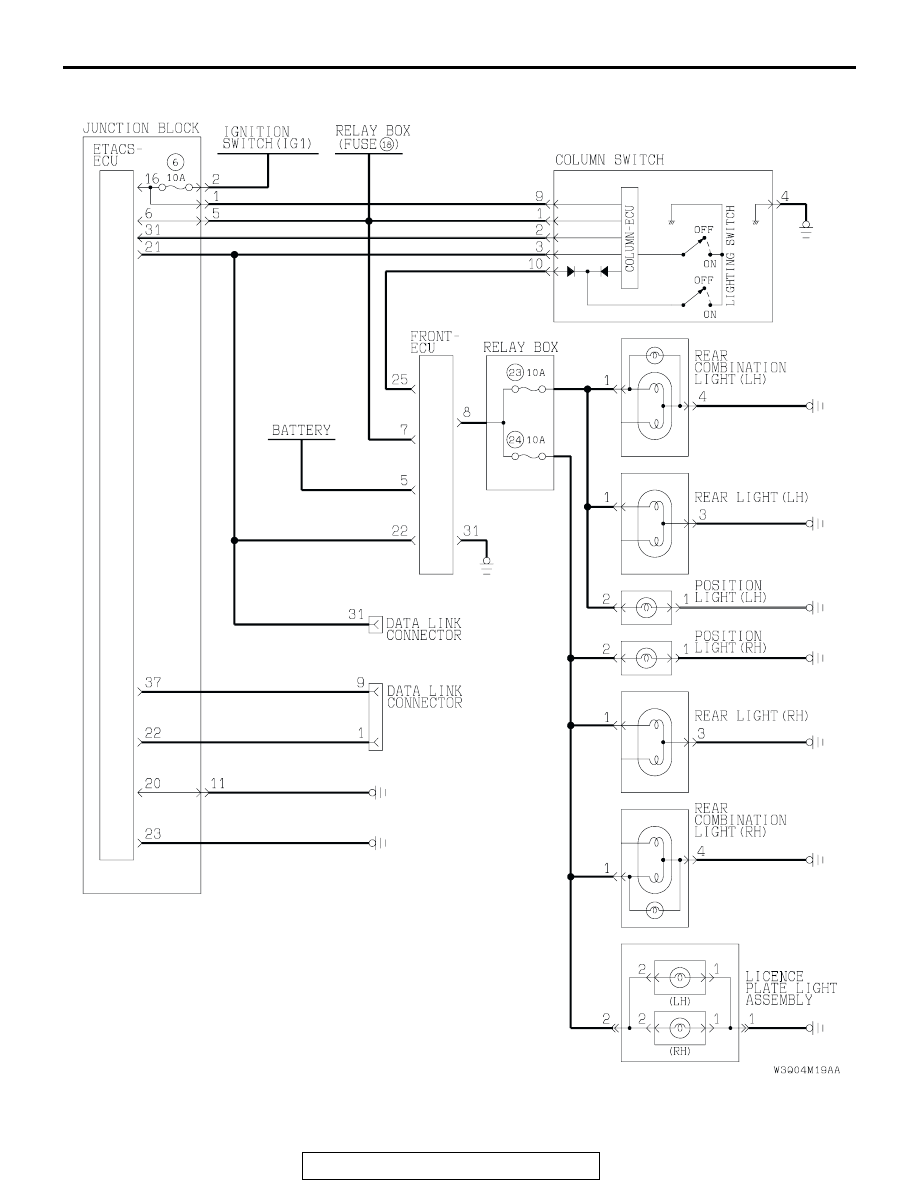

Even if the lighting switch (taillight switch or headlight switch) is
ON, the head light (including the taillights) will automatically go
off in the following conditions to prevent the battery from dis-
charging as a result of forgetting to turn off lights.
When the ignition key is turned from "ON" to "LOCK" (OFF) or
"ACC" position with the lighting switch turned ON, and this
state continues for three minutes, the light will automatically be
turned off. If the driver's door is opened during these three min-
utes, the light will go off one second later.
NOTE: This function can be disabled by the adjustment proce-
dures of SWS function (Refer to
Dimmer automatic reset function
The column switch (column ECU) resets the dimmer switch and
prevents the high beam from lighting up when turning on the
headlight again if the headlight switch is put in the "OFF" posi-
tion while the high beam of the headlight is on (including the
instance when the dimmer switch is erroneously put in the "ON"
state upon passing operations) and resets the dimmer switch.
AC106816
Headlight switch
ON
OFF
Headlight
relay (Lo)
ON
OFF
Headlight
relay (Hi)
ON
OFF
Hi-beam indicator
light
ON
OFF
Front ECU
Acknowdge
Hibeam
ACK
OTHERS
Passing/Dimmer
switch
ON
PASS
OFF
AB
AC101466AB
T1: 3 minutes
T2: 1 second
ON
ON
ON
OFF
OFF
OFF
Ignition switch
(IG1)
Driver's door
switch
Taillight switch or
headlight switch
Illumination
output signal
ON
OFF
T1
T2
AC106399
ON
OFF
ON
OFF
Dimmer
switch
Headlight
switch
HI
LO
OFF
Headlight
AB
