SYMPTOM PROCEDURES
TSB Revision
SWS SYMPTOM PROCEDURES
54Bb-199
.
CIRCUIT OPERATION
When you operate each power window sub-switch
for front passenger's or rear (incorporated in the
power window main switch), the corresponding
power window motor operates, thus causing each
power window to close or open.
.
TECHNICAL DESCRIPTION (COMMENT)
If the corresponding power window opens and closes
normally when power window sub-switch is oper-
ated, the power window main switch may be defec-
tive.
.
TROUBLESHOOTING HINTS
The power window main switch may be defective

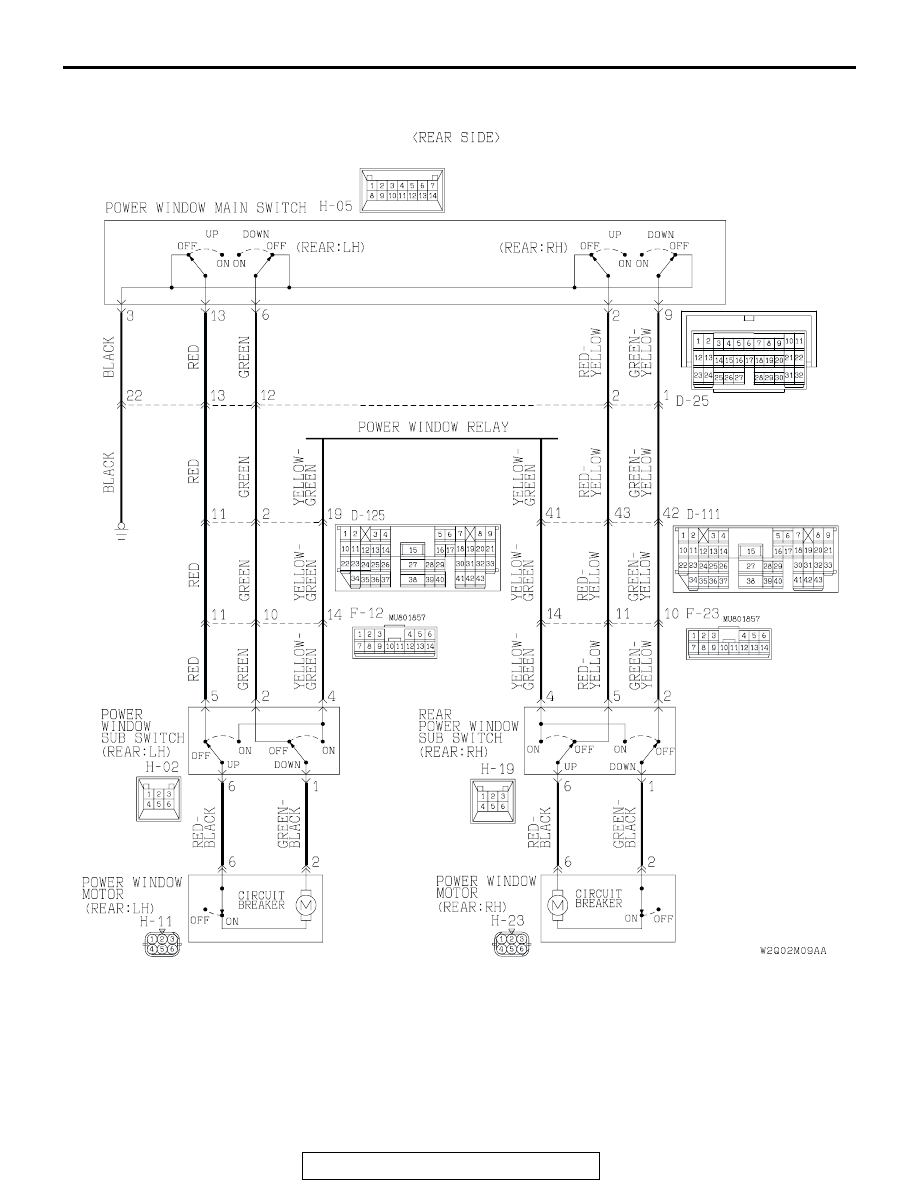

Power Window (rear) Circuit
