Mitsubishi Montero (2002-2004). Manual - part 286

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-191

AC203859 AC

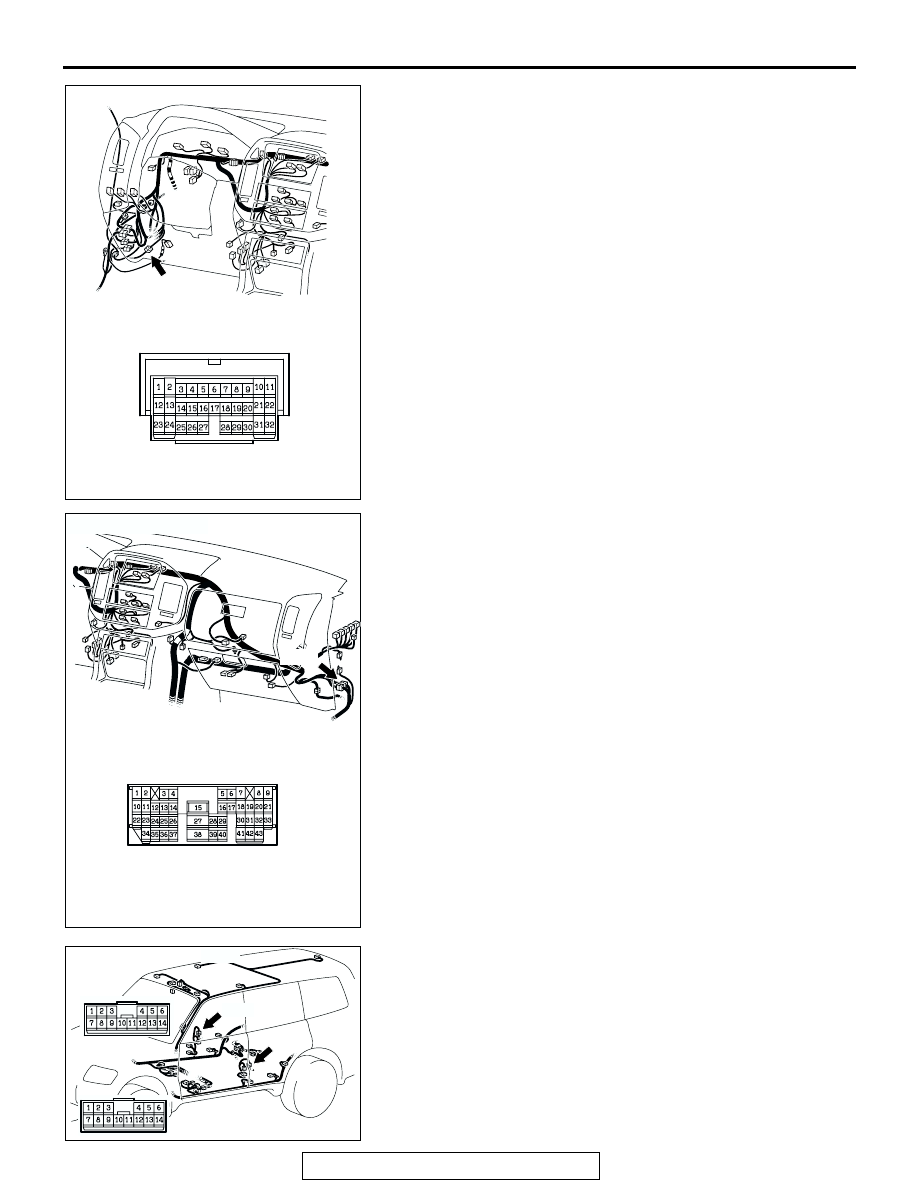

CONNECTOR: D-25

D-25

D-25

AC203860AC

D-111

CONNECTOR: D-111

D-111

AC204484

AE

F-23

F-23

CONNECTORS: F-12, F-23

F-12

F-12

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-192

NOTE: Also check intermediate connectors D-25, D-111 and F-
23. If intermediate connector D-25, D-111 or F-23 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 2) and rear power
window sub-switch (RH) connector H-19 (terminal 5) in
good condition?
YES : Go to Step 42.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (RH) should now
work normally.

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-193

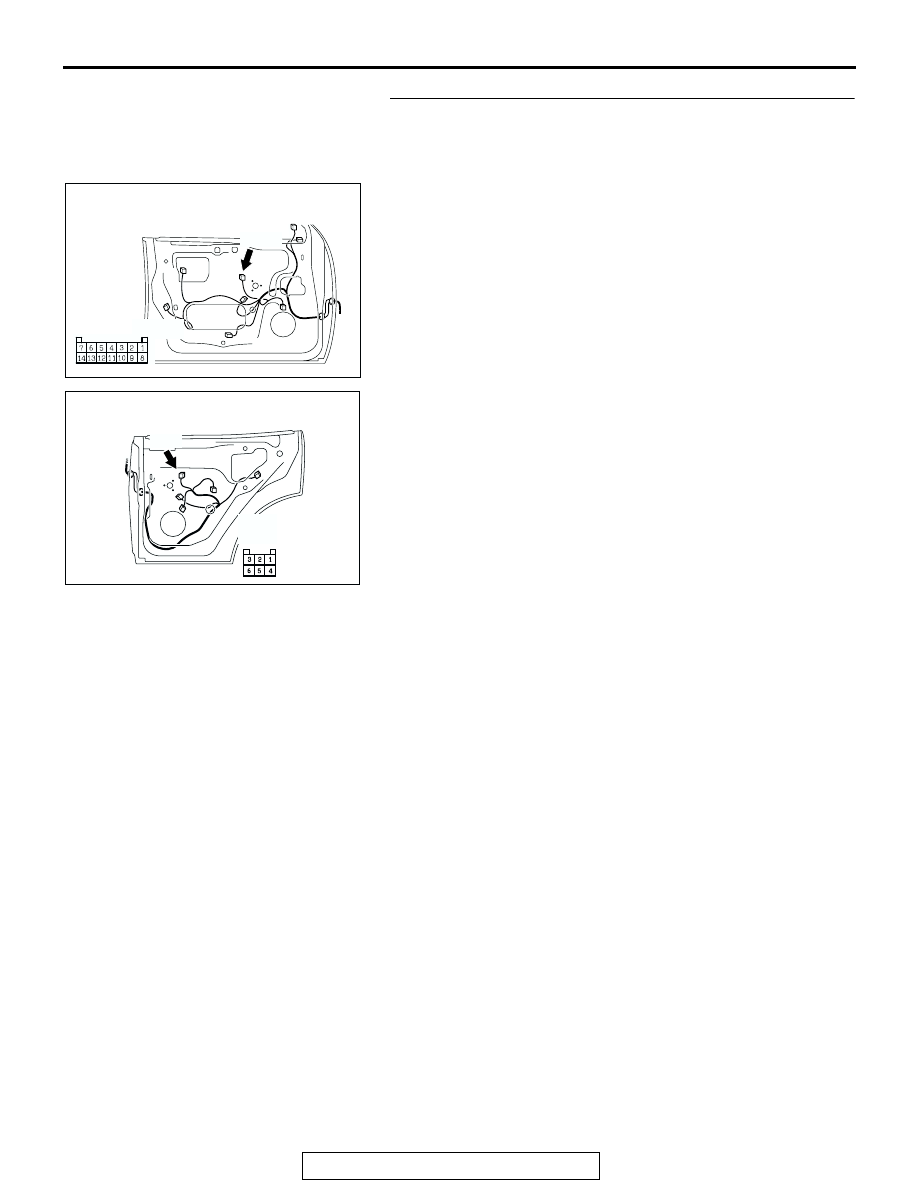

STEP 42. Check the harness wiring between power
window main switch connector H-05 (terminal 9) and rear
power window sub-switch (RH) connector H-19 (terminal
2).

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000316 AE

H-19

CONNECTOR: H-19

REAR DOOR<RH>

(HARNESS SIDE)

H-19

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-194

AC203859 AC

CONNECTOR: D-25

D-25

D-25

AC203860AC

D-111

CONNECTOR: D-111

D-111

AC204484

AE

F-23

F-23

CONNECTORS: F-12, F-23

F-12

F-12
