SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-143

STEP 9. Check the wiring harness between power window
main switch connector H-05 (terminal 3) and ground.

NOTE: Also check intermediate connector D-25 for loose, cor-
roded or damaged terminals, or terminals pushed back in the
connector. If intermediate connector D-25 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector H-05 (terminal 3) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power windows function should now work
normally.

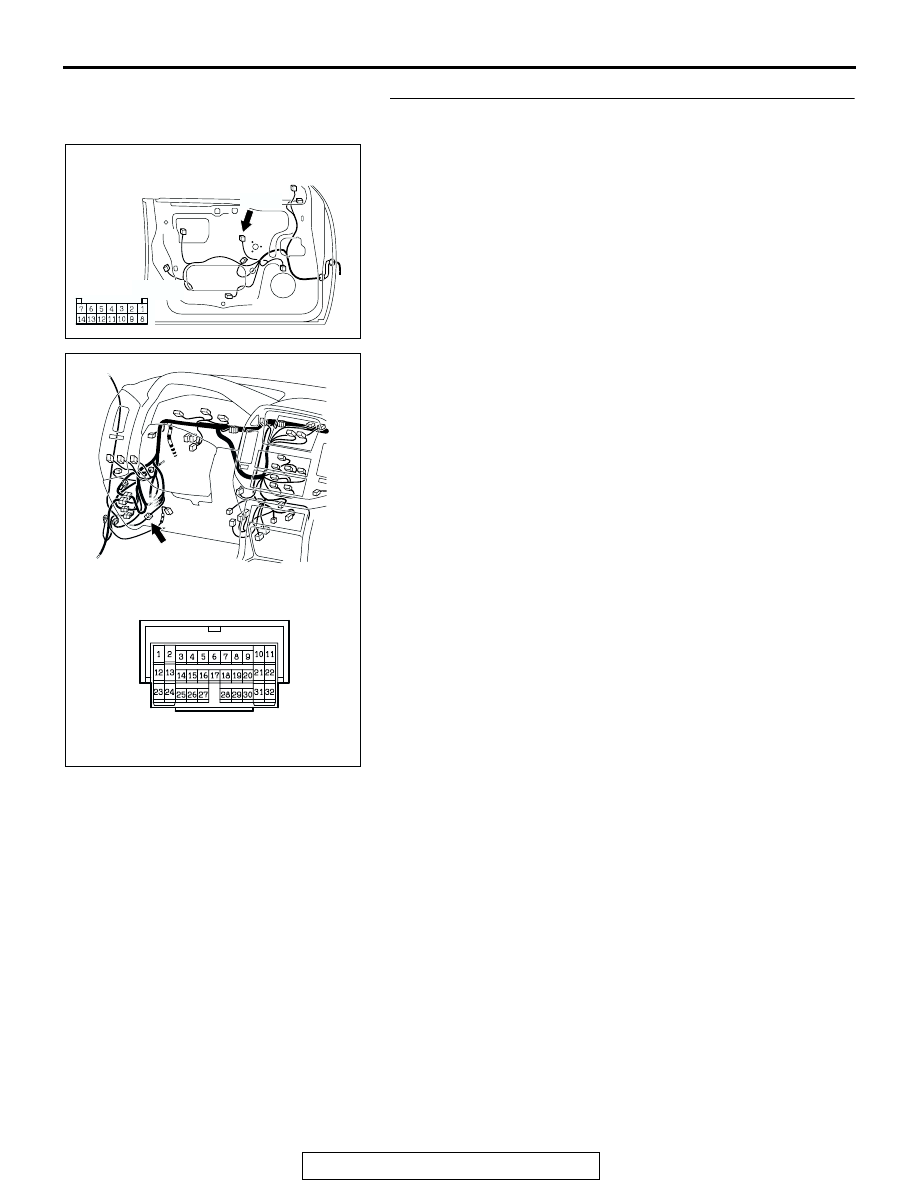

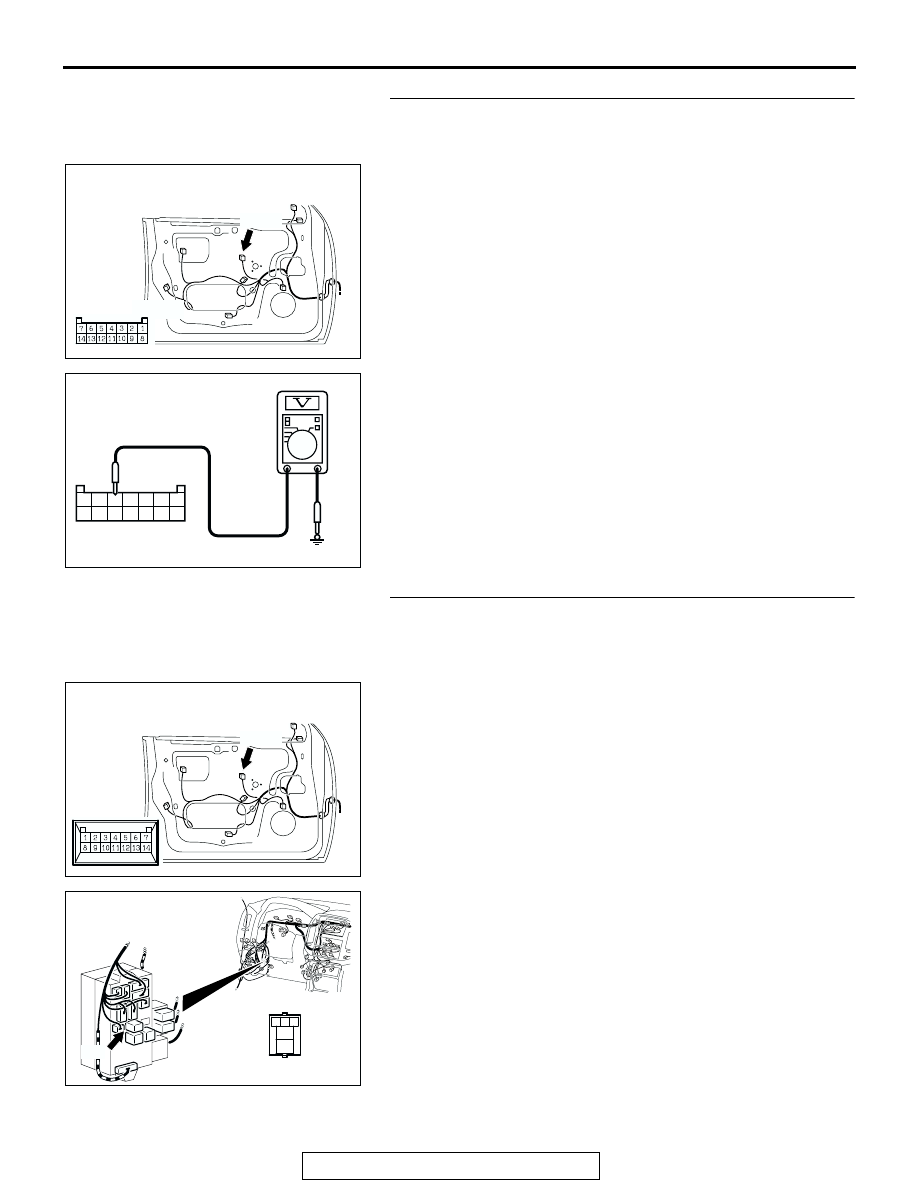

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC203859 AC

CONNECTOR: D-25

D-25

D-25

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-144

STEP 10. Check the battery power supply circuit to the
power window main switch. Test at power window main
switch connector H-05.
(1) Disconnect power window main switch connector H-05 and

measure the voltage available at the harness side of the
connector.

(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 5 and ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 13.
NO :  Go to Step 11.

STEP 11. Check power window main switch connector H-
05 and power window relay connector D-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are power window main switch connector H-05 and

power window relay connector D-219 in good
condition?
YES : Go to Step 12.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power windows function

should now work normally.

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC203852

1

2

3

4

5

6

7

8

9

10

11

12

13

14

AB

CONNECTOR H-05
(HARNESS SIDE)

AC203774

CONNECTOR: H-05

AE

DRIVER'S DOOR

H-05

H-05

AC203850AC

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

4

5

1 2 3

D-219

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-145

STEP 12. Check the wiring harness between power
window relay connector D-219 (terminal 4) and power
window main switch connector H-05 (terminal 5).

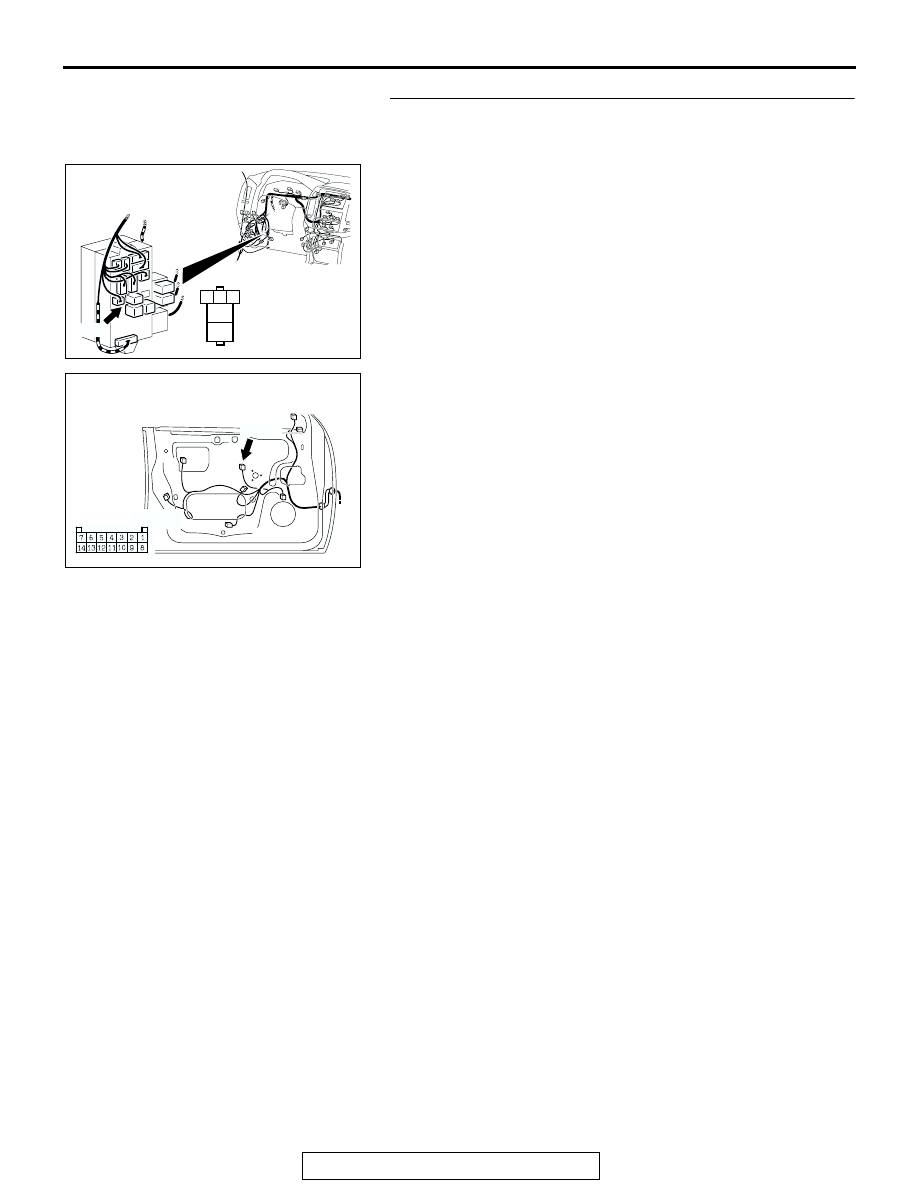

AC203850AB

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

1

2

3

4

5

JUNCTION
BLOCK SIDE

D-219

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-146

NOTE: Also check junction block connector D-208 and inter-
mediate connector D-25 for loose, corroded or damaged termi-
nals, or terminals pushed back in the connectors. If junction
block connector D-208 or intermediate connector D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector D-219 (terminal 4) and power window main
switch connector H-05 (terminal 5) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power windows function should now work
normally.

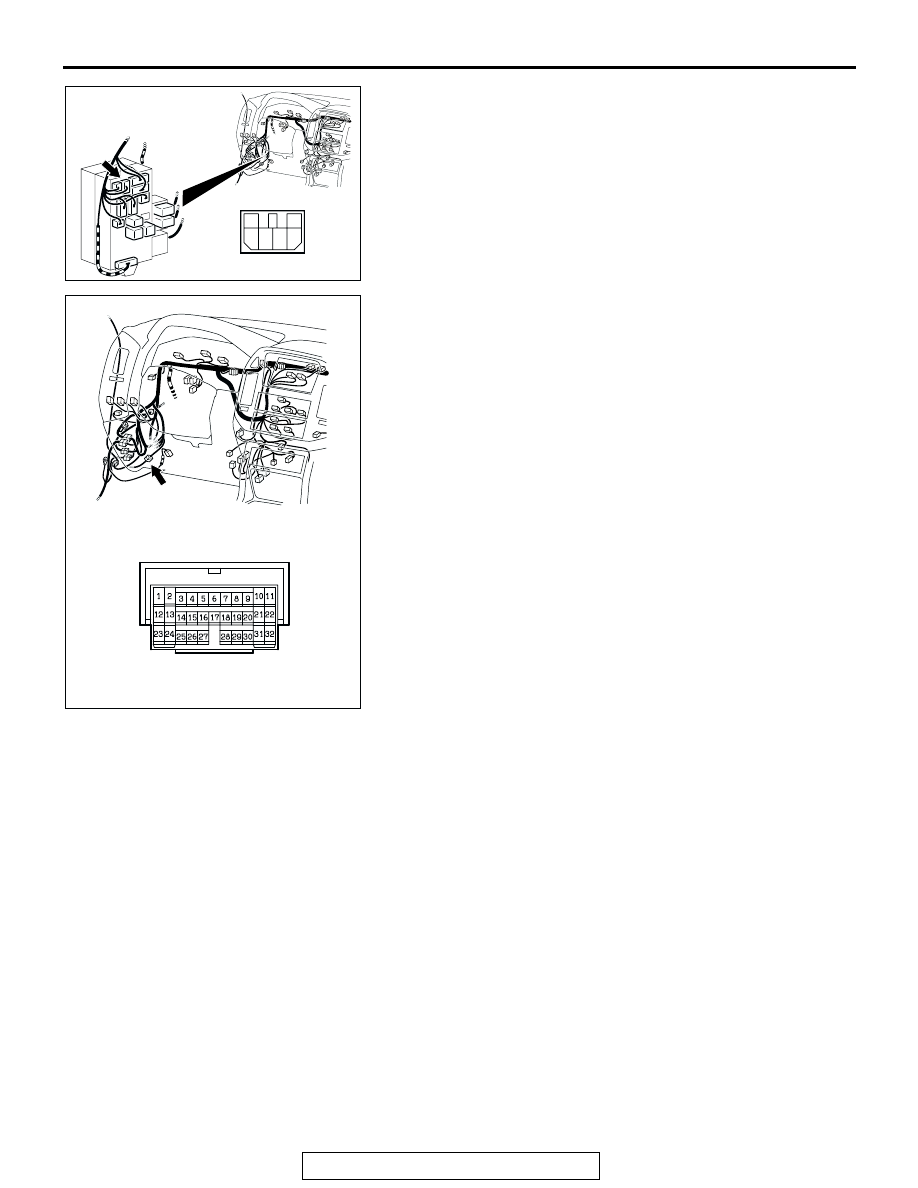

AC203850AD

CONNECTOR: D-208

JUNCTION BLOCK
(FRONT VIEW)

D-208

D-208

1

2

3 4 5 6

AC203859 AC

CONNECTOR: D-25

D-25

D-25
