SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-139

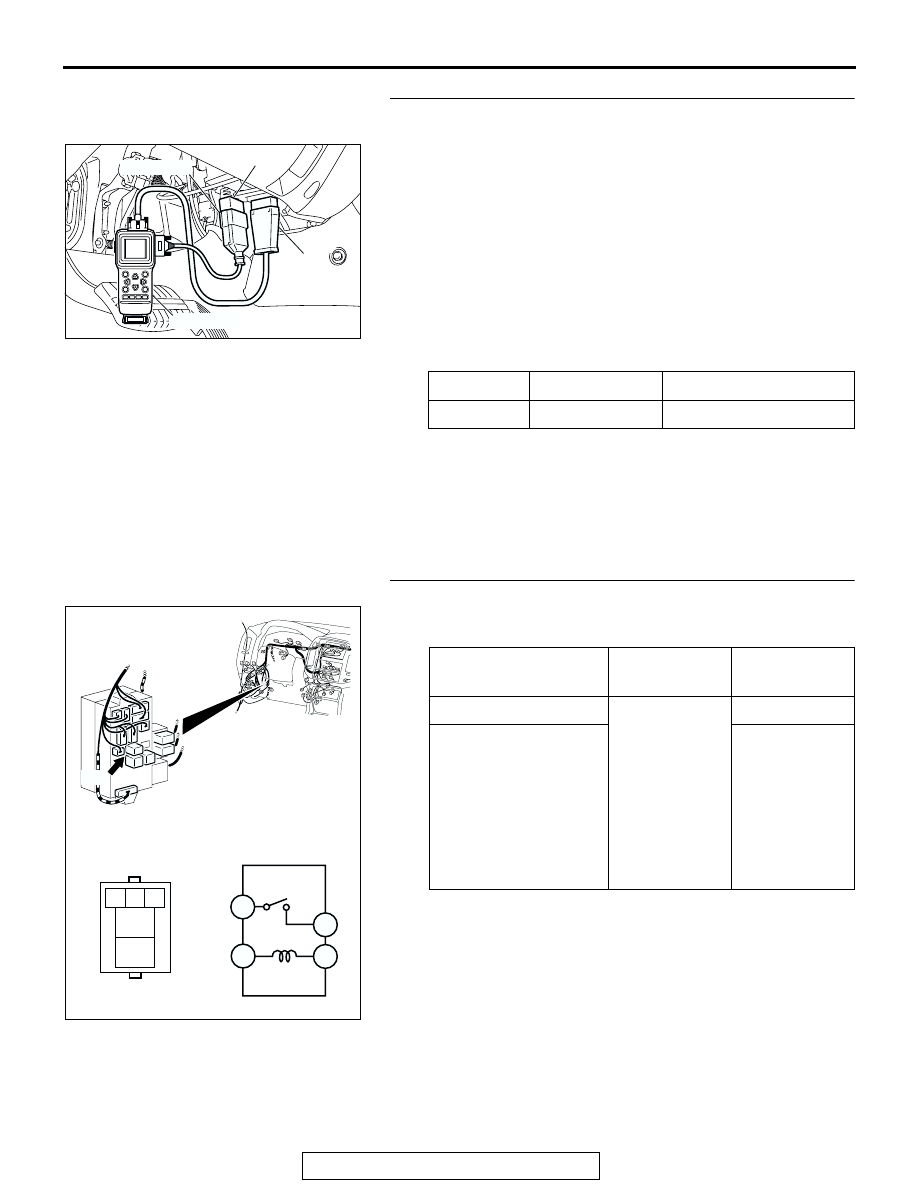

STEP 2. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
(1) Turn the ignition switch to the "ON" position before checking

input signals from the ignition switch (IG1).

(2) Operate scan tool MB991502 according to the procedure

below to display "ETACS ECU."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "DATA LIST."
5. Select "ETACS ECU."

(3) Check that normal conditions are displayed on the item

described in the table below.

Q: Is the scan tool display "IG SW (IG1)" as normal

condition?
YES : Go to Step 3.
NO :  Refer to Inspection Procedure O-2 "ETACS-ECU

does not receive a signal from the ignition switch
(IG1)

P.54Bc-7

."

STEP 3. Check the power window relay.
Properly identify and remove the relay from the under-dash
junction block and test the relay using the chart as a guide.

Q: Is the power window relay in good condition?

YES : Go to Step 4.
NO :  Replace the power window relay. Verify that the

power windows function should now work normally.

ITEM NO.

ITEM NAME

NORMAL CONDITION

ITEM 30

IG SW (IG1)

ON

AC204222AB

16-pin

13-pin

MB991502

MB991862

BATTERY
CONNECTION

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

• Connect terminal

No.3 and the
positive battery
terminal

• Connect terminal

No.1 and the
negative battery
terminal

Less than 2
ohms

AC203858AB

1 2 3

4

5

1

3

4

5

POWER WINDOW
RELAY D-219

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-140

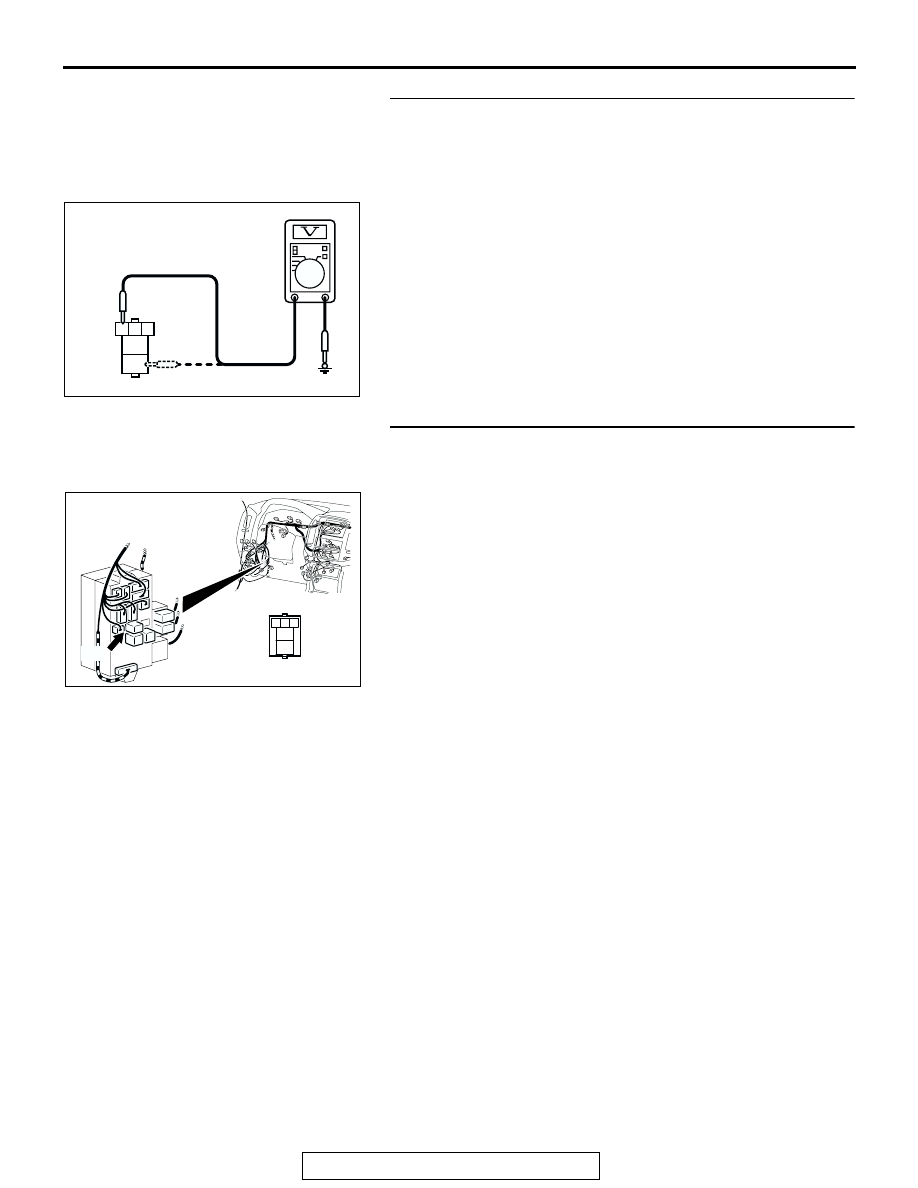

STEP 4. Measure at power window relay connector D-219
in order to check the fusible link (4) line of power supply
system to power window relay.
(1) Disconnect power window relay connector D-219, and

measure at the junction block side.

(2) Measure the voltage between terminal numbers 3, 5 and

ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check power window relay connector D-219 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is power window relay connector D-219 in good

condition?
YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power windows function

should now work normally.

1

2

3

4

5

ACX01571AB

CONNECTOR D-219
(JUNCTION BLOCK SIDE)

AC203850AC

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

4

5

1 2 3

D-219

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-141

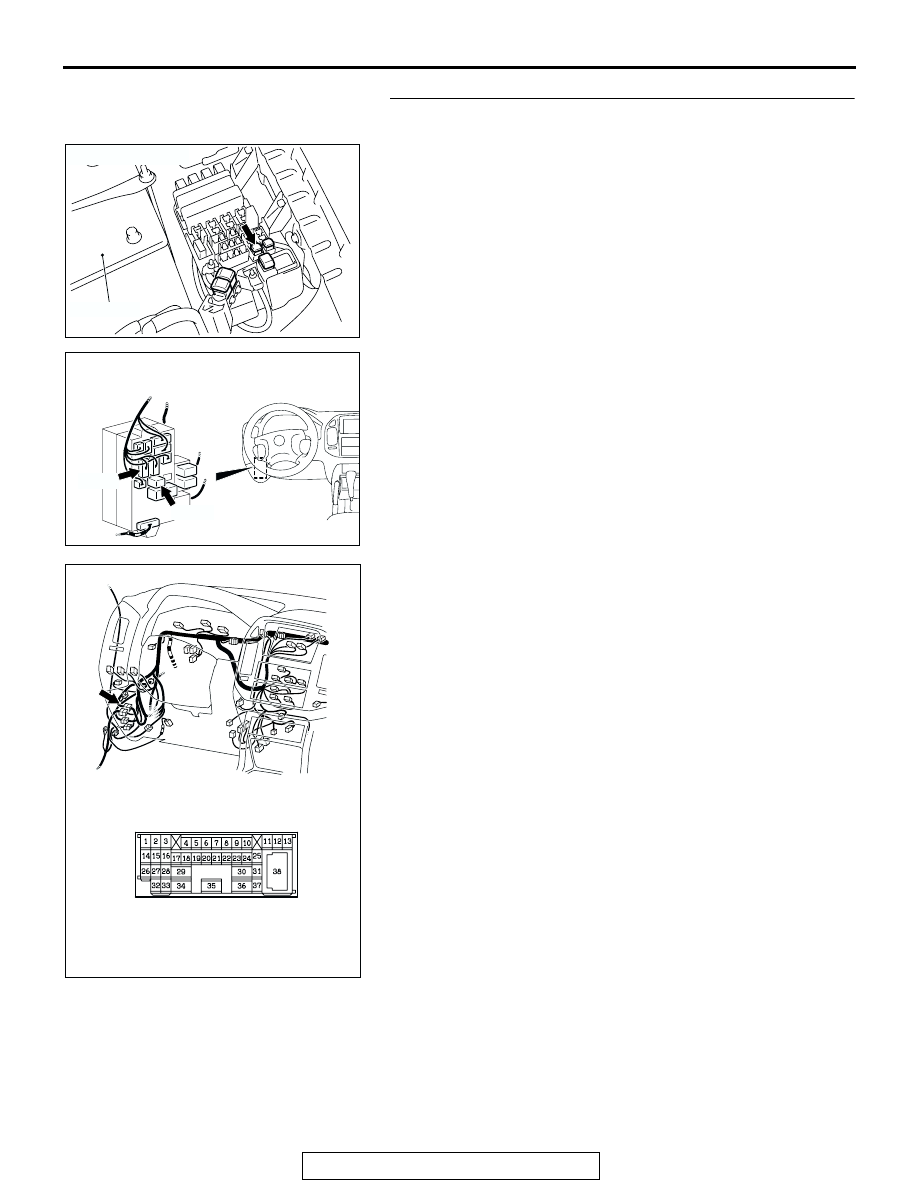

STEP 6. Check the wiring harness between power window
relay connector D-219 (terminal 5) and fusible link (4).

NOTE: Also check junction block connector D-221 and inter-
mediate connector D-28 for loose, corroded or damaged termi-
nals, or terminals pushed back in the connectors. If junction
block connector D-221 or intermediate connector D-28 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window relay

connector D-219 (terminal 5) and fusible link (4) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the power windows function should now work
normally.

ACX02274

FUSIBLE LINK (4)

AD

BATTERY

ACX02285

CONNECTORS: D-219, D-221

AQ

D-219

JUNCTION BLOCK (FRONT VIEW)

D-221

AC203859AB

CONNECTOR: D-28

D-28

D-28

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-142

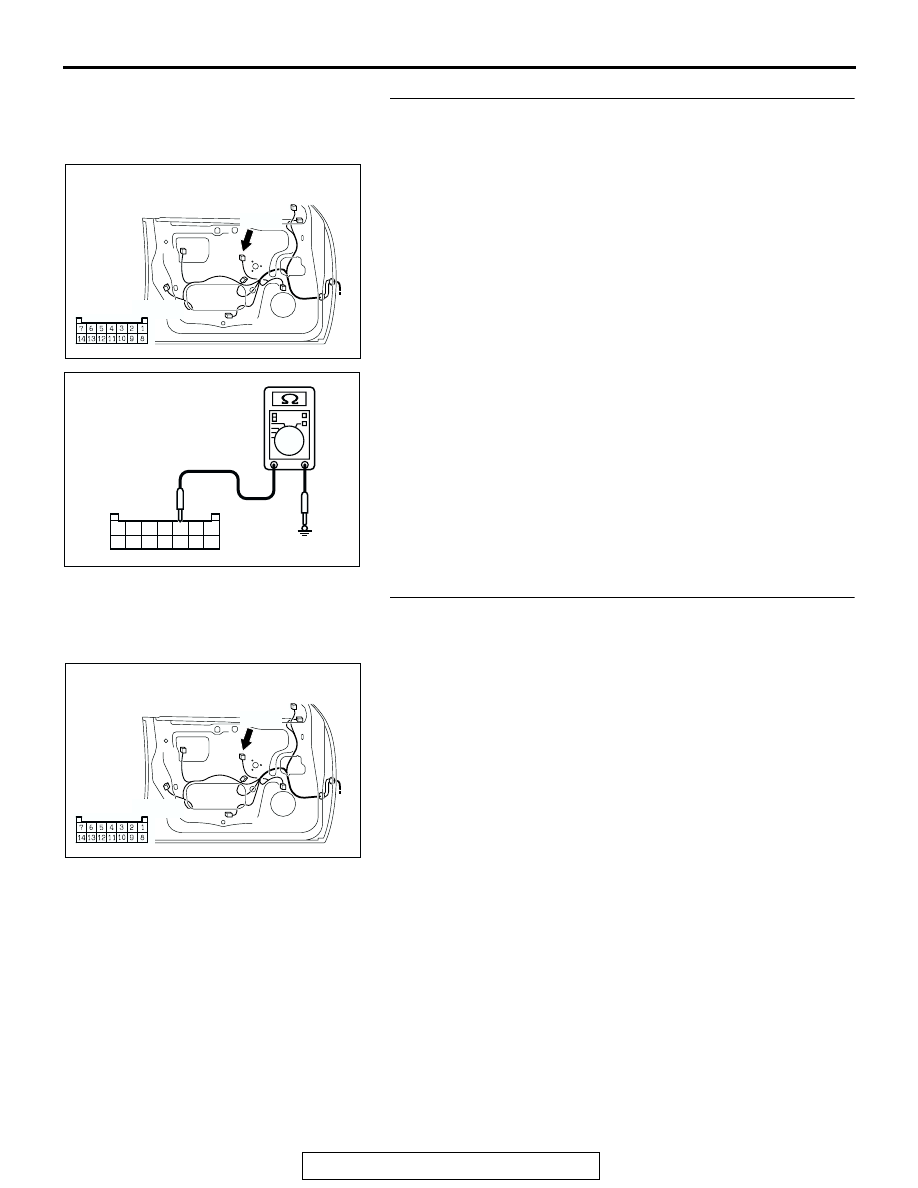

STEP 7. Check the ground circuit to the power window
main switch. Test at power window main switch connector
H-05.
(1) Disconnect power window main switch connector H-05 and

measure the resistance available at the harness side.

(2) Measure the resistance value between terminal 3 and

ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 10.
NO :  Go to Step 8.

STEP 8. Check power window main switch connector H-05
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is power window main switch connector H-05 in good

condition?
YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power windows function

should now work normally.

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

ACX01606 AB

CONNECTOR H-05
(HARNESS SIDE)

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)
