SOLENOID VALVE AND VACUUM HOSE

TSB Revision

FRONT AXLE

26-57

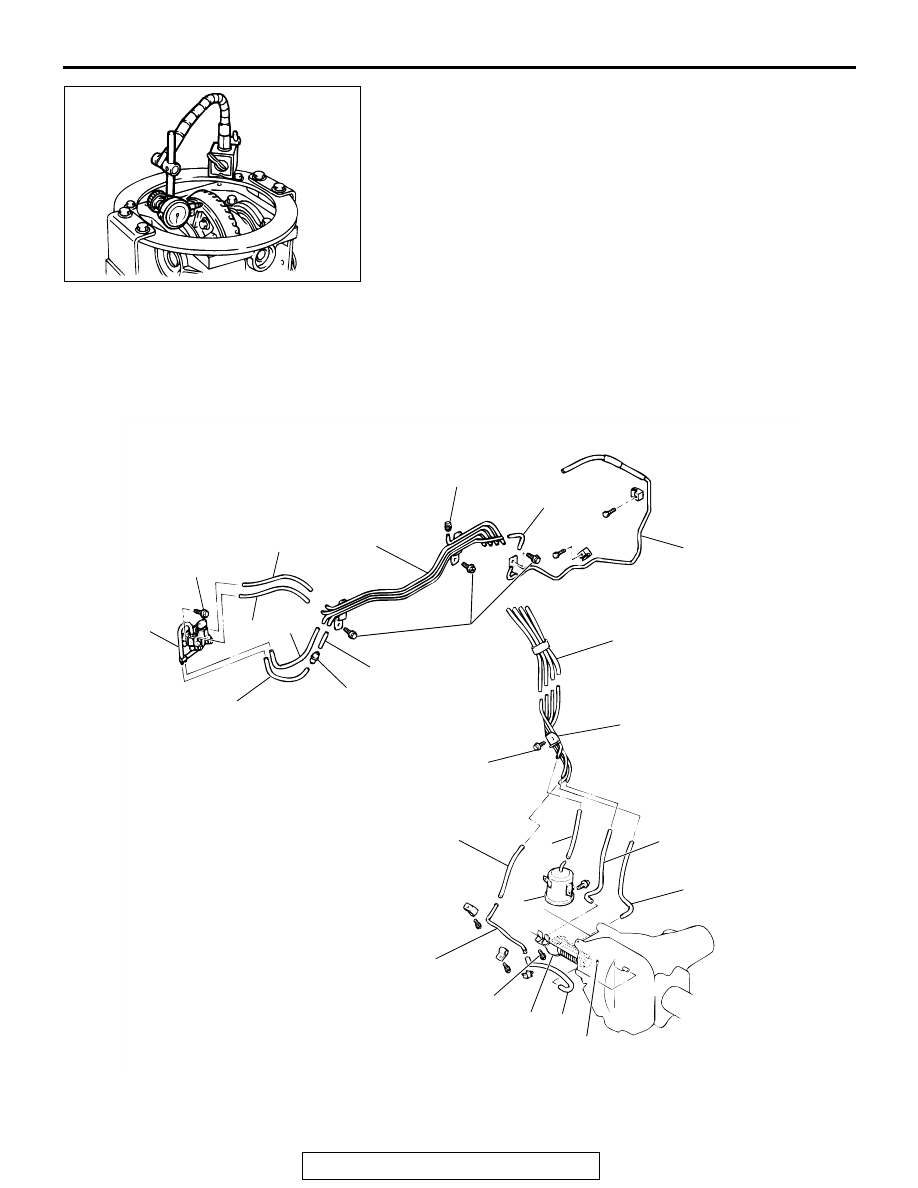

10.Measure the drive gear runout at the shoulder on the

reverse side of the drive gear.

Limit: 0.05 mm (0.002 inch)

11.If the drive gear runout exceeds the limit, reinstall by

changing the phase of the drive gear and differential case,
and remeasure.

12.If adjustment is not possible, replace the differential case or

replace the drive gear and drive pinion as a set.

SOLENOID VALVE AND VACUUM HOSE

REMOVAL AND INSTALLATION

M1262004500049

ACX01036 AB

AC000432

12

±

2 N

·

m

107

±

17 in-lb

1

11

2

12

10

9

10

16

15

7

6

5

4

1

3

13

10

8

10

18

17

17

±

3 N

·

m

13

±

2 ft-lb

12

±

2 N

·

m

107

±

17 in-lb

AB

14

9.0

±

1.0 N

·

m

80

±

9 in-lb

SOLENOID VALVE AND VACUUM HOSE

TSB Revision

FRONT AXLE

26-58

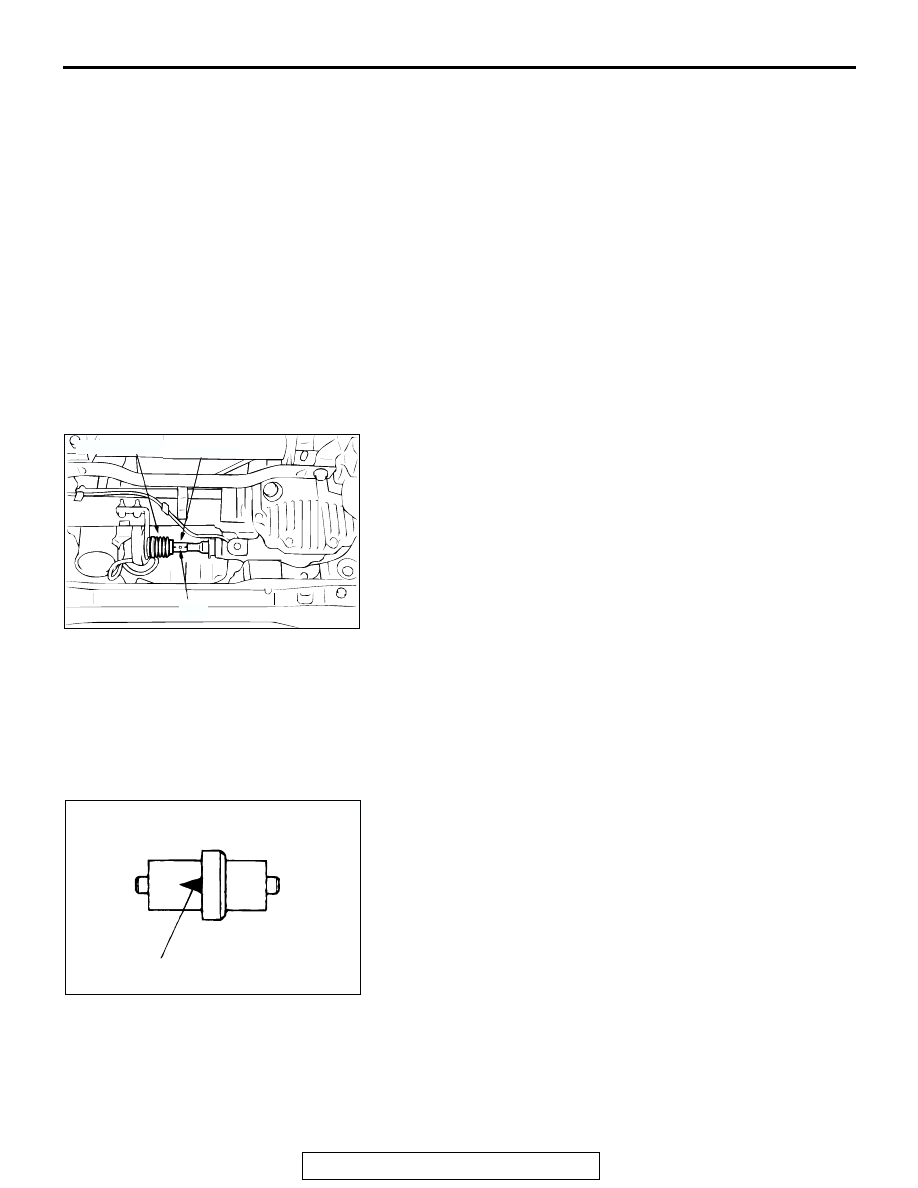

REMOVAL SERVICE POINT

.

<<A>> PIN REMOVAL
1. Remove one side of dust cover mounting part on vacuum

actuator assembly.

2. Match color of pin hole with that of another pin hole to

remove a pin with a punch.

INSTALLATION SERVICE POINTS

.

>>A<< VACUUM HOSE INSTALLATION
Match the color of each vacuum hose and solenoid valve and
vacuum pipe during assembly.

.

>>B<< CHECK VALVE INSTALLATION
Install so that the air direction arrow points to the vacuum side.







SOLENOID VALVE ASSEMBLY,
VACUUM TANK ASSEMBLY
REMOVAL STEPS

 >>A<<

1.  VACUUM HOSE (WHITE STRIPE.)

 >>A<<

2.  VACUUM HOSE (BLUE STRIPE.)

 >>A<<

3. VACUUM HOSE (YELLOW STRIPE.)





4.  VACUUM PIPE ASSEMBLY





5.  VACUUM HOSE ASSEMBLY





6.  VACUUM PIPE ASSEMBLY





7. BREATHER

CAP





8.  SOLENOID VALVE ASSEMBLY

 >>B<<

9. CHECK

VALVE





10. VACUUM HOSE





11. VACUUM HOSE





12.  VACUUM PIPE ASSEMBLY (6G7)





13. BREATHER PIPE





14.  VACUUM TANK ASSEMBLY







VACUUM ACTUATOR ASSEMBLY
REMOVAL STEPS

 >>A<<

15.  VACUUM HOSE (BLUE STRIPE)

CONNECTION

 >>A<<

16.  VACUUM HOSE (YELLOW STRIPE)

CONNECTION

<<A>>

17. PIN





18. VACUUM ACTUATOR ASSEMBLY







SOLENOID VALVE ASSEMBLY,
VACUUM TANK ASSEMBLY
REMOVAL STEPS (Continued)

ACX01019 AB

COLLAR

DUST COVER

PIN

ACX01077AB

VACUUM SIDE

AIR DIRECTION ARROW

SOLENOID
VALVE SIDE

FRONT DIFFERENTIAL MOUNT

TSB Revision

FRONT AXLE

26-59

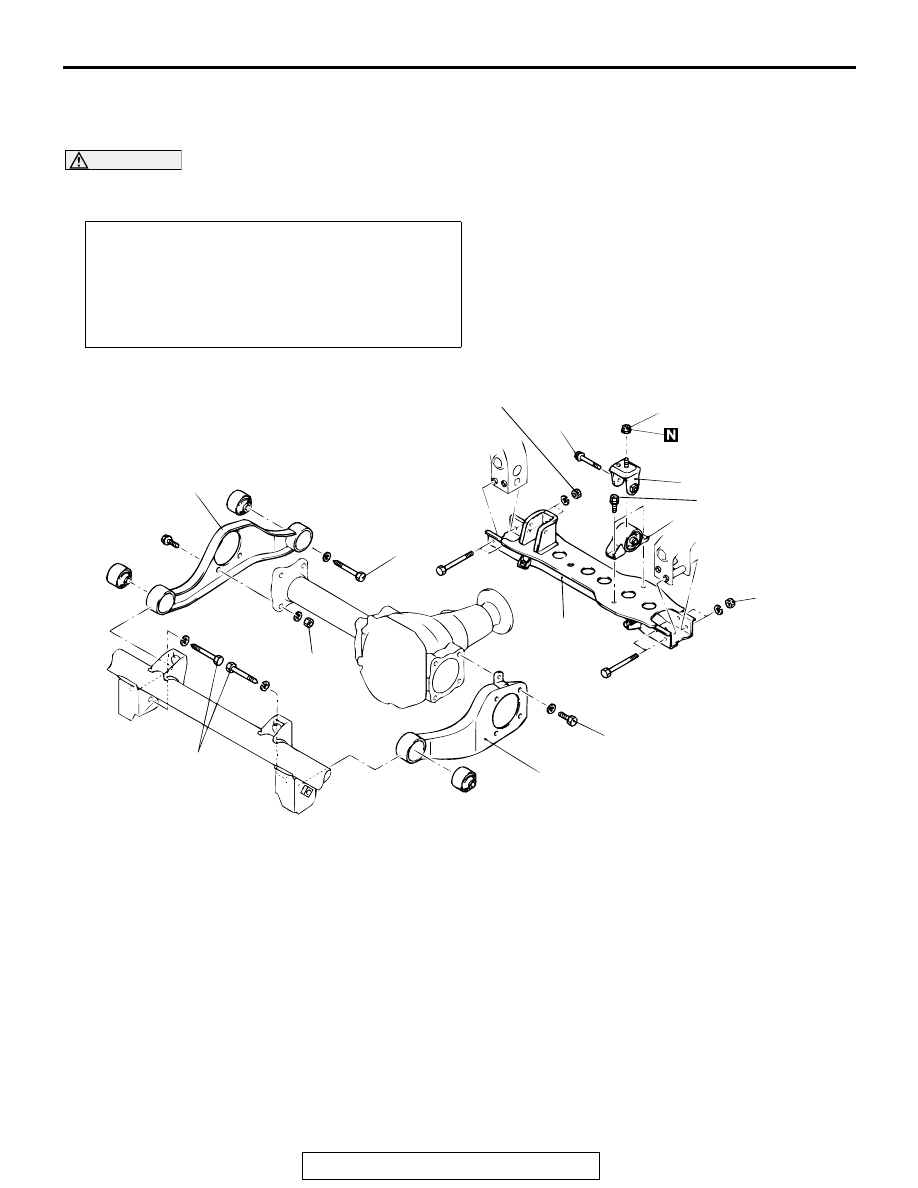

FRONT DIFFERENTIAL MOUNT

REMOVAL AND INSTALLATION

M1262001500040

CAUTION

*:Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on
the ground in the unladen condition.

Pre-removal and Post-installation Operation
• Under Cover Removal and Installation

• Skid Plate Removal and Installation (Refer to GROUP 51-

Front Bumper

P.51-3

.)

• Gear Oil Draining and Refill (Refer to

P.26-15

.)

• Drive Shaft Removal and Installation (Refer to

P.26-23

.)

• Inner Shaft Removal and Installation (Refer to

P.26-30

.)

ACX01078 AB

69

±

9 N

·

m *

51

±

7 ft-lb *

69

±

9 N

·

m *

51

±

7 ft-lb *

89

±

9 N

·

m

65

±

7 ft-lb

89

±

9 N

·

m

65

±

7 ft-lb

128

±

9 N

·

m

  94

±

7 ft-lb

23

±

4 N

·

m

17

±

3 ft-lb

59

±

9 N

·

m

43

±

7 ft-lb

69

±

9 N

·

m *

51

±

7 ft-lb *

1

3

2

4

5

128

±

9 N

·

m

  94

±

7 ft-lb







DIFFERENTIAL MOUNT
BRACKET ASSEMBLY (LH/RH)
REMOVAL STEPS

 >>A<<

1. DIFFERENTIAL

MOUNT

BRACKET ASSEMBLY (RH)

 >>A<<

2. DIFFERENTIAL MOUNT

BRACKET ASSEMBLY (LH)







DIFFERENTIAL MOUNT
BRACKET ASSEMBLY (REAR)
REMOVAL STEPS





3. NO.2

CROSSMEMBER





4. DIFFERENTIAL

SUPPORT

BRACKET





•

DIFFERENTIAL CARRIER AND
HOUSING ASSEMBLY

 >>A<<

5. DIFFERENTIAL

MOUNT

BRACKET ASSEMBLY (REAR)

FRONT DIFFERENTIAL MOUNT

TSB Revision

FRONT AXLE

26-60

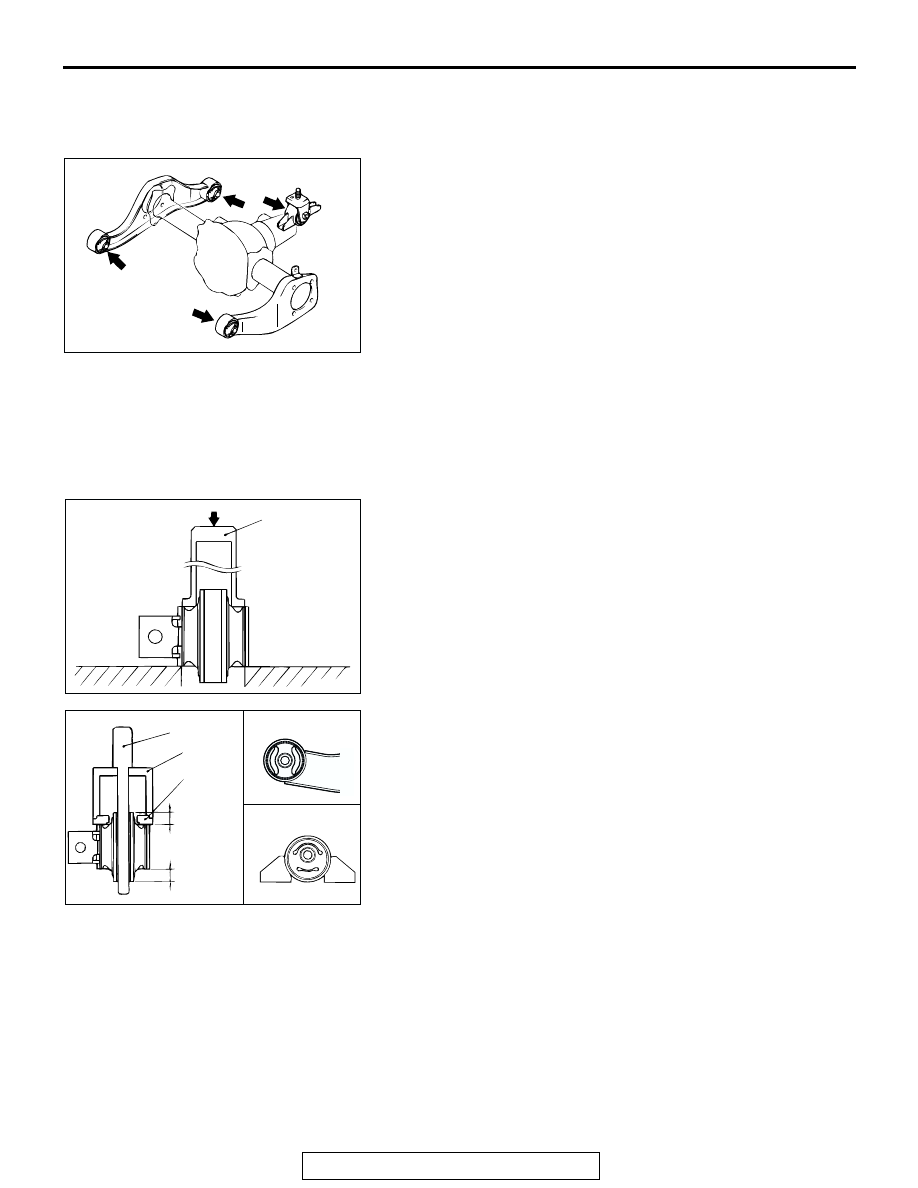

INSTALLATION SERVICE POINT

.

>>A<< DIFFERENTIAL MOUNT BRACKET ASSEMBLY
INSTALLATION
Tighten the bolts shown in the diagram with the specified
torque in the order of A, B, C, D or A, C, B, D.

DIFFERENTIAL MOUNTING INSULATOR
REPLACEMENT

M1262004900036

.

DIFFERENTIAL MOUNTING BRACKET <LH, RH-FRONT,
REAR>
1. Remove insulator with special tool MD999547.

2. Using special tools MB990947, MB990847 and MB990981

with a hydraulic press, press fit each insulator to adjust until
the hollow part faces as shown and the difference between
A and B is 0.7 mm (0.03 inch).

.

ACX01020 AB

C

B

D

A

ACX01079AB

MD999547

ACX01080

AB

MB990947

MB990847

MB990981

A

B

<REAR>

<LH, RH-FRONT>
