Mitsubishi Montero (2002-2004). Manual - part 1145





M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-197

.

CIRCUIT OPERATION
The Active skid control system OFF indicator light is
connected from the ignition switch (IG1) through
multi-purpose fuse No.6 and the combination meter
to the M-ASTC-ECU. The M-ASTC-ECU turns on
and off the indicator light.

.

TECHNICAL DESCRIPTION (COMMENT)
This symptom is caused by a shorted Active skid
control system OFF indicator light circuit.

.

TROUBLESHOOTING HINTS (The most likely
causes for this condition:)

• Damaged wiring harness

• Malfunction of M-ASTC-ECU

.

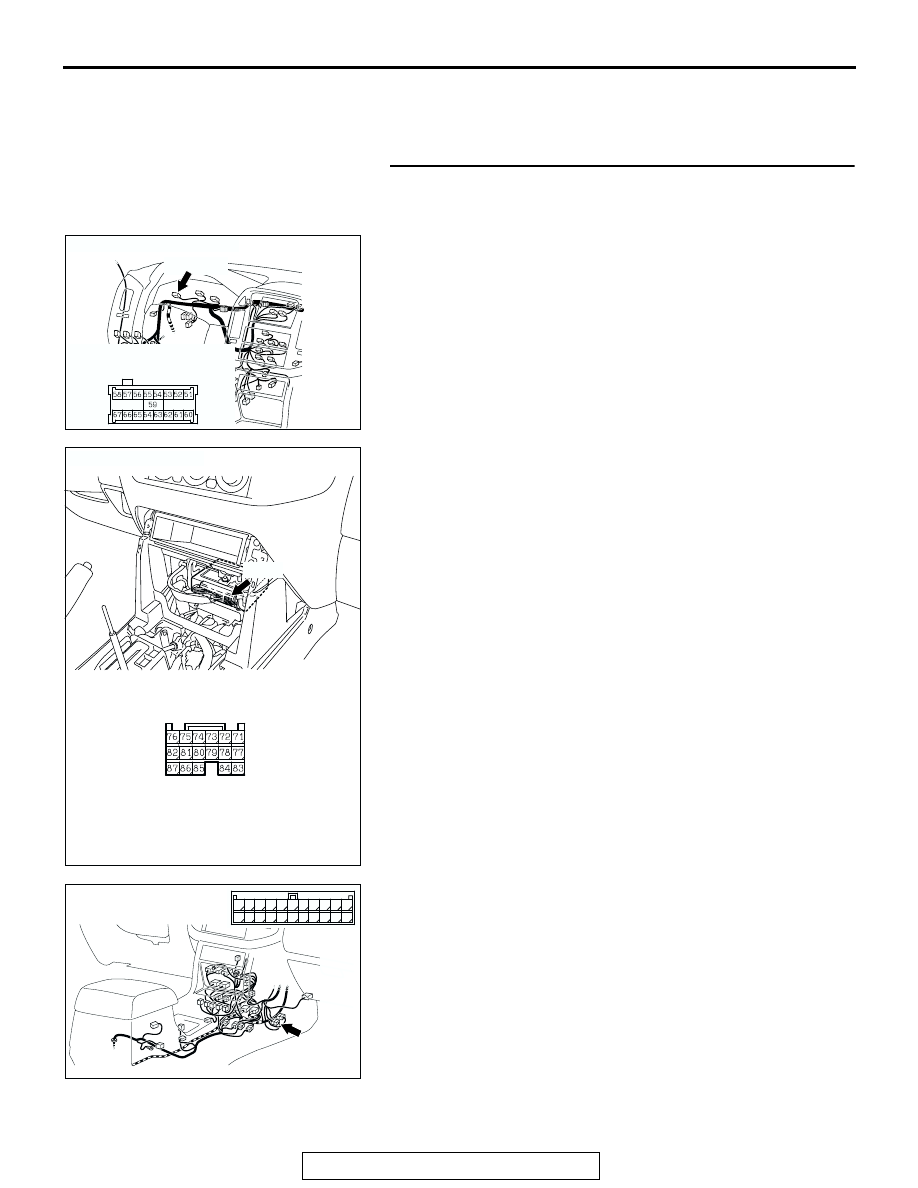

AC204546 AB

CONNECTOR: D-03

D-03 (GR)

AC204547AC

CONNECTORS: D-208, D-210

D-208

D-210

JUNCTION BLOCK
(FRONT VIEW)

AC203901AG

CONNECTOR: E-121

E-121

AC204548

E-122

AO

CONNECTOR: E-122

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-198

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check the harness wires between combination
meter connector D-03 terminal 51 and M-ASTC-ECU
connector E-121 terminal 82.
NOTE: After inspecting combination meter connector combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121, inspect the wire. If combina-
tion meter connector D-03, intermediate connector E-122 and
M-ASTC-ECU connector E-121 are damaged, repair or replace
them. Refer to GROUP 00E, Harness Connector Inspection

P.00-6

. Then go to Step 2.

Q: Is the harness wire between combination meter

connector D-03 terminal 51 and M-ASTC-ECU connector
E-121 terminal 82 damaged?
NO :
Replace the M-ASTC-ECU and then go to Step 2.
YES : Repair it and then go to Step 2.

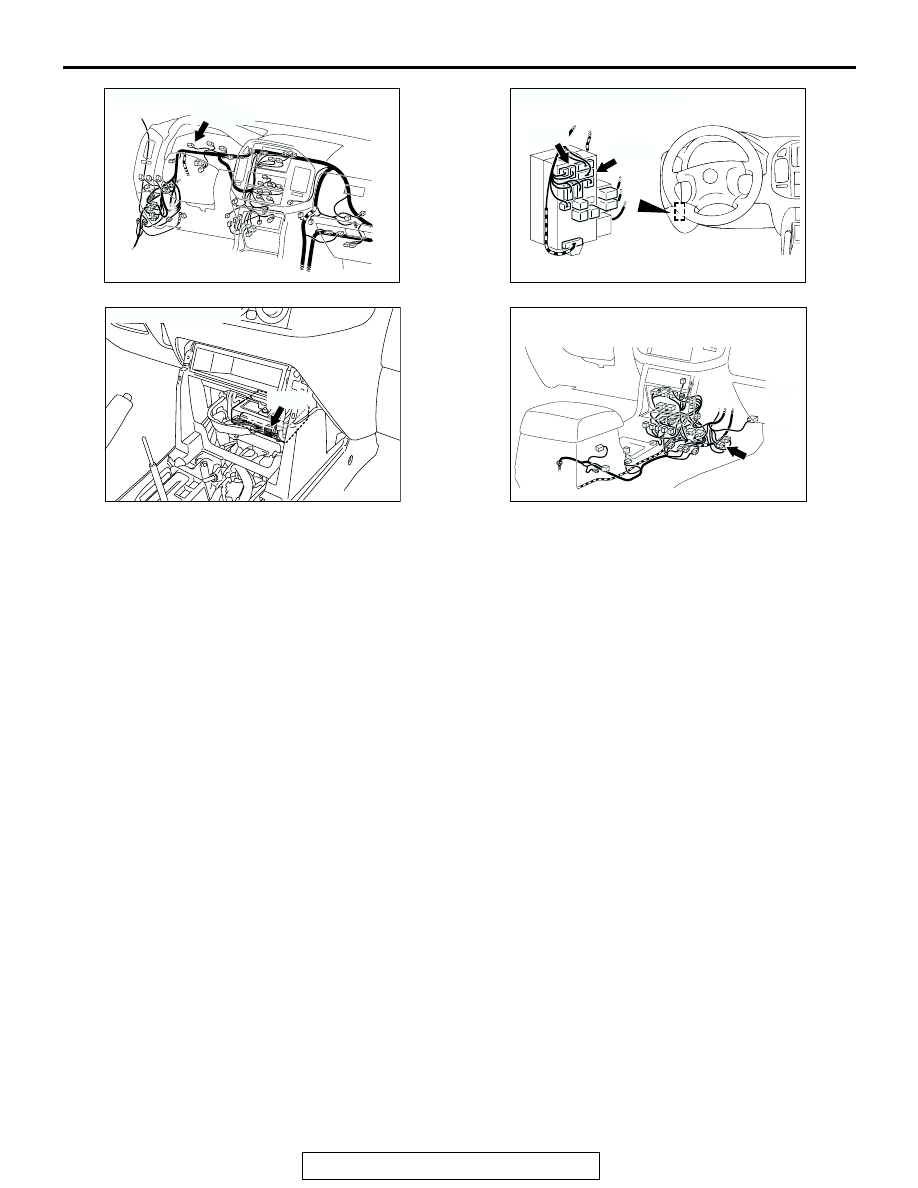

AC204687AD

CONNECTOR: D-03

D-03 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AC203901

AC204627AR

CONNECTOR: E-121

E-121

E-121

HARNESS CONNECTOR:
COMPONENT SIDE

AC204548

E-122(L)

AP

CONNECTOR: E-122

2

1

3

13

12

14

21

10

5

4

6

16

15

17

7 8 9

19

18

20

11

22

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-199

STEP 2. Retest the system.
Q: Does the Active skid control system OFF indicator light

turn off 3 seconds after start-up?
YES :
The procedure is complete.
NO :  Return to Step 1.

DATA LIST REFERENCE TABLE

M1353001200026

The M-ASTC-ECU also controls the ABS system.
For the Data list reference table, refer to GROUP
35B, Data List Reference Table

P.35B-111

.

ACTUATOR TEST REFERENCE

M1353001300023

The scan tool activates the following actuators for
testing.
NOTE: If the M-ASTC-ECU is inoperative, actuator
testing cannot be carried out.

NOTE: Actuator testing is only possible when the
vehicle is stationary. If the vehicle speed during actu-
ator testing exceeds 10 km/h (6 mph), forced actua-
tion will be canceled.

ACTUATOR TEST SPECIFICATIONS

MUT-II SCAN
TOOL DISPLAY

ITEM
NO.

CHECK ITEM

PARTS TO BE
ACTIVATED

ACTIVATION
WHEN THE
SYSTEM
FAILS

FR ACTIVE SKID
CONTROL
SYSTEM VALVE

05

Solenoid valve for front-right wheel ACTIVE SKID CONTROL

SYSTEM control solenoid
valves for the respective
channel

Disabled

FL ACTIVE SKID
CONTROL
SYSTEM VALVE

06

Solenoid valve for front-left wheel

RR ACTIVE SKID
CONTROL
SYSTEM VALVE

07

Solenoid valve for rear-right wheel

RL ACTIVE SKID
CONTROL
SYSTEM VALVE

08

Solenoid valve for rear-left wheel

HBB MOTOR

11

Pump motor

Drives the pump motor for
one second.

Disabled

HBB BUZZER

12

Buzzer

Drives the buzzer for
three seconds.

Disabled

ENG. TRQ DOWN 13

Engine

Engine torque reduction

Disabled

ST SNSR: 0

14

Steering wheel sensor

Neutral point in steering
wheel sensor

Enabled

YAWRATE SNS: 0 15

Yaw rate sensor

Neutral point in yaw rate
sensor

Enabled

G SNSR: 0

16

G sensor

Neutral point in G sensor Enabled

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-200

BRKE WARN LMP 23

Brake warning light

Blink two times the brake
warning light.

Enabled
(However,
disabled when
the brake
warning light
cannot be
activated)

ABS FAIL LMP

24

ABS warning light

Blink two times ABS
warning light

Enabled
(However,
disabled when
the ABS
warning light
cannot be
activated)

ACTIVE SKID
CONTROL
SYSTEM OP
LAMP

25

Active skid control system operation
indicator light/Active traction control
system operation indicator light

Blink two times the Active
skid control system
operation indicator light/
Active traction control
system operation
indicator light

Enabled
(However,
disabled when
the Active skid
control system
operation
indicator light/
Active traction
control system
operation
indicator light
cannot be
activated)

ACTIVE SKID
CONTROL
SYSTEM OFF
LAMP

26

Active skid control system OFF
indicator light

Blink two times the Active
skid control system OFF
indicator light

Enabled
(However,
disabled when
the Active skid
control system
OFF indicator
light cannot be
activated)

MUT-II SCAN
TOOL DISPLAY

ITEM
NO.

CHECK ITEM

PARTS TO BE
ACTIVATED

ACTIVATION
WHEN THE
SYSTEM
FAILS
