DAMPER CONTROL MOTOR ASSEMBLY

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-145

DAMPER CONTROL MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

M1554001600032

INSPECTION

M1554001700039

.

AIR MIX DAMPER CONTROL MOTOR CHECK

CAUTION

Do not apply battery voltage when the damper is in the
MAX COOL or MAX HOT position.
Check the air mix damper control motor by the following proce-
dures.

ACX01447

1

2

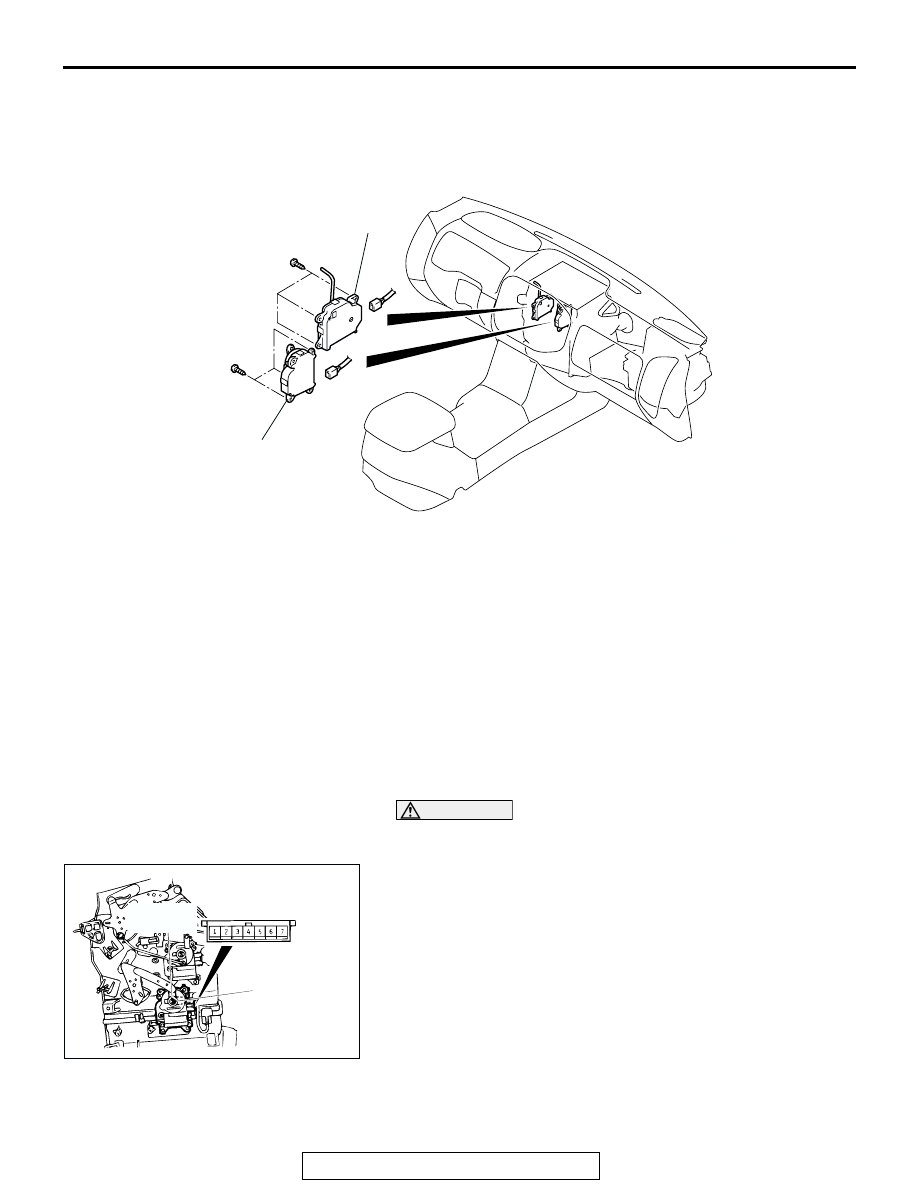

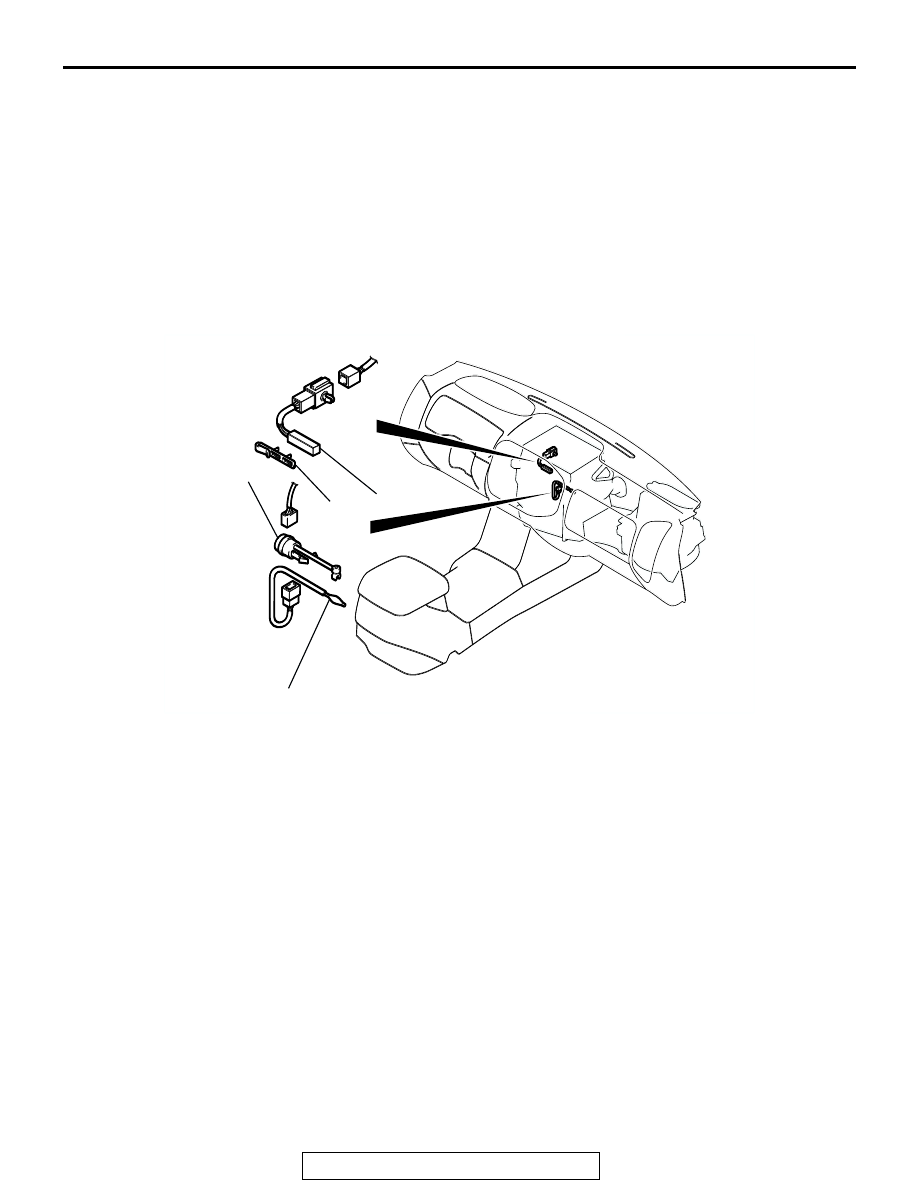

REMOVAL STEPS

•

UNDER COVER (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-2

.)

1.

AIR MIX DAMPER MOTOR

2.

AIR OUTLET CHANGEOVER
DAMPER MOTOR

REMOVAL STEPS (Continued)

ACX01456

MAX HOT
POSITION

MAX COOL
POSITION

AB

DAMPER CONTROL MOTOR ASSEMBLY

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-146

.

POTENTIOMETER CHECK
While checking the air mix damper control motor, measure the
resistances between terminals numbers 3 and 5 as well as
numbers 3 and 7. At this time, the resistances should change
gradually within the standard value.

Standard value: 1.2

− 4.8 k

.

MODE SELECTION DAMPER CONTROL MOTOR CHECK

CAUTION

Do not apply battery voltage when the damper is in the
FACE or DEF position.

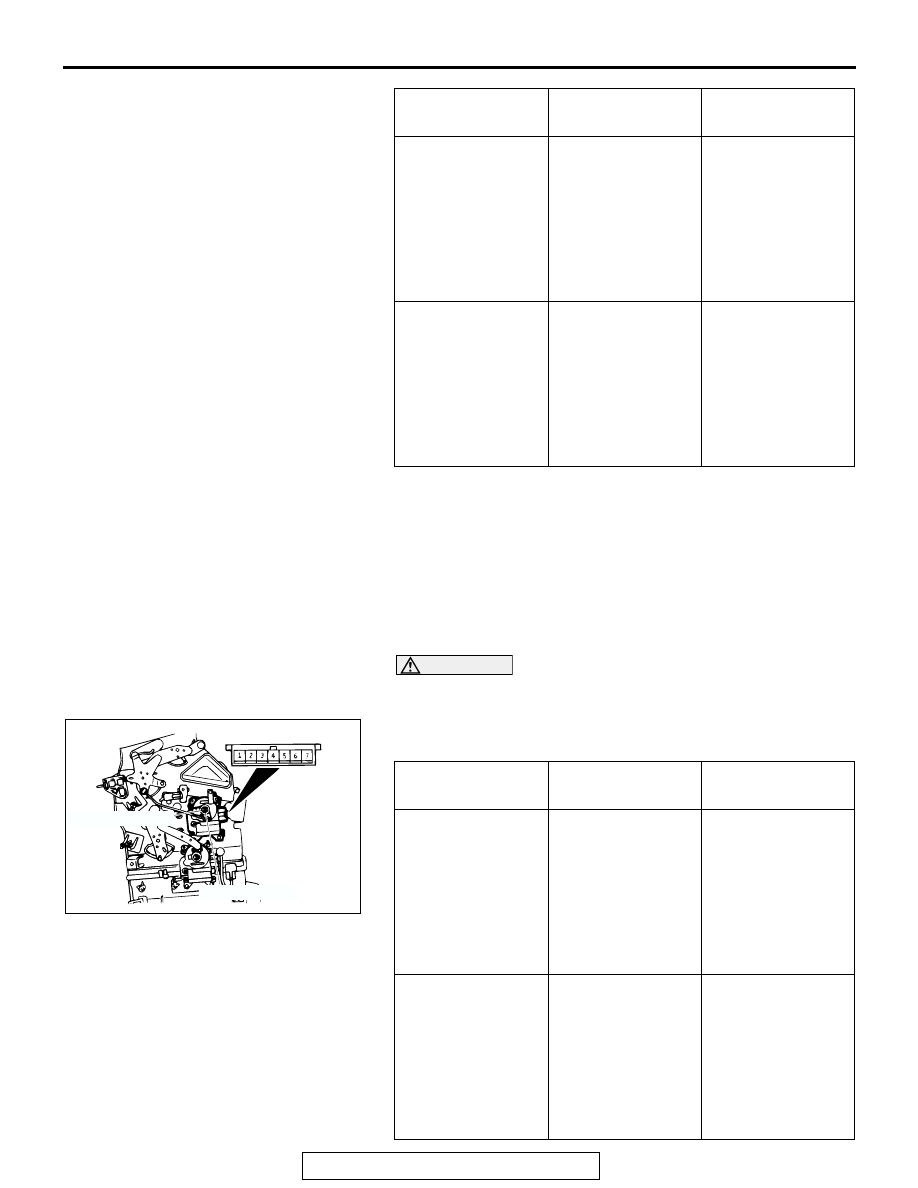

Check the mode selection damper control motor by the follow-
ing procedures.

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the MAX COOL
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 2 to the
negative battery
terminal

The lever moves
from the MAX
COOL position to
the outside position

At the MAX HOT
position

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 1 to the
negative battery
terminal

The lever moves
from the MAX HOT
position to the
inside position

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the DEF position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 2 to the
negative battery
terminal

The lever moves
from the DEF
position to the
outside position

At the FACE
position

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 1 to the
negative battery
terminal

The lever moves
from the FACE
position to the
inside position

ACX01457

FACE POSITION

DEF POSITION

AB

SENSORS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-147

.

POTENTIOMETER CHECK
While checking the mode selection damper control motor, mea-
sure the resistances between terminal numbers 3 and 5 as well
as terminal numbers 3 and 7. At this time, the resistances
should change gradually within the standard value.

Standard value: 0.96

− 5.76 k Ω

SENSORS

REMOVAL AND INSTALLATION

M1554001900033

INSTALLATION SERVICE POINT

.

>>A<< HEATER WATER TEMPERATURE SENSOR/HEATER
WATER TEMPERATURE SENSOR CLIP INSTALLATION
Insert the heater water temperature sensor into the mounting
hole on the heater unit, and secure the sensor with the clip.

ACX01443

1

2

3

4

AB

ACX01443

REMOVAL STEPS

•

UNDER COVER (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-2

.)

1.

AIR THERMO SENSOR CLIP

2.

AIR THERMO SENSOR

•

UNDER COVER (REFER TO
GROUP 52A, INSTRUMENT
PANEL

P.52A-2

.)

>>A<<

3.

HEATER WATER TEMPERATURE
SENSOR CLIP

>>A<<

4.

HEATER WATER TEMPERATURE
SENSOR

REMOVAL STEPS (Continued)

REAR A/C SWITCH AND FRONT REAR FAN SWITCH

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-148

INSPECTION

M1554002000033

.

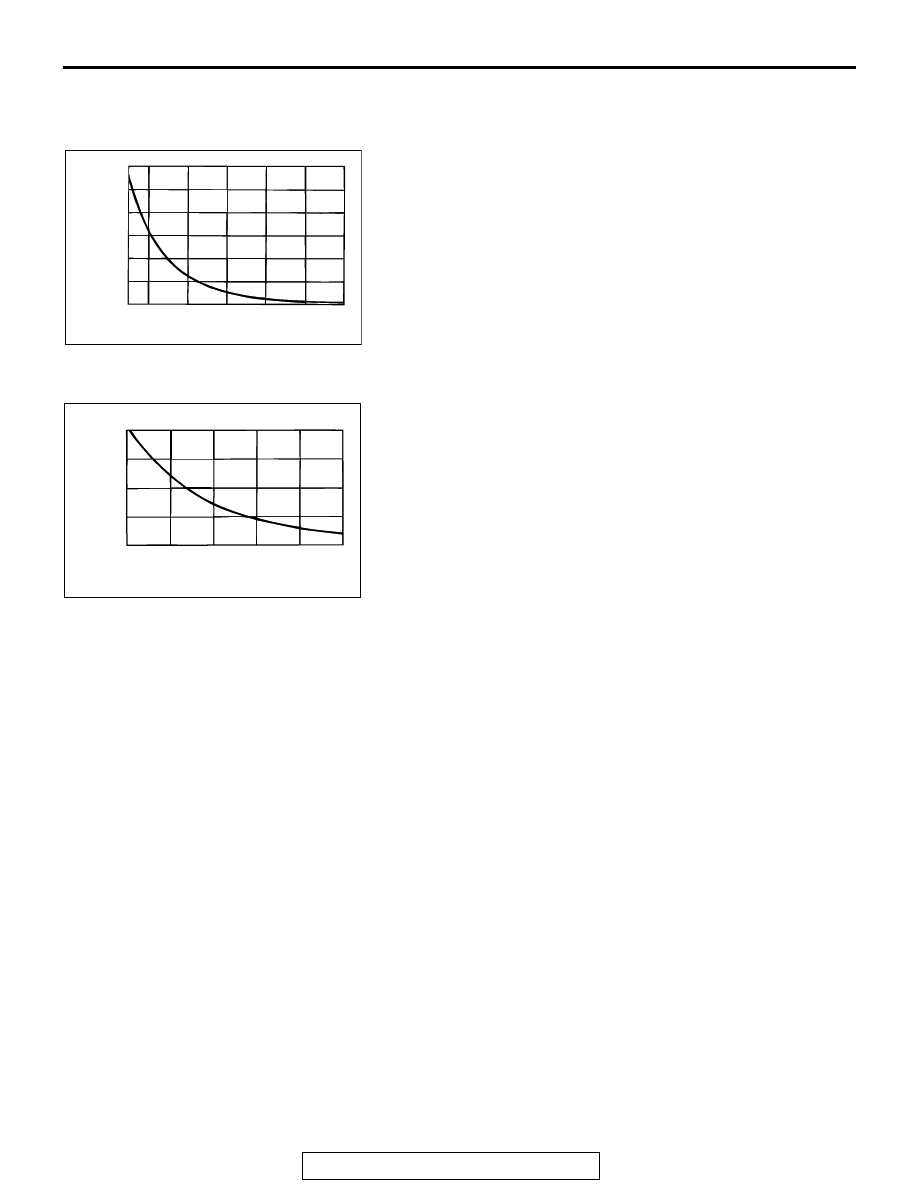

HEATER WATER TEMPERATURE SENSOR CHECK
NOTE: The temperature conditions when checking should not
exceed the range shown in the diagram.
When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions, the resis-
tance should approximately satisfy the illustrated values.

.

AIR THERMO SENSOR CHECK
NOTE: The temperature conditions when checking should not
exceed the range shown in the diagram.
When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions, the resis-
tance should approximately satisfy the illustrated values.

REAR A/C SWITCH AND FRONT REAR FAN SWITCH

REMOVAL AND INSTALLATION

M1554009700011

The removal and installation is the same as for vehi-
cles with rear heater. (Refer to GROUP 55A, Rear
Heater Switch and Front Rear Fan Switch

P.55A-

137

.)

INSPECTION

M1554009800029

The checking procedure is the same as for vehicles
with rear heater. (Refer to GROUP 55A, Rear Heater
Switch and Front Rear Fan Switch

P.55A-138

.)

REAR A/C CONTROL UNIT

REMOVAL AND INSTALLATION

M1554010000027

The removal and installation is the same as for vehi-
cles with rear heater. (Refer to GROUP 55A, Rear A/
C control unit

P.55A-139

.)

ACX00826AC

RESISTANCE
   (k

Ω

)

TEMPERATURE ˚C(˚F)

20

25

30

15

10

5

0

0

20

40

60

80

100

-10

(32)

(68)

(104)

(140) (176) (212)

(14)

AC001043

RESISTANCE k

Ω

8

6

4

2

0

-10

0

 10

 20

 30

   40

TEMPERATURE ˚C(˚F)

AB

(14)

(32)

(50)

(86)

(104)

(68)
