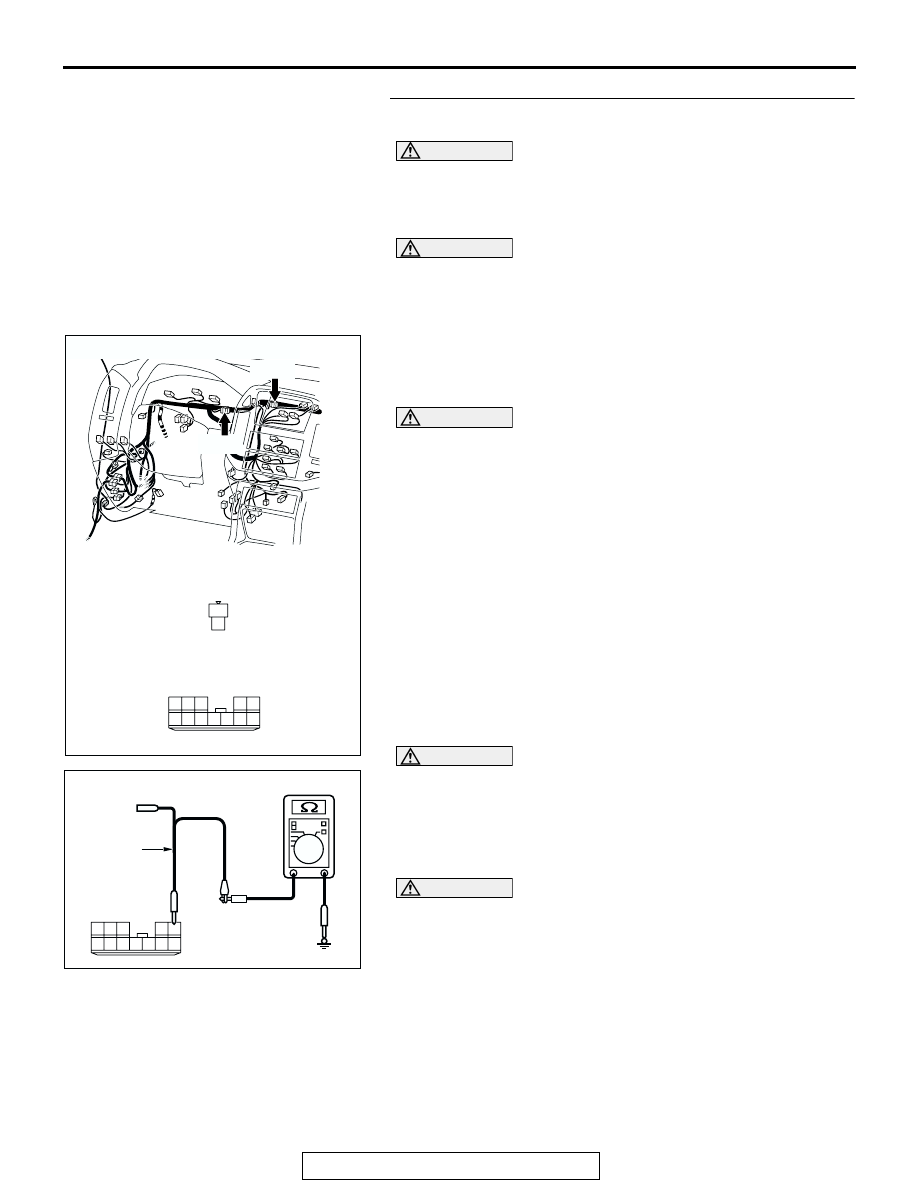

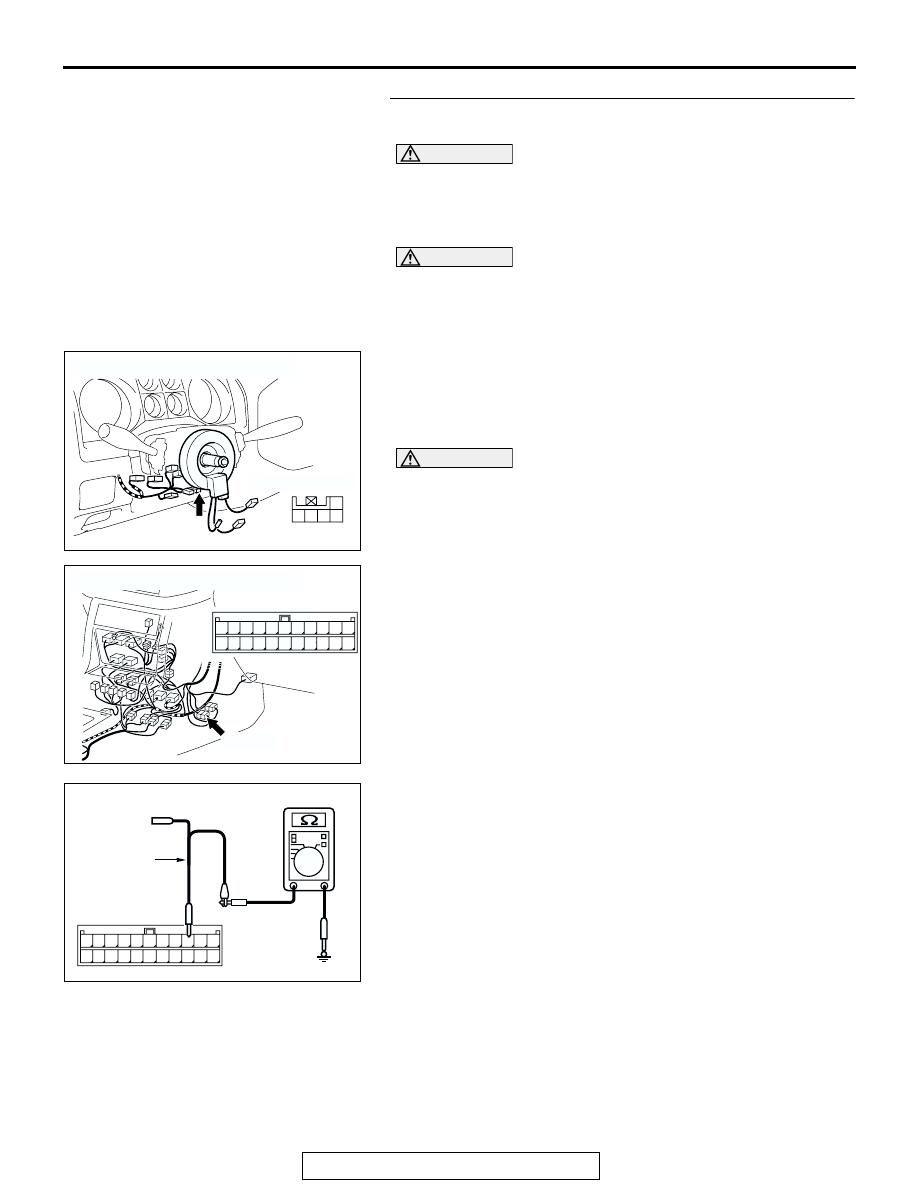

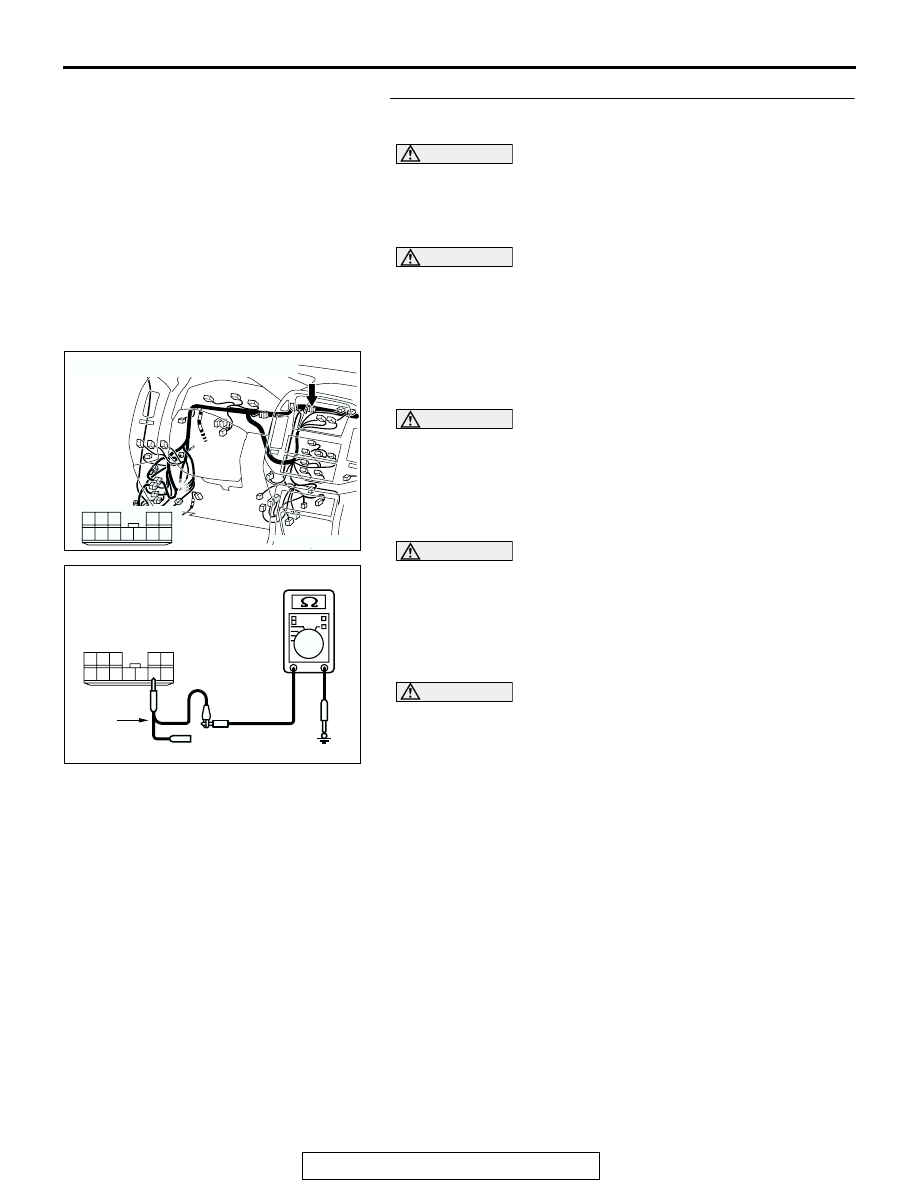

M-ASTC DIAGNOSIS

TSB Revision

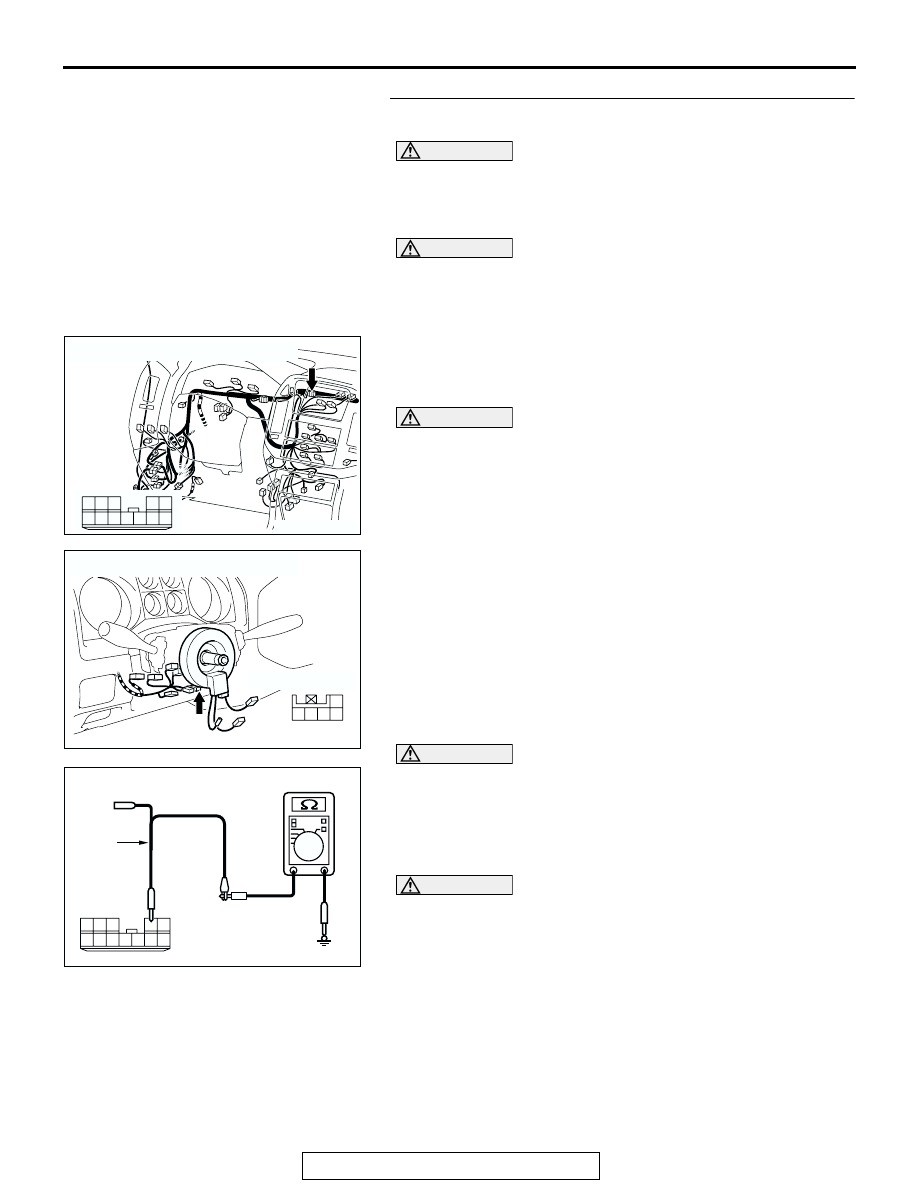

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-105

STEP 10. Check the resistance in the CAN_H line. Check at
intermediate connector E-122.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect intermediate connector E-122 and steering

wheel sensor connector D-225, and measure the resistance
at the male intermediate connector (instrument panel wiring
harness side).

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

(4) Measure the resistance between intermediate connector E-

122 terminal 9 and body ground.

• The resistance should be infinite.

Q: Is the resistance infinite?

YES : Replace the steering wheel sensor.
NO :  Go to Step 11.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204176

CONNECTOR: E-122

E-122(L)

MALE SIDE

E-122(L)

AF

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC204581

MALE CONNECTOR: E-122

AJ

TEST
HARNESS

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-106

STEP 11. Check the resistance in the CAN_H line. Measure
at joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect joint connector (9) D-131, and measure the

resistance between joint connector (9) and body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring
the resistance value in the CAN bus line. If you fail to do
so, the equipments, which are connected through the CAN
communication lines, may be damaged.
(3) Disconnect the negative battery terminal.

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 7 and body ground.

• The resistance should be infinite.

CAUTION

If you repair the CAN bus line of the instrument panel wir-
ing harness assembly (the wiring harness connected to
the steering wheel sensor, the data link connector and the
resistor) and the transmission wiring harness assembly
(the wiring harness connected to the G and yaw rate sen-
sor connector and intermediate connector E-123), observe
the precautions regarding how to repair wiring harness. If
a new wire is added or a splice point is modified for the
CAN_L or CAN_H line, an error in the CAN communication
may be caused.
Q: Is the resistance infinite?

YES : Go to Step 12.
NO :  Repair the wiring harness wires between joint

connector (9) and the data link connector.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204581

HARNESS SIDE: D-131

AQ

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-107

STEP 12. Check the resistance in the CAN_H line. Measure at
joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected compo-
nents, "ground" yourself, by touching a metal object such as an
unpainted pipe, this will discharge any potentially damaging
static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus lines,
use a digital multimeter. If not using a digital multimeter, the
equipments, which are connected through the CAN communica-
tion lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and resistor connector D-

130, and measure the resistance between joint connector (9) and
body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring the
resistance value in the CAN bus line. If you fail to do so, the
equipments, which are connected through the CAN communica-
tion lines, may be damaged.
(3) Disconnect the negative battery terminal.

CAUTION

Always use the test harness when measuring the voltage or
resistance value at the female connector. If you fail to do so,
connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 1 and body ground.

• The resistance should be infinite.

CAUTION

If you repair the CAN bus line of the instrument panel wiring har-
ness assembly (the wiring harness connected to the steering
wheel sensor, the data link connector and the resistor) and the
transmission wiring harness assembly (the wiring harness con-
nected to the G and yaw rate sensor connector and intermediate
connector E-123), observe the precautions regarding how to
repair wiring harness. If a new wire is added or a splice point is
modified for the CAN_L or CAN_H line, an error in the CAN com-
munication may be caused.
Q: Is the resistance infinite?

YES :  Go to Step 13.
NO :  Repair the wiring harness wires between joint connector (9)

and the resistor connector.

AC204188

CONNECTORS: D-130, D-131

D-131

AQ

HARNESS SIDE

HARNESS SIDE

D-131

D-130

D-130

6

1

9 8

2

7

10

12 11

4

5

3

1
2

AC204581

HARNESS SIDE: D-131

AL

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-108

STEP 13. Check the resistance in the CAN_H line. Measure at
joint connector (9) D-131.

CAUTION

Before checking CAN bus lines and their interconnected compo-
nents, "ground" yourself, by touching a metal object such as an
unpainted pipe, this will discharge any potentially damaging
static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus lines,
use a digital multimeter. If not using a digital multimeter, the
equipments, which are connected through the CAN communica-
tion lines, may be damaged.
(1) Disconnect joint connector (9) D-131 and steering wheel sensor

connector D-225, and measure the resistance between joint
connector (9) and body ground.

(2) Turn the ignition switch to the LOCK (OFF) position.

CAUTION

Disconnect the negative battery terminal when measuring the
resistance value in the CAN bus line. If you fail to do so, the
equipments, which are connected through the CAN communica-
tion lines, may be damaged.
(3) Disconnect the negative battery terminal.

CAUTION

Always use the test harness when measuring the voltage or
resistance value at the female connector. If you fail to do so,
connectors may be damaged.
(4) Measure the resistance between joint connector (9) D-131

terminal 2 and body ground.

• The resistance should be infinite.

CAUTION

If you repair the CAN bus line of the instrument panel wiring har-
ness assembly (the wiring harness connected to the steering
wheel sensor, the data link connector and the resistor) and the
transmission wiring harness assembly (the wiring harness con-
nected to the G and yaw rate sensor connector and intermediate
connector E-123), observe the precautions regarding how to
repair wiring harness. If a new wire is added or a splice point is
modified for the CAN_L or CAN_H line, an error in the CAN com-
munication may be caused.
Q: Is the resistance infinite?

YES :  Go to Step 14.
NO :  Repair the wiring harness wires between joint connector (9)

and the steering wheel sensor connector.

AC204170

CONNECTOR: D-131

AT

6

1

9 8

2

7

10

12 11

4

5

3

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204581

HARNESS SIDE: D-131

AM

TEST
HARNESS

6

1

9 8

2

7

10

12 11

4

5

3
