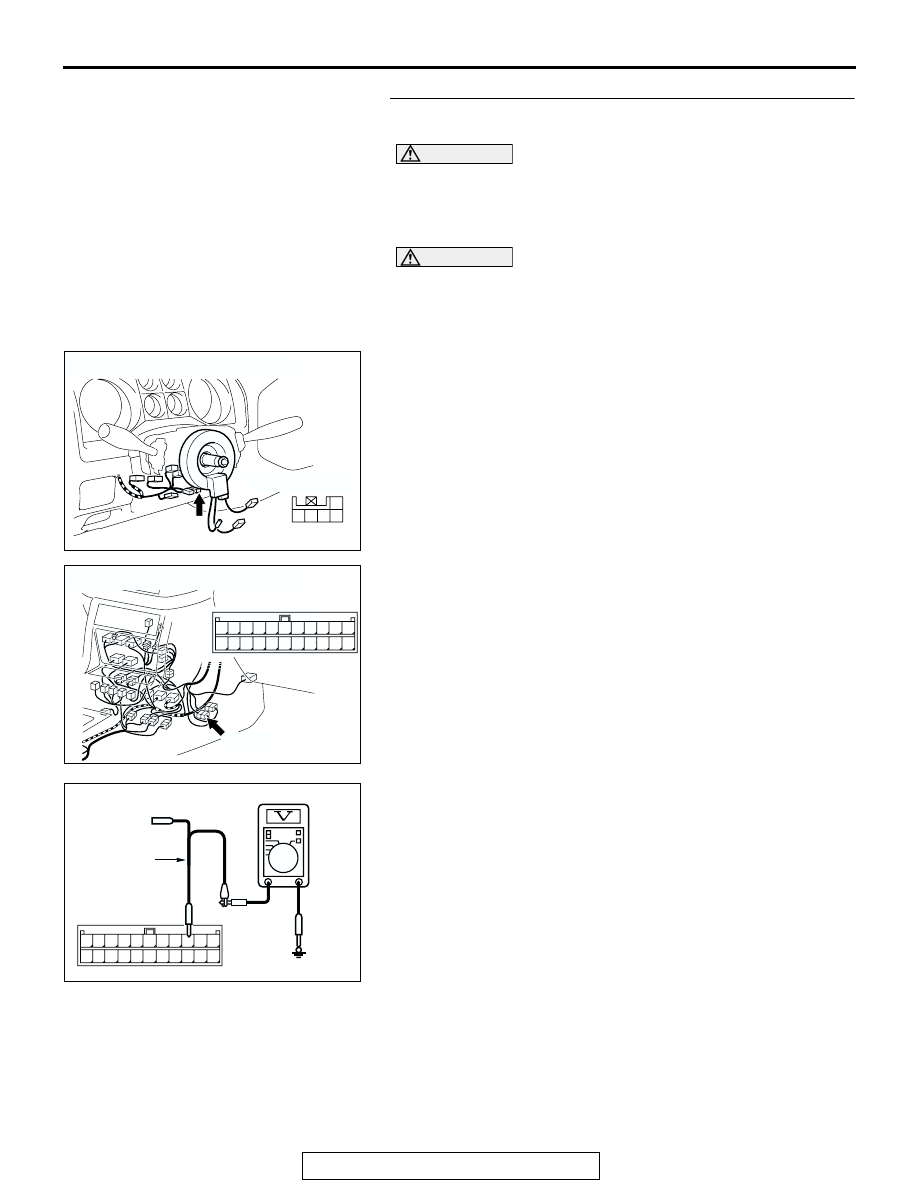

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-97

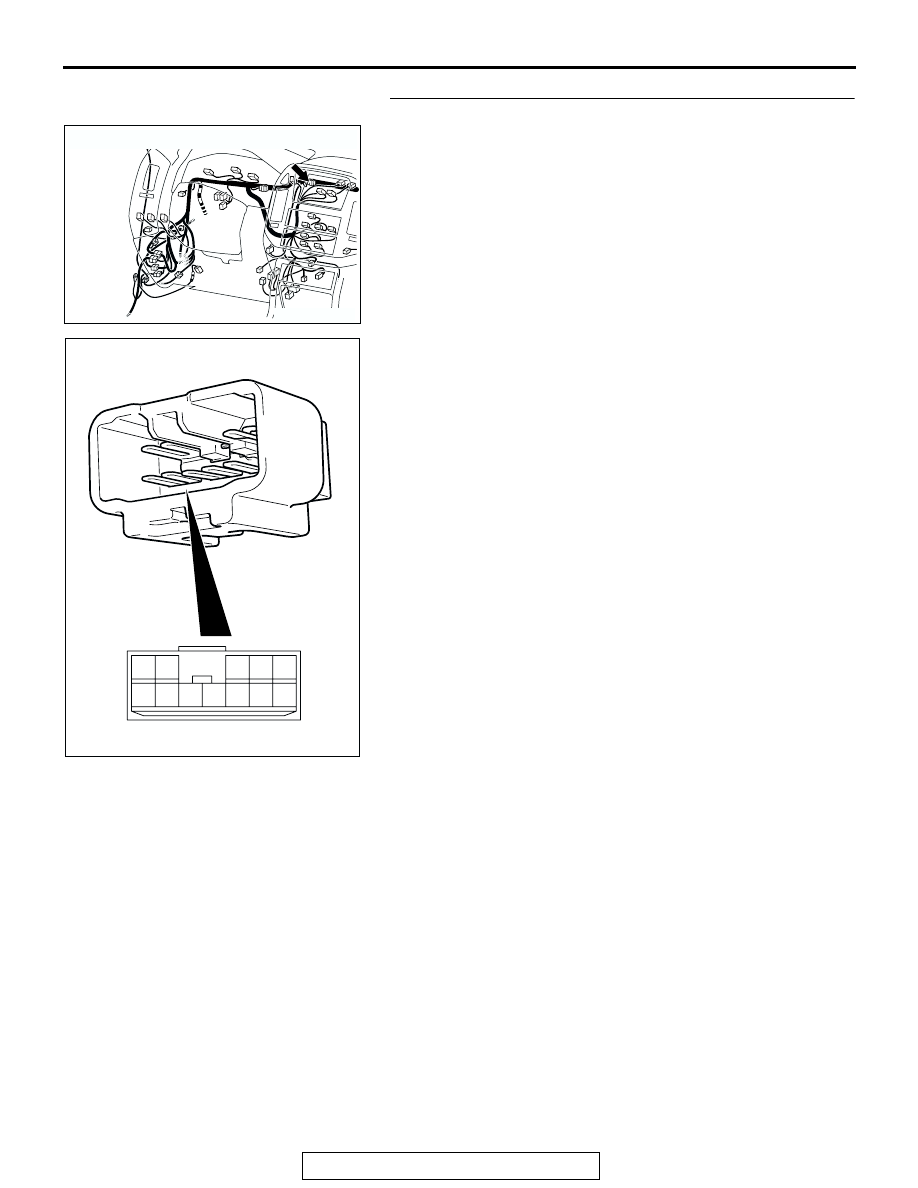

STEP 2. Check the joint connector.
Disconnect joint connector (9), and check the short pin behind
the connector for corrosion, deformation and delamination.
Q: Is joint connector in good condition?

YES : Go to Step 3.
NO :  Replace the joint connector.

AC204170

CONNECTOR: D-131

BV

AC204573

4 5

3

12

10

9

11

1 2

6 7 8

JOINT CONNECTOR (9) D-131

AB

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-98

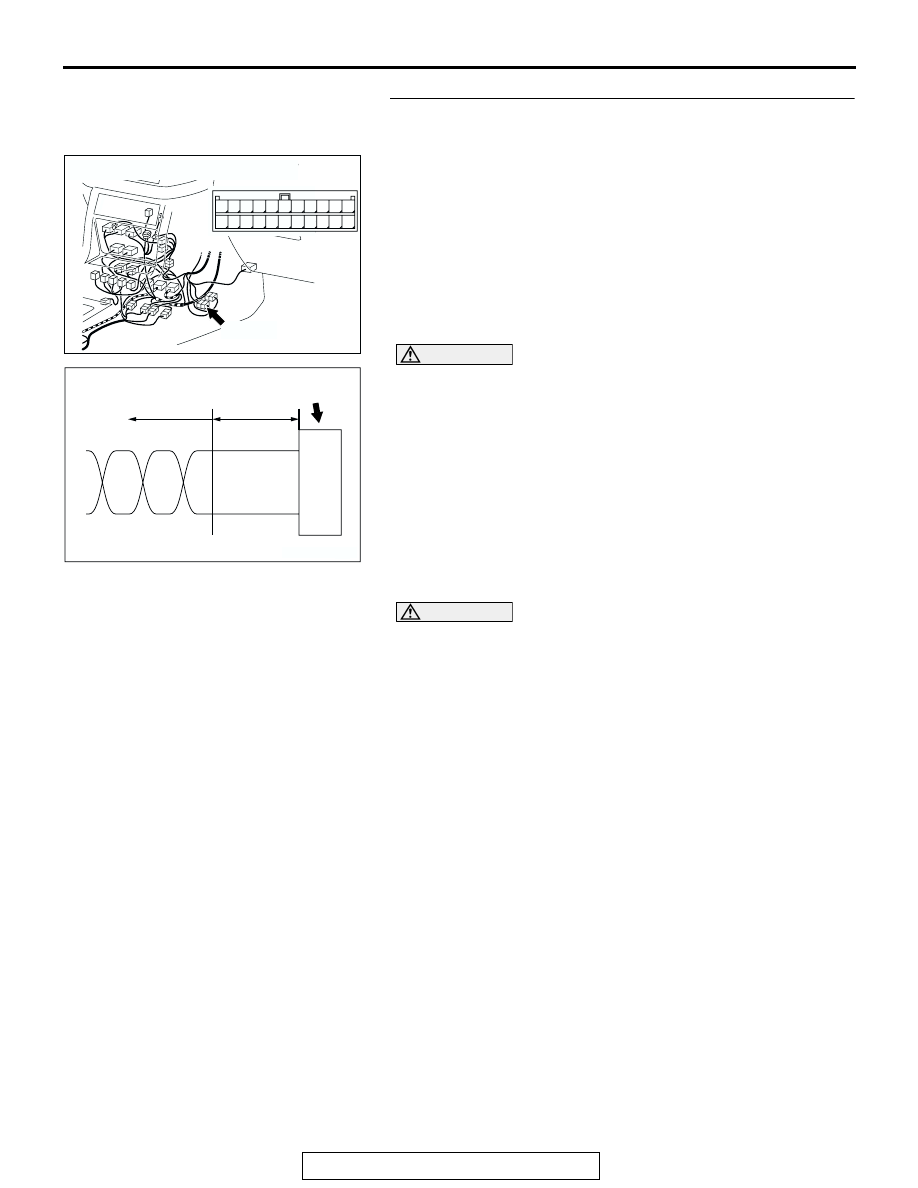

STEP 3. Check intermediate connector E-122.

CAUTION

If there is a problem in the connector(s) (including termi-
nals) or wire(s) of the instrument panel wiring harness
assembly (the wiring harness connected to the steering
wheel sensor, the data link connector and the resistor) and
the transmission wiring harness assembly (the wiring har-
ness connected to the G and yaw rate sensor connector
and intermediate connector E-123), cut and repair the
defective wire so that the frayed end of the twisted wire
should be within 10 cm (4.0 inches). If it exceeds 10 cm (4.0
inches), twist the wiring harness just like the original
twisted wire. If the frayed end exceeds 10 cm (4.0 inches),
a communication error may be caused.

CAUTION

If there is a problem in the CAN bus line or the connectors
on the control wiring harness assembly (the wiring har-
ness connected to the M-ASTC-ECU, the power control
module and intermediate connector E-123), do not attempt
to repair the wiring harness or connector(s), but replace
the wiring harness assembly. If a wire is added or the con-
nector(s) are repaired, an error in the CAN communication
may be caused.
Q: Is intermediate connector E-122 in good condition?

YES : Go to Step 4.
NO :

• If there is a problem at the instrument panel wiring

harness assembly side, repair or replace the
connector.

• If there is a problem at the control wiring harness

assembly side, replace the control wiring harness
assembly.

AC204176

CONNECTOR: E-122

E-122(L)

E-122(L)

AD

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC203824

CONNECTOR

TWISTED WIRE

AB

10 cm
 (4.0 inches)

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-99

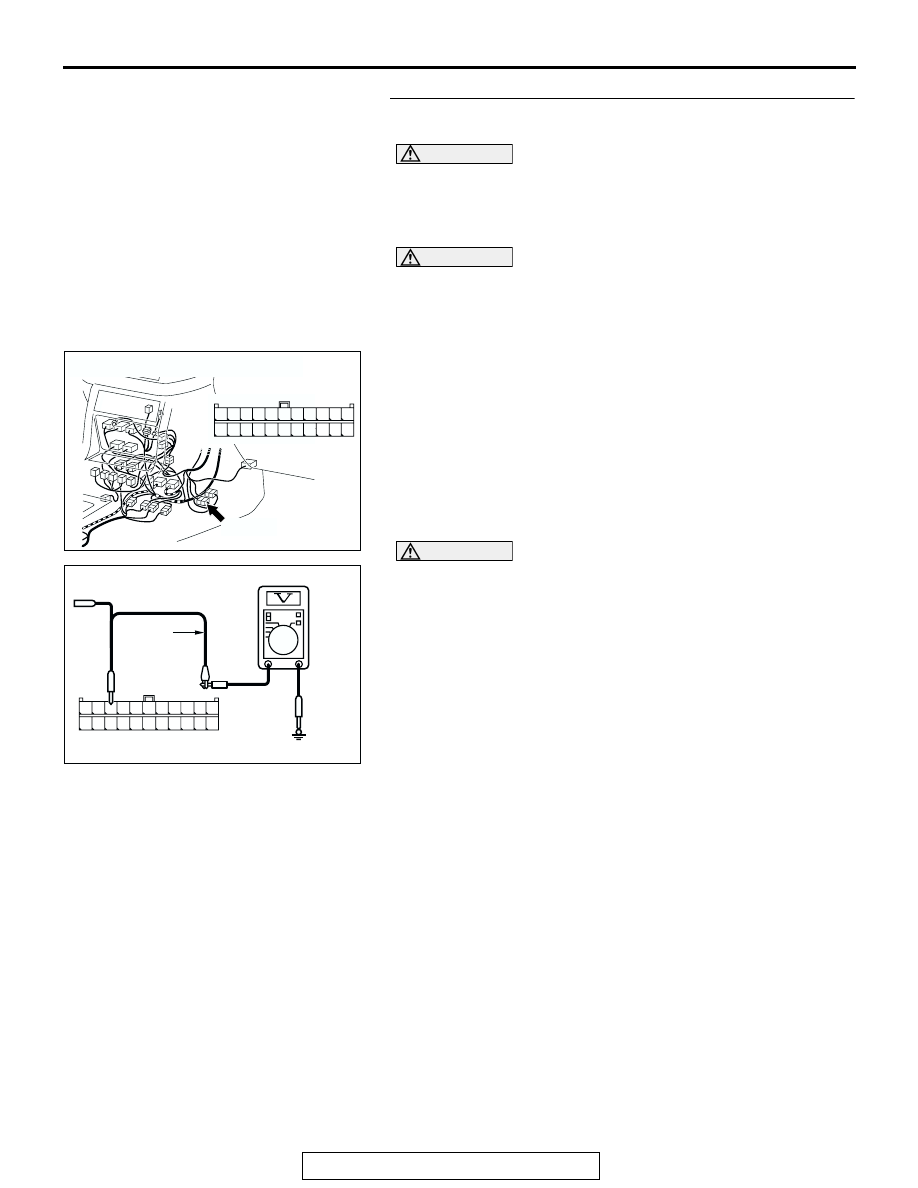

STEP 4. Measure the voltage in the CAN_H line. Check at
intermediate connector E-122.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect intermediate connector E-122, and measure the

voltage at the female intermediate connector (control wiring
harness side).

(2) Turn the ignition switch to the "ON" position.

CAUTION

Always use the test harness when measuring the voltage
or resistance value at the female connector. If you fail to do
so, connectors may be damaged.
(3) Measure the voltage between intermediate connector E-

122 terminal 9 and body ground.

• The voltage should measure 0.5 volts or more, or 4.5

volts or less.

Q: Does the voltage measure 0.5 volts or more, or 4.5 volts

or less?
YES :
Go to Step 5.
NO :  Go to Step 15.

AC204176

CONNECTOR: E-122

E-122(L)

FEMALE SIDE

E-122(L)

AG

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

AC204580

FEMALE CONNECTOR: E-122

AD

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-100

STEP 5. Measure the voltage in the CAN_H line. Check at
intermediate connector E-122.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.

CAUTION

When measuring resistance value or voltage in CAN bus
lines, use a digital multimeter. If not using a digital multim-
eter, the equipments, which are connected through the
CAN communication lines, may be damaged.
(1) Disconnect intermediate connector E-122 and steering

wheel sensor connector D-225, and measure the voltage at
the male intermediate connector (instrument panel wiring
harness side).

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between intermediate connector E-

122 terminal 9 and body ground.

• The voltage should measure one volt or less.

Q: Do the voltage measure one volt or less?

YES : Go to Step 10.
NO :  Go to Step 6.

AC204172

CONNECTOR: D-225

HARNESS SIDE

AD

3 2

1

4

5

AC204176

CONNECTOR: E-122

E-122(L)

MALE SIDE

E-122(L)

AF

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22

AC204580

MALE CONNECTOR: E-122

AE

TEST
HARNESS

1

12

2

13

3

14

4

15

5

16

6

17

7

18

8

19

9

20

10

21

11

22
