M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-13

STEP 9. Check the diagnostic trouble code.
Q: Does DTC 17 reset?

YES : Return to Step 1.
NO :  The procedure is complete.

DTC 34: Defective CAN bus line

CAUTION

If the diagnostic trouble code(s), which indicate a
defective CAN bus line, has been set, diagnose
the CAN main bus line.

.

AC204606

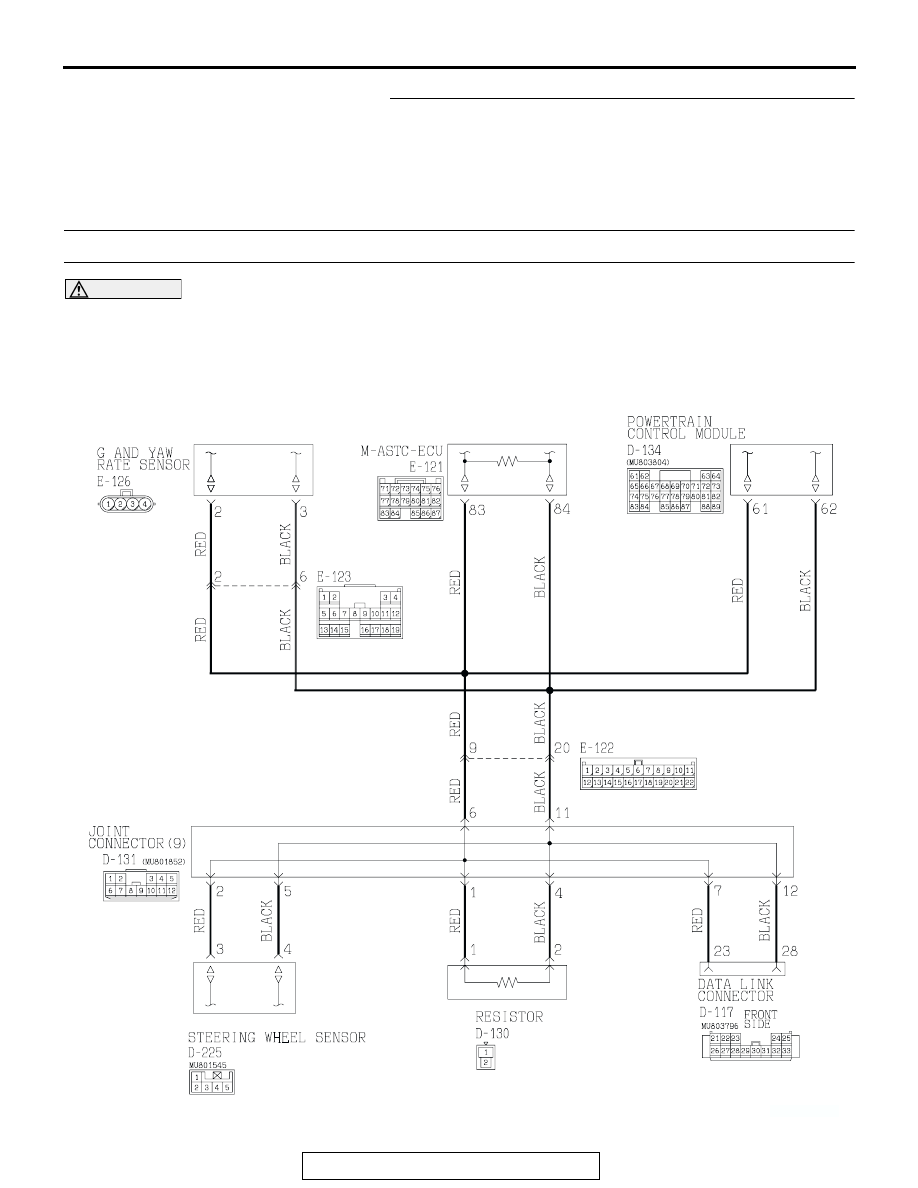

Can Bus Communication Circuit

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-14

CIRCUIT OPERATION
 The M-ASTC-ECU gathers information through
CAN_H (terminal 83) and CAN_L (terminal 84) bus
lines from the power control module, the G and yaw
rate sensor and the steering wheel sensor.

.

M-ASTC DTC SET CONDITION
DTC 34 is set if communication errors have hap-
pened in at least two of the relevant ECUs and/or
sensors simultaneously, which are connected to
each other through the CAN bus line.

.

TROUBLESHOOTING HINTS
The most likely causes for DTC 34 to set are:

• The CAN bus line is defective.

• The register is defective.

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

Diagnose CAN main bus line.

CAUTION

If DTC 34 is set, diagnose the CAN main bus line.
Diagnose the CAN main bus line. Refer to

P.35C-60

.

Q: Have you completed checking or repairing the CAN

main bus line?
YES : Check for DTC reset.
NO :  Diagnose the CAN main bus line. Refer to

P.35C-60

.

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-15

DTC 35, 37, 78: Defective power control module

.

CIRCUIT OPERATION
The M-ASTC-ECU gathers information regarding the
engine and automatic transmission, through the CAN
bus line from the power control module.

.

M-ASTC DTC SET CONDITION
DTC 35 is set if the engine related data contains an
error. DTC 37 is set if the automatic transmission
related data contains an error. In this case, the PCM
is sending data to the ECU, but the data contains a
fault.

.

TROUBLESHOOTING HINTS
The most likely causes for DTC 35, 37, 78 to set are:

• The power control module is defective

• The M-ASTC-ECU is defective.

AC205062

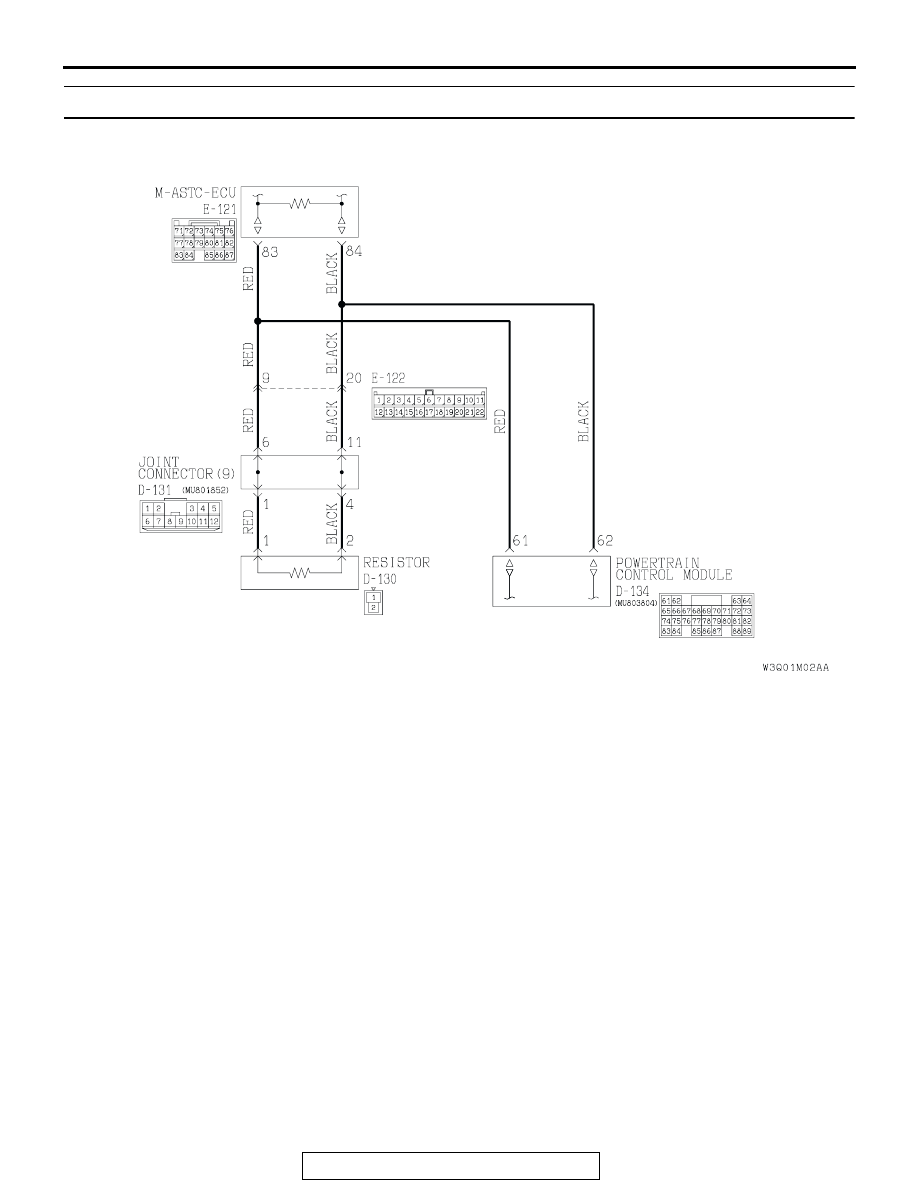

CAN Bus Communication Circuit (powertrain control module)

AB

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-16

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

STEP 1. Check that the power control module sets a DTC.
Check that the power control module sets a DTC.
Q: Does the power control module set any DTC?

YES : Diagnose the power control module. Refer to

P.13Ab-

22

.

NO :  Go to Step 3.

STEP 2. Check by the substitution of a known good M-
ASTC-ECU.
(1) Replace the M-ASTC-ECU with a know good unit.
(2) Check for DTC.
Q: Is any DTC reset?

YES : Replace the power control module, and then go to

Step 3.

NO :  Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Q: Does DTC 35, 37 or 78 reset?

YES : Return to Step 1.
NO :  The procedure is complete.
