CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-17

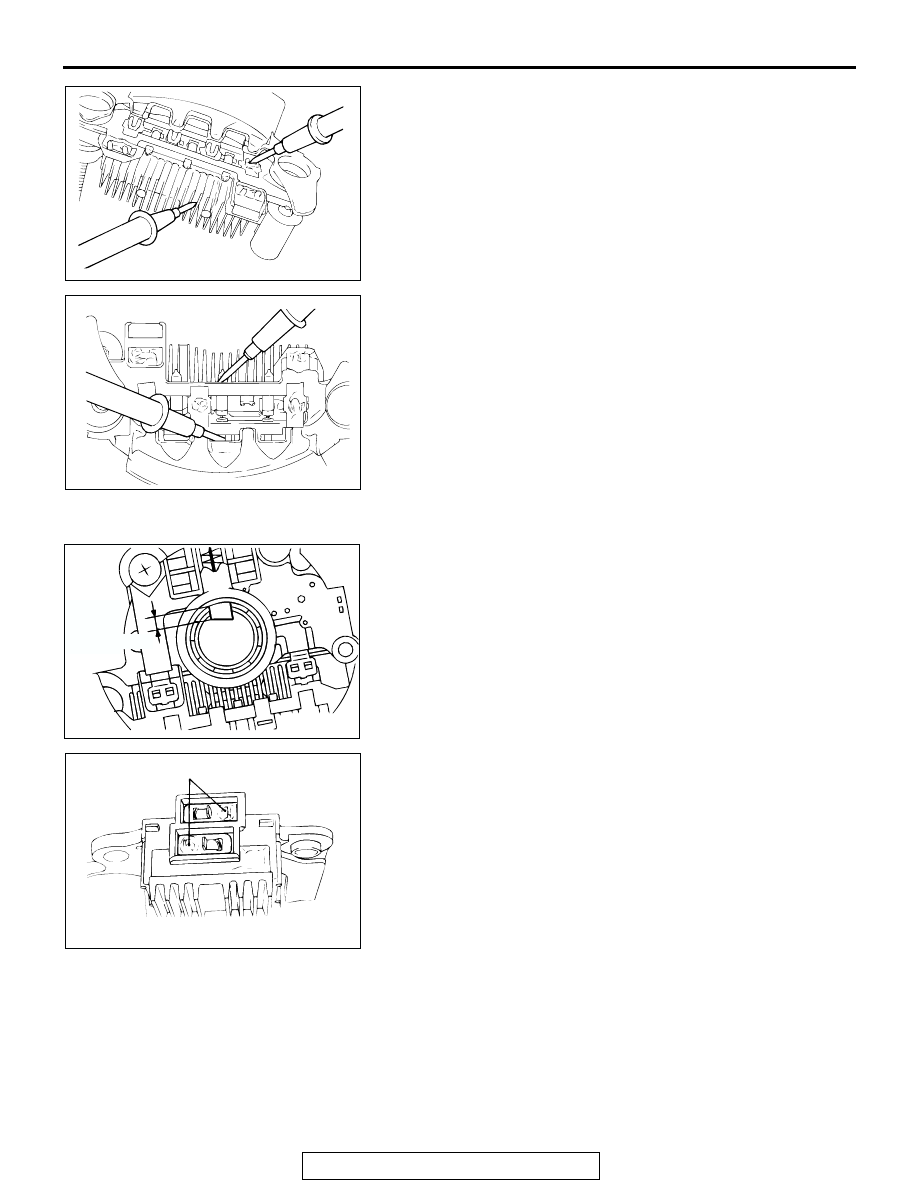

2. Check the continuity between the negative rectifier and the

stator coil lead connection terminal with a tester. If there is
continuity between the terminals, the diode is grounded, so
replace the rectifier.

3. Check the continuity of the three diodes by connecting an

ohmmeter to both ends of each diode. If there is continuity
between the directions, or if there is no continuity, the diode
is damaged, so replace the rectifier.

.

BRUSH CHECK
1. Replace the brush if the brush protrusion length shown in

the illustration is below the minimum limit value.

Minimum limit: 2 mm (0.08 inch)

2. The brush can be removed by unsoldering the brush lead

wire.

3. When installing a new brush, push the brush in to the brush

holder, and solder the lead wire.

AKX00365

AKX00366

AKX00367AB

PROTRUSION
LENGTH

AKX00368

SOLDERED

AB

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-18

STARTING SYSTEM

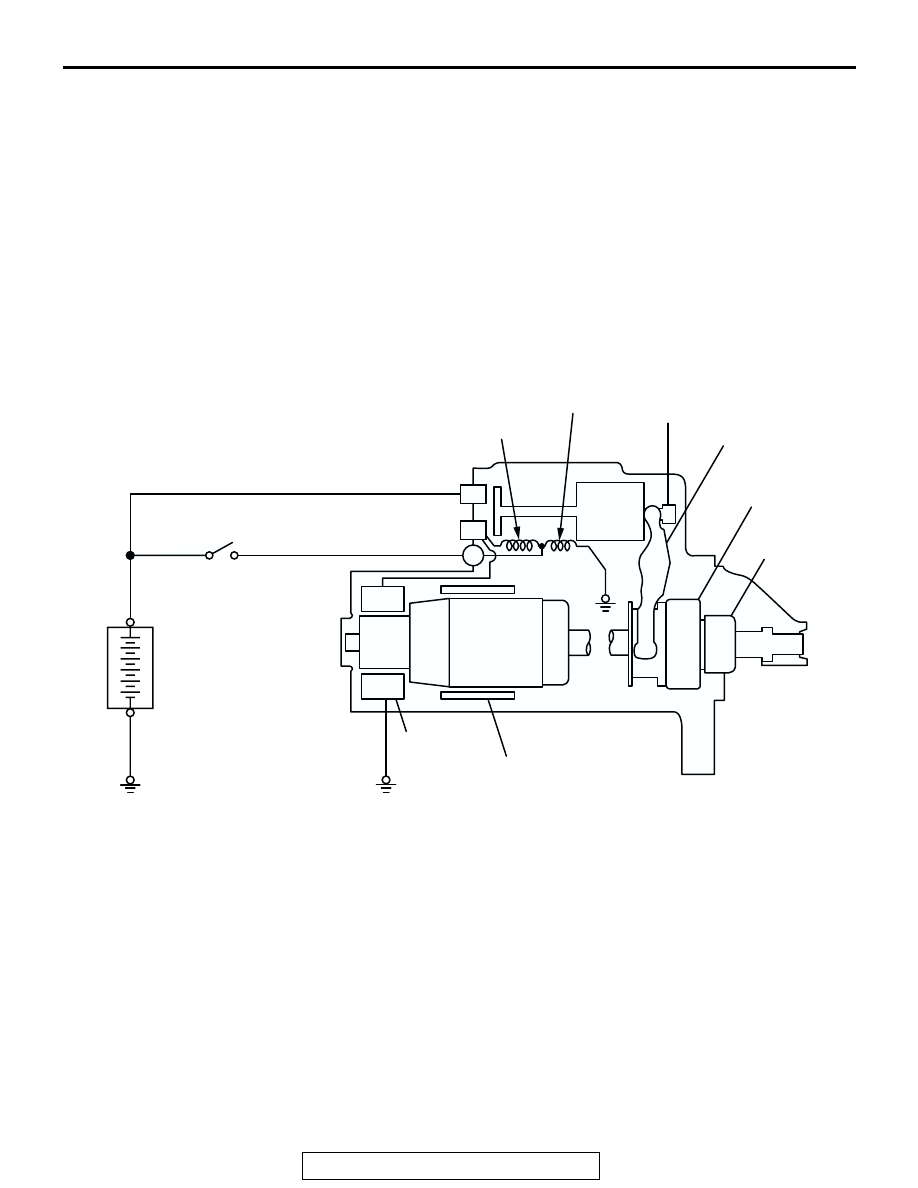

GENERAL DESCRIPTION

M1162000100149

If the ignition switch is turned to the "START" posi-
tion, current flows in the coil provided inside mag-
netic switch, attracting the plunger. When the plunger
is attracted, the lever connected to the plunger is
actuated to engage the starter clutch.
On the other hand, attracting the plunger will turn on
the magnetic switch, allowing the "B" terminal and
"M" terminal to conduct. Thus, current flows to
engage the starter motor.

When the ignition switch is returned to the "ON" posi-
tion after starting the engine, the starter clutch is dis-
engaged from the ring gear.
An overrunning clutch is provided between the pinion
and the armature shaft, to prevent damage to the
starter.

OPERATION

• For models equipped with A/T, when the ignition

switch is switched to the "ST" position while the
selector lever is at the "P" or "N" position, the
contact (magnetic switch) of the starter is
switched ON and the starter motor is activated.

AKX00196

PULL-IN COIL

HOLDING
COIL

PLUNGER

LEVER

PINION SHAFT

OVERRUNNING
CLUTCH

YOKE

BRUSH

ARMATURE

IGNITION
SWITCH

BATTERY

+

–

AB

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-19

STARTING SYSTEM DIAGNOSIS

M1162000700204

TROUBLESHOOTING HINTS

The starter motor dose not operate at all.

• Check the starter (coil).

• Check for poor contact at the battery terminals and

starter.

• Check the transmission range switch.

The starter motor doesn’t stop.

• Check the starter (magnetic switch).

TROUBLESHOOTING GUIDE

The starting system troubleshooting guide is shown in the fol-
lowing chart.

STEP 1.
Q: Is the battery in good condition? (Refer to GROUP 54A,

Battery

− Battery check

P.54A-4

.)

YES : Go to Step 2.
NO :  Charge or replace the battery.

STEP 2.

• Disconnect the starter motor S (solenoid) terminal connec-

tor.

• Using a jumper wire, apply battery voltage to the starter

motor S (solenoid) terminal.

• Check the engine condition.

OK: Turns normally

Q: Does the starter motor operate normally?

YES :

• Check the ignition switch. (Refer to GROUP 54,

Ignition switch

P.54A-31

.)

• Check the starter relay

• Check the transmission range switch.(Refer to

GROUP 23A, Automatic Transaxle On-vehicle
Service

P.23Aa-20

.)

• Check the line between the battery and starter

motor S (solenoid) terminal.

NO :  Go to Step 3.

STEP 3.

• Check the cable between starter B (battery) terminal and

battery positive terminal for connection and continuity.

Q: Is the starter cable in good condition?

YES : Go to Step 4.
NO :  Repair or replace the cable

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-20

STEP 4.

• Check the connection and the continuity of the cable

between the starter motor body and the negative battery
terminal

Q: Is the ground line in good condition?

YES : Go to Step 5.
NO :  Repair or replace the cable

STEP 5.
Q: Is the starter motor in good condition? (Refer to Starting

system

− Starter motor − Inspection

P.16-21

.)

YES : Excessive rotational resistance of the engine.
NO :  Replace the starter motor.

STARTER MOTOR ASSEMBLY

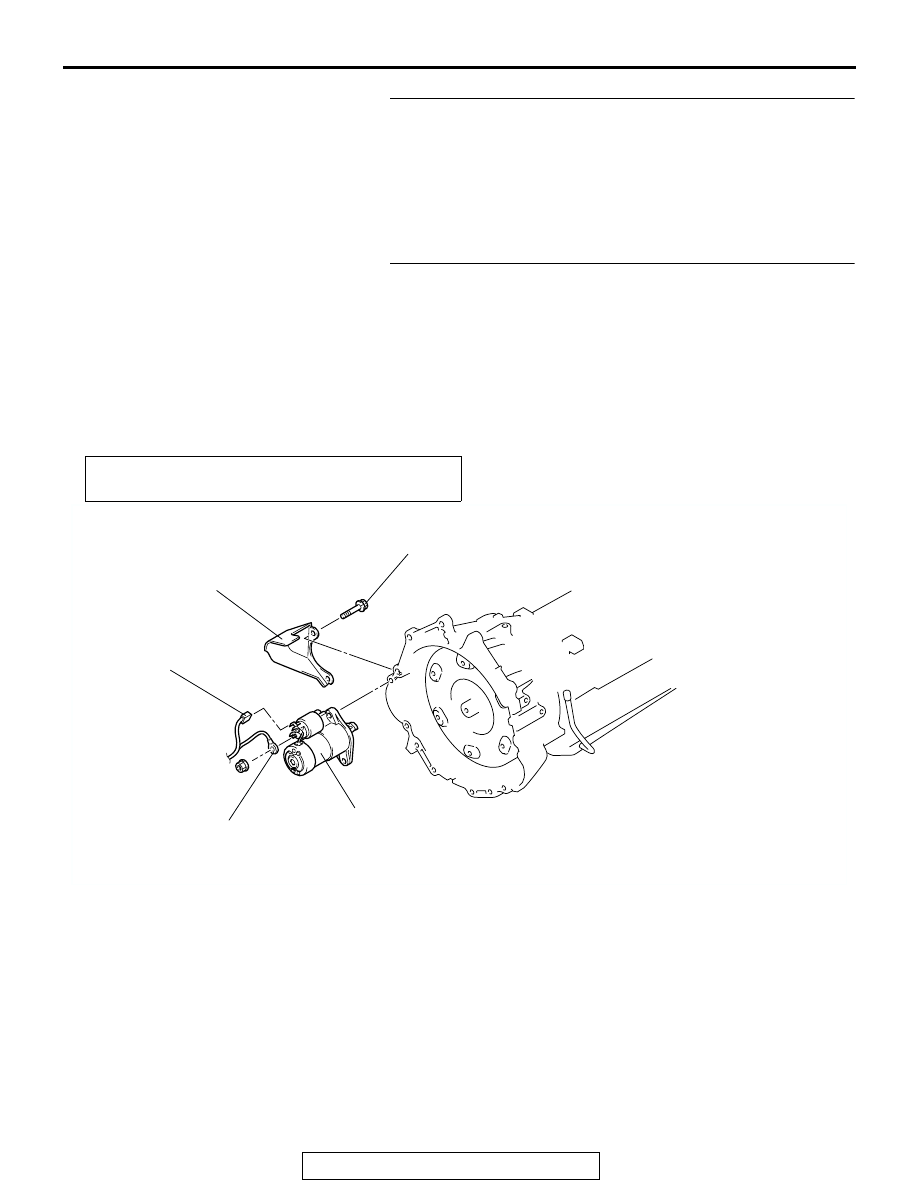

REMOVAL AND INSTALLATION

M1162001000435

Pre-removal and Post-installation Operation
• Under Cover Removal and Installation

ACX02077AB

1

2

3

4

30 ± 3 N·m
22 ± 2 ft-lb

REMOVAL STEPS

1.

STARTER COVER

2.

STARTER CONNECTOR

3.

BATTERY CABLE

4.

STARTER ASSEMBLY

REMOVAL STEPS (Continued)
