ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-3

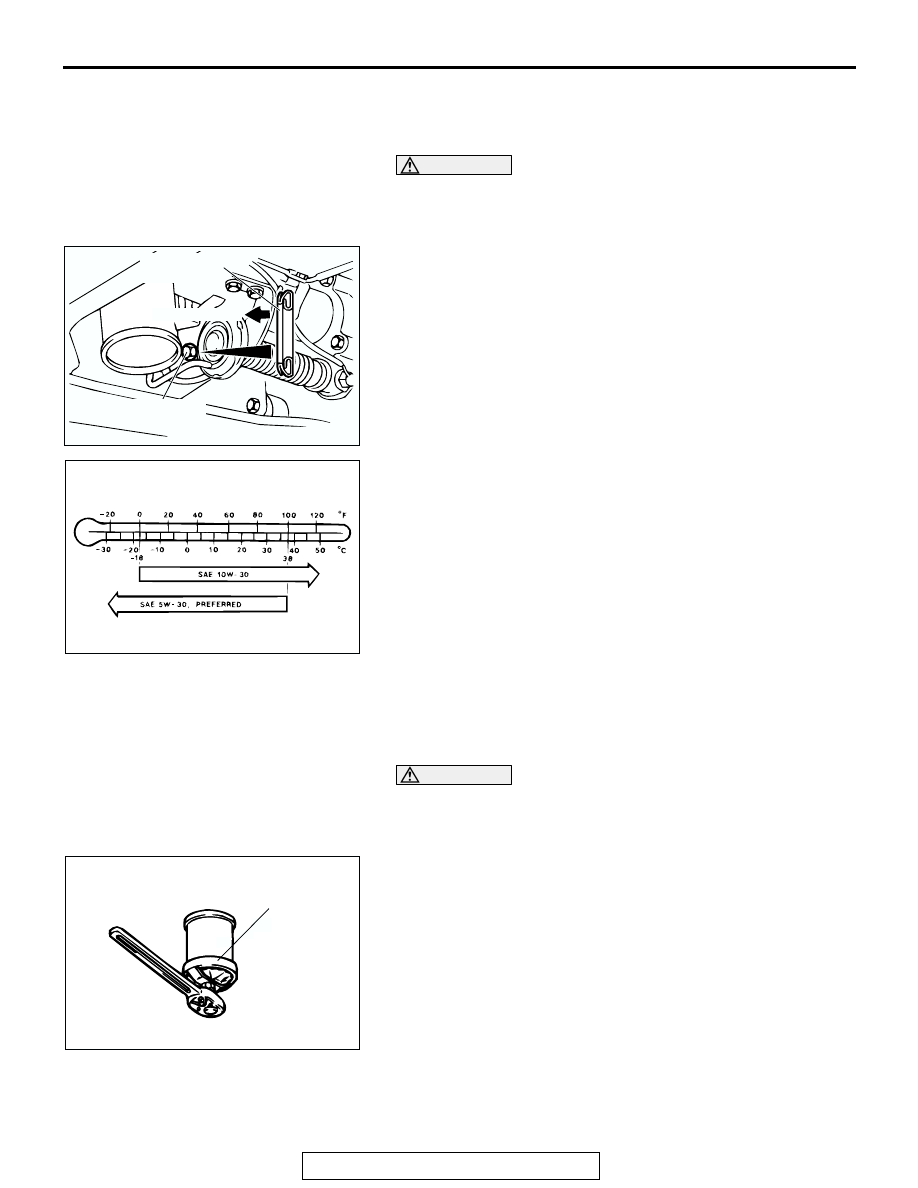

ENGINE OIL REPLACEMENT

M1121001000289

Start the engine and allow it to warm up until the temperature of

the coolant reaches 80

°C (176°F) to 90°C (194°F).

WARNING

Use care as oil could be hot.

1. Remove the engine oil filler cap.
2. Remove the drain plug to drain oil.
3. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the drain
plug to the specified torque.

Tightening torque: 39

± 5 N⋅m (29 ± 3 ft-lb)

4. Refill the specified quantity of oil.

Specified Engine Oil: Engine oils displaying ILSAC
certification symbol ("Starburst" symbol) or conform-
ing the API classification SJ EC or SJ/CD EC
Total quantity: 4.9 dm

3

 (5.14 quarts)

5. Install the engine oil filler cap.
6. Check oil level.

ENGINE OIL FILTER REPLACEMENT

M1121001100297

Start the engine and allow it to warm up until the temperature of

the coolant reaches 80

°C (176°F) to 90°C (194°F).

WARNING

Use care as oil could be hot.

1. Remove the engine oil filler cap.
2. Remove the drain plug to drain oil.
3. Use the commercially-available tool to remove the engine oil

filter.

4. Clean the filter bracket side mounting surface and ensure

the old O-ring has been removed.

ACX01795AB

DRAIN PLUG
GASKET

OIL PAN SIDE

39

±

5 N

·

m

29

±

3 ft-lb

ACX00887AB

ACX00395

COMMERCIALLY-
AVAILABLE TOOL

AD

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-4

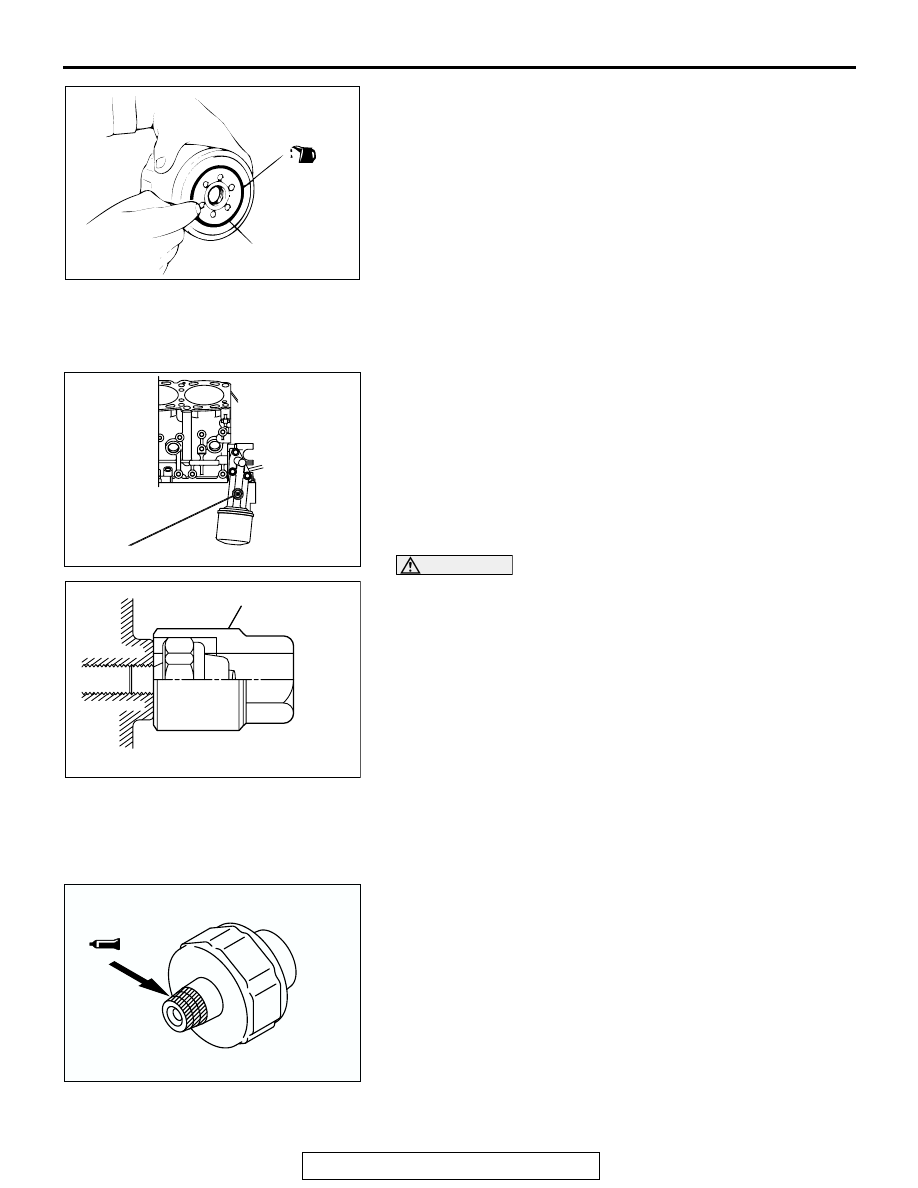

5. Apply a small amount of engine oil to the O-ring of the new

oil filter.

6. Where the oil filter O-ring touches the oil pan flange, tighten

the oil filter to the specified torque using the commercially-
available tool.

Tightening torque: Approximately 3/4 turn[14

± 2 N⋅m

(124

± 18 in-lb)]

7. Install the drain plug and refill engine oil. (Refer to Engine

Oil Replacement

P.12-3

.)

8. Rev the engine a few times, and check to be sure that no

engine oil leaks from the installation section of the oil filter.

OIL PRESSURE CHECK

M1121002300272

Required Special Tool:
MD998054: Oil Pressure Switch Wrench
1. Check engine oil quantity.
2. Remove the oil pressure switch terminal.

CAUTION

Since sealant is applied to the thread of the oil pressure
switch, take care not to damage the oil pressure switch
when removing it.
3. Use special tool MD998054 to remove the oil pressure

switch.

4. Install the oil pressure gauge.

NOTE: Use a 1/8 pipe thread adapter.

5. Run the engine to warm it.
6. After the engine has been warmed up, check that oil

pressure is within the standard value.

Standard value:

At idle: 29 kPa (4.2 psi) or more
At 3,500 r/min: 294

− 686 kPa (43 − 100 psi)

7. Remove the oil pressure gauge.
8. Apply the specified sealant 3M

ä AAD Part number 8672 or

equivalent to thread of the oil pressure switch.

ACX00396

O-RING

AB

AK200797

oil pressure switch

cylinder block

oil filter bracket

AB

AKX00294

MD998054

AB

AKX00295 AB

ENGINE OIL COOLER

TSB Revision

ENGINE LUBRICATION

12-5

CAUTION

Do not start the engine within one hour after the engine oil
pressure switch has been installed.
9. Use special tool MD998054 to tighten the oil pressure switch

to the specified torque.

Tightening torque: 10

± 2 N⋅m (87 ± 17 in-lb)

10.Install the oil pressure switch terminal.

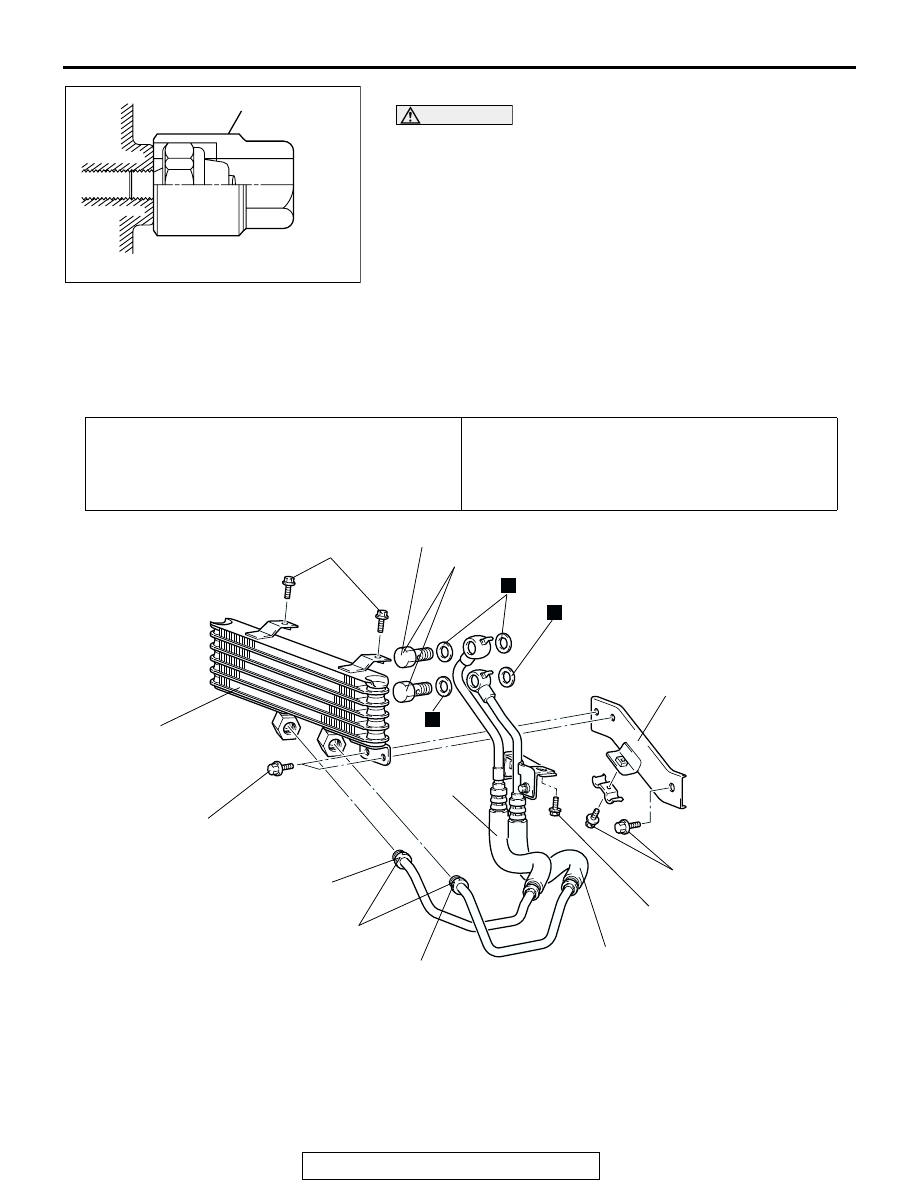

ENGINE OIL COOLER

REMOVAL AND INSTALLATION

M1121001300064

AKX00294

MD998054

AB

Pre-removal Operation
• Skid Plate Under Cover Removal

• Radiator Shroud Lower Cover Removal (Refer to GROUP

14, Radiator

P.14-8

.)

Post-installation Operation
• Skid Plate Under Cover Installation

• Radiator Shroud Lower Cover Installation (Refer to

GROUP 14, Radiator

P.14-8

.)

• Engine Oil Refilling and Level Check (Refer to

P.12-3

.)

AC001605

N

N

N

1

1

2

3

4

5

6

12 ± 2 N·m
102 ± 22 in-lb

12 ± 2 N·m
102 ± 22 in-lb

48 ± 7 N·m
36 ± 5 ft-lb

43 ± 2 N·m
32 ± 1 ft-lb

5.0 ± 1.0 N·m
45 ± 9 in-lb

5.0 ± 1.0 N·m
45 ± 9 in-lb

AB

REMOVAL STEPS

1. OIL COOLER HOSE CONNECTION

A/T COOLER SIDE

2. OIL COOLER ASSEMBLY
3. BRACKET

4. EYE BOLTS
5. OIL COOLER RETURN HOSE
6. OIL COOLER FEED HOSE

REMOVAL STEPS (Continued)

SPECIFICATIONS

TSB Revision

ENGINE LUBRICATION

12-6

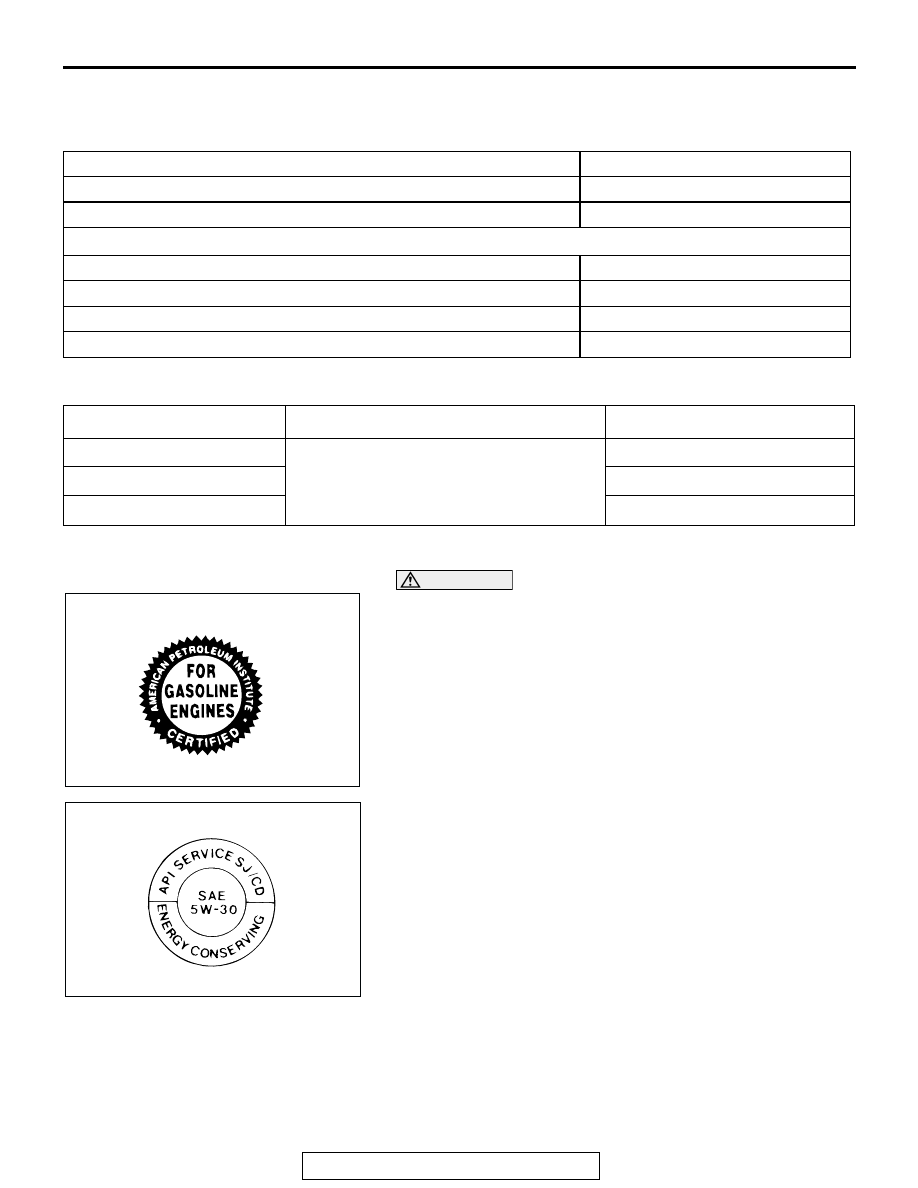

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1121002200242

LUBRICANT

M1121000400314

.

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.
Use only engine oils displaying the ILSAC certification mark
("Starburst" symbol) on the container.

If these oils are not available, an API classification SJ EC or SJ/
CD EC can be used.

ITEM

SPECIFICATION

Engine oil pan drain plug

39

± 5 N⋅m (29 ± 3 ft-lb)

Oil pressure switch

10

± 2 N⋅m (87 ± 17 in-lb)

Engine oil cooler
Oil cooler bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Oil cooler bracket bolt

5.0

± 1.0 N⋅m (45 ± 9 in-lb)

Oil cooler eye bolt

48

± 7 N⋅m (36 ± 5 ft-lb)

Oil cooler hose bolt

43

± 2 N⋅m (32 ± 1 ft-lb)

ITEMS

ENGINE OIL

QUANTITY dm

3

 (qt)

Oil cooler

Engine oils displaying ILSAC certification
symbol ("Starburst" symbol) or conforming
to the API classification SJ EC or SJ/CD
EC

0.3 (0.32)

Oil filter

0.3 (0.32)

Total quantity

4.9 (5.14)

ACX00394AI

ILSAC CERTIFICATION MARK
("STARBURST" SYMBOL)

ACX00886 AB

API SERVICE SYMBOL
