FUEL SUPPLY

13B-9

5. Disconnect the harness connector.
6. Unscrew the mounting nut to remove the fuel level sensor.
7. Assemble the fuel level sensor and tighten the mounting nut

to the specified torque.

Tightening torque: 2.5

± 0.4 N⋅m (22 ± 4 in-lb)

8. Connect the harness connector.
9. Attach the service hole cover and the packing located

between the front seat and the second seat.

10.Restore the carpet; attach the second seat, the rear scuff

plate, anchor bolts for the outer seat belt (second) and
mounting screws of the lower quarter trim. (Refer to GROUP
52A

P.52A-18

.)

11.Attach the service hole cover located under the second seat

and the packing.

12.Restore the second seat.

FUEL PUMP OPERATION CHECK

M1135001000033

Refer to GROUP 13A - On-vehicle Service

P.13Aa-16

.

FUEL PUMP MODULE REPLACEMENT

M1135004900013

1. Tumble the second seat.
2. Remove the service hole cover (upper side) and the

packing.

3. Remove the service hole cover (lower side) and the packing.
4. Disconnect the harness connector.
5. Disconnect the fuel high-pressure hose and the fuel tank

hose.

6. Unscrew the mounting nut to remove the fuel pump module.
7. Assemble the fuel pump module and tighten the mounting

nut to the specified torque.

Tightening torque: 2.5

± 0.4 N⋅m (22 ± 4 in-lb)

8. Connect the fuel high-pressure hose and the fuel tank hose.
9. Connect the harness connector.
10.Attach the service hole cover (lower side) and the packing.
11.Attach the service hole cover (upper side) and the packing.
12.Restore the second seat.

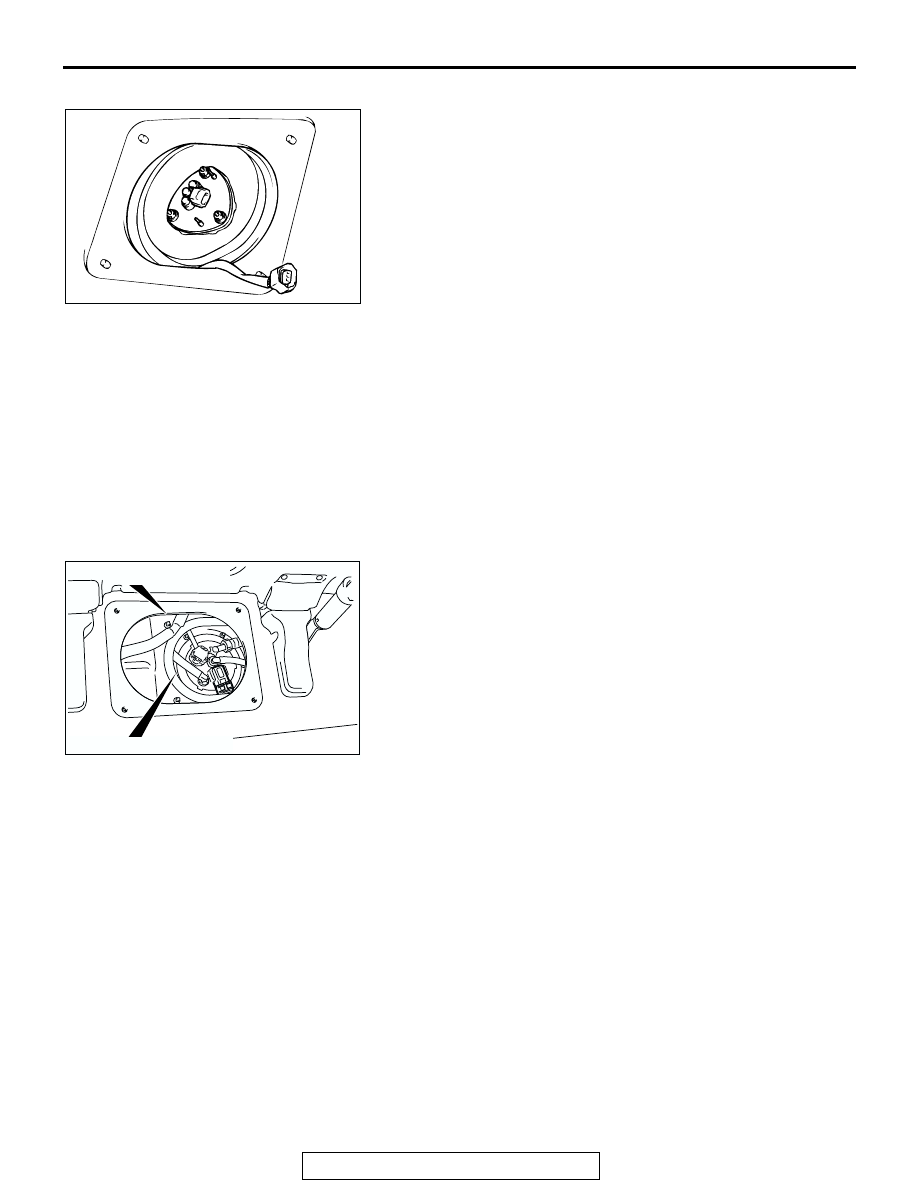

ACX00759AB

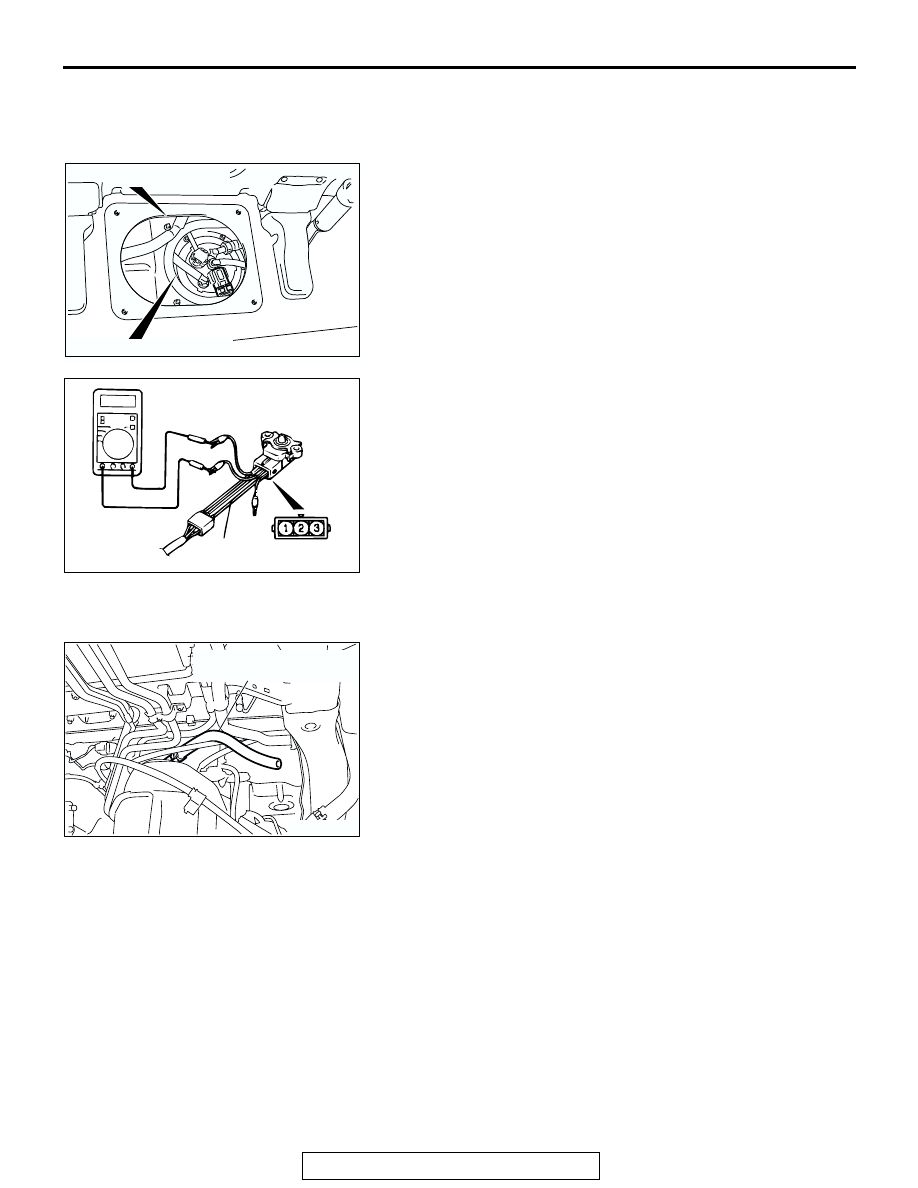

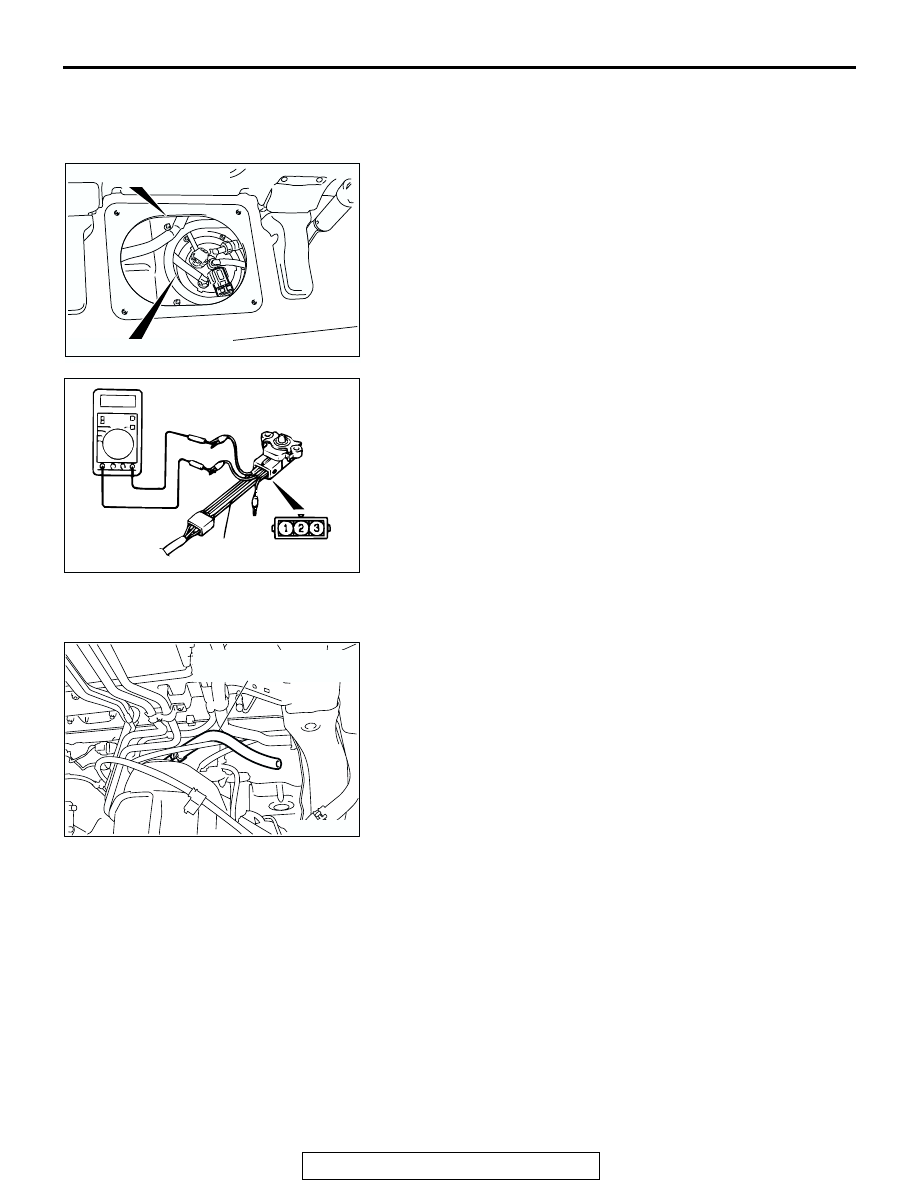

ACX00218 AJ

SERVICE HOLE (UPPER)

SERVICE HOLE (LOWER)

ON-VEHICLE SERVICE

TSB Revision

FUEL SUPPLY

13B-10

FUEL TANK DIFFERENTIAL PRESSURE SENSOR
CHECK

M1135003200033

1. Tumble the second seat.
2. Remove the service hole cover (upper) and packing.
3. Remove the service hole cover (lower) and packing.
4. Disconnect the harness connector.

5. Disconnect the fuel tank differential pressure sensor

connector and connect special tool MB991348 between the
terminals of the disconnected connector.

6. Turn the ignition switch to "ON" and take a reading of

Between terminals (2) and (3).

Standard value: 2.0

− 3.0 V

LEVELING VALVE CHECK

M1135004300077

1.  Place a drain pan, and disconnect the fuel tank filler tube

breather hose at pipe side.
NOTE:  If fuel leaks from the fuel tank filler tube breather
hose at this stage, the leveling valve may be defective.

2.  Open the fuel cap, and fill the fuel tank up.
3.  If fuel does not leak from the fuel tank filler tube breather

hose with the fuel tank full, the leveling valve is normal. If not
so, the leveling valve may be defective. Lower the fuel tank
from the vehicle and replace the valve.

4.  Reconnect the fuel tank filler tube breather hose at the pipe

side.

ACX00218 AJ

SERVICE HOLE (UPPER)

SERVICE HOLE (LOWER)

ACX00762 AB

MB991348

AC102445AC

FUEL TANK FILLER TUBE
BRETHER HOSE

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-11

FUEL TANK

REMOVAL AND INSTALLATION

M1135001900274

Pre-removal Operation
• Draining Fuel

• Fuel Line Pressure Reduction (Refer to GROUP 13A

P.13Aa-15

.)

• Transmission Mount Center Member Assembly (Refer to

GROUP 32

P.32-6

.)

Pre-installation Operation
• Transmission Mount Center Member Assembly (Refer to

GROUP 32

P.32-6

.)

• Fuel Leakage Inspection

• Refilling Fuel

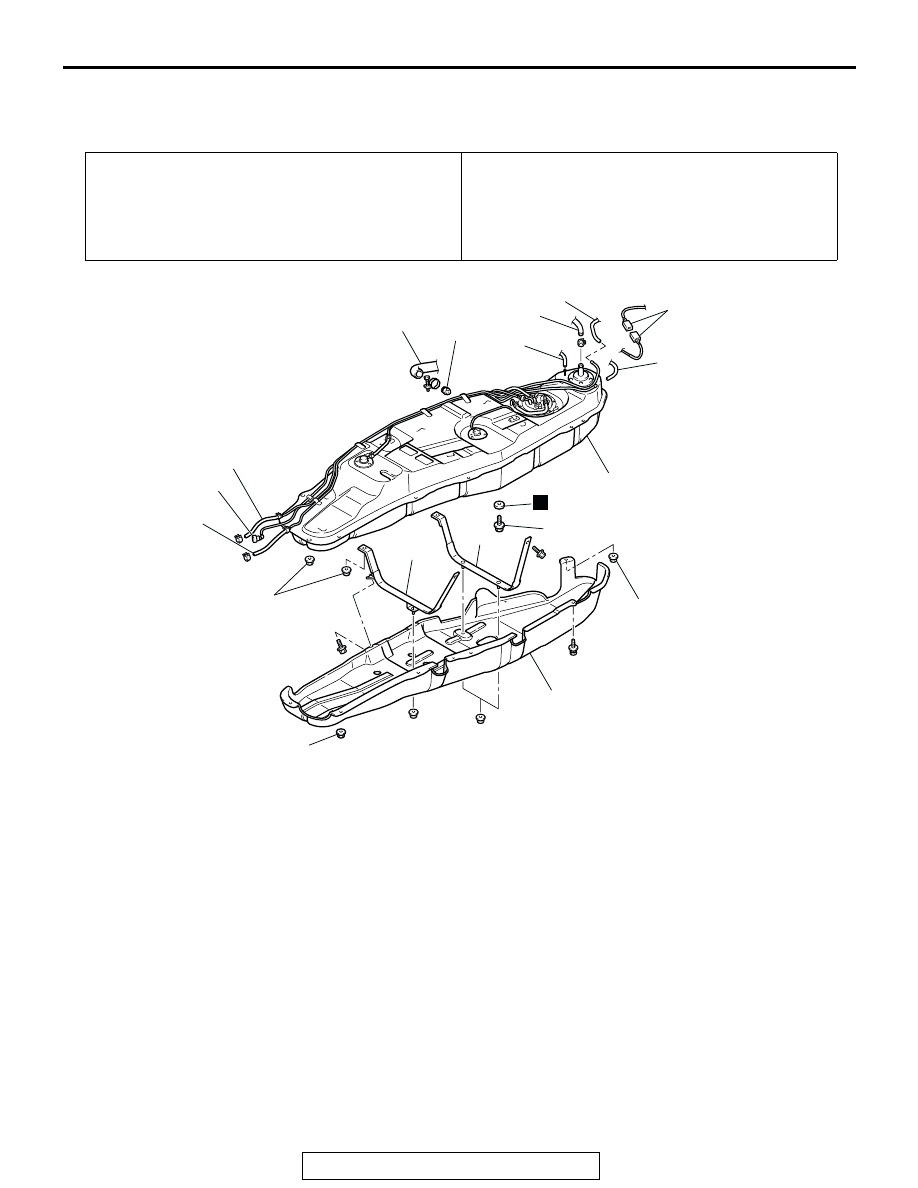

AC101596AB

9

12

8

10

1

2

3

4

5

6

7

11

14

13

26 ± 4 N·m
19 ± 3 ft-lb

26 ± 4 N·m
19 ± 3 ft-lb

26 ± 4 N·m
19 ± 3 ft-lb

21 ± 4 N·m
16 ± 2 ft-lb

N

REMOVAL STEPS

1. FUEL TANK UNDER COVER
2. FUEL FILLER HOSE CONNECTION
3. FUEL RETURN HOSE

CONNECTION

4. FUEL VAPOR HOSE CONNECTION

<<A>> >>A<<

5. FUEL HIGH-PRESSURE HOSE

CONNECTION

6. FUEL TANK BAND FRONT
7. FUEL TANK BAND REAR

<<B>>

8. FUEL TANK FILLER TUBE

BREATHER HOSE CONNECTION

<<B>>

9. FUEL TANK HARNESS

CONNECTOR CONNECTION

10. FUEL TANK FILLER TUBE PURGE

HOSE CONNECTION

11. FUEL TANK FILLER TUBE VAPOR

HOSE A CONNECTION

12. FUEL TANK FILLER TUBE VAPOR

HOSE C CONNECTION

13. FUEL TANK ASSEMBLY
14. FUEL TANK FILLER TUBE VALVE

REMOVAL STEPS (Continued)

FUEL TANK

TSB Revision

FUEL SUPPLY

13B-12

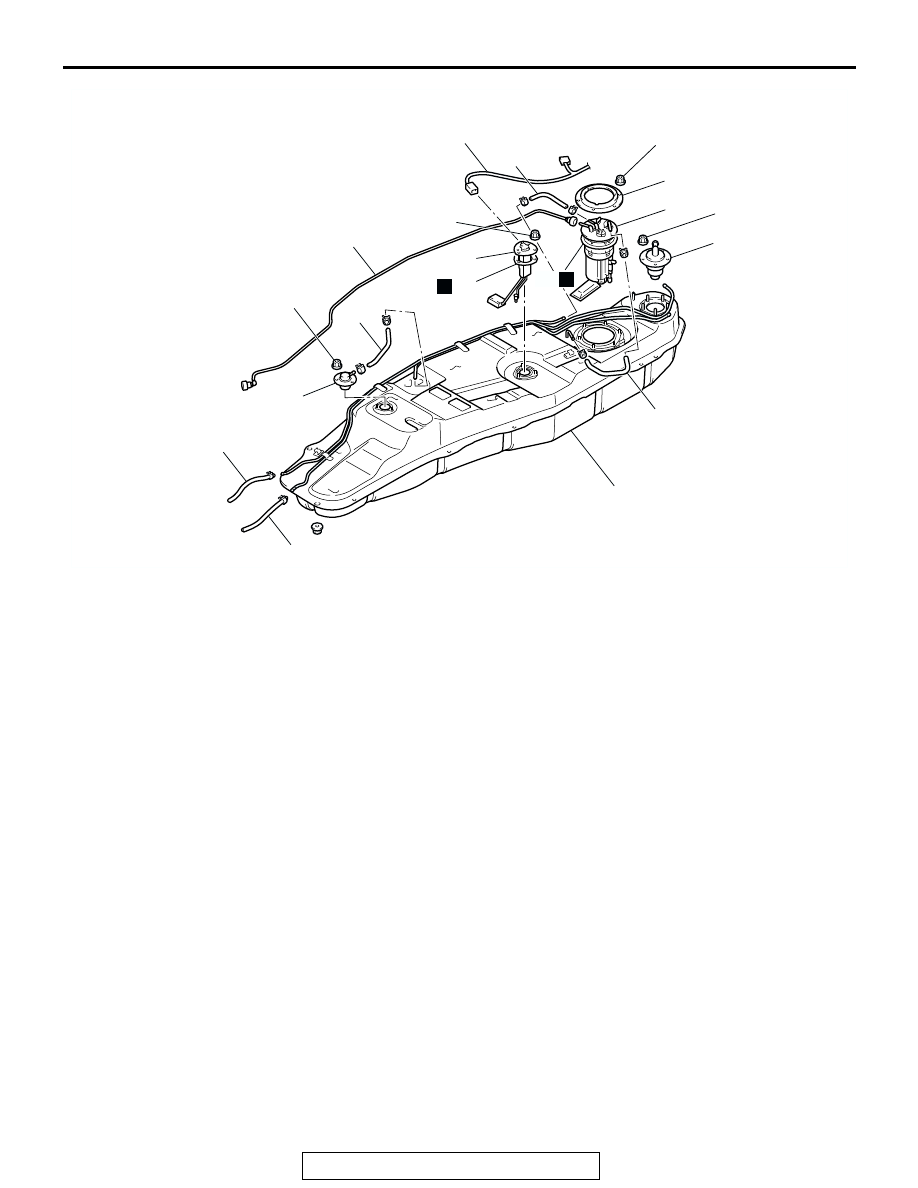

AC101597

2.5 ± 0.4 N·m
22 ± 4 in-lb

18

26

27

2.5 ± 0.4 N·m
22 ± 4 in-lb

21

22

25

N

N

2.5 ± 0.4 N·m
22 ± 4 in-lb

2.5 ± 0.4 N·m
22 ± 4 in-lb

23

24

28

29

20

15

16

AB

17

19

REMOVAL STEPS

15. FUEL RETURN HOSE
16. FUEL VAPOR HOSE
17. FUEL HIGH-PRESSURE HOSE
18. FUEL TANK VAPOR HOSE
19. FUEL TANK ROLLOVER VALVE
20. FUEL TANK SUCTION HOSE
21. FUEL TANK RETURN HOSE
22. FUEL TANK HARNESS

23. TAPPING PLATE
24. FUEL PUMP MODULE ASSEMBLY
25. PACKING
26. FUEL LEVEL SENSOR
27. PACKING
28. FUEL TANK LEVELING VALVE

ASSEMBLY

29. FUEL TANK

REMOVAL STEPS (Continued)
