ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-51

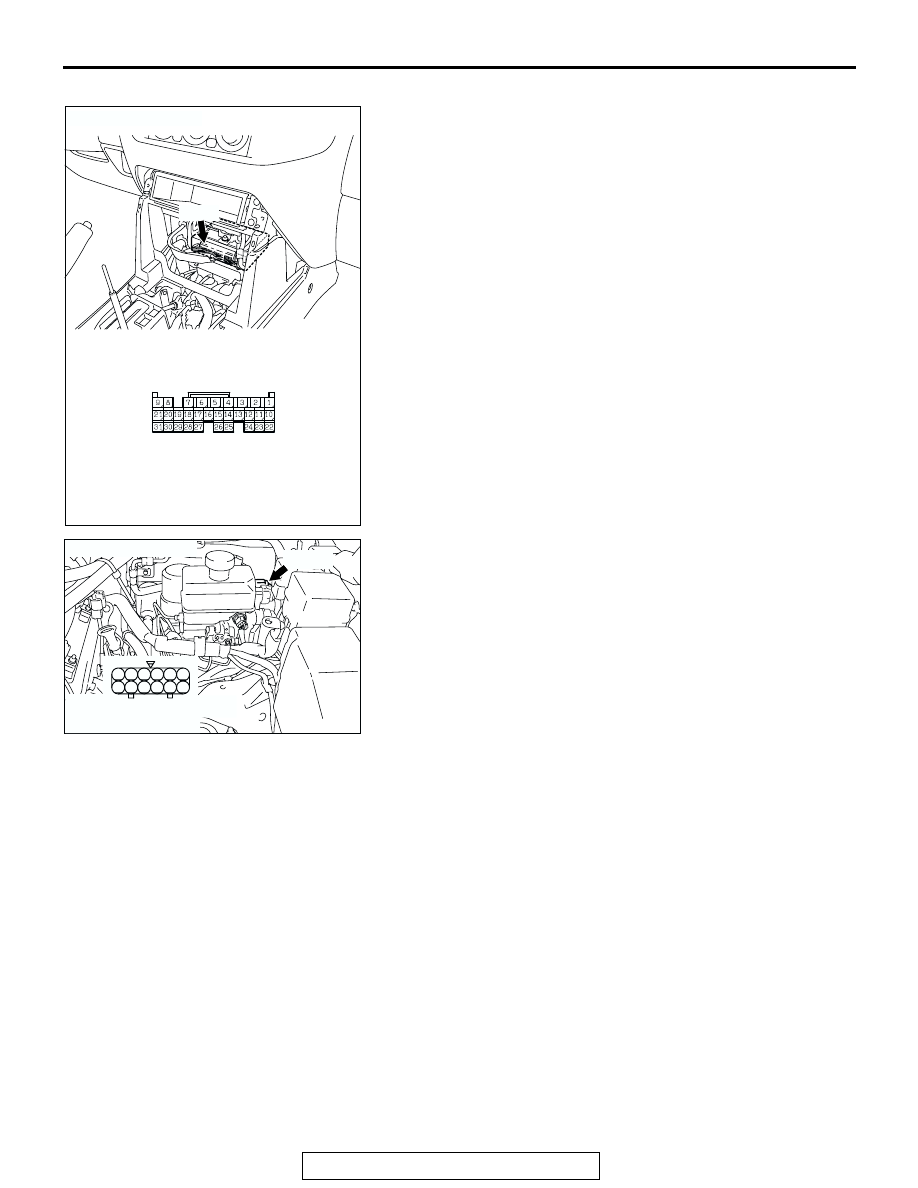

When DTC 41 is set:

• M-ASTC-ECU connector E-120 terminal 43 and HBB con-

nector B-14 terminal 20

• M-ASTC-ECU connector E-120 terminal 42 and HBB con-

nector B-14 terminal 19

AC203901

AC204627AG

CONNECTOR: E-120

E-120

HARNESS CONNECTOR:
COMPONENT SIDE

E-120

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-52

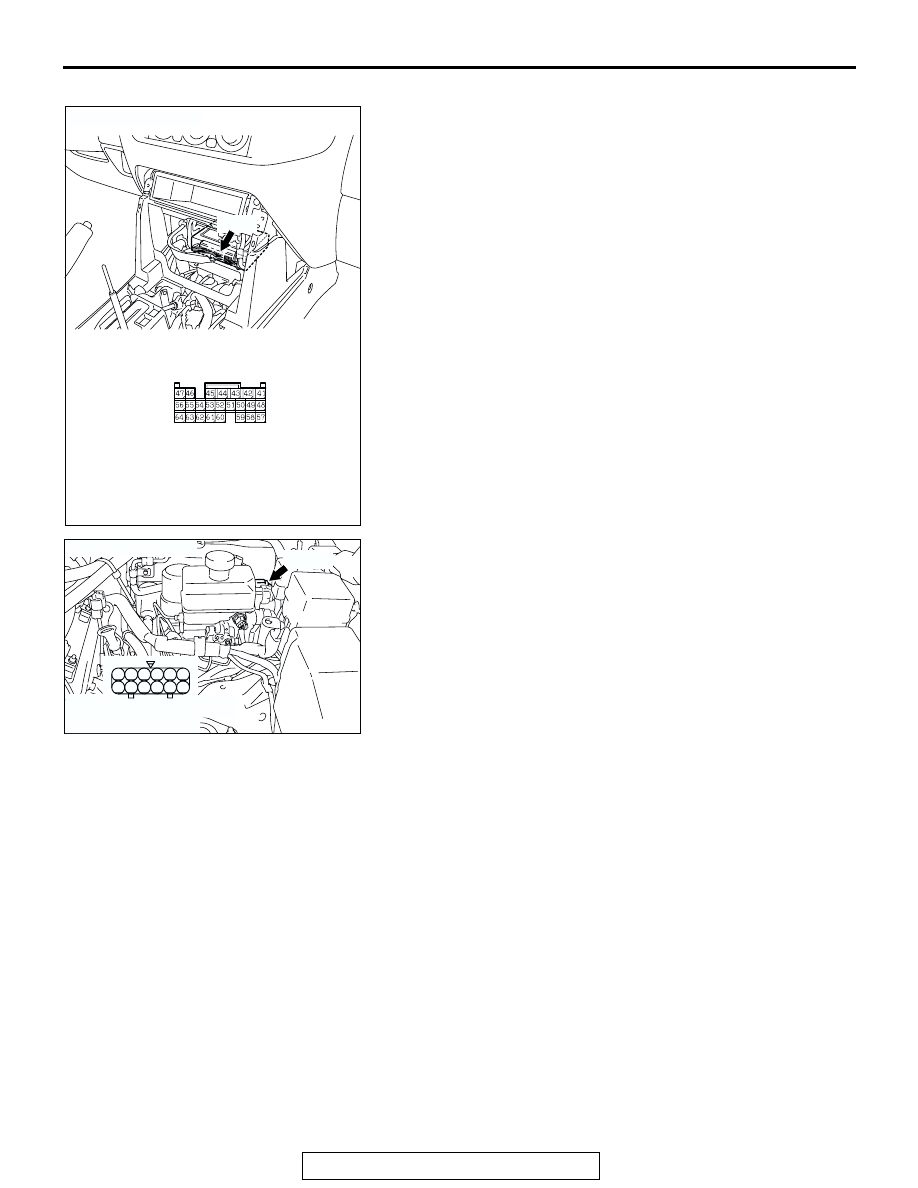

When DTC 42 is set:

• M-ASTC-ECU connector E-119 terminal 3 and HBB con-

nector B-14 terminal 22

• M-ASTC-ECU connector E-119 terminal 10 and HBB con-

nector B-14 terminal 21

AC203901

AC204627AC

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-53

When DTC 43 is set:

• M-ASTC-ECU connector E-119 terminal 1 and HBB con-

nector B-14 terminal 16

• M-ASTC-ECU connector E-119 terminal 2 and HBB con-

nector B-14 terminal 15

AC203901

AC204627AC

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-54

When DTC 44 is set:

• M-ASTC-ECU connector E-120 terminal 45 and HBB con-

nector B-14 terminal 14

• M-ASTC-ECU connector E-120 terminal 44 and HBB con-

nector B-14 terminal 13

AC203901

AC204627AG

CONNECTOR: E-120

E-120

HARNESS CONNECTOR:
COMPONENT SIDE

E-120

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE
