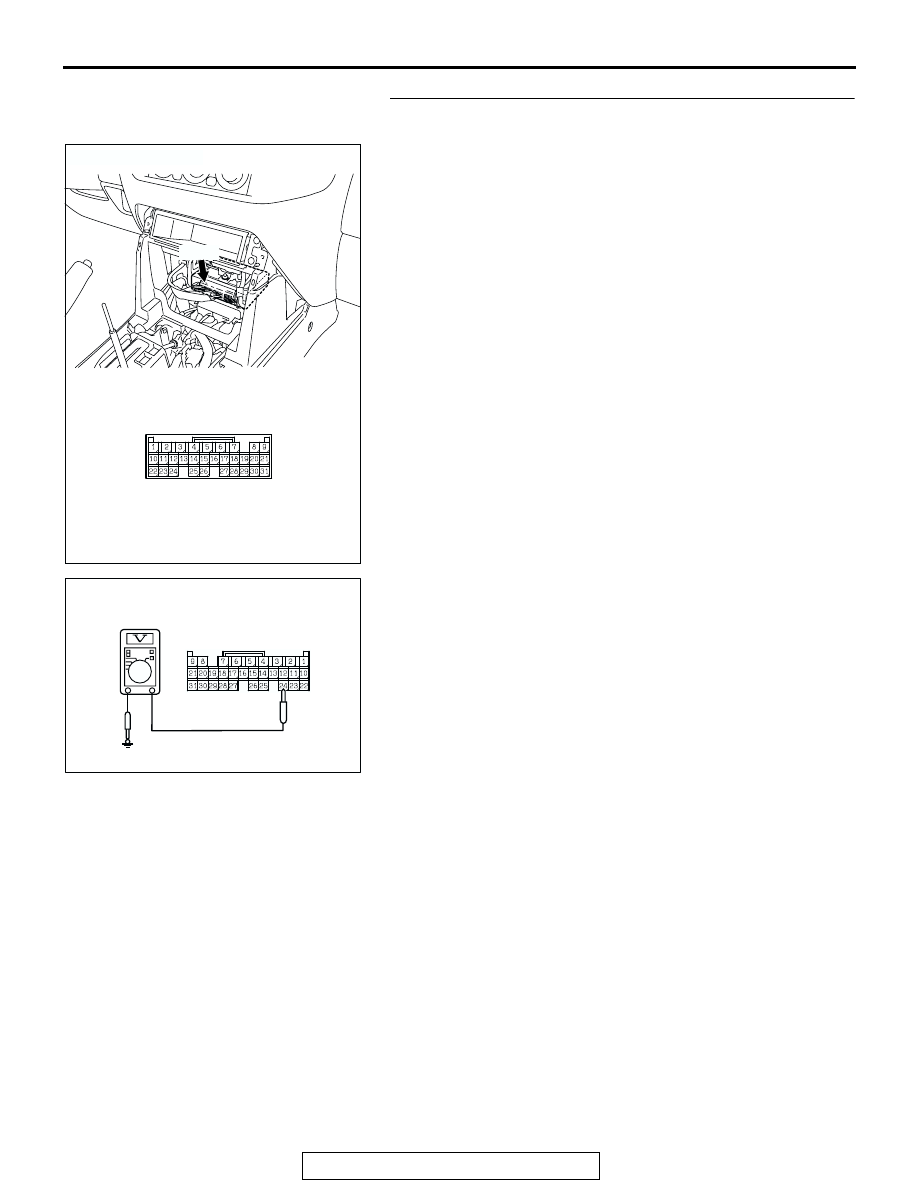

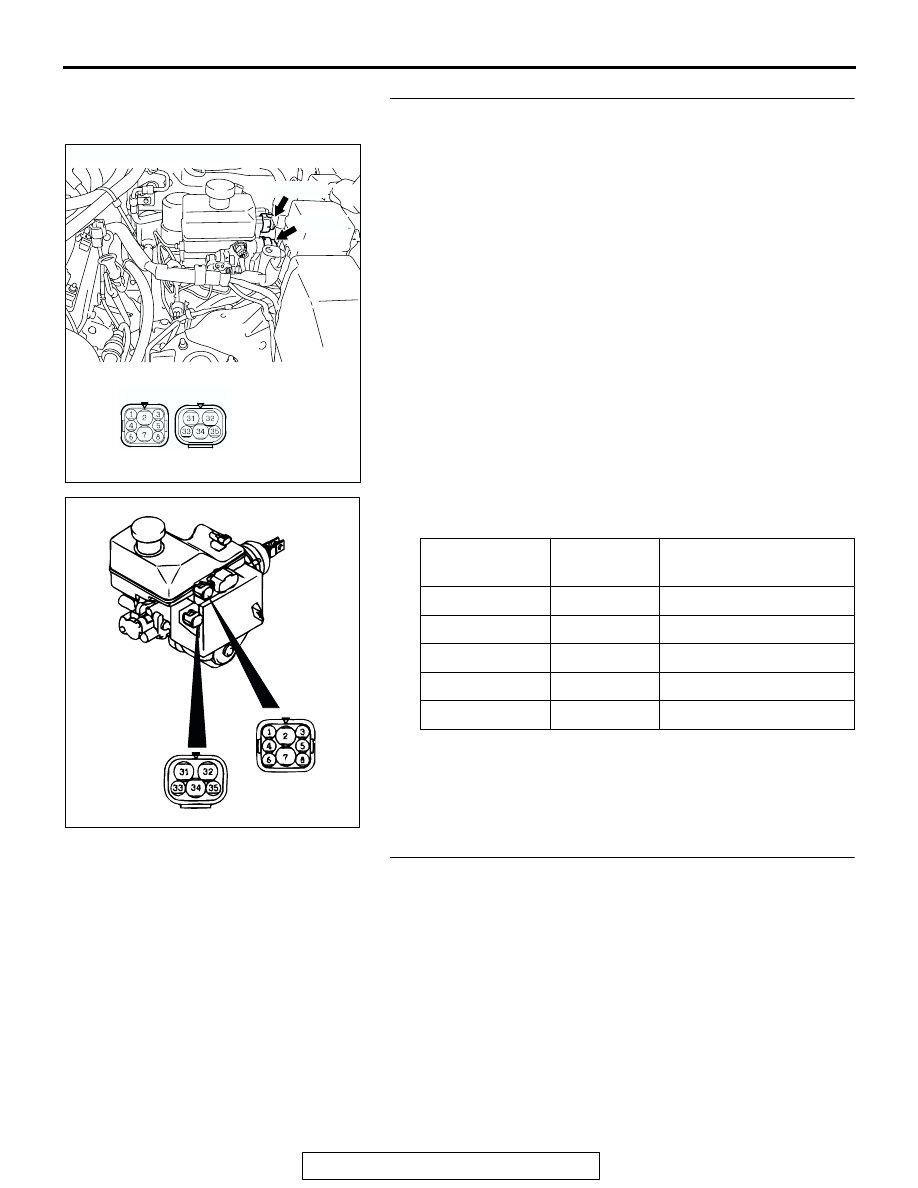

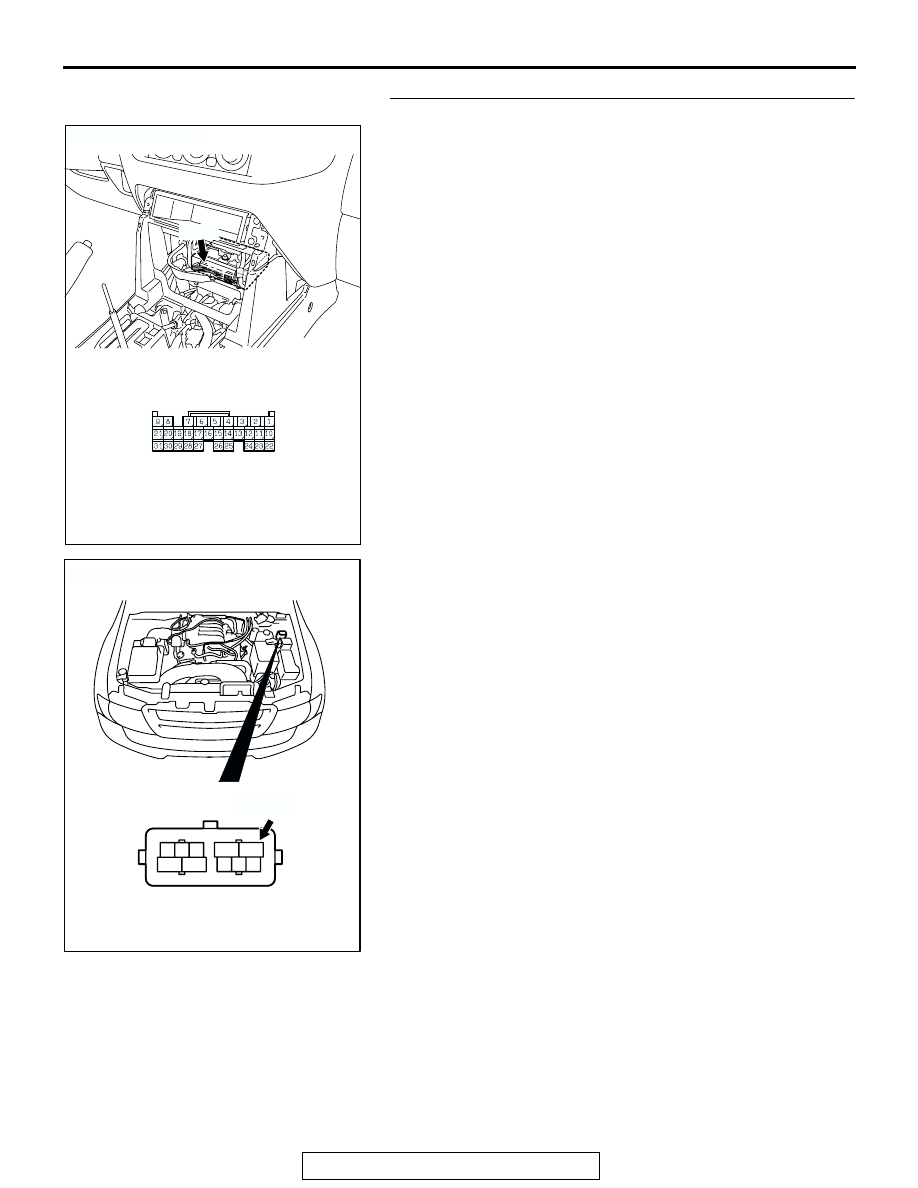

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS TSB Revision BASIC BRAKE SYSTEM 35A-49 STEP 17. Check the ignition switch (IG2) circuit at M- (3) Measure the voltage between terminal 24 and ground. The voltage should measure approximately 12 volts (battery Q: Is battery positive voltage (approximately 12 volts) present? AC203901 AC204627 AB CONNECTOR: E-119 E-119 M-ASTC-ECU CONNECTOR E-119 AC204631AB HARNESS CONNECTOR: E-119 |
