KEYLESS ENTRY SYSTEM

TSB Revision

BODY

42-57

• If it appears that a problem is occurring because of faulty

registration of a code.

A maximum of four different codes can be stored in the
EEPROM memory (four different transmitters can be used).
When the code for the first transmitter is registered, the previ-
ously registered codes for all transmitters are cleared. There-
fore, if you are using two or more transmitters or are adding
more transmitters, the codes for all transmitters must be regis-
tered at the same time.

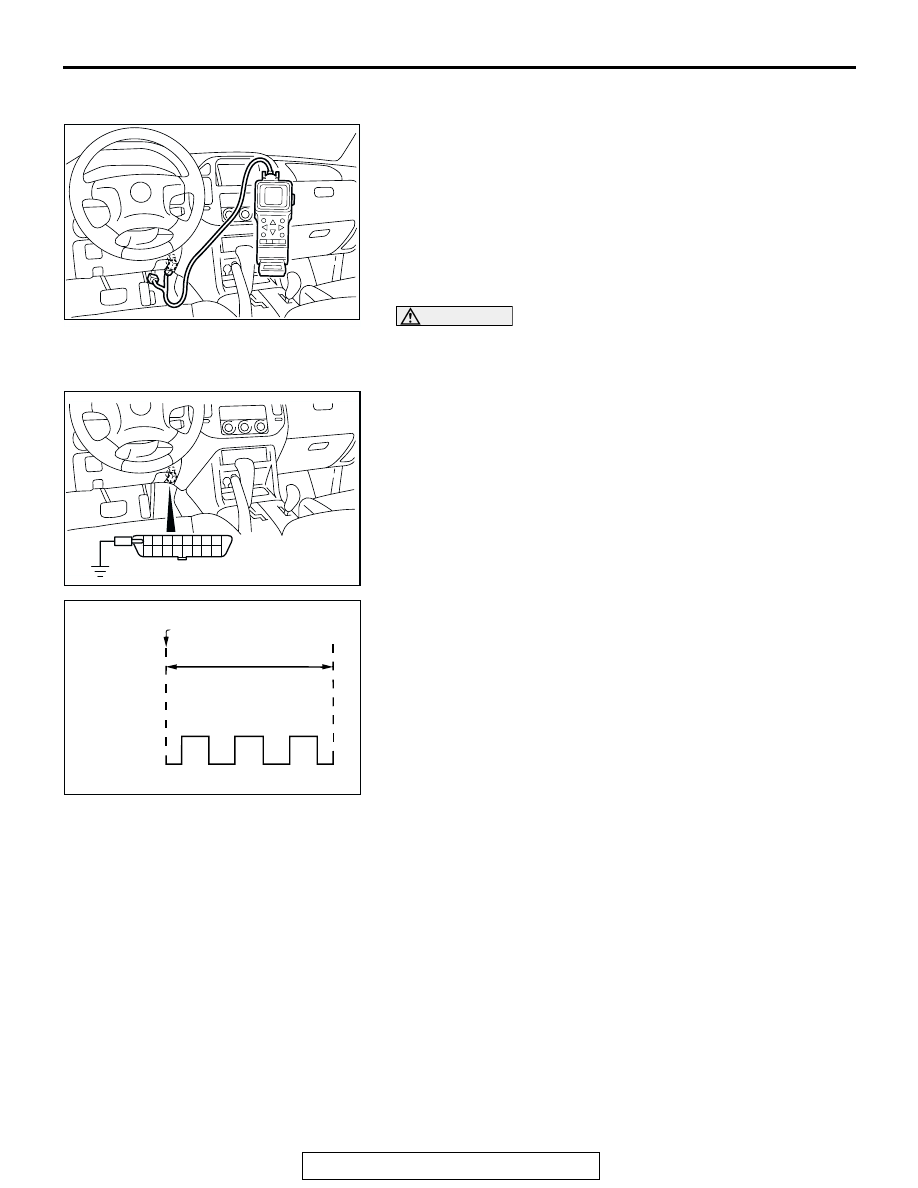

1. Check that the doors lock normally when the key is used.
2. Insert the ignition key.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK"(OFF) position before connect-
ing or disconnecting scan tool MB991502.
3. Connect the scan tool to the data link connector. If the scan

tool is not used, ground terminal (1) of the data link
connector.
NOTE: This will connect terminal (1) of the data link connec-
tor to ground, and the system will be in secret code registra-
tion standby mode.

4. Press the hazard switch six times within 10 seconds.

NOTE: At this time the code registration monitor request is
output (all doors locked and unlocked) and becomes regis-
tration mode.
NOTE: The hazard warning light switch is turned on and off
alternately whenever it is pushed.

5. Press the transmitter switch, and then press it two times

within 10 seconds of the first press. This will register the
code.

6. When registration is completed, the code registration

monitor request is output (all doors locked and unlocked).

7. If you are using two or more transmitters or have added a

second transmitter, the same registration procedure should
be carried out within one minute after registering the code
for the first transmitter. After the second registration is
completed, the code registration monitor request is output
(all doors locked and unlocked).

8. Registration mode will be canceled under the following

conditions:

• When the secret code for four transmitters has been regis-

tered;

• When one minute has been passed after registration mode

started;

• When scan tool MB991502 is disconnected (the ground

connection is broken);

• When the key is removed from the key cylinder;

ACX01539

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

ACX01772

ACX00571

MUT-II CONNECTED

WITHIN 10 SECONDS

HAZARD
SWITCH

OFF

SUNROOF ASSEMBLY

TSB Revision

BODY

42-58

9. After the registration is completed, remove the ignition key,

close all of the doors, and then check that the keyless entry
system operates normally.

KEYLESS ENTRY SYSTEM REMOVAL AND
INSTALLATION

M1428001300022

Refer to GROUP 54 for the removal and the installation of
ETACS-ECU

P.54A-71

SUNROOF ASSEMBLY

GENERAL DESCRIPTION

M1426000100182

A motor-driven inner slide-type glass sunroof with a
tilt-up mechanism is provided as an option. Even
when the sunroof is fully closed, a sufficient amount
of lighting and a feeling of openness can still be
obtained by opening the sunroof sunshade.

SUNROOF DIAGNOSIS

M1426000700021

The sunroof system is controlled by the Simplified
Wiring System (SWS). For troubleshooting, refer to
GROUP 54B, Diagnosis

P.54Bb-2

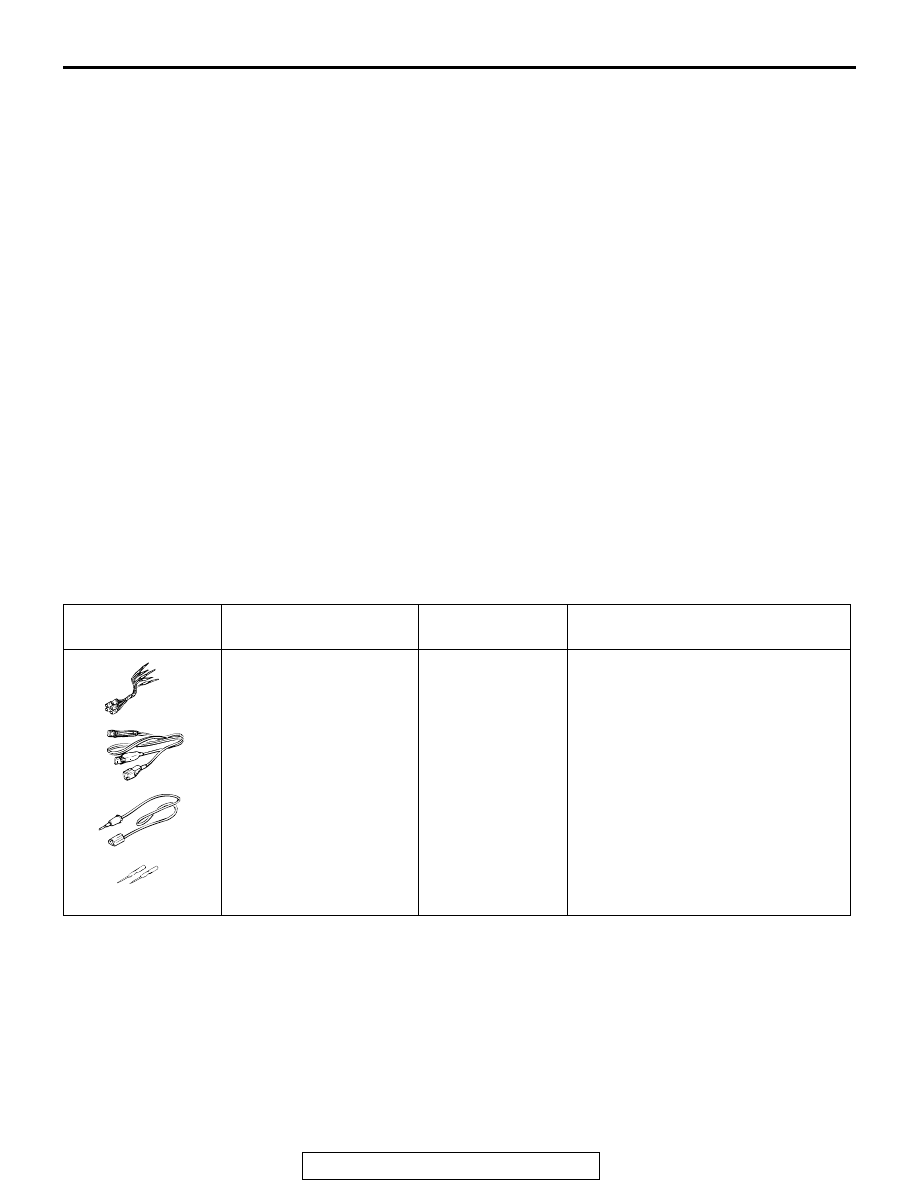

SPECIAL TOOLS

M1426000600024

ON-VEHICLE SERVICE

WATER TEST

M1426000900036

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the roof lid glass.
2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991223 Harness set

• A: MB991219 Test

harness

• B: MB991220 LED

harness

• C: MB991221 LED

harness adapter

• D: MB991222 Probe

MB991223

Measurement of terminal voltage

• A: Connector pin contact pressure

inspection

• B: Power circuit inspection

• C: Power circuit inspection

• D: Commercial tester connection

MB991223

SUNROOF ASSEMBLY

TSB Revision

BODY

42-59

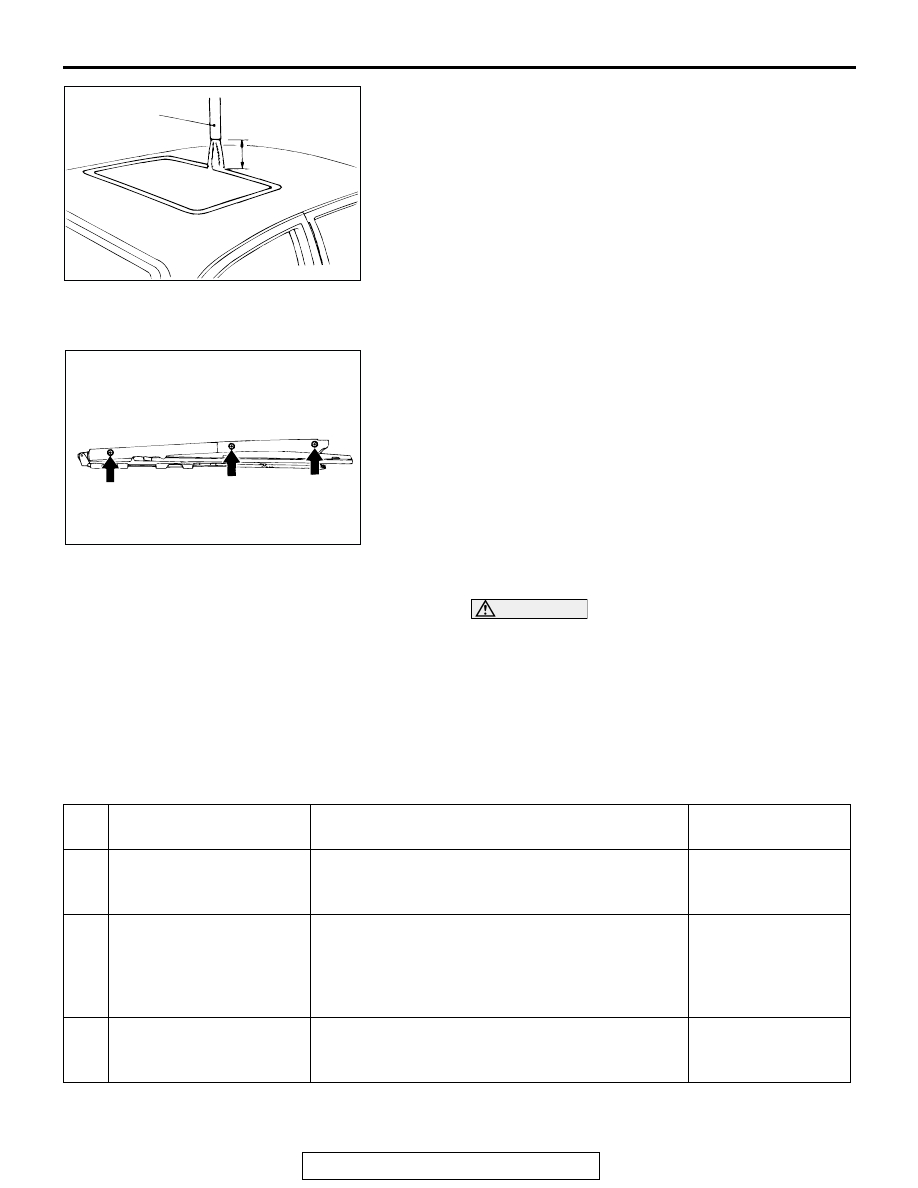

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. With the water running on to the weatherstrip, check that

there is no water leaking into the passenger compartment.

SUNROOF FIT ADJUSTMENT

M1426001000199

1. Fully close the roof lid glass.
2. Fully open the sunshade.
3. Loosen the roof lid glass assembly mounting screws (six),

and then slide the roof lid glass assembly along the slot in
the roof lid glass assembly to adjust the height of the roof lid
glass.

4. After adjustment, check to be sure that the sunroof operates

smoothly.

OPERATION CHECK

M1426002600224

Check the following items. If faulty, reinstall or
replace the appropriate component.

CAUTION

Check that the following items are normal before
carrying out this operation check.

1. Installation condition of the sunroof assembly
2. Installation, condition and foreign material of

the sunroof drive cable

3. Improper fit of sunroof glass
4. Sunroof switch and sunroof motor assembly

Basic operation

ACX00572AB

HOSE

APPROX
30 cm (11.8 in)

ACX00573AB

NO. SUNROOF FUNCTION

REQUIREMENTS FOR THE SUNROOF TO
FUNCTION

NORMAL
OPERATION

OPEN

1. Ignition switch: ON
2. Sunroof switch: OPEN

The sunroof opens
fully and
automatically.

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof closes
while the sunroof
switch is pushed to
the CLOSE/TILT-
DOWN position.

TILT-UP

1. Ignition switch: ON
2. Sunroof switch: TILT-UP

The sunroof tilts up
fully and
automatically.

SUNROOF ASSEMBLY

TSB Revision

BODY

42-60

Jam preventing mechanism

Sunroof timer mechanism

In cases except the followings, the basic operation
and jam preventing mechanism will be maintained
for thirty seconds after the ignition switch is turned to
the LOCK (OFF) position. (Sunroof timer function)

• If you open a door within that period (i.e. a door

switch is on), the sunroof timer function will be
cancelled immediately.

• If you closes the sunroof fully while the timer is

working, the sunroof timer function is cancelled
after that sunroof operation.

• If you turns the ignition switch to the LOCK (OFF)

position while the timer is working, the sunroof
will continue moving until it closes fully regardless
of the time-out period.

TILT-DOWN

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN

The sunroof closes
while the sunroof
switch is pushed to
the CLOSE/TILT-
DOWN position.

AUTOMATIC
OPERATION
INTERRUPTION

1. Ignition switch: ON
2. Sunroof switch: TILT-UP or CLOSE/TILT

DOWN (Push the sunroof switch to the
CLOSE/TILT-DOWN position while the
sunroof is automatically opening and
release the switch within two seconds)

The sunroof stops
the automatic
opening operation.

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT DOWN (Push

the sunroof switch to the CLOSE/TILT-
DOWN position more than two seconds
while the sunroof is automatically opening)

The sunroof stops
the automatic
opening operation,
and the sunroof
closes while the
sunroof switch is
pushed to the
CLOSE/TILT-DOWN
position.

NO. SUNROOF FUNCTION

REQUIREMENTS FOR THE SUNROOF TO
FUNCTION

NORMAL
OPERATION

NO. SUNROOF FUNCTION

REQUIREMENTS FOR THE SUNROOF TO
FUNCTION

NORMAL
OPERATION

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN
3. Sunroof initial position: being closed or opened
4. Interrupt the sunroof operation before the

sunroof is fully closed.

After you interrupts
the sunroof
operation, it opens
by the
predetermined
distance and then
stops automatically.

TILT-DOWN

1. Ignition switch: ON
2. Sunroof switch: CLOSE/TILT-DOWN
3. Sunroof initial position: being tilting down
4. Interrupt the sunroof operation before the

sunroof is fully close.

The sunroof tilts up
automatically after it
is interrupted.
