>>B<< REAR LOWER SASH INSTALLATION
Securely insert the rear lower sash into the window rear sash.
.

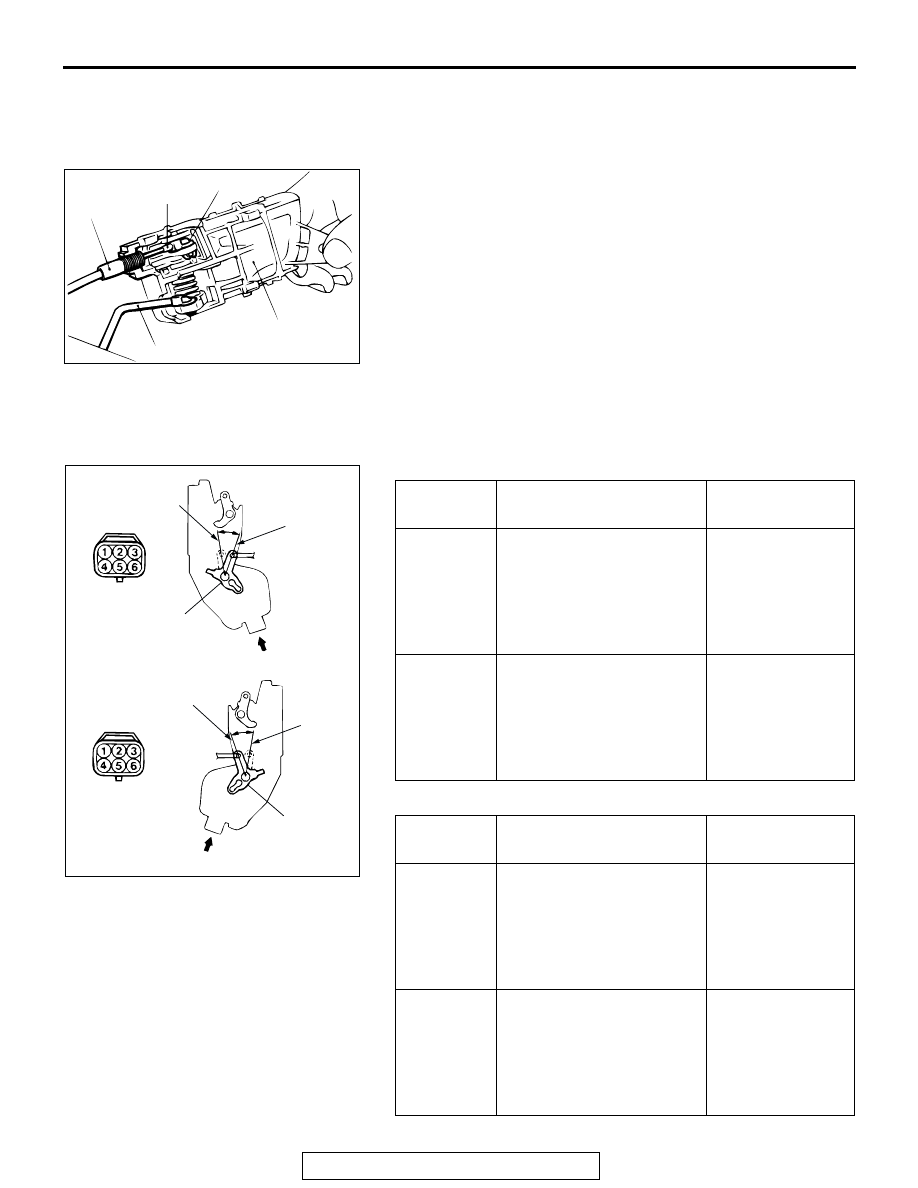

>>C<< DOOR INSIDE HANDLE INSTALLATION
1. Install the inside lock cable to the door inside handle as
follows:
(1) Install the inner cable end in the inside lock cable to the
clip in the door inside handle.
(2) Turn the inside lock knob to the door lock position.
(3) Install the outer cable end to the door inside handle
securely.
(4) Install the clip to the inner cable.
2. Install the inside handle rod to the door inside handle.
3. Install the door inside handle to the door.

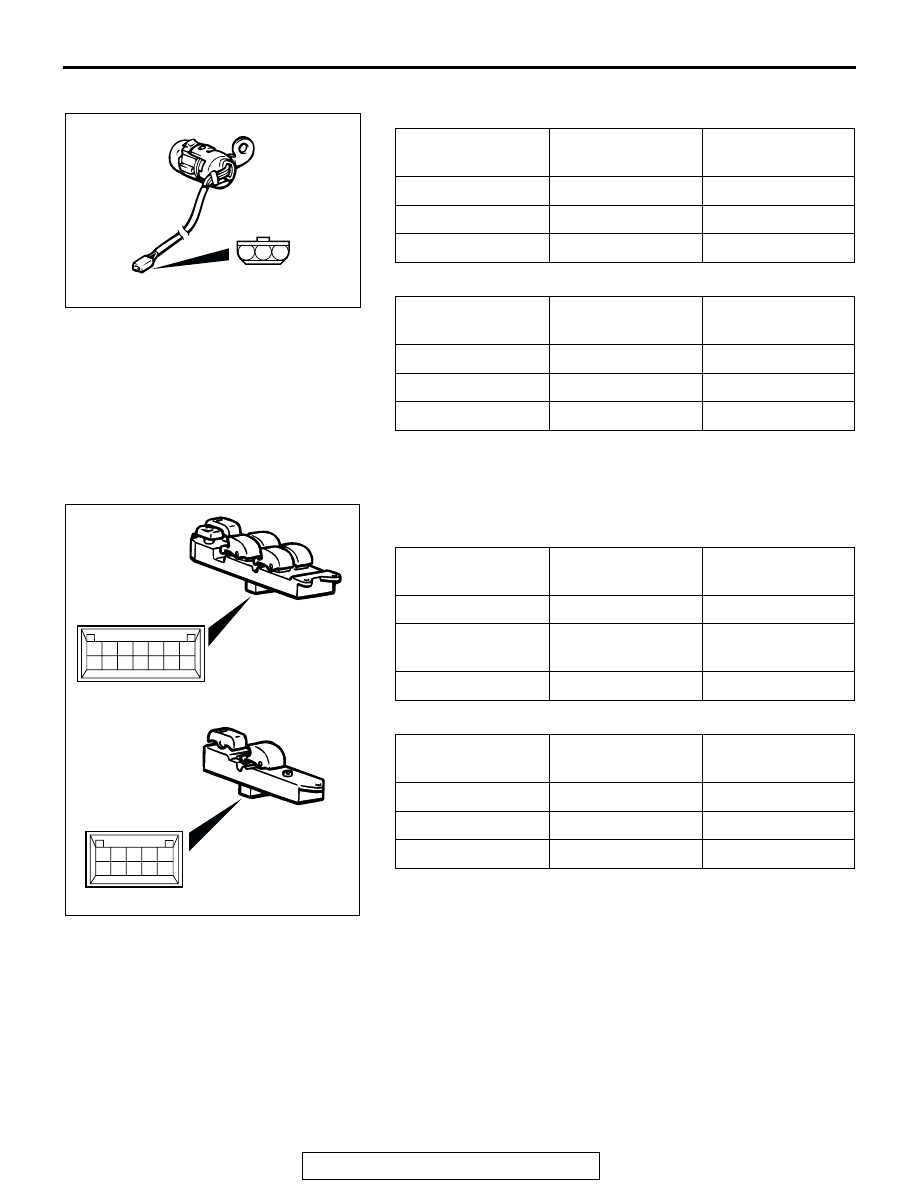

INSPECTION
M1421007600376

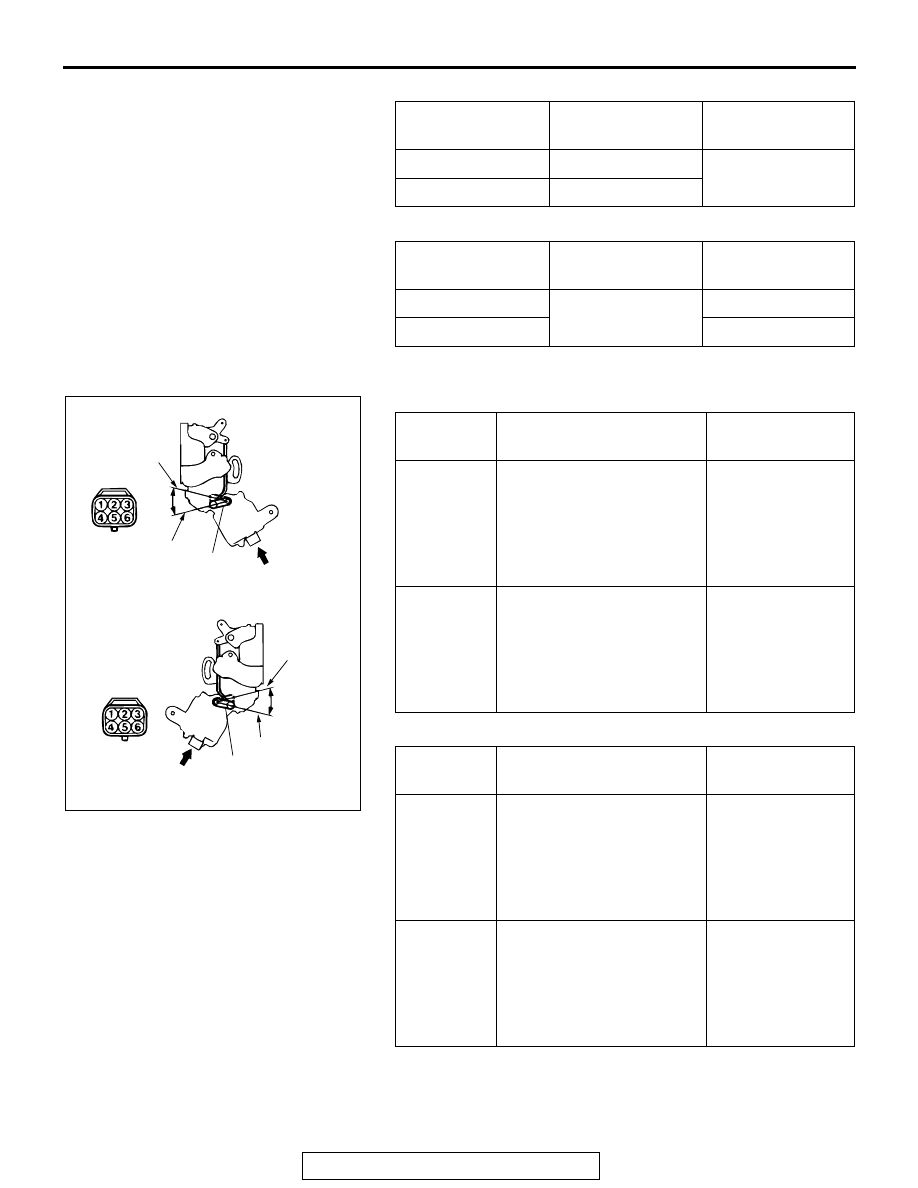

FRONT DOOR LOCK ACTUATOR CHECK
Actuator Operation Check <Driver’s side>
Actuator Operation Check <Passenger’s side>
ACX00542
INNER
CABLE
OUTER
CABLE
CLIP
CLIP
INSIDE LOCK ROD
DOOR INSIDE HANDLE
AB
LEVER
POSITION
BATTERY CONNECTION
LEVER
OPERATION
At the
"LOCK"
position
• Connect terminal 6 to
the negative battery
terminal
• Connect terminal 4 to
the positive battery
terminal
The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.
At the
"UNLOCK"
position
• Connect terminal 4 to
the negative battery
terminal
• Connect terminal 6 to
the positive battery
terminal
The lever moves
from the
"UNLOCK"
position to the
"LOCK" position.
LEVER
POSITION
BATTERY CONNECTION
LEVER
OPERATION
At the
"LOCK"
position
• Connect terminal 4 to
the negative battery
terminal
• Connect terminal 6 to
the positive battery
terminal
The lever moves
from the "LOCK"
position to the
"UNLOCK"
position.
At the
"UNLOCK"
position
• Connect terminal 6 to
the negative battery
terminal
• Connect terminal 4 to
the positive battery
terminal
The lever moves
from the
"UNLOCK"
position to the
"LOCK" position.
