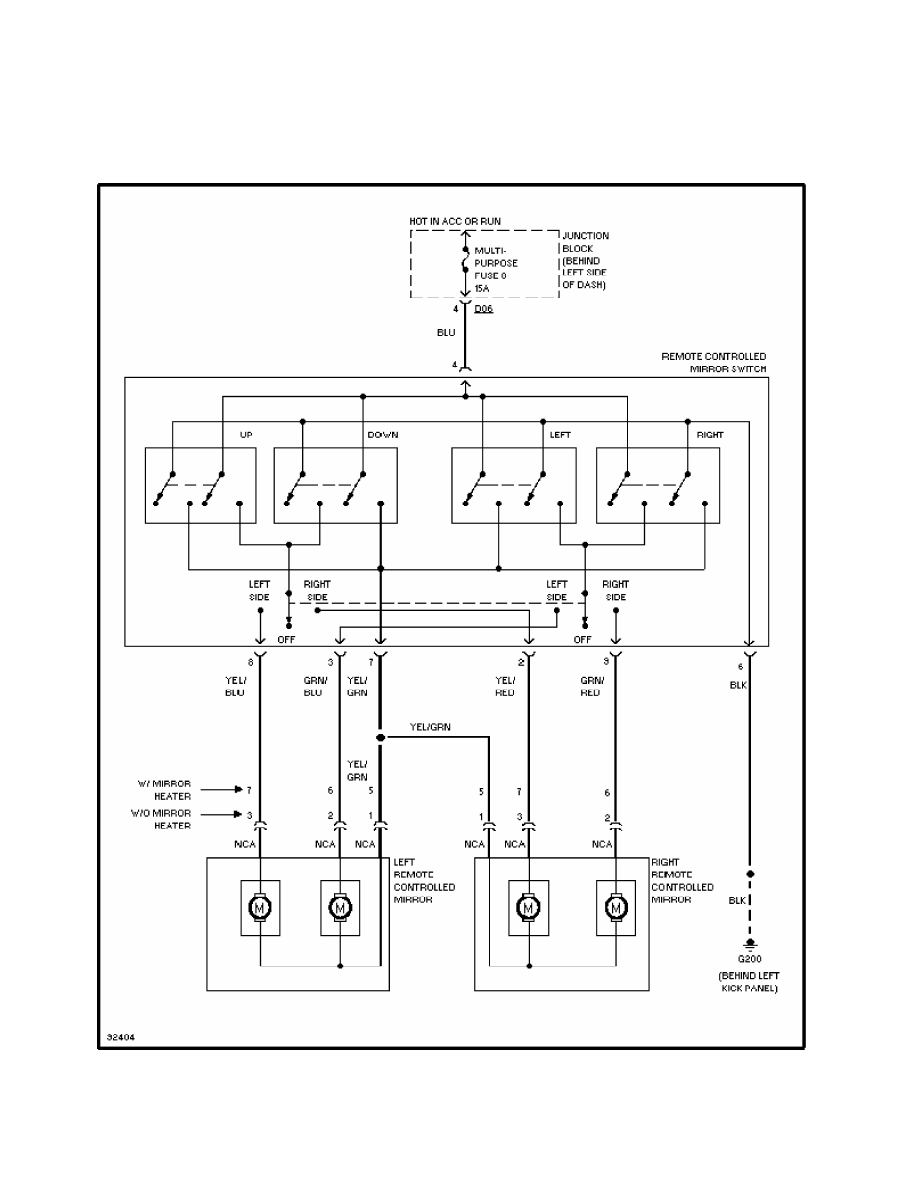

Fig. 12:  Power Mirrors System Wiring Diagram (Montero)

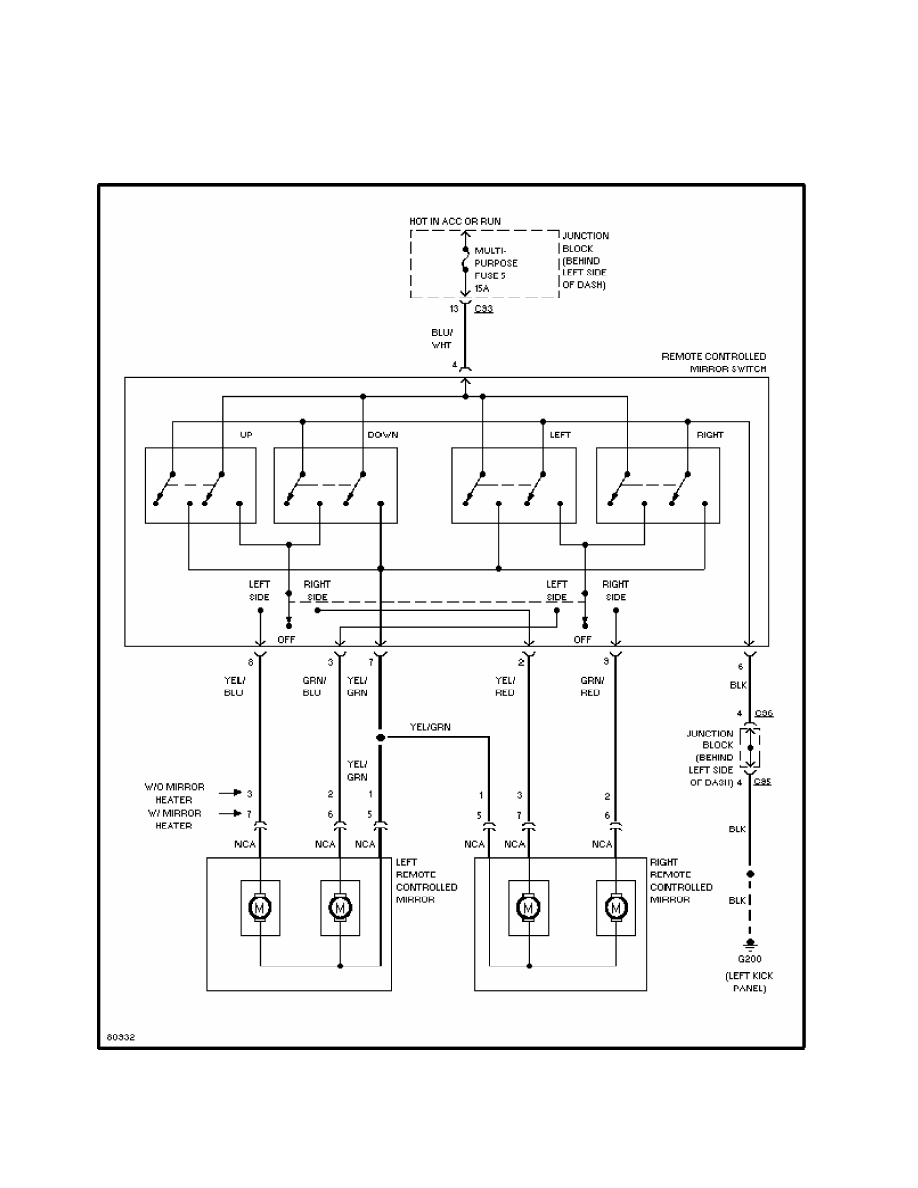

Fig. 13:  Power Mirrors System Wiring Diagram (Montero Sport)

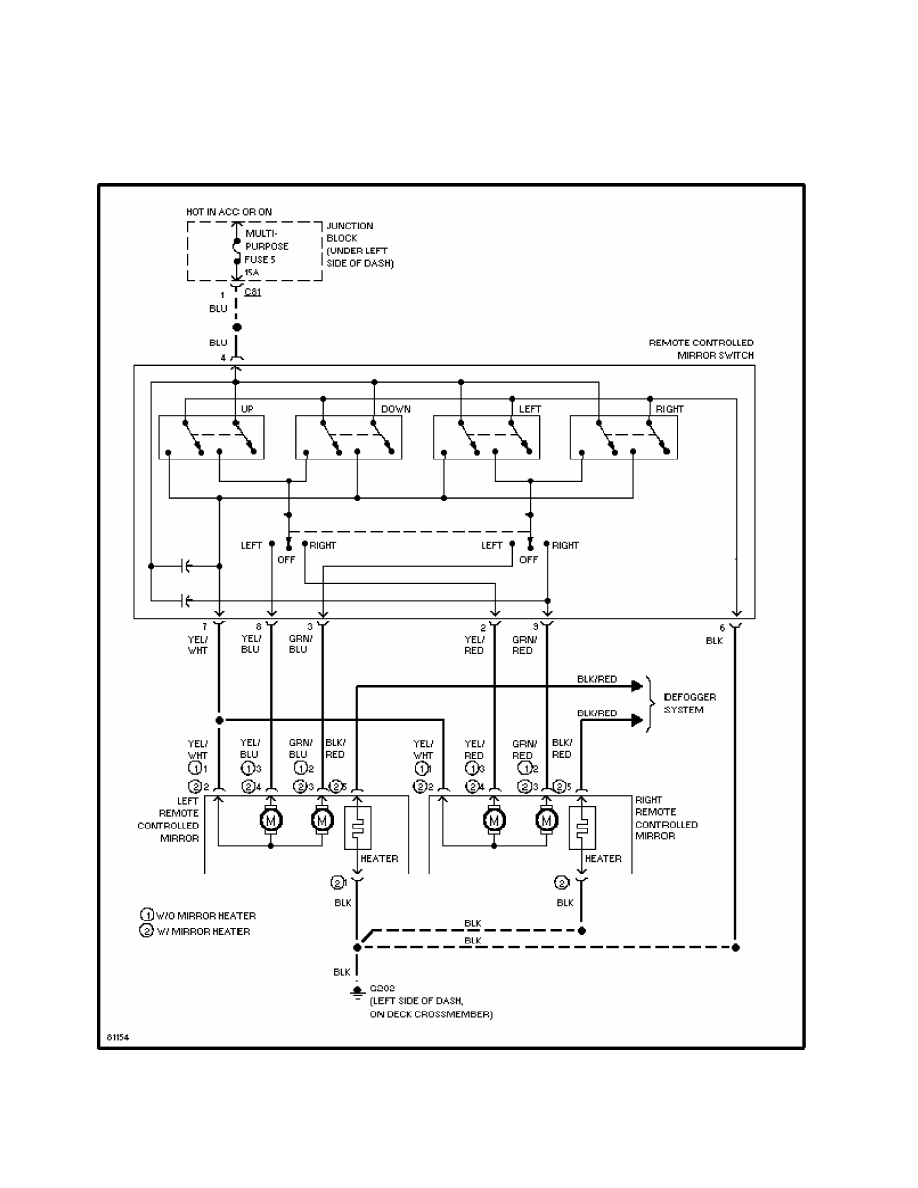

Fig. 14:  Power Mirrors System Wiring Diagram (3000GT)

N - REMOVE/INSTALL/OVERHAUL

1998 Mitsubishi Montero

         1998 ENGINE PERFORMANCE

         Mitsubishi - Removal, Overhaul & Installation

         Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,

         3000GT

         INTRODUCTION

         Removal, overhaul and installation procedures are covered in

this article. If component removal and installation is primarily an

unbolt and bolt-on procedure, only a torque specification may be

furnished.

         COMPONENT LOCATION

         The following illustrations are provided to assist in

locating components for which removal and installation procedures may

not be provided. See Figs. 1-12.

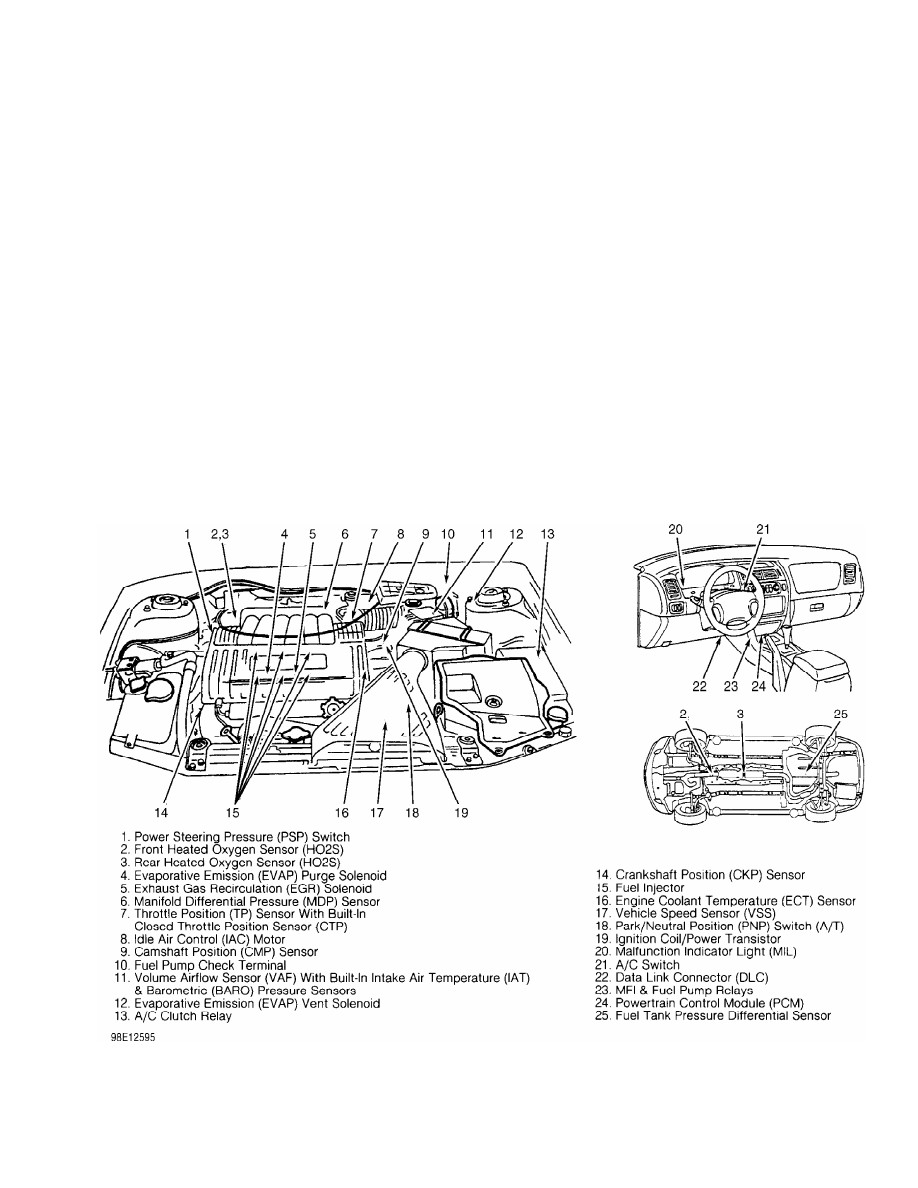

Fig. 1:  Engine Performance-Related Components (Diamante)

Courtesy of Mitsubishi Motor Sales of America
