MIRRORS - POWER

1998 Mitsubishi Montero

         1998 ACCESSORIES & EQUIPMENT

         Mitsubishi - Power Mirrors

         Eclipse, Galant, Mirage, Montero, Montero Sport, 3000GT

         DESCRIPTION & OPERATION

         Electric remote control mirrors are controlled by a dual-

control switch mounted on driver’s door, dash or center console

depending on model. Left/right switch directs current to desired

mirror. Horizontal/vertical switch directs current to electric motor

in mirror assembly, controlling up/down and left/right adjustment.

Heated mirrors are controlled by defogger relay.

         TROUBLE SHOOTING

         POWER MIRRORS INOPERATIVE

         Check for faulty fuse, faulty power mirror switch or faulty

power mirror motor. See POWER MIRROR FUSE IDENTIFICATION table.

POWER MIRROR FUSE IDENTIFICATION TABLE

Application                                         Fuse No.

Eclipse  ...............................................  13

Galant  .................................................  9

Mirage  .................................................  7

Montero & 3000GT  .......................................  5

Montero Sport  ..........................................  8

         COMPONENT TESTS

         POWER MIRROR MOTOR TEST

         Connect 12-volt power source to mirror connector terminals.

See Figs. 1-6. Replace mirror as necessary.

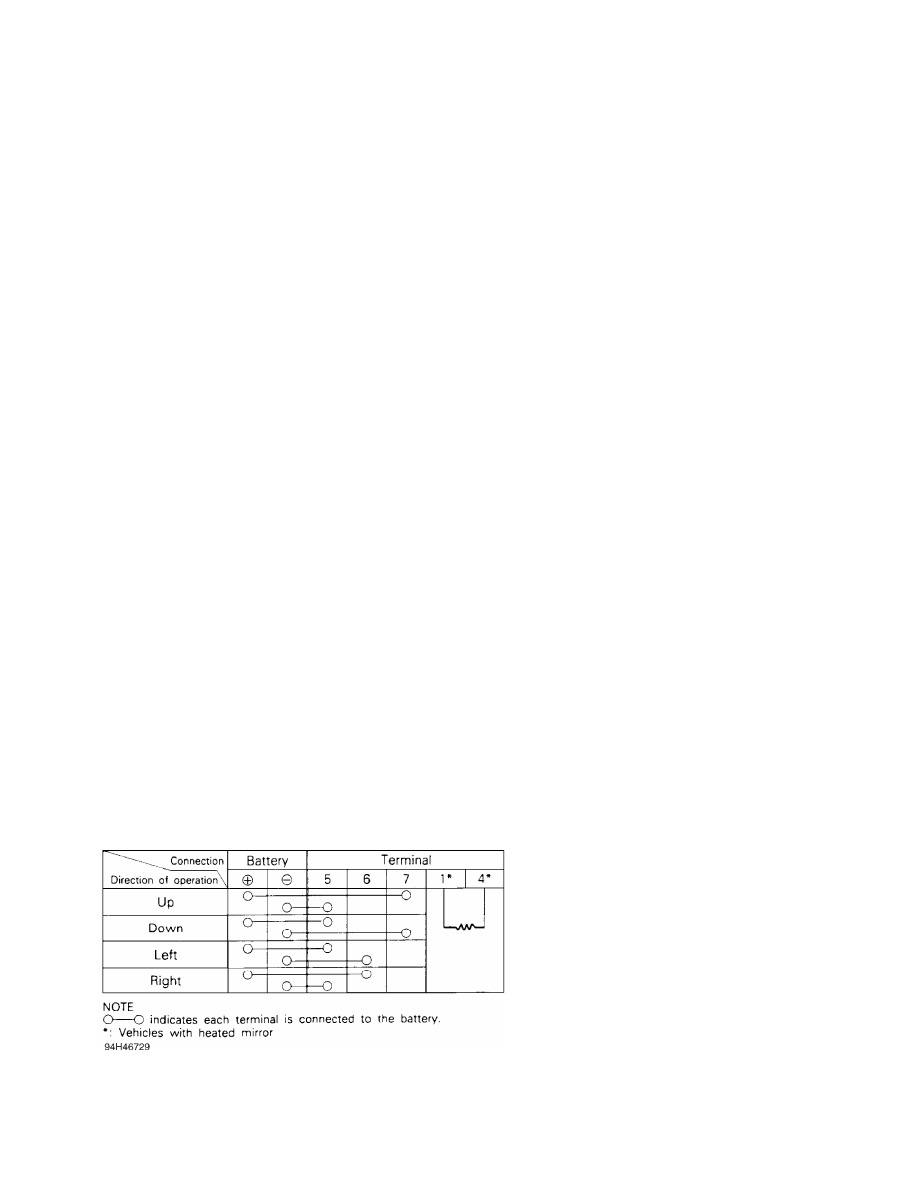

Fig. 1:  Identifying Power Mirror Operational Test Charts (Eclipse,

Galant, Montero - W/Heater & Montero Sport - W/Heater)

Courtesy of Chrysler Corp.

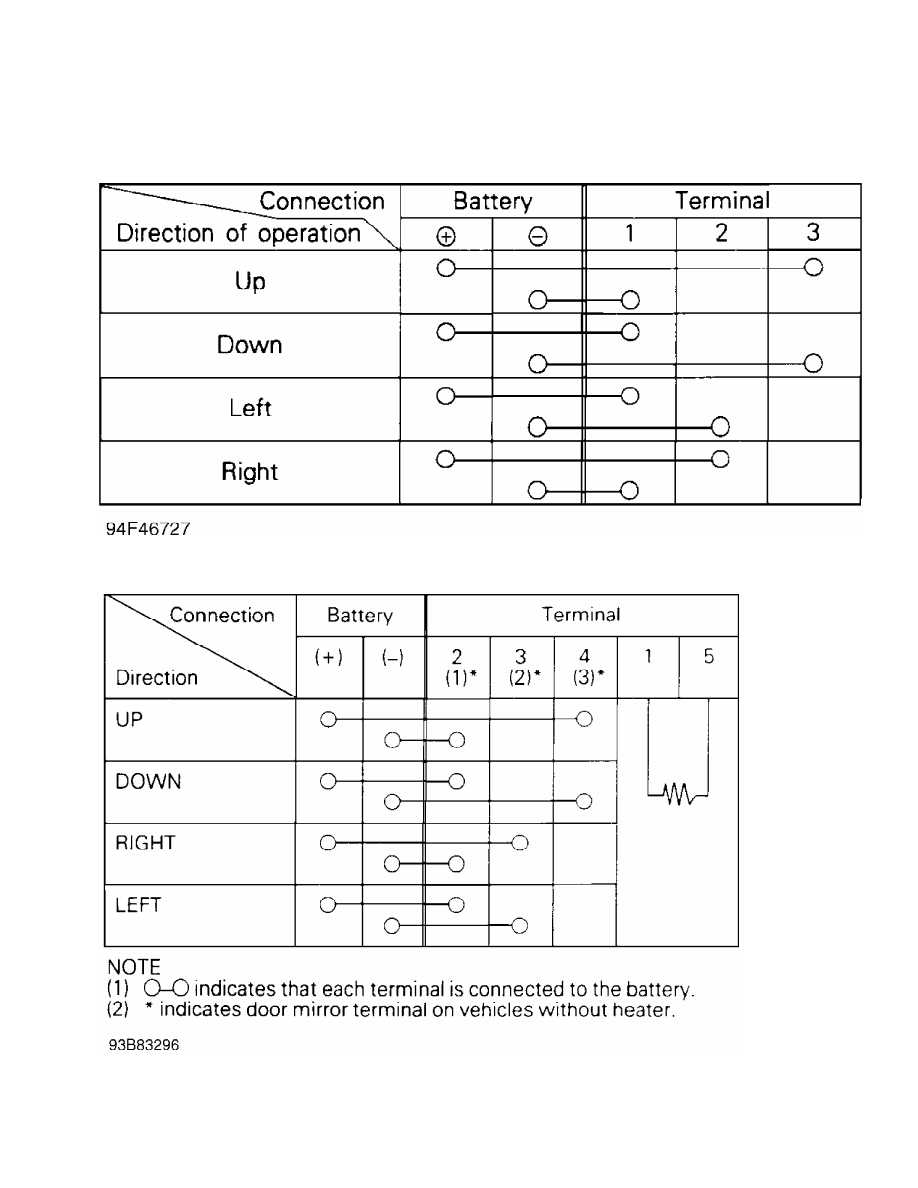

Fig. 2:  Identifying Power Mirror Operational Test Charts (Mirage,

Montero - W/out Heater & Montero Sport - W/out Heater)

Courtesy of Chrysler Corp.

Fig. 3:  Identifying Power Mirror Operational Test Charts (3000GT)

Courtesy of Chrysler Corp.

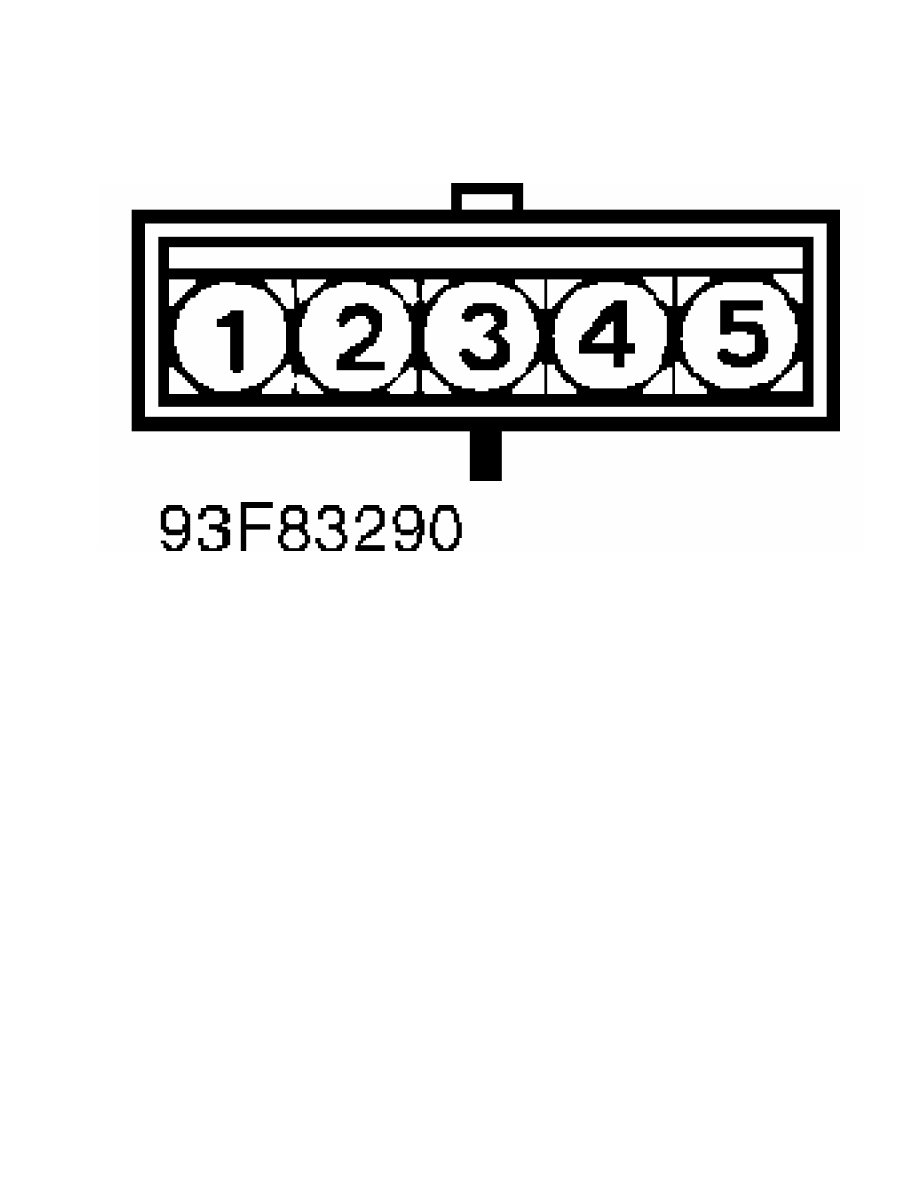

Fig. 4:  Identifying Power Mirror Connector (Eclipse, Galant, Montero

- W/Heater & Montero Sport - W/Heater)

Courtesy of Chrysler Corp.

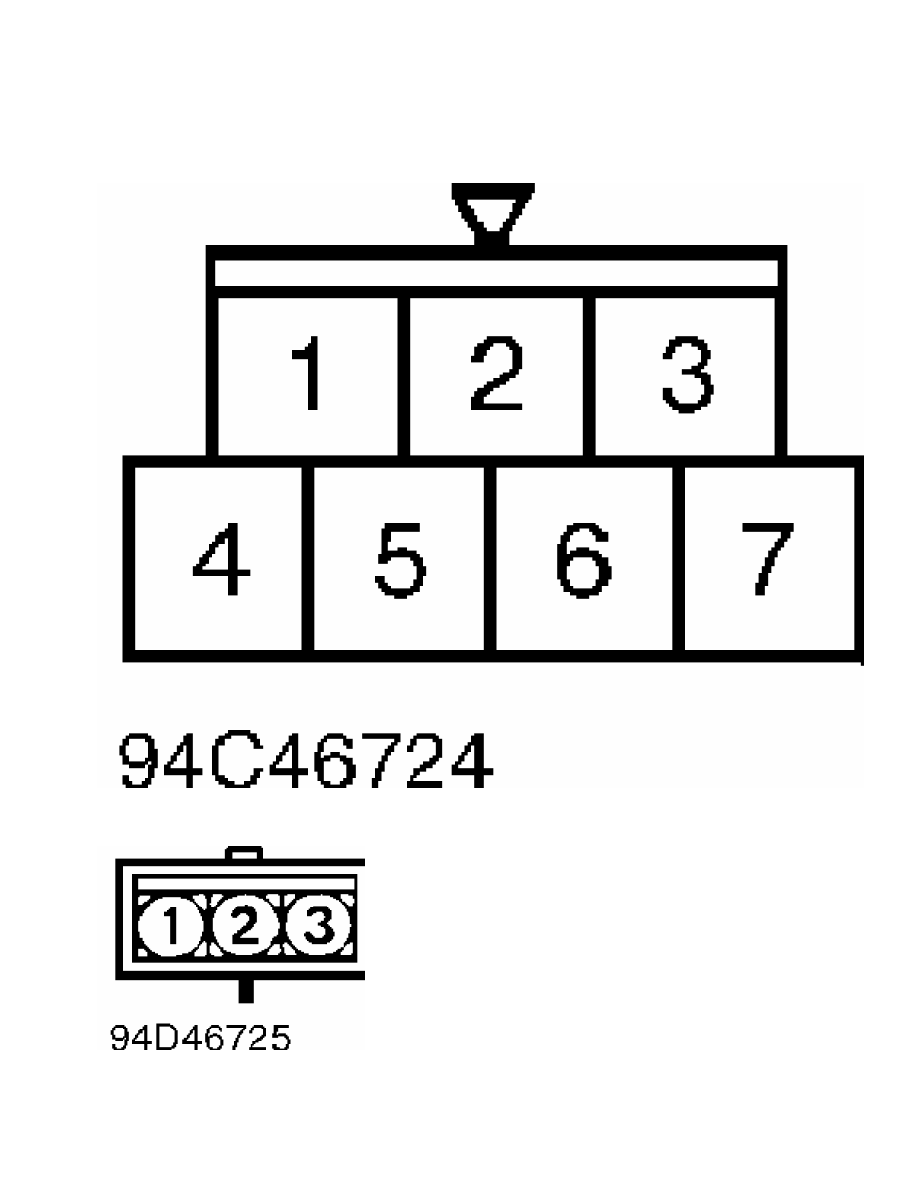

Fig. 5:  Identifying Power Mirror Connector (Mirage, Montero - W/out

Heater, Montero Sport - W/out Heater & 3000GT - W/out Heater)

Courtesy of Chrysler Corp.

Fig. 6:  Identifying Power Mirror Connector (3000GT - W/Heater)

Courtesy of Chrysler Corp.

         POWER MIRROR SWITCH TEST

         Remove mirror switch. Using ohmmeter, check continuity of

switch. See appropriate POWER MIRROR SWITCH CONTINUITY CHART. See

Fig. 7 or 8. Replace switch if switch continuity is not as specified.

POWER MIRROR SWITCH CONTINUITY CHART (ECLIPSE)

Switch                                  (1) Check Continuity

Position                                    Between Pins No.

Left Side

  UP  .......................................  3 & 4; 5 & 10

  DOWN  .....................................  3 & 5; 4 & 10

  LEFT  ....................................  3 & 11; 4 & 10

  RIGHT  ...................................  3 & 4; 10 & 11

Right Side

  UP  .......................................  3 & 4; 9 & 10

  DOWN  .....................................  3 & 9; 4 & 10

  LEFT  .....................................  3 & 8; 4 & 10

  RIGHT  ....................................  3 & 4; 8 & 10

(1) - See Fig. 7.

POWER MIRROR SWITCH CONTINUITY CHART (ALL OTHERS)

Switch                                  (1) Check Continuity

Position                                    Between Pins No.

Left Side

  UP  ........................................  4 & 8; 6 & 7

  DOWN  ......................................  4 & 7; 6 & 8

  LEFT  ......................................  3 & 6; 4 & 7

  RIGHT  .....................................  3 & 4; 6 & 7
