         thoroughly with soap and water.

CAUTION: Never use non-detergent or straight mineral oil.

         FUEL SYSTEM SERVICE

WARNING: Relieve fuel system pressure prior to servicing any fuel

         system component (fuel injection models).

         HALOGEN BULBS

         Halogen bulbs contain pressurized gas which may explode if

overheated. DO NOT touch glass portion of bulb with bare hands. Eye

protection should be worn when handling or working around halogen

bulbs.

         RADIATOR CAP

CAUTION: Always disconnect the fan motor when working near the

         radiator fan. The fan is temperature controlled and could

         start at any time even when the ignition key is in the OFF

         position. DO NOT loosen or remove radiator cap when cooling

         system is hot.

         RADIATOR FAN

WARNING: Keep hands away from radiator fan. Fan is controlled by a

thermostatic switch which may come on or run for up to 15 minutes even

after engine is turned off.

         WARRANTY INFORMATION

CAUTION: Due to the different warranties offered in various regions

         and the variety of after-market extended warranties

         available, please refer to the warranty package that came

         with the vehicle to verify all warranty options.

         FUSES & CIRCUIT BREAKERS

         FUSE PANEL LOCATION

         The electrical system is protected against shorts by fuses

that are designed to fail, to prevent damage to the wire harness. The

fuse block is located under the instrument panel on the driver’s side.

If a fuse is blown, locate the cause before replacing the fuse. Spare

fuses are contained in the fuse block.

         FUSE PANEL IDENTIFICATION

         Fuse & Circuit Breaker Identification

         PASSENGER COMPARTMENT

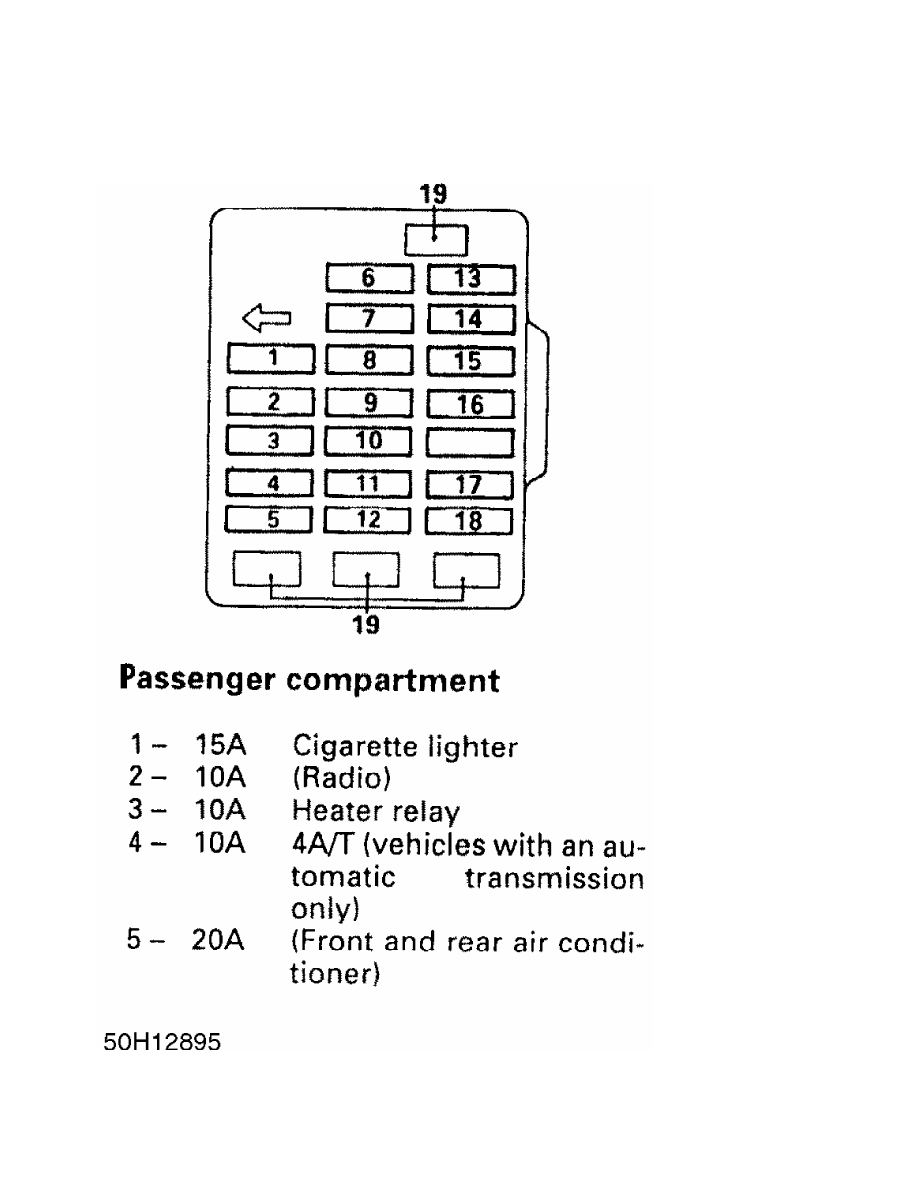

Fig. 3:  Passenger Compartment Fuse Box

Courtesy of Mitsubishi Motor Sales of America.

  1 - 15 Amp (Light Blue)

         Cigarette Lighter

  2 - 10 Amp (Red)

         Radio

  3 - 10 Amp (Red)

         Heater Relay

  4 - 10 Amp (Red)

         4A/T

  5 - 20 Amp (Yellow)

         Front & Rear Air Conditioner

  6 - 10 Amp (Red)

         Turn Signals

  7 - 10 Amp (Red)

         Meters

  8 - 10 Amp (Red)

         Horn

  9 - 15 Amp (Light Blue)

         Wiper

 10 - 10 Amp (Red)

         Power Window Control

 11 - 10 Amp (Red)

         Four Wheel Drive System, Overdrive Control (Vehicles With

         Automatic Transmission Only)

 12 - 15 Amp (Light Blue)

         Power Door Locks

 13 - 10 Amp (Red)

         Doom Light, Clock

 14 - 15 Amp (Light Blue)

         Backup Lights

 15 - 15 Amp (Light Blue)

         Stoplights

 16 - 25 Amp

         Heater

 17 - 15 Amp (Light Blue)

         Accessory Socket

 18 - 10 Amp (Red)

         Rear Heater

 19 - Spare Fuse

         ENGINE COMPARTMENT

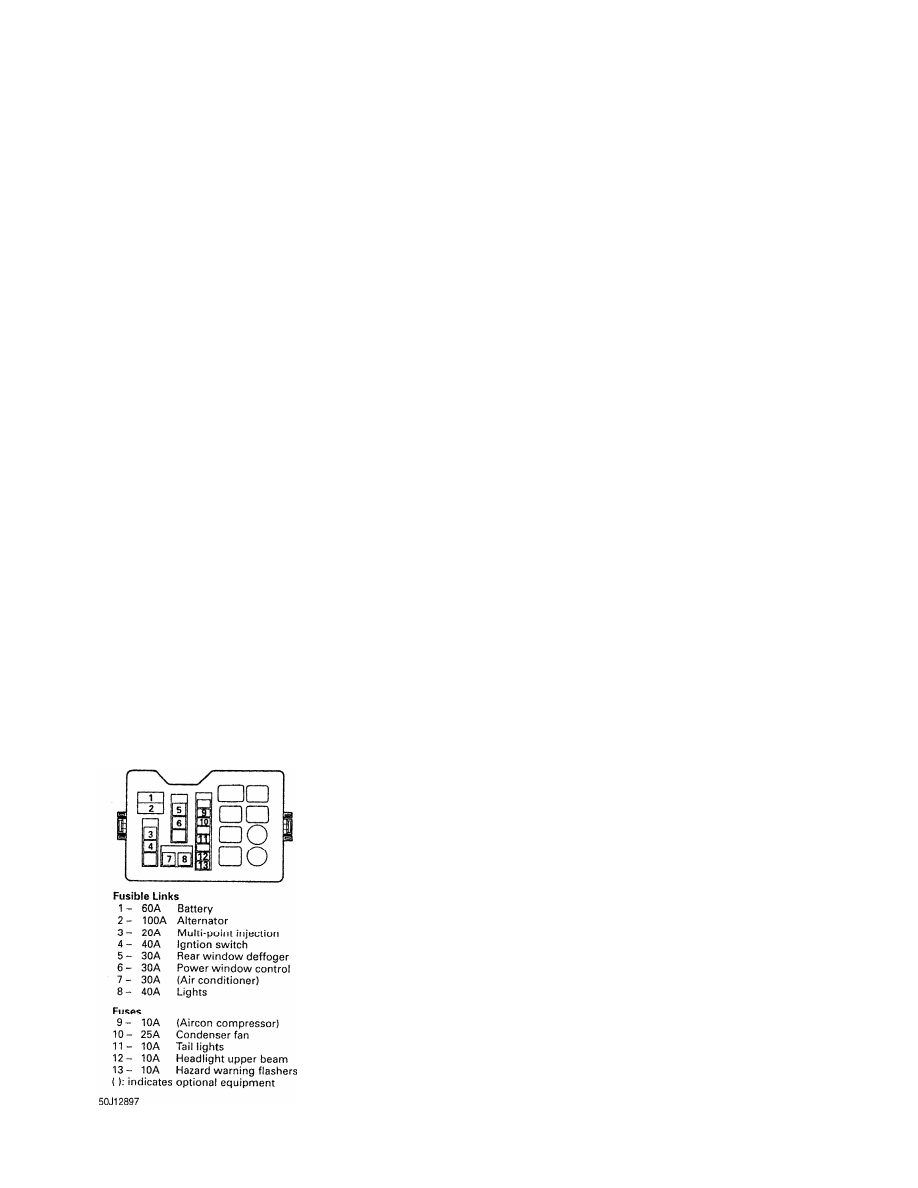

Fig. 4:  Engine Compartment Fusible Links

Courtesy of Mitsubishi Motor Sales of America.

  1 - 60 Amp

         Battery

  2 - 100 Amp

         Alternator

  3 - 20 Amp (Yellow)

         Multipoint Injection

  4 - 40 Amp

         Ignition Switch

  5 - 30 Amp (Green)

         Rear Window Defogger

  6 - 30 Amp (Green)

         Power Window Control

  7 - 30 Amp (Green)

         Air Conditioner

  8 - 40 Amp

         Lights

  9 - 10 Amp (Red)

         AIR CONDITIONING & HEAT Compressor

 10 - 25 Amp

         Condenser Fan

 11 - 10 Amp (Red)

         Tail Lights

 12 - 10 Amp (Red)

         Headlight Upper Beam

 13 - 10 Amp (Red)

         Hazard Warning Flashers
