Mitsubishi Montero (1998+). Manual - part 215
cover plug. Remove cluster cover. Remove screws from instrument
cluster. Disconnect all connectors from back of instrument cluster.
Remove cluster. To install, reverse removal procedure. See Fig. 41.
Removal & Installation (Montero Sport)
Disconnect negative battery cable. Remove instrument cluster
cover. Remove screws from instrument cluster. Disconnect all
connectors attaching cluster. Remove cluster. To install, reverse
removal procedure. See Fig. 43.

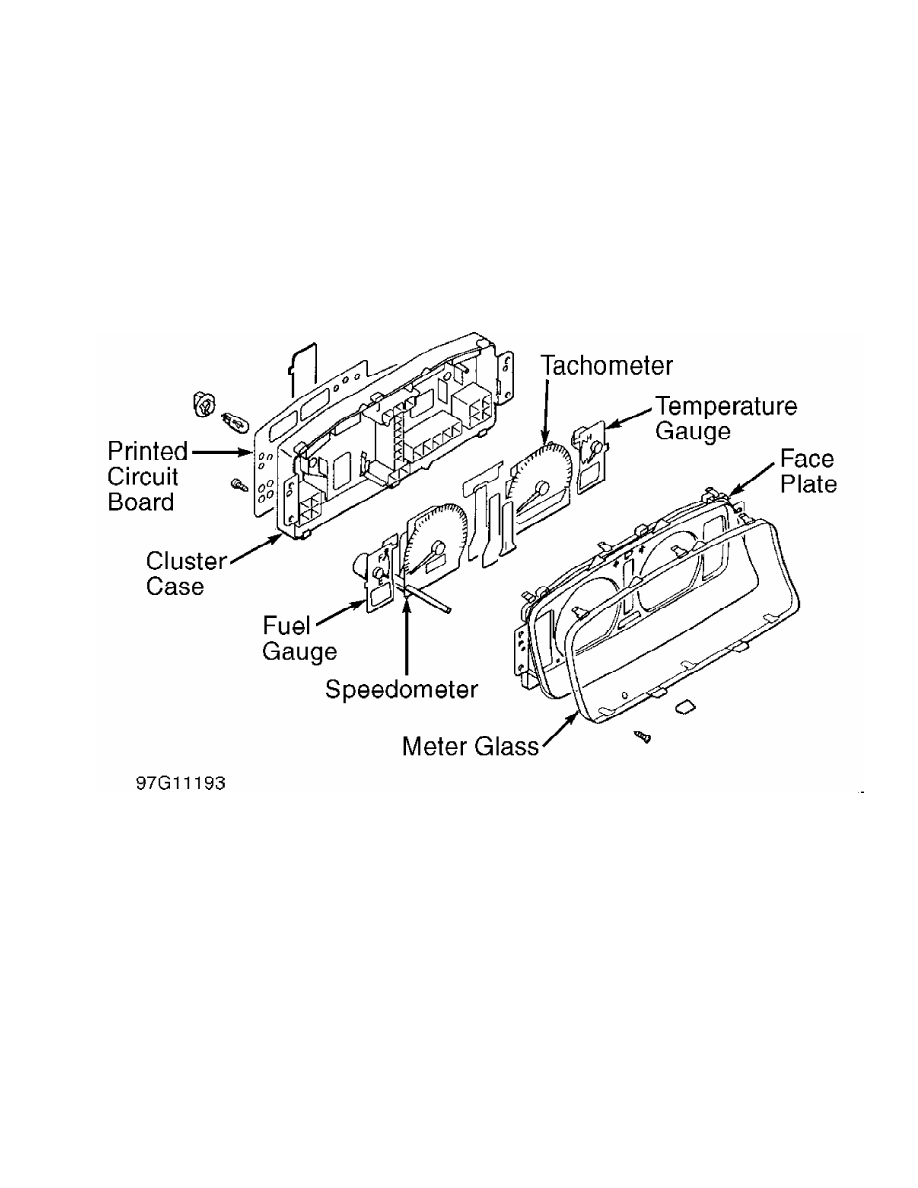

Fig. 43: Identifying Instrument Cluster Components (Montero Sport)
Courtesy of Mitsubishi Motor Sales of America
Removal & Installation (3000GT)
Disconnect negative battery cable. Remove driver-side knee
protector. Remove lower and upper column covers. Remove meter bezel
and instrument cluster. Disconnect connectors from back of instrument

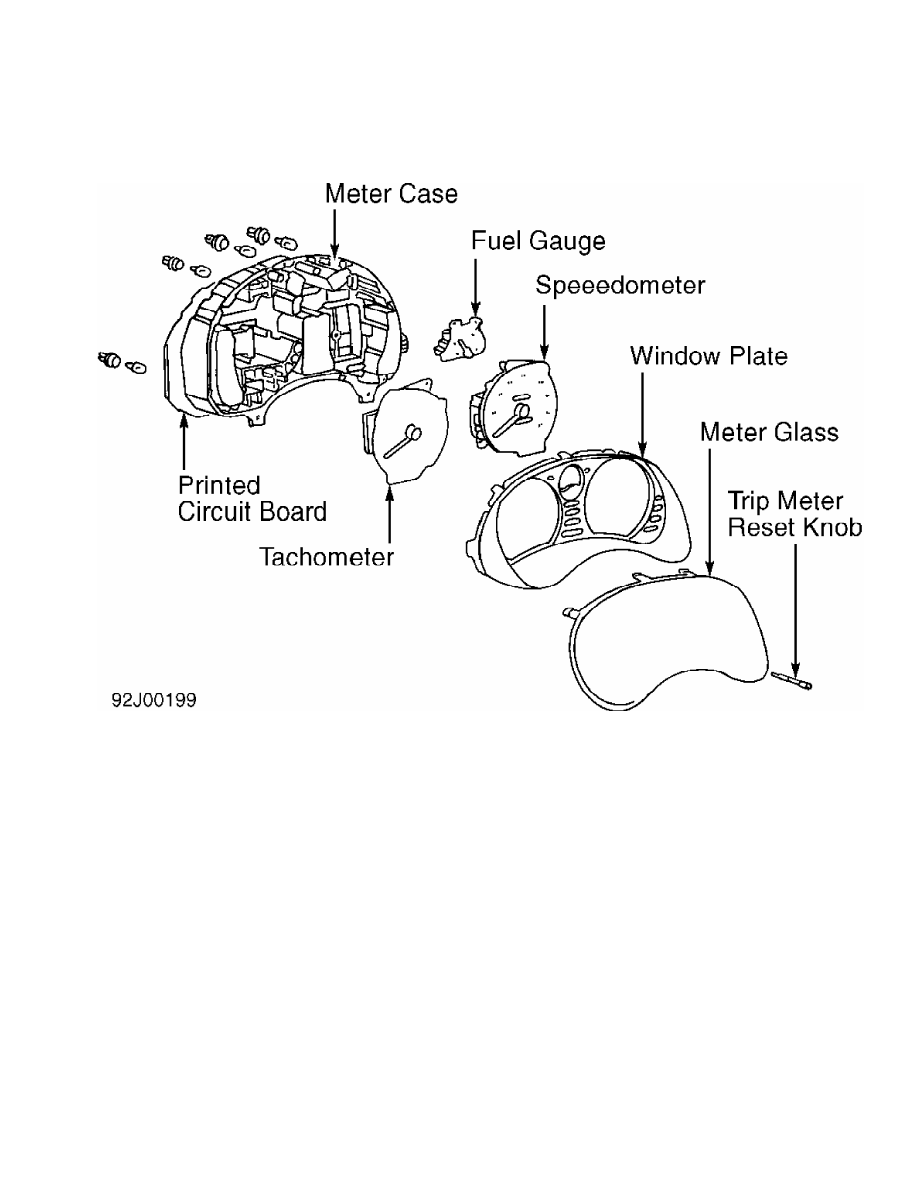

cluster. Remove cluster. To install, reverse removal procedure. See
Fig. 44.
