         Montero

         Remove foglight switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

2 and 5. With switch in ON position, continuity should exist between

terminals No. 1 and 4, terminals No. 2 and 5, and terminals No. 3 and

6. See Fig. 32. If continuity is not as specified, replace switch.

         3000GT

         Remove foglight switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

3 and 4. With switch in ON position, continuity should exist between

terminals No. 1 and 5. See Fig. 34. If continuity is not as specified,

replace switch.

Fig. 31:  Identifying Foglight Switch Connector Terminals (Eclipse,

Galant & Mirage)

Courtesy of Mitsubishi Motor Sales of America

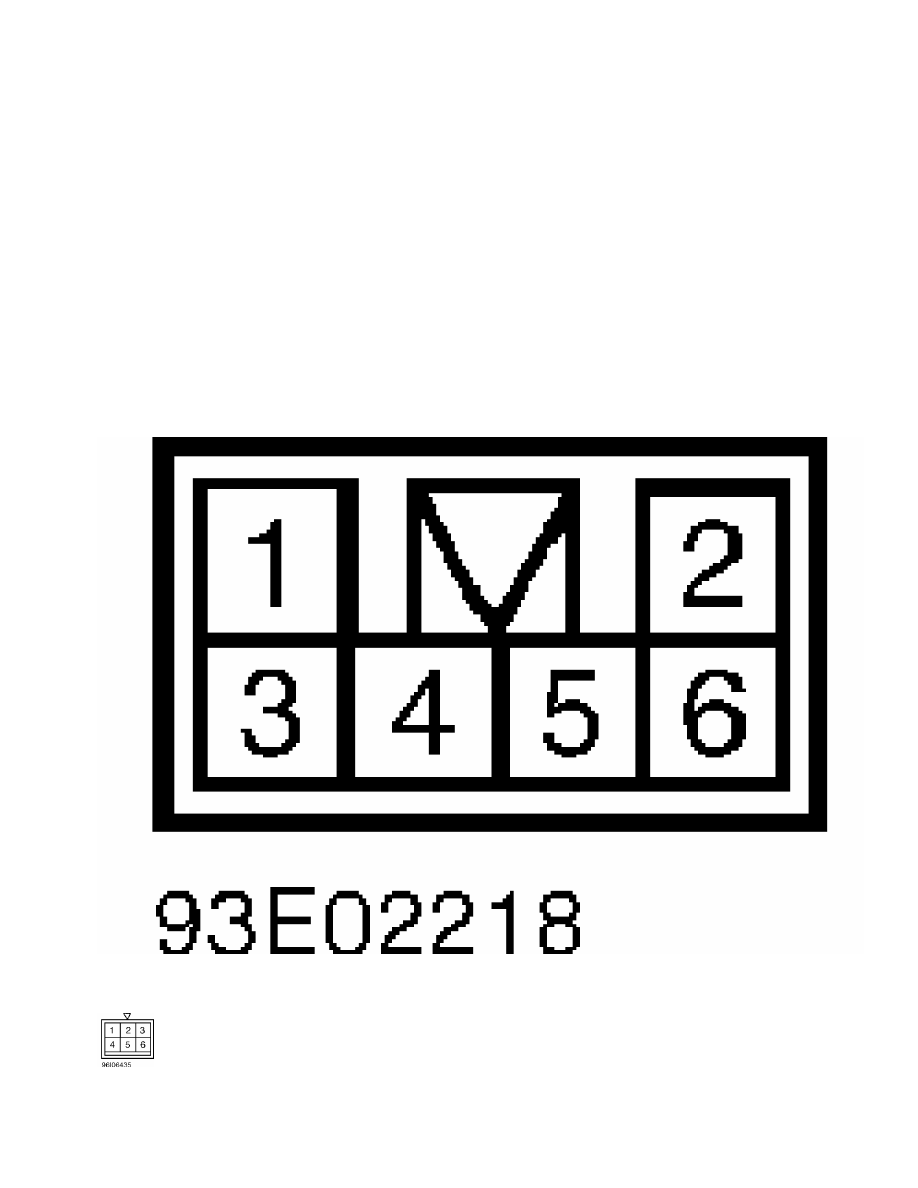

Fig. 32:  Identifying Foglight Switch Connector Terminals (Montero)

Courtesy of Mitsubishi Motor Sales of America

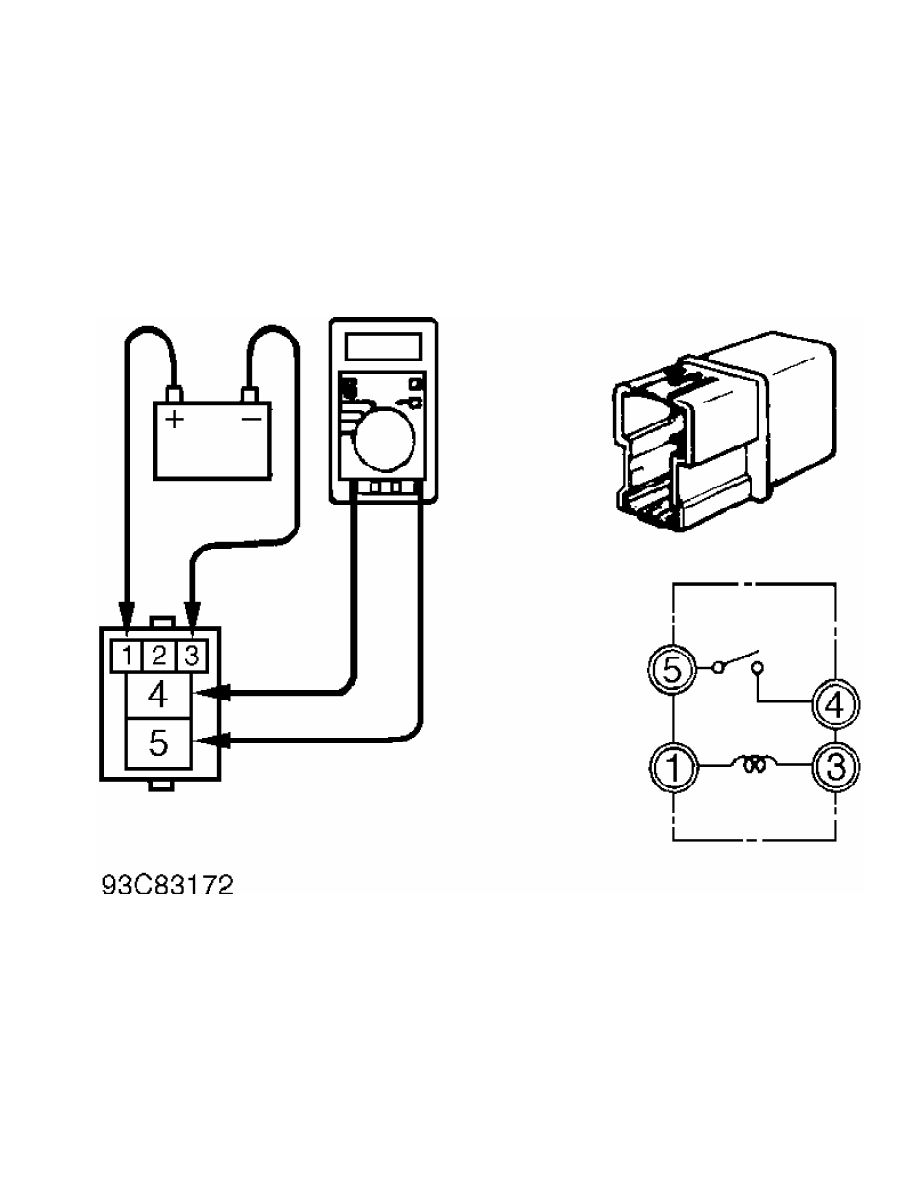

         FOGLIGHT RELAY TEST

         Remove relay from engine compartment fuse/relay box. Using an

ohmmeter, check relay continuity. With battery voltage not supplied to

relay, continuity should exist between terminals No. 1 and 3. With

positive battery terminal connected to relay terminal No. 1 and

negative battery terminal connected to relay terminal No. 3,

continuity should exist between terminals No. 4 and 5. See  Fig. 33. If

continuity is not as specified, replace relay.

Fig. 33:  Identifying Foglight Relay Connector Terminals

Courtesy of Mitsubishi Motor Sales of America

         HAZARD LIGHT SWITCH TEST

         Eclipse, Mirage & Montero Sport

         Remove hazard light switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

5 and 7, and between terminals No. 9 and 10. With switch in ON

position, continuity should exist between terminals No. 1, 2 and 4,

between terminals No. 5 and 6, and between terminals No. 9 and 10. See

Fig. 34. If continuity is not as specified, replace switch.

         Galant

         Remove hazard light switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

5 and 7, and between terminals No. 8, 9 and 10. With switch in ON

position, continuity should exist between terminals No. 1-4, between

terminals No. 5 and 6, and between terminals No. 9 and 10. See  Fig. 34

. If continuity is not as specified, replace switch.

         Montero

         Remove hazard light switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

5 and 7, and between terminals No. 8, 9 and 10. With switch in ON

position, continuity should exist between terminals No. 1-6, and

between terminals No. 9 and 10. See Fig. 34. If continuity is not as

specified, replace switch.

         3000GT

         Remove hazard light switch from instrument panel. Disconnect

switch connector. Using an ohmmeter, check switch continuity. With

switch in OFF position, continuity should exist between terminals No.

2 and 3, and between terminals No. 5 and 8. With switch in ON

position, continuity should exist between terminals No. 2 and 3,

between terminals No. 6, 9 and 10, and between terminals No. 7 and 8.

See Fig. 34. If continuity is not as specified, replace switch.

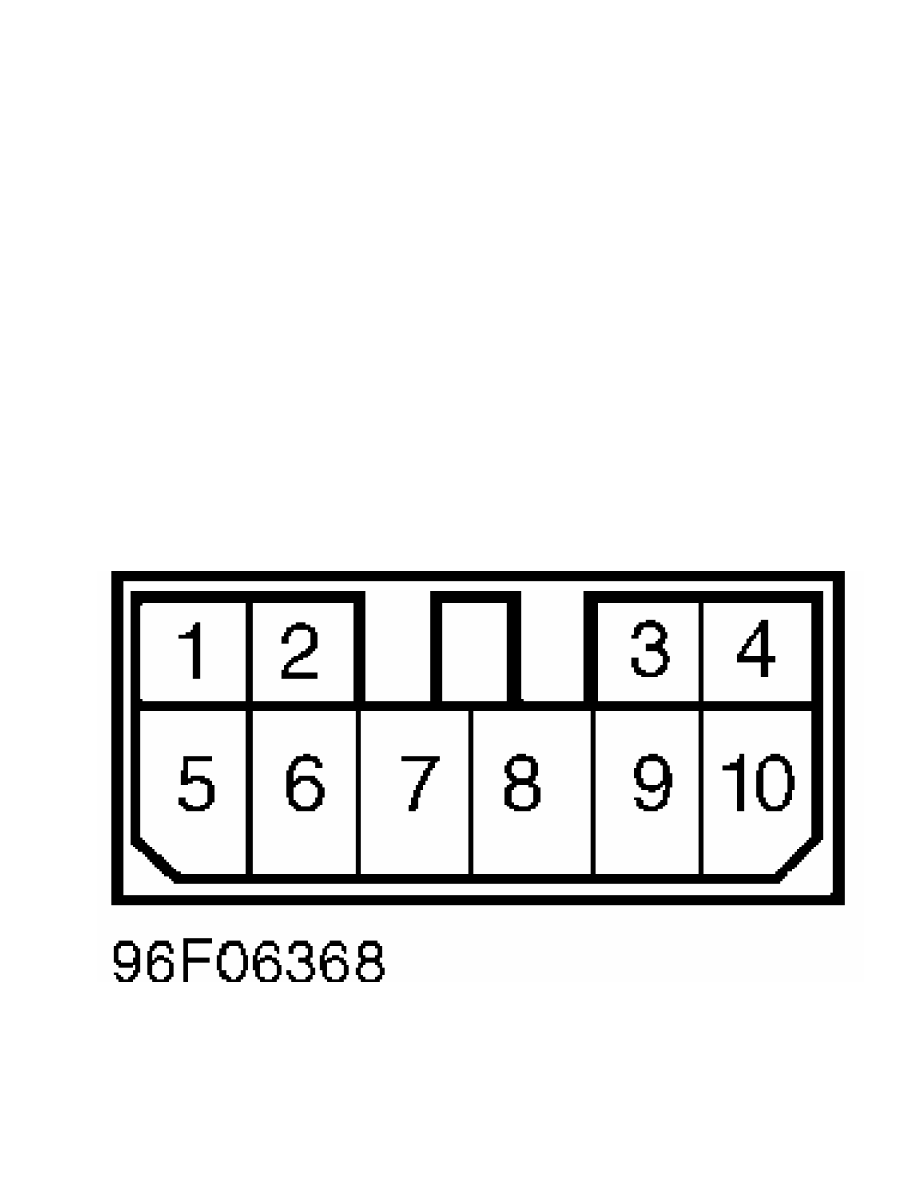

Fig. 34:  Identifying Hazard Light Switch Connector Terminals &

Foglight Switch Connector Terminals (3000GT)

Courtesy of Mitsubishi Motor Sales of America

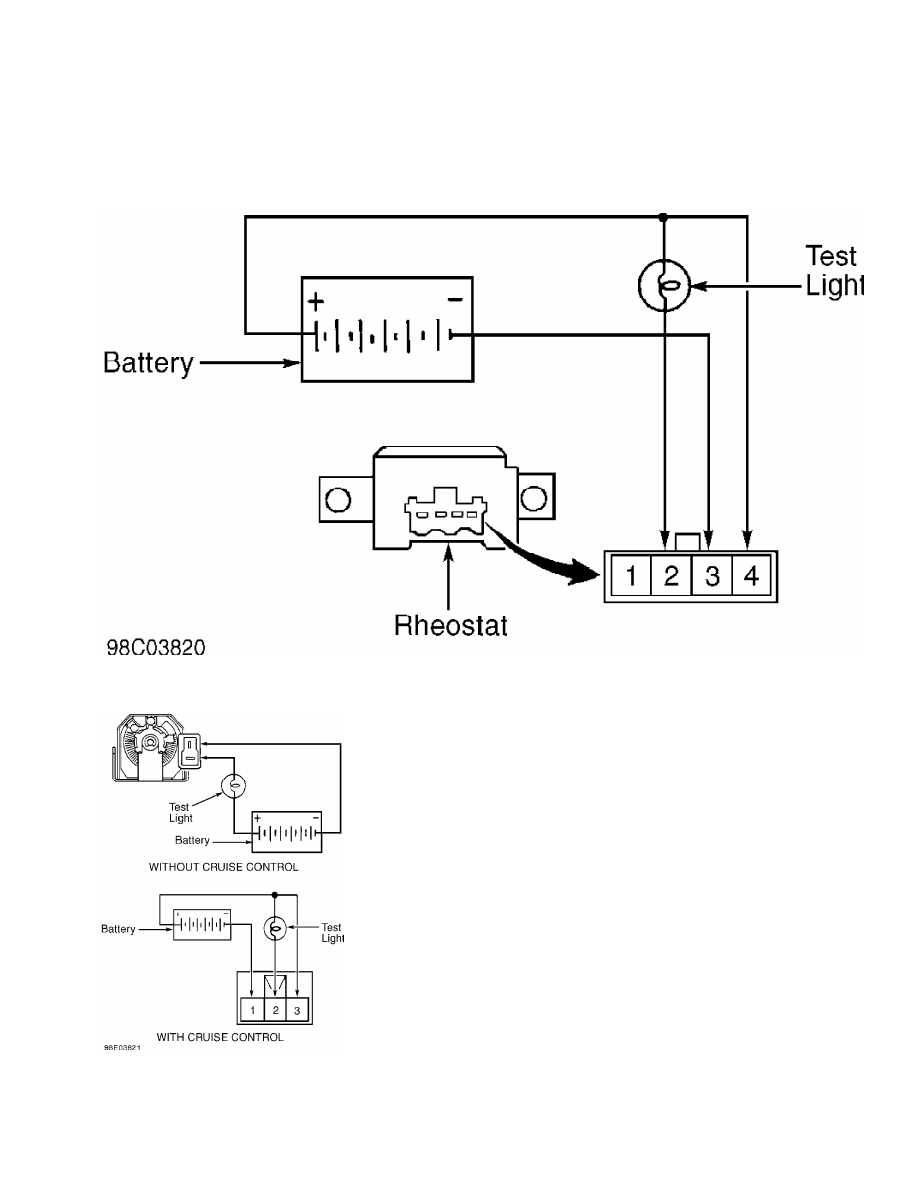

         INSTRUMENT PANEL RHEOSTAT TEST

         Remove driver-side knee protector. Remove rheostat from

instrument panel. Connect battery and 40-watt test light to rheostat.

See Figs. 35-38. Operate rheostat. If brightness changes smoothly

without switching off, rheostat function is normal. If brightness does

not change smoothly or switches off, replace rheostat.

Fig. 35:  Identifying Rheostat Connector Terminals (Eclipse & Montero

Sport)

Courtesy of Mitsubishi Motor Sales of America

Fig. 36:  Identifying Rheostat Connector Terminals (Galant & Mirage)

Courtesy of Mitsubishi Motor Sales of America
