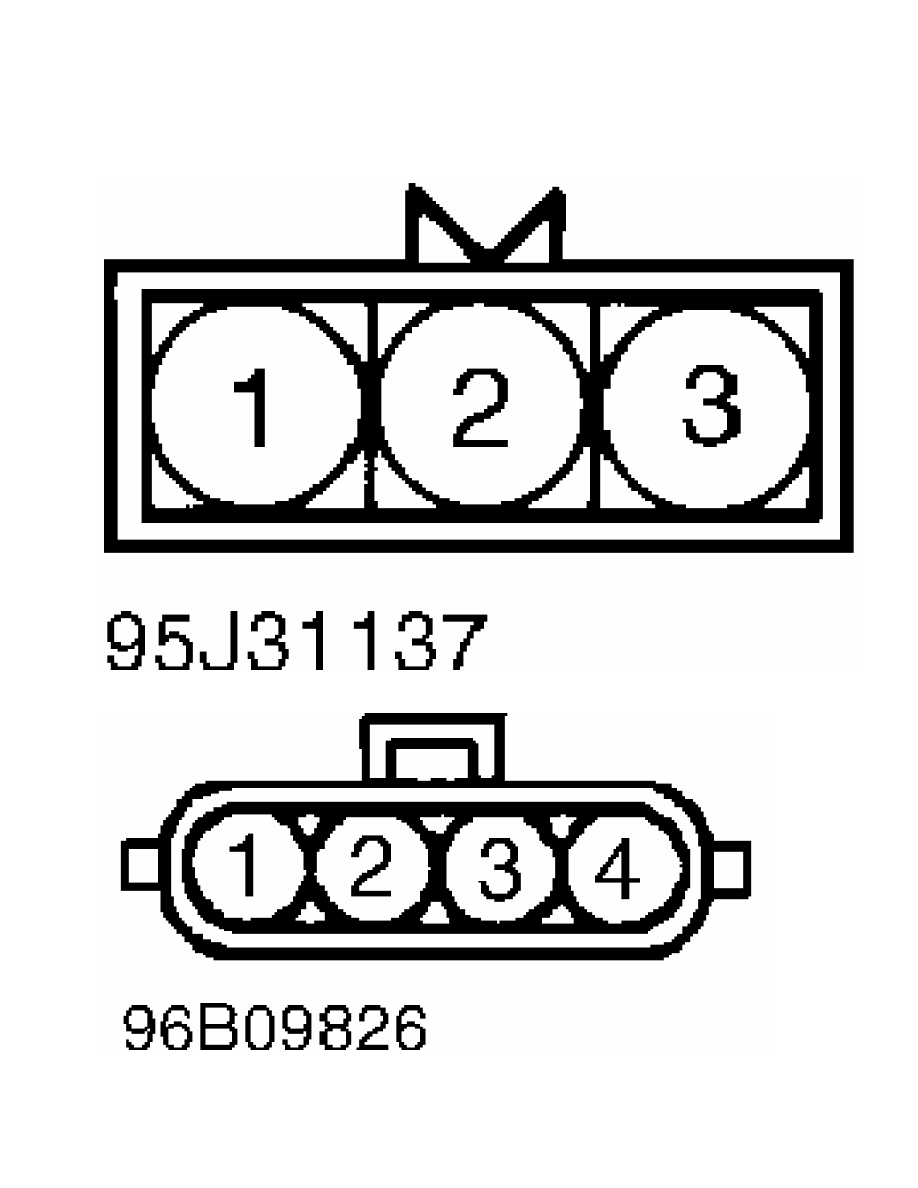

Fig. 4:  Identifying CMP Terminals (Montero & 3000GT DOHC)

Courtesy of Mitsubishi Motor Sales of America

Fig. 5:  Identifying CMP Terminals (3000GT SOHC)

Courtesy of Mitsubishi Motor Sales of America

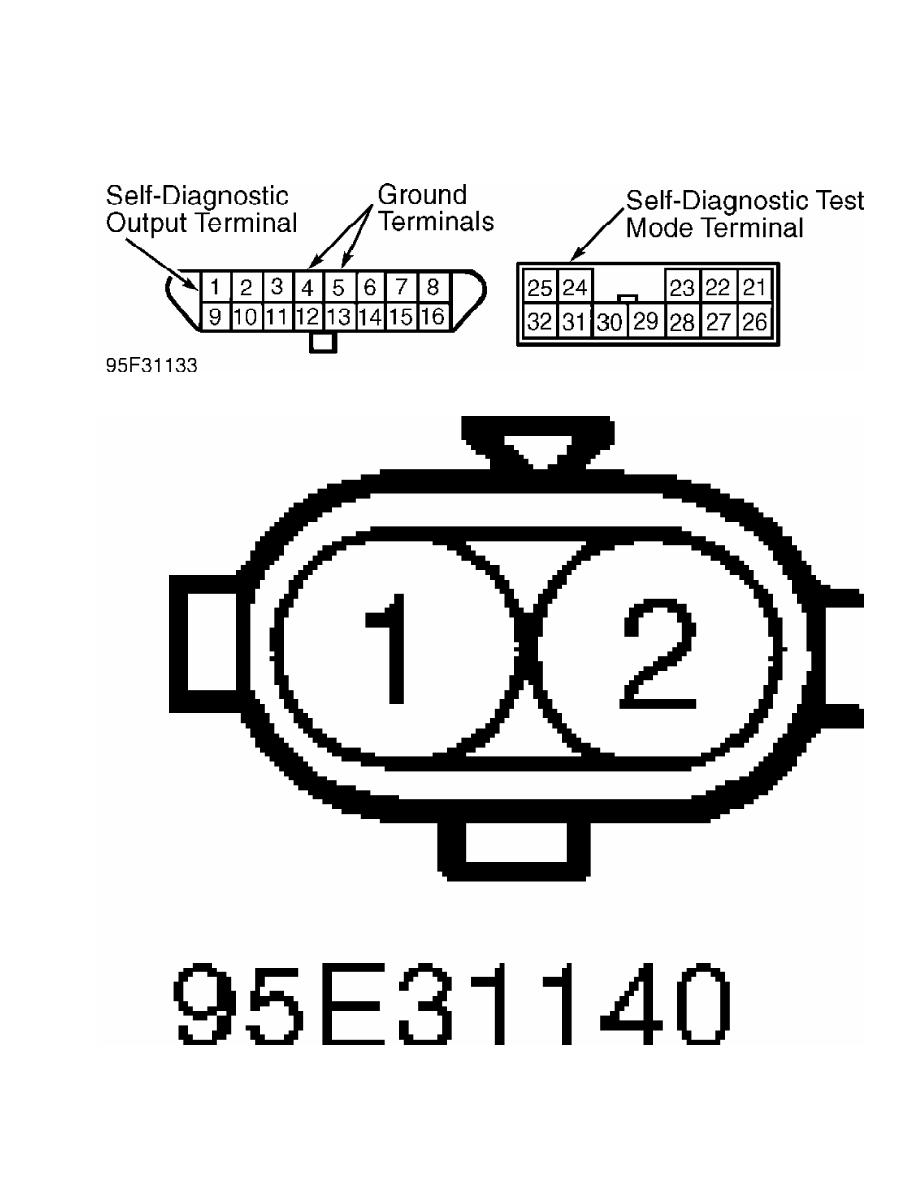

Fig. 6:  Identifying DLC Terminals

Courtesy of Mitsubishi Motor Sales of America

Fig. 7:  Identifying ECT Sensor Terminals

Courtesy of Mitsubishi Motor Sales of America

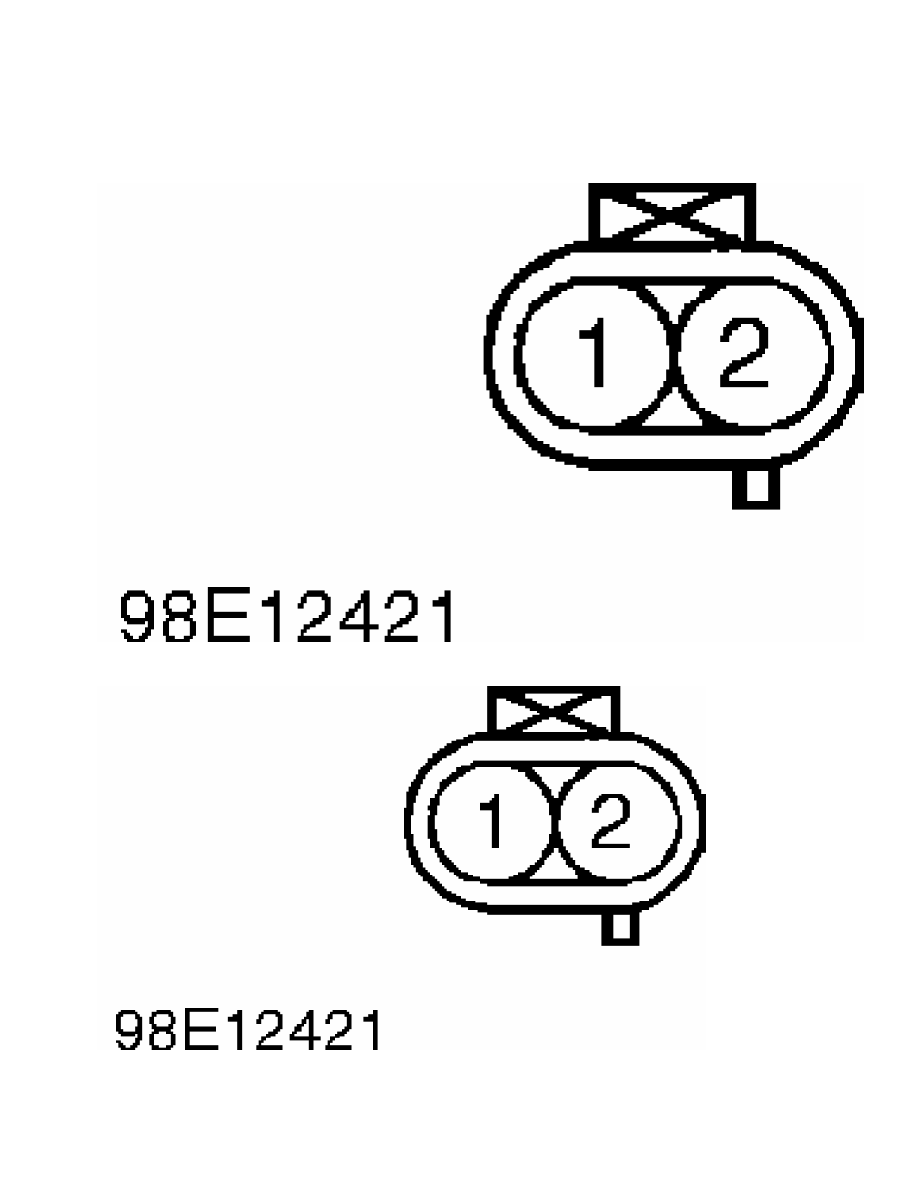

Fig. 8:  Identifying EVAP Purge Solenoid Terminals

Courtesy of Mitsubishi Motor Sales of America

Fig. 9:  Identifying EVAP Vent Solenoid Terminals

Courtesy of Mitsubishi Motor Sales of America

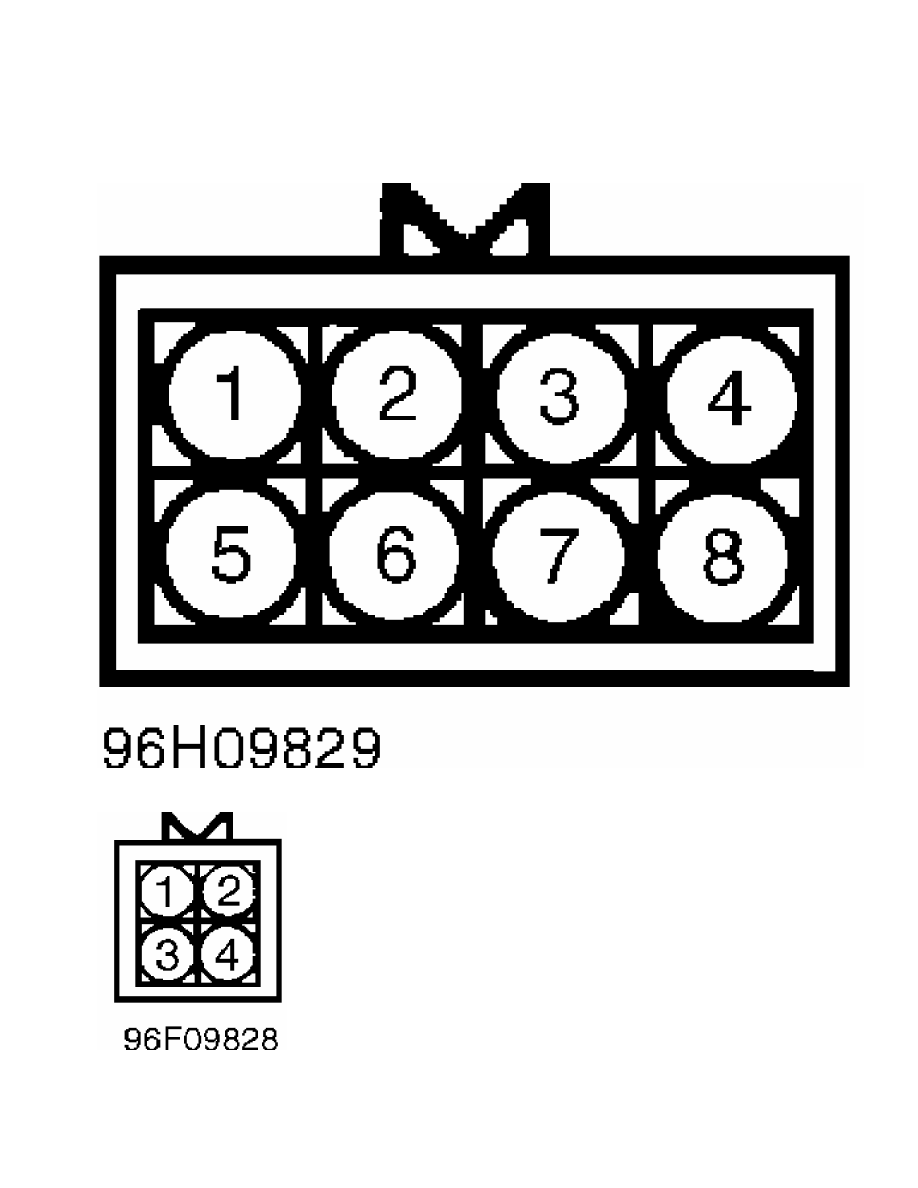

Fig. 10:  Fuel Injector Terminals (Montero - Intermediate Connector)

Courtesy of Mitsubishi Motor Sales of America

Fig. 11:  Fuel Injector Terminals (3000GT Non-Turbo - Rear Injector

Bank)

Courtesy of Mitsubishi Motor Sales of America
