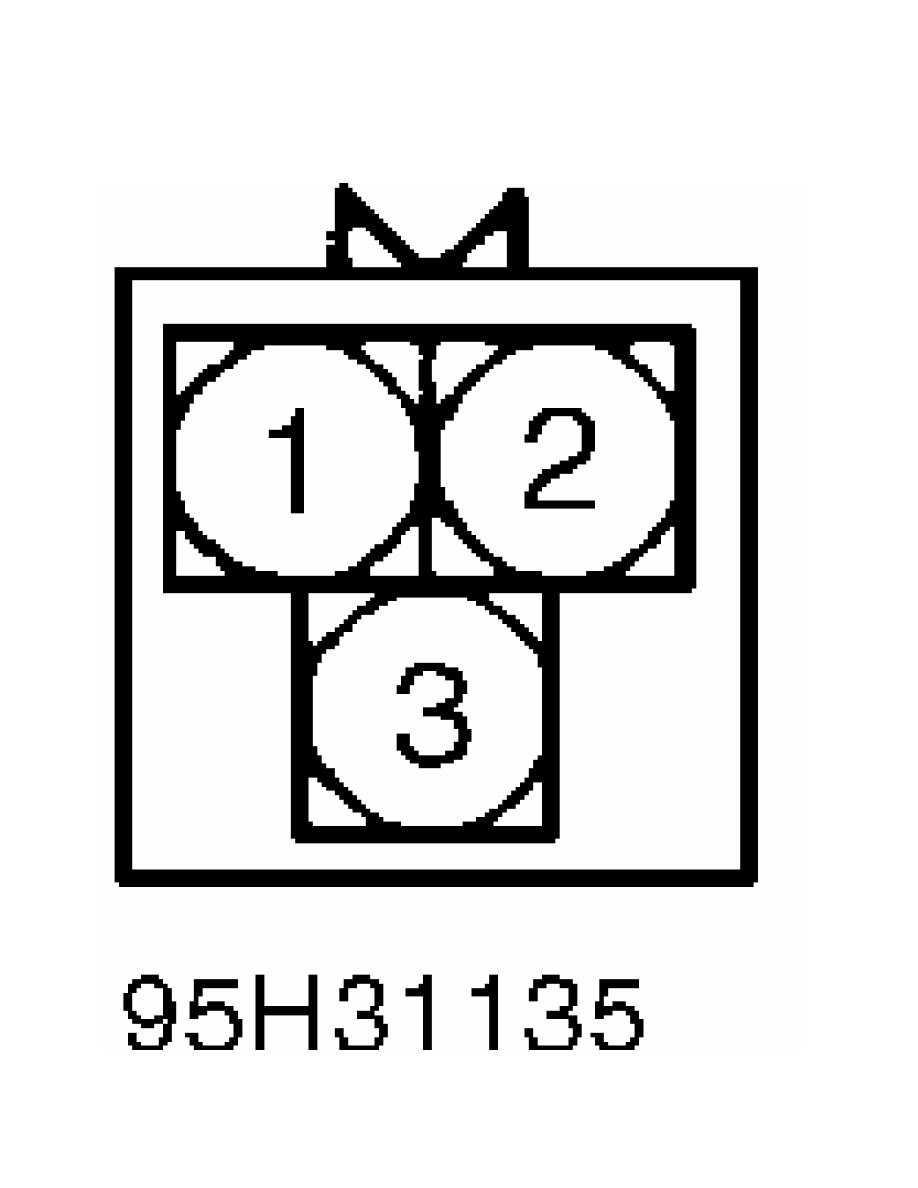

CLEARING DTCS CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. To clear DTCs using a scan tool, refer to owners manual supplied with scan tool. If scan tool is not available, DTCs may also be cleared by disconnecting negative battery cable or PCM for at least 15 seconds, allowing PCM to clear DTCs. Reconnect negative battery cable and check for DTCs to confirm repair. PCM LOCATION PCM LOCATION TABLE Application Location Montero ........................... Right Front Kick Panel 3000GT ............................. Behind Center Console SUMMARY If no hard DTCs (or only pass DTCs) are present, driveability symptoms exist, or intermittent DTCs exist, proceed to H - TESTS W/O CODES article for diagnosis by symptom (i.e., ROUGH IDLE, NO START, etc.) or intermittent diagnostic procedures. TERMINAL IDENTIFICATION NOTE: The following terminals are shown as viewed from component side of connector. Vehicles are equipped with different combinations of components. Not all components are used on all models. To determine component usage, see appropriate wiring diagram in L - WIRING DIAGRAMS article. TERMINAL IDENTIFICATION DIRECTORY TABLE Connector See ASD/Fuel Pump/MFI Relay ...................... Fig. 1 or 2 CKP/CMP Sensor ............................ Fig. 3, 4 or 5 DLC ............................................... Fig. 6 ECT Sensor ........................................ Fig. 7 EVAP Purge Solenoid ............................... Fig. 8 EVAP Vent Solenoid ................................ Fig. 9 Fuel Injector ....................... Fig. 10, 11, 12 or 13 Fuel Pump ................................... Fig. 14 or 15 Fuel Pump Control/Relay Module .................... Fig. 16 FTDP Sensor ...................................... Fig. 17 Generator Field .................................. Fig. 18 HO2S ............................................. Fig. 19 IAC Motor ........................................ Fig. 20 Ignition Coil .......................... Fig. 21, 22 or 23 Ignition Failure Sensor .......................... Fig. 24 Ignition Power Transistor .................. Fig. 25 or 26 KS ............................................... Fig. 27 MDP Sensor ....................................... Fig. 28 PCM .............................................. Fig. 29 |
