   14



 No. 1 Shift Solenoid



     In 1st Or 2nd



   Battery







   14



 No. 1 Shift Solenoid



  In 3rd Or 4th Gear



   0 Volts







   15



     Power Supply



     Ignition ON



   Battery







   15



     Power Supply



     Ignition OFF



   0 Volts







   16



 No. 2 Shift Solenoid



  In 2nd Or 3rd Gear



   Battery







   16



 No. 2 Shift Solenoid



  In 1st Or 4th Gear



   0 Volts







   17



 Diagnostic Test Mode



     Not Specified



Not Specified







   18



   Diagnostic Output



     Scan Tool Not



   Battery













       Connected











   21



 Oil Temp Warning Lamp



  Normal Temp. Range



   0 Volts







   21



 Oil Temp Warning Lamp



  For 5 Seconds After



   Battery













       Ign. Is On











   22



    Oil Temp Sensor



 Temp @ 248



F (120



C)



  About 1.9







   22



    Oil Temp Sensor



 Temp @ 302



F (150



C)



  About 1.1







   23



 4WD Low Range Switch



 4WD Lever In 4H-Lock



   Battery







   23



 4WD Low Range Switch



 4WD Lever In 4L-Lock



   0 Volts







   24



 Neutral Safety Switch



    In "R" Position



   Battery







   24



 Neutral Safety Switch



     Except In "R"



   0 Volts







   25



        Ground



     Engine Idling



   0 Volts







   26



        Ground



     Engine Idling



   0 Volts







   31



 Neutral Safety Switch



    In "L" Position



   Battery







   31



 Neutral Safety Switch



     Except In "L"



   0 Volts







   32



 Neutral Safety Switch



    In "N" Position



   Battery







   32



 Neutral Safety Switch



     Except In "N"



   0 Volts







   34



      Power Mode



  Power Mode Selected



   Battery







   34



 4WD Detection Switch



           2WD



  4 Volts Or





 Montero











   Greater







   34



 4WD Detection Switch



           4WD



  0-1 Volts





Montero



















   34



      Free Wheel



           2WD



  4 Volts Or





 Montero



    Engage Switch







   Greater





  Sport



















   34



      Free Wheel



           4WD



   0 Volts





 Montero



    Engage Switch













  Sport



















   35



     Output Speed



      Ignition Off



   0 Volts









      Sensor Gnd















   35



     Output Speed



      Ignition On



  2.5 Volts









      Sensor Gnd















   36



Input Speed Sensor Gnd



      Ignition Off



   0 Volts







   36



Input Speed Sensor Gnd



      Ignition On



  2.5 Volts







   37



 Overdrive OFF Signal



 (1) Steady Driving @



   Battery













   31 MPH (50 km/h)











   37



 Overdrive OFF Signal



 (1) Climbing Hill @



    0 - 1













   31 MPH (50 km/h)











   38



  Engine Ign. Signal



  Engine @ 3000 RPM



  .3 - 3.0







   39



 Neutral Safety Switch



    In "D" Position



   Battery







   39



 Neutral Safety Switch



     Except In "D"



   0 Volts







   40



 Neutral Safety Switch



   In "2" Position



   Battery







   40



 Neutral Safety Switch



     Except In "2"



   0 Volts







   41



       HOLD Mode



  HOLD Mode Selected



   Battery







   41



       HOLD Mode



HOLD Mode Not Selected



   0 Volts







   42



   Overdrive Switch



     Overdrive ON



   0 Volts







   42



   Overdrive Switch



     Overdrive OFF



   Battery







   43



  Output Speed Sensor



    Vehicle Stopped



  About 2.5







   43



  Output Speed Sensor



    Vehicle Moving



  Other Than

















      2.5







   44



  Input Speed Sensor



    Vehicle Stopped



  About 2.5







   44



  Input Speed Sensor



    Vehicle Moving



  Other Than

















     2.5







   45



  Coolant Temp Sensor



  Temp @ 86



F (30



C)



     2.5







   45



  Coolant Temp Sensor



  Temp @ 158



F (70



C)



   0 Volts







   46



       MIL Signal



      Ignition ON



     .5

















  4.5 Volts























































(1) - Test circuit with shift lever in "D" position, mode selector





      normal and cruise control on.





         REMOVAL & INSTALLATION

         BRAKELIGHT SWITCH

         Removal & Installation

         1) Disconnect electrical connector. Remove lock nut, and

unscrew brakelight switch. To install, screw brakelight switch inward

until brakelight plunger contacts brake pedal.

         2) Loosen brakelight switch 1/2 to one turn. Install and

tighten lock nut on brakelight switch. Install electrical connector.

Ensure brakelights and cruise control operate properly.

         INPUT SPEED SENSOR

         Removal & Installation

         Disconnect electrical connector. Remove bolt securing sensor

to transmission. Remove input speed sensor from transmission. See

Fig. 14. To install, reverse removal procedure.

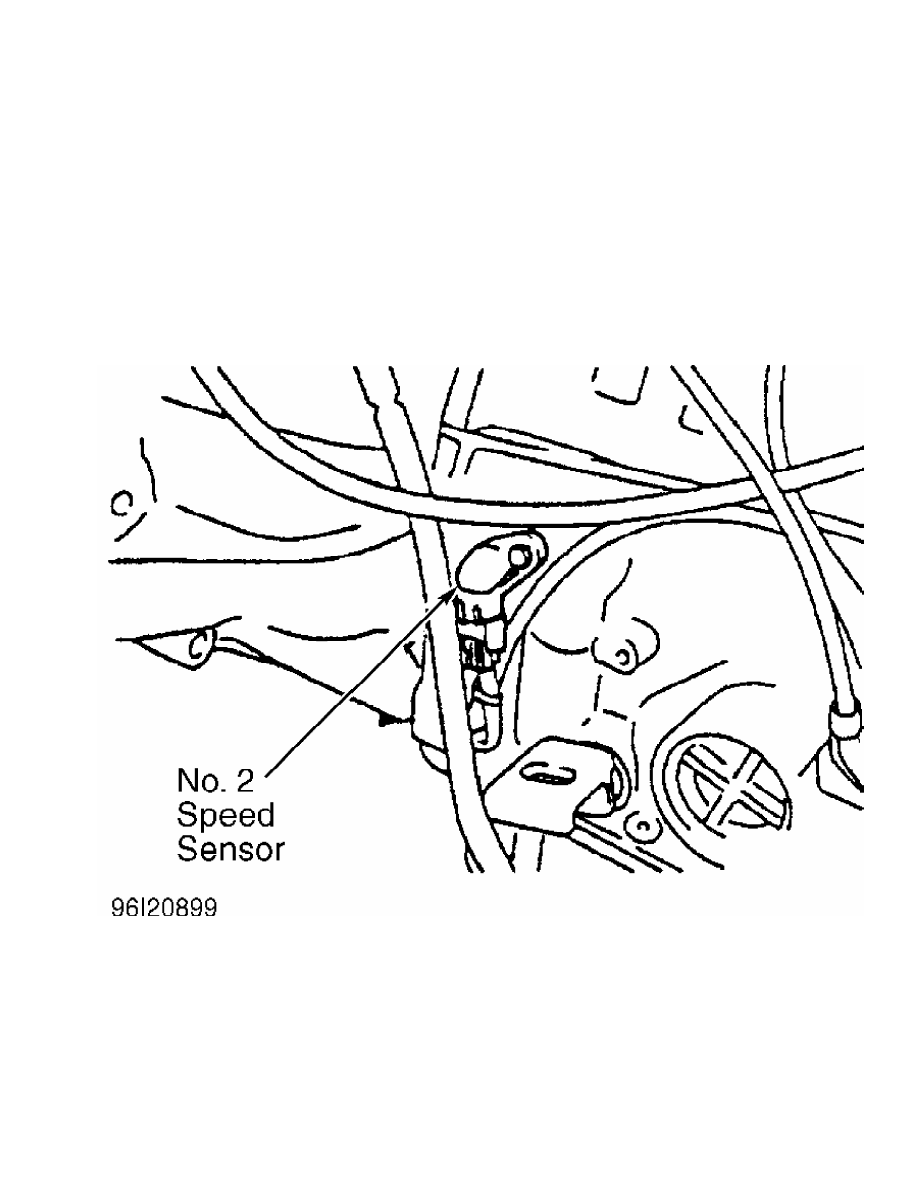

Fig. 14:  Locating Input Speed Sensor

Courtesy of Mitsubishi Motor Sales of America.

         OIL TEMPERATURE SENSOR

         Removal & Installation

         Sensor is located on transmission connected to cooler line,

near PNP switch. Disconnect electrical connector. Remove oil

temperature sensor from transmission. To install, reverse removal

procedure using NEW gasket.

         OUTPUT SPEED SENSOR

         Removal & Installation

         Disconnect electrical connector from output speed sensor. See

Fig. 15. Remove bolt and output speed sensor. To install, reverse

removal procedure.

Fig. 15:  Locating Output Speed Sensor & Connector

Courtesy of Mitsubishi Motor Sales of America.

         PARK/NEUTRAL POSITION (PNP) SWITCH

         Removal

         Switch is located on side of transmission. Remove manual

lever from control shaft on transmission. Bend up tabs on lock washer.

Remove lock nut, lock washer and seal from control shaft. Remove

retaining bolt and neutral safety switch.

         Installation

         1) Install switch on control shaft. Loosely install switch

retaining bolt. Install seal and lock washer. Install lock nut and

tighten to specification. See TORQUE SPECIFICATIONS.

         2) Switch must be adjusted. Ensure parking brake is applied.

Temporarily install manual lever on control shaft. Place shift lever

in Neutral. Remove manual lever. Rotate switch and align reference

mark on switch with groove.

         3) Hold switch in this position. Tighten retaining bolt to

specification. Bend tabs on lock washer over against lock nut. To

install remaining components, reverse removal procedure.
