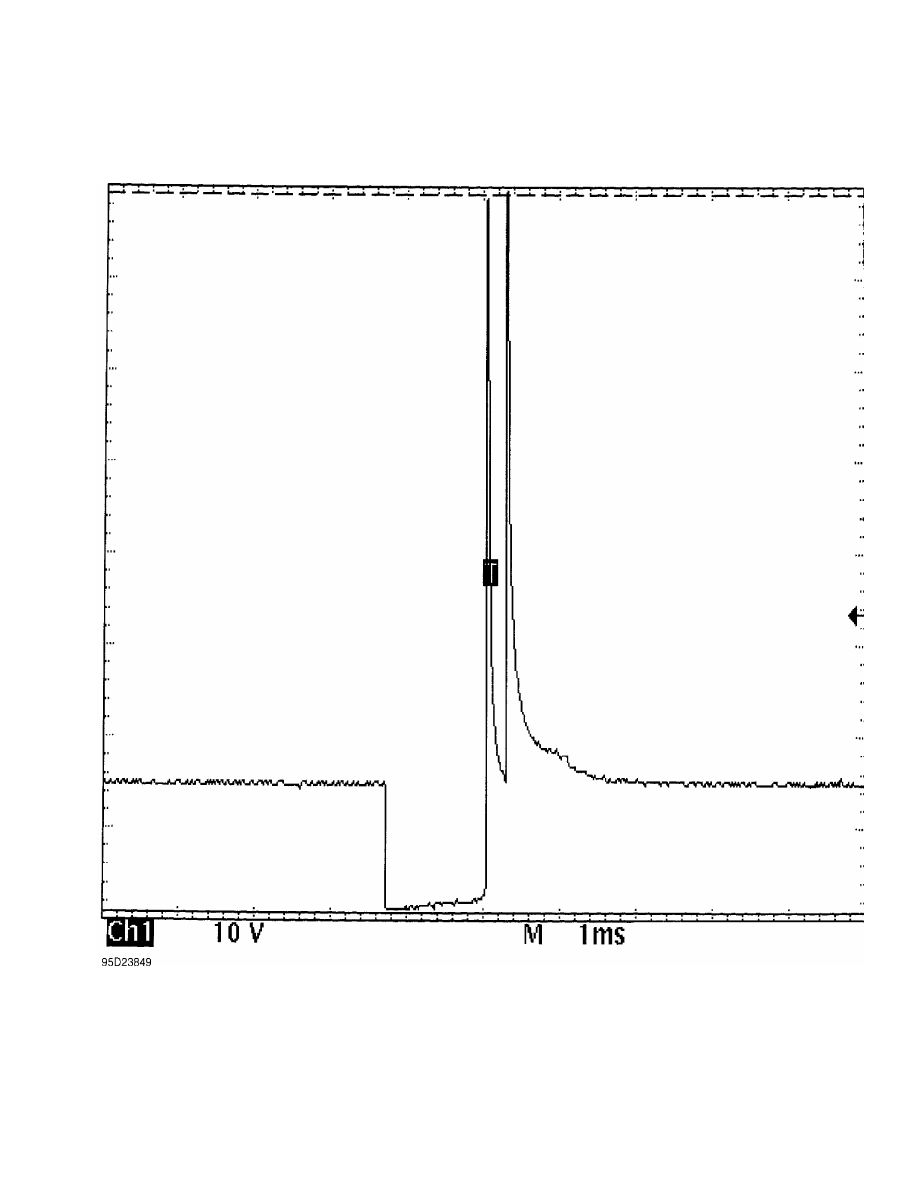

Fig. 27:  Single Injector - Known Good - Voltage Pattern

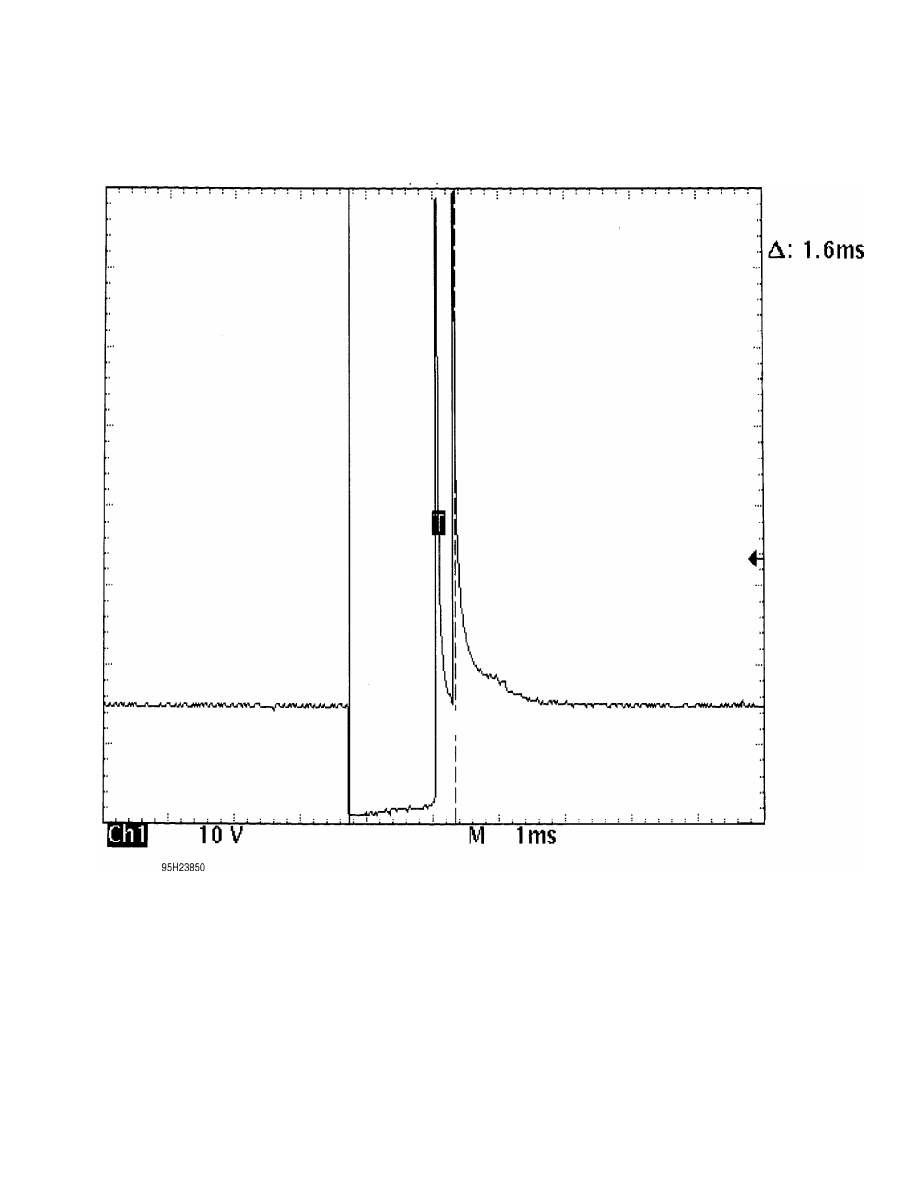

Fig. 28:  Single Injector - Known Good - Voltage Pattern

WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES



1991 Mitsubishi Montero

         1991 WHEEL ALIGNMENT

         Specifications & Procedures

         Chrysler Motors:  Colt, Colt Vista, Colt 200,

           Ram-50, Stealth, Summit

         Mitsubishi:  Eclipse, Galant, Mirage, Montero,

           Pickup, Precis, 3000GT

         WHEEL ALIGNMENT PROCEDURES

NOTE:    On vehicles with electronic chassis controls, ensure all

         systems are functional before attempting to adjust riding

         height or wheel alignment.

         CAMBER ADJUSTMENT

         Montero, Pickup & Ram-50

         1)  Check tire inflation. Place front wheel on turning radius

gauge, and level vehicle (unladed). On 2WD models, remove hub cap and

cotter pin. On 4WD models, remove free wheeling hub assembly.

         2) On all models, measure camber with camber/caster/kingpin

gauge attached. See appropriate WHEEL ALIGNMENT SPECIFICATIONS table.

If camber is not within specification, remove shock absorber mounting

nut and lock nut.

         3) Compress shock absorber and loosen upper arm mounting

bolts and nuts. Adjust camber by increasing or decreasing shims

between upper arm shaft and crossmember. See  Fig. 1.

CAUTION:  Difference in shim thickness between front and rear must be

          .16" (4 mm) or less. DO NOT use more than 3 shims at one

          location.

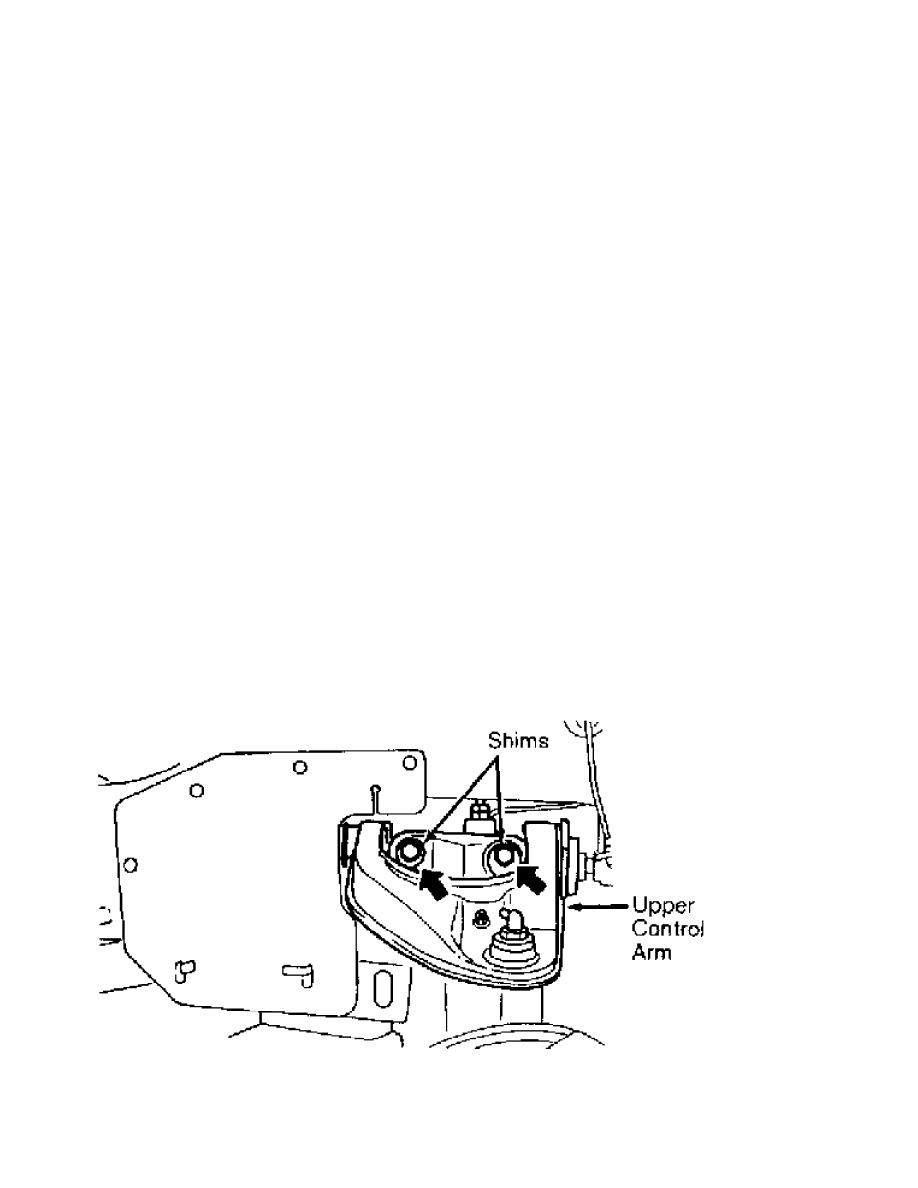

Fig. 1:  Adjusting Camber & Caster (Pickup & Ram-50 Shown; Montero

Camber Adjustment Similar)

Courtesy of Mitsubishi Motor Sales of America.

         Stealth & 3000GT

           Check camber. If camber is not within specification, loosen

eccentric cam nut. Rotate eccentric cam bolt to obtain correct camber.

See Fig. 2. Each marking represents a change of 1/8-1/4 degree of

camber.

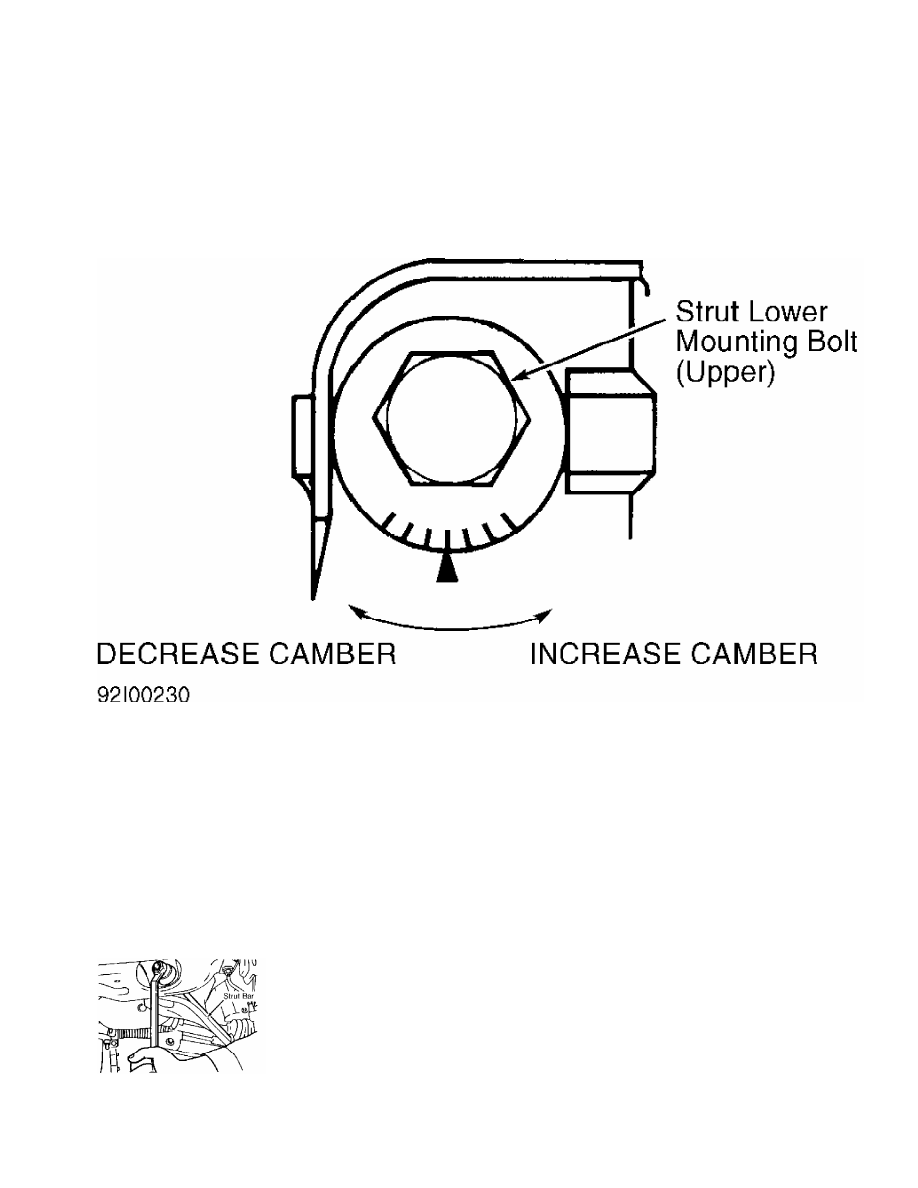

Fig. 2:  Adjusting Camber (Stealth & 3000GT)

Courtesy of Mitsubishi Motor Sales of America.

         All Other Models

         Check camber using a camber/caster/kingpin gauge and turning

radius gauge. See WHEEL ALIGNMENT SPECIFICATIONS table. If camber is

not within specification, replace damaged or bent parts.

         CASTER ADJUSTMENT

         Colt Vista

         Check tire inflation. Place front wheel on turning radius

gauge, and level vehicle (unladed). Remove hub cap and cotter pin.

Measure caster with camber/caster/kingpin gauge attached. See WHEEL

ALIGNMENT SPECIFICATIONS table. If caster is not within specification,

adjust by changing strut bar lock position. See  Fig. 3.

Fig. 3:  Adjusting Caster (Colt Vista)

Courtesy of Mitsubishi Motor Sales of America.

         Montero
