Mitsubishi Montero (1991+). Manual - part 315

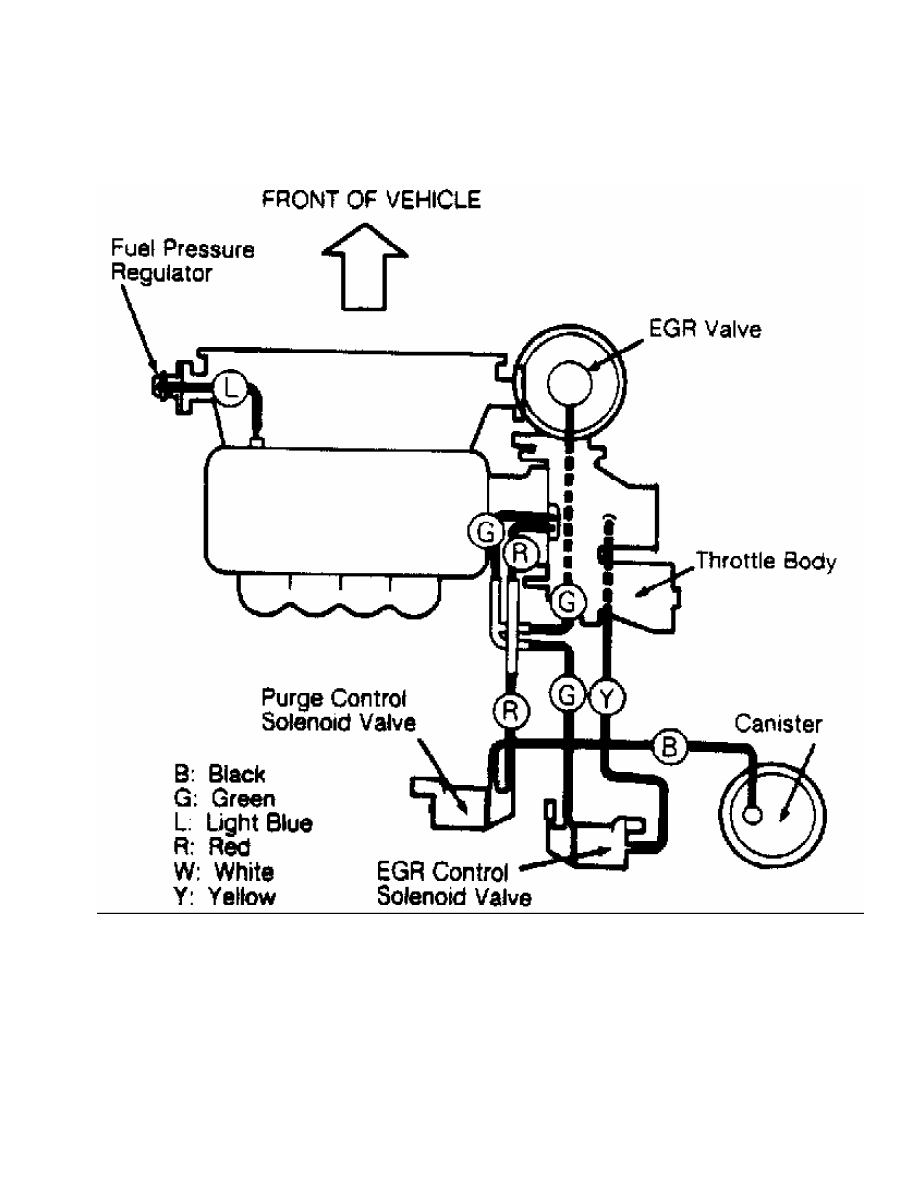

Fig. 7:  Vacuum Diagram (Eclipse 1.8L/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

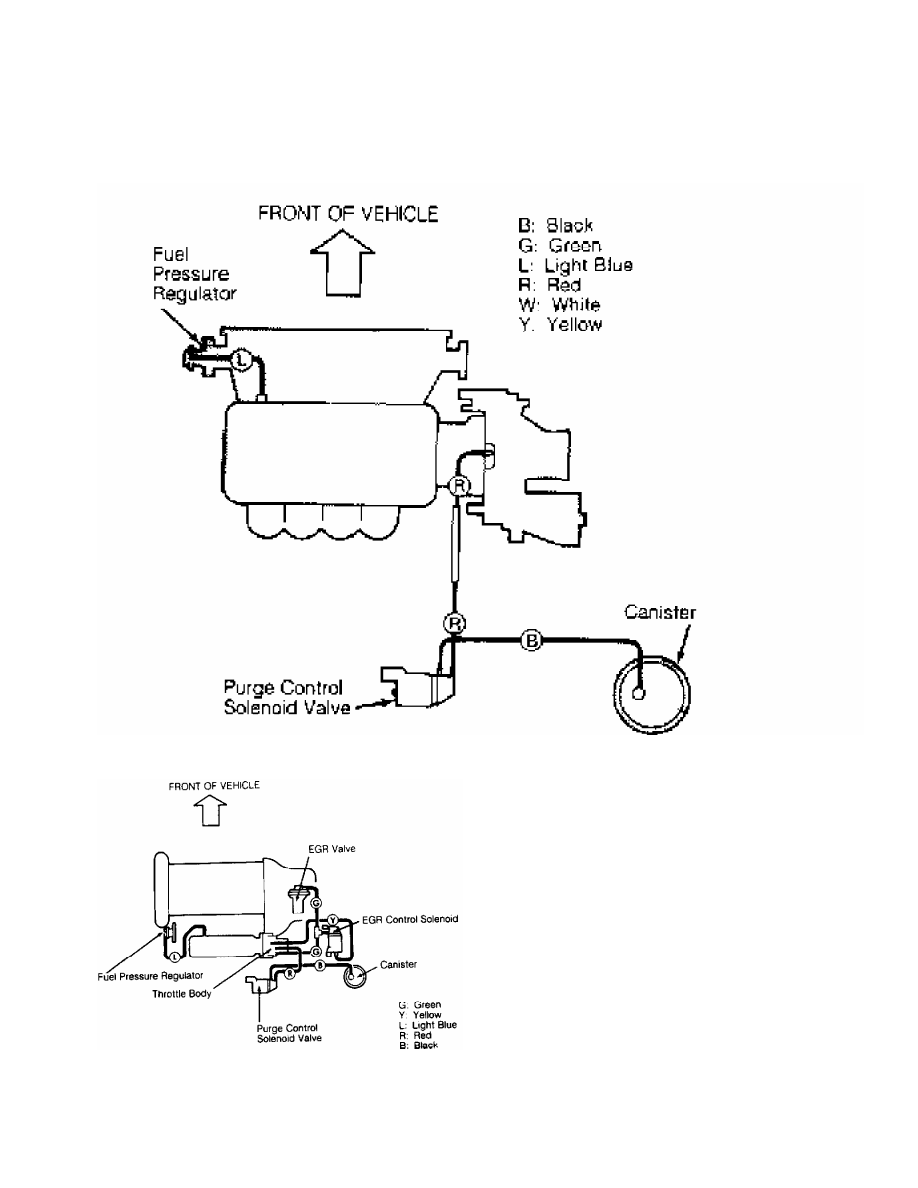

Fig. 8:  Vacuum Diagram (Eclipse 1.8L/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 9:  Vacuum Diagram (Eclipse 2.0L & Galant VIN R/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

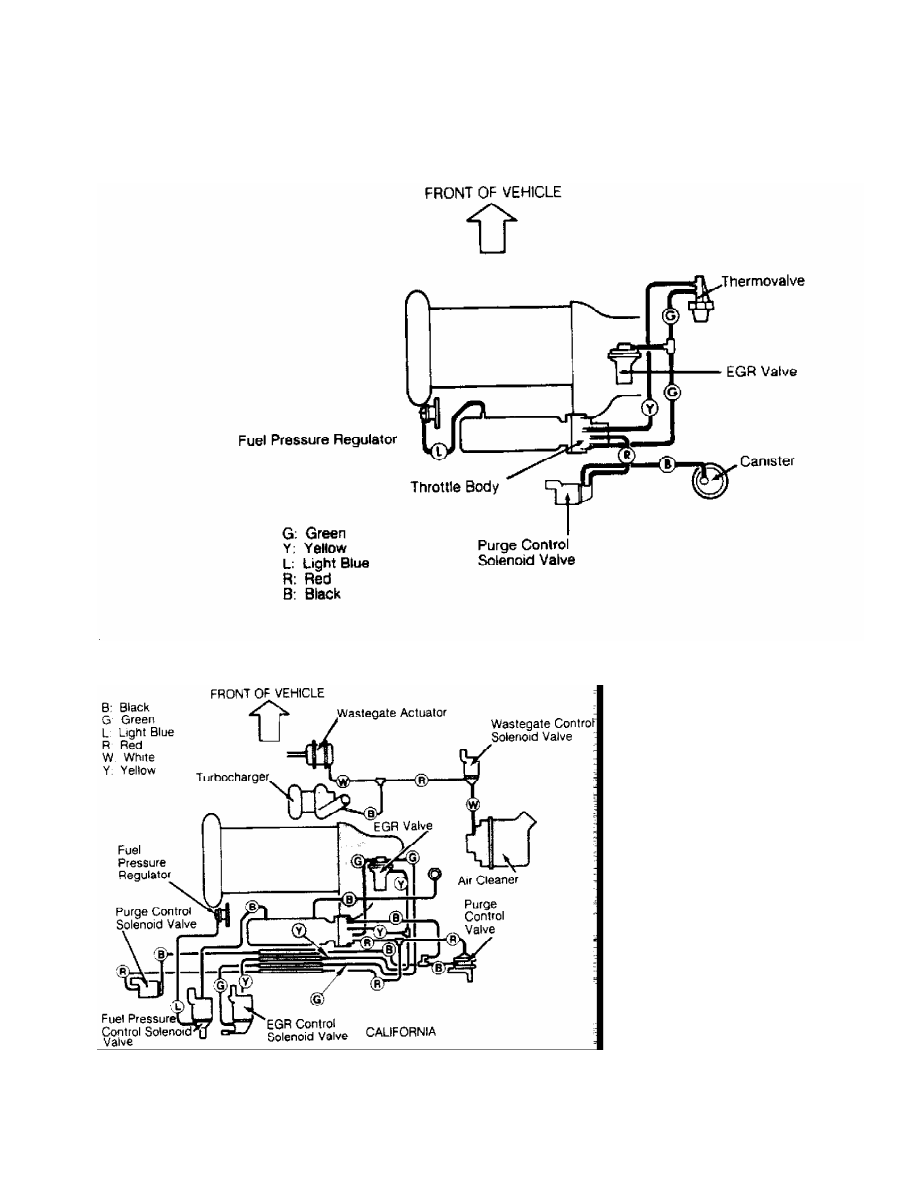

Fig. 10:  Vacuum Diagram (Eclipse 2.0L & Galant VIN R/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 11:  Vacuum Diagram (Eclipse 2.0L VIN U/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

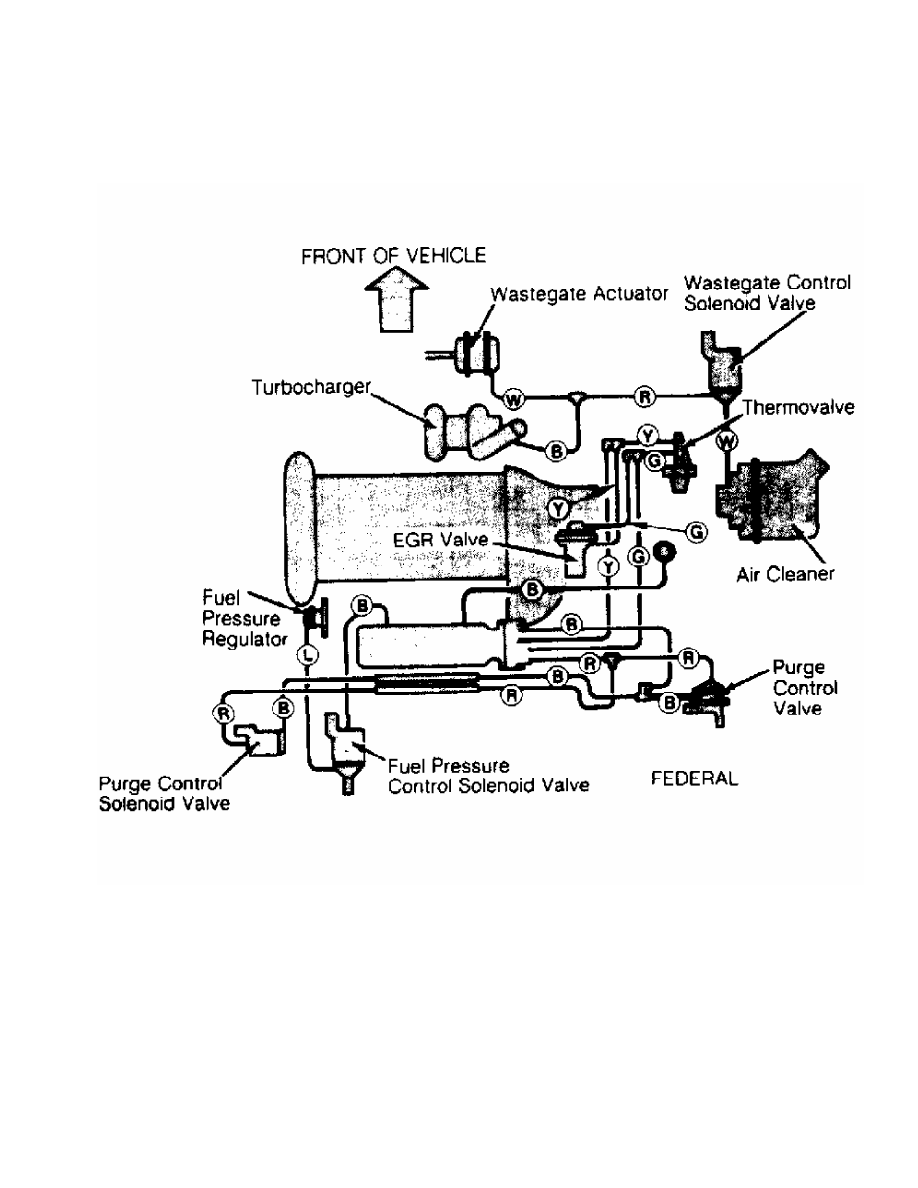

Fig. 12:  Vacuum Diagram (Eclipse 2.0L VIN U/Fed.)

Courtesy of Mitsubishi Motor Sales of America.
