M - VACUUM DIAGRAMS



1991 Mitsubishi Montero

         1991 ENGINE PERFORMANCE

         Vacuum Diagrams

         Chrysler Motors: Colt, Colt 200, Colt Vista,

           Ram-50, Stealth, Summit

         Mitsubishi: Eclipse, Galant, Mirage, Montero,

           Pickup, 3000GT

         INTRODUCTION

         This article contains underhood views or schematics of vacuum

hose routing. Use these vacuum diagrams during the visual inspection

in F - BASIC TESTING article in the ENGINE PERFORMANCE Section. This

will assist in identifying improperly routed vacuum hoses, which cause

driveability and/or computer-indicated malfunctions.

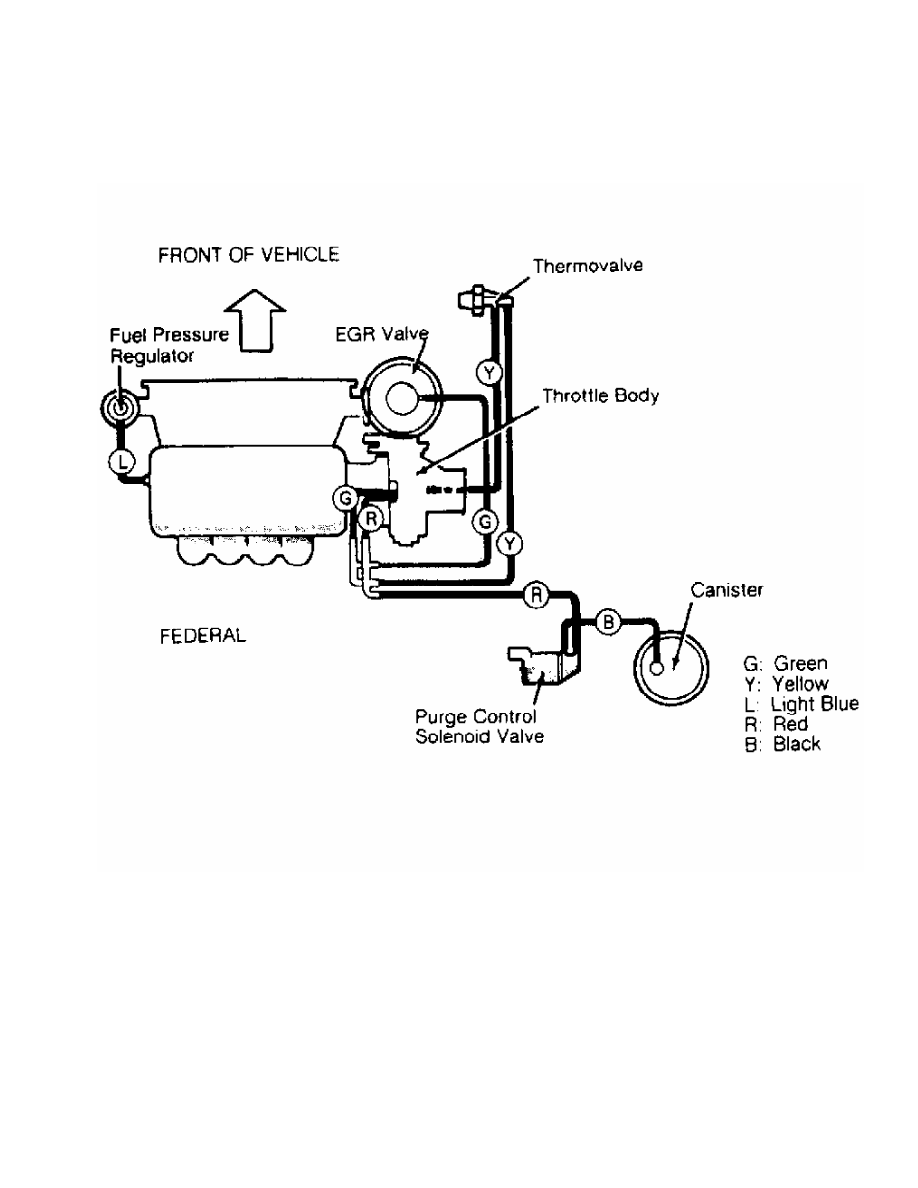

Fig. 1:  Vacuum Diagram (Colt, Colt 200, Mirage 1.5L & Summit/Calif.)

Courtesy of Chrysler Motors.

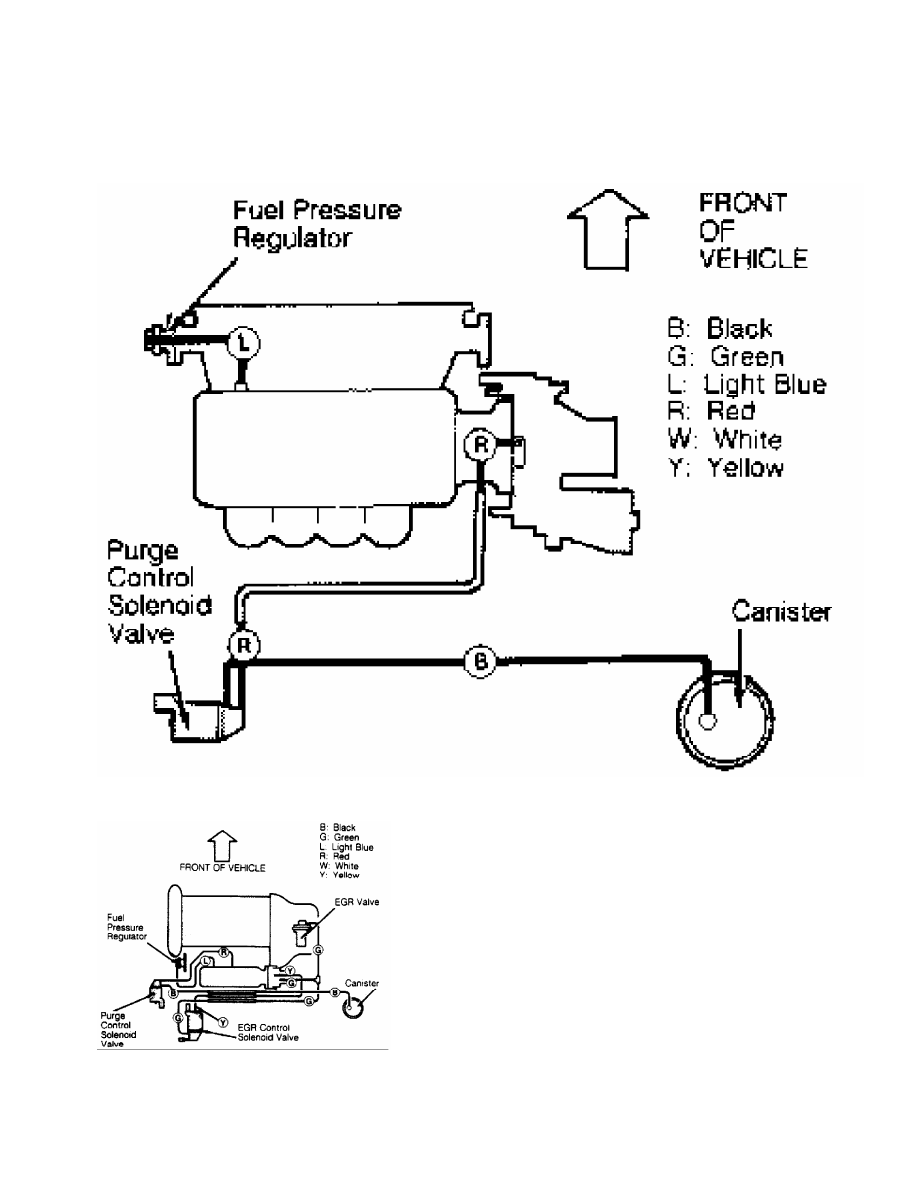

Fig. 2:  Vacuum Diagram (Colt, Colt 200, Mirage 1.5L & Summit/Fed.)

Courtesy of Chrysler Motors.

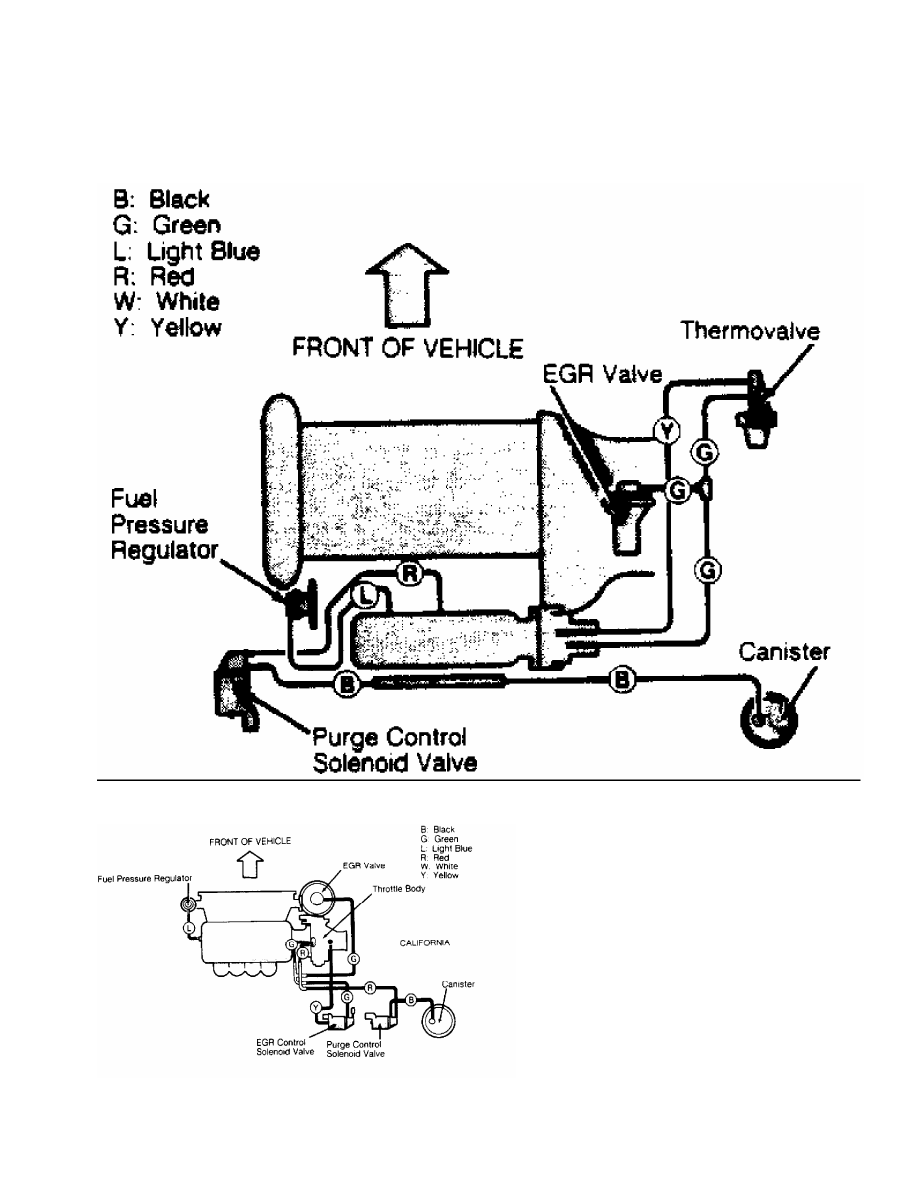

Fig. 3:  Vacuum Diagram (Mirage 1.6L/Calif.)

Courtesy of Mitsubishi Motor Sales of America.

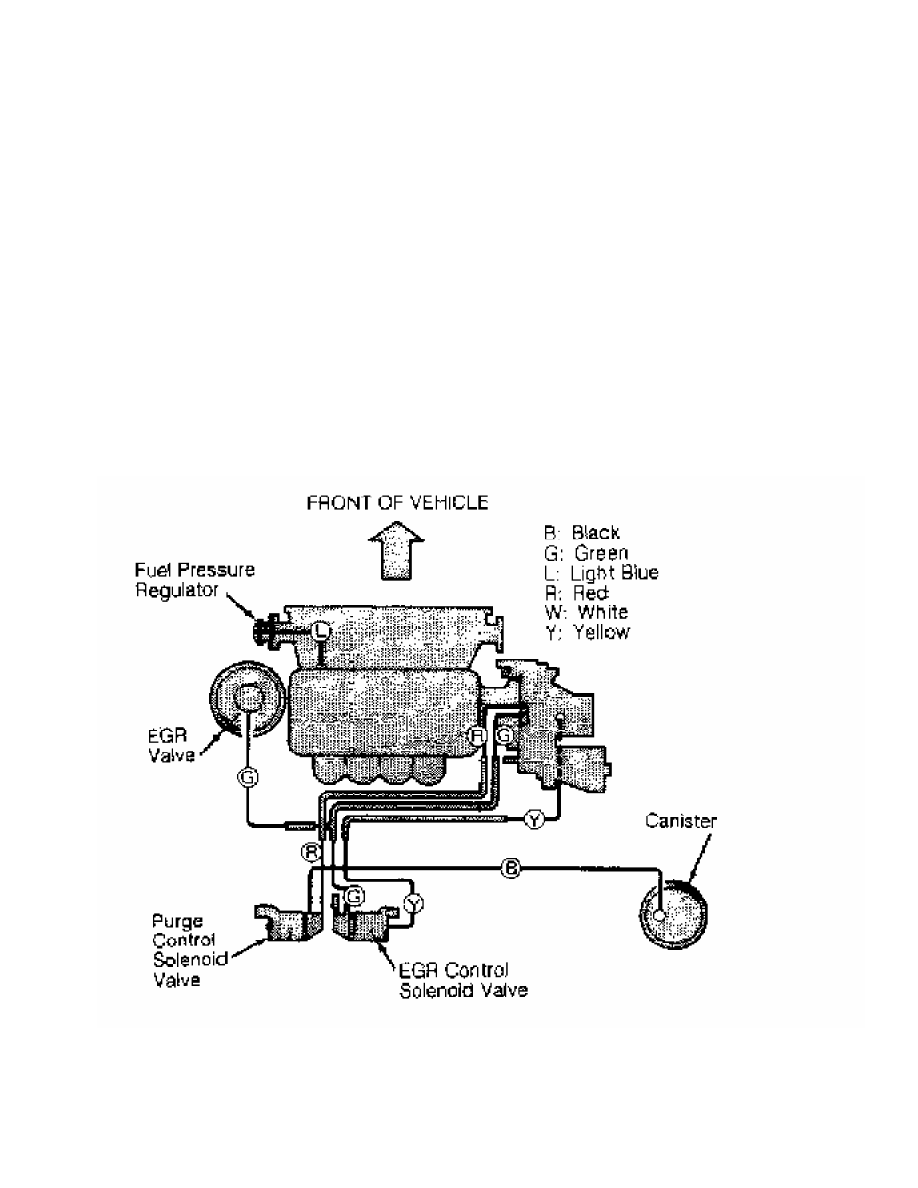

Fig. 4:  Vacuum Diagram (Mirage 1.6L/Fed.)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 5:  Vacuum Diagram (Colt Vista/Calif.)

Courtesy of Chrysler Motors.

Fig. 6:  Vacuum Diagram (Colt Vista/Fed.)

Courtesy of Chrysler Motors.
