Mitsubishi Montero (1991+). Manual - part 248

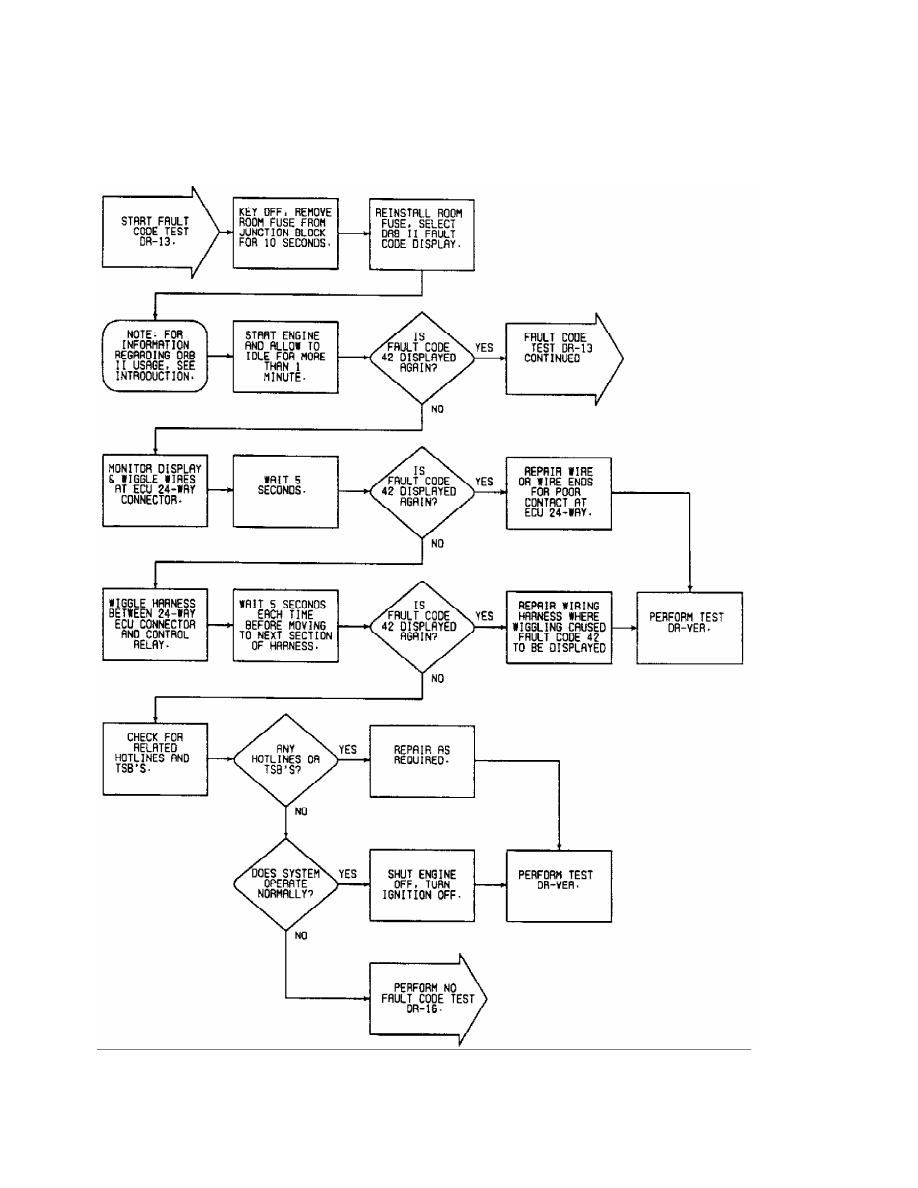

Fig. 137:  Flow Chart DR-13 (1.6L) (1 of 2)

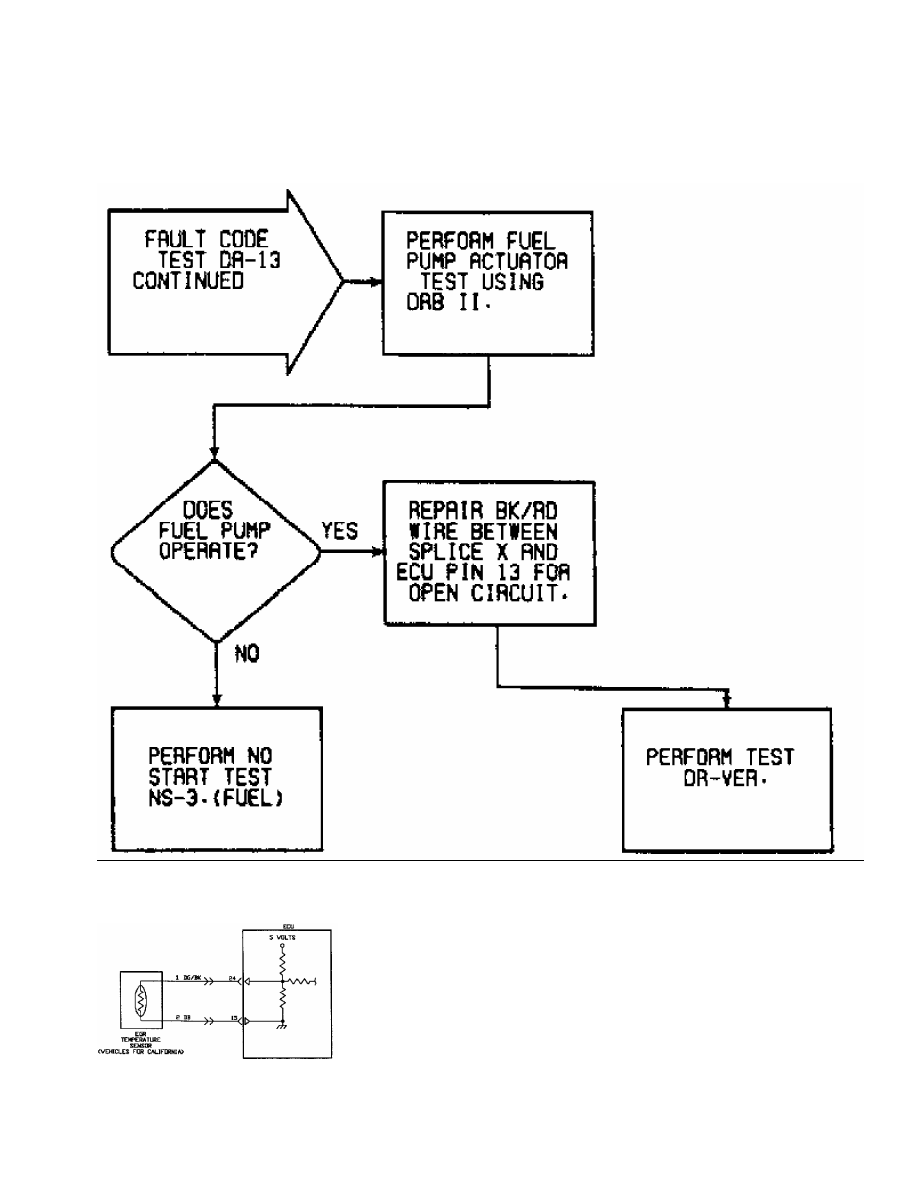

Fig. 138:  Flow Chart DR-13 (1.6L) (2 of 2)

         DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.6L

Fig. 139:  Circuit Diagram DR-14 (1.6L)

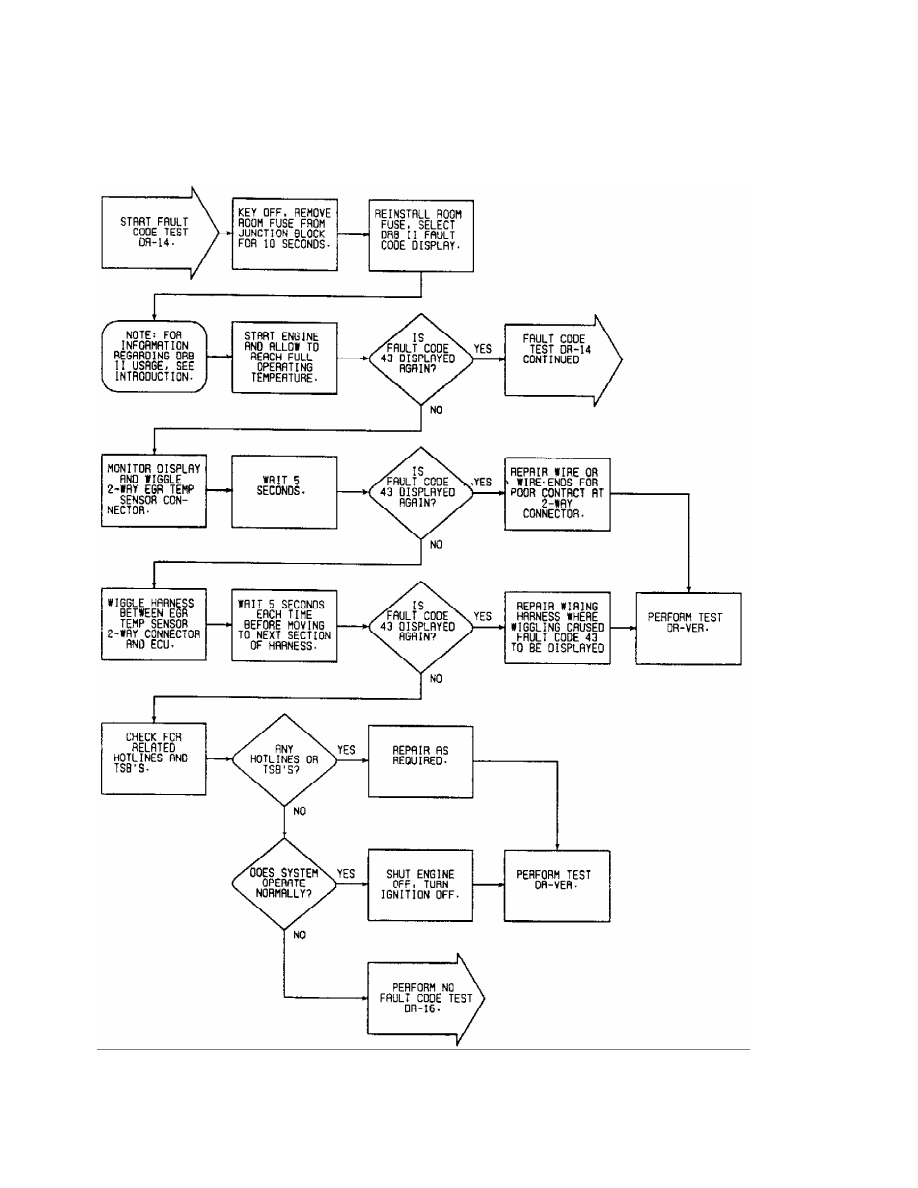

Fig. 140:  Flow Chart DR-14 (1.6L) (1 of 2)

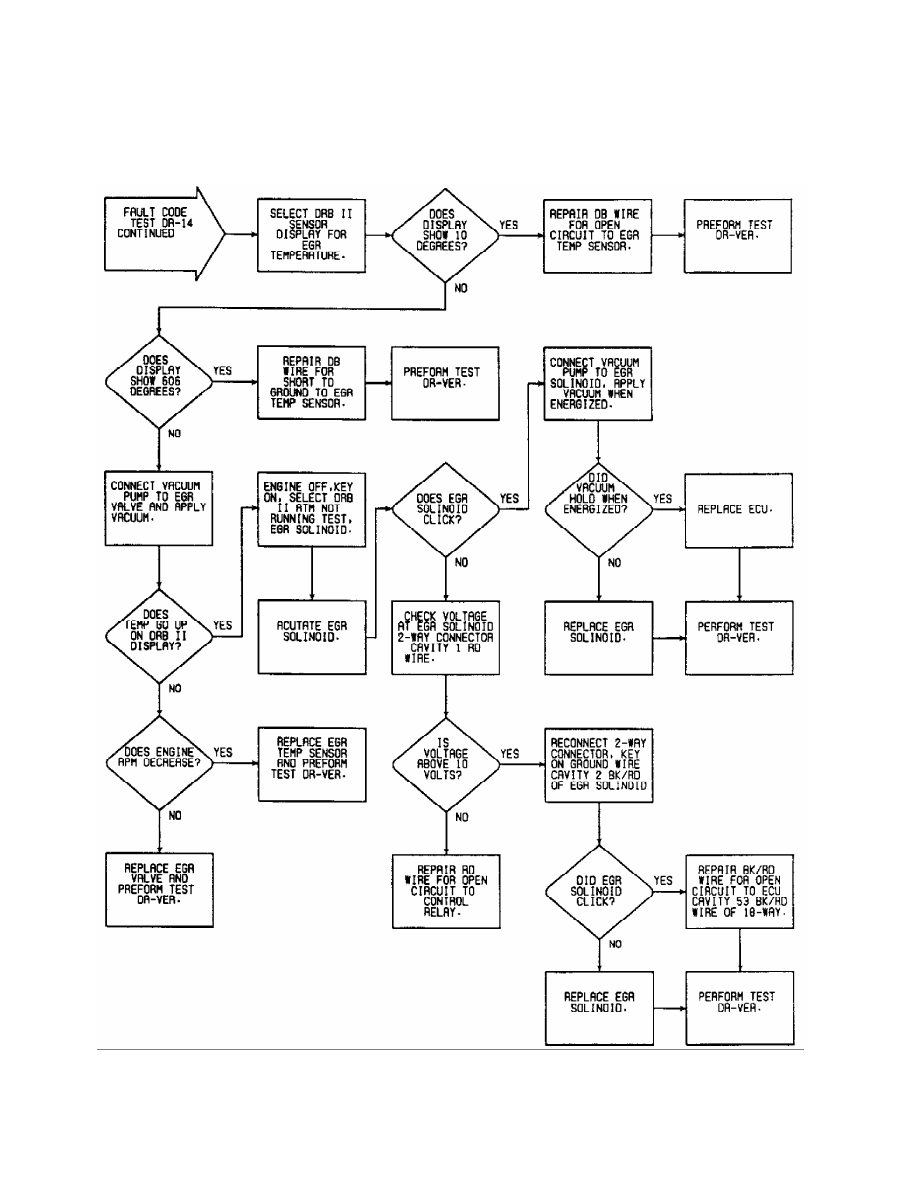

Fig. 141:  Flow Chart DR-14 (1.6L) (2 of 2)

         DR-15: CODE 44 IGNITION COIL CIRCUIT - 1.6L
