Mitsubishi Montero (1991+). Manual - part 239

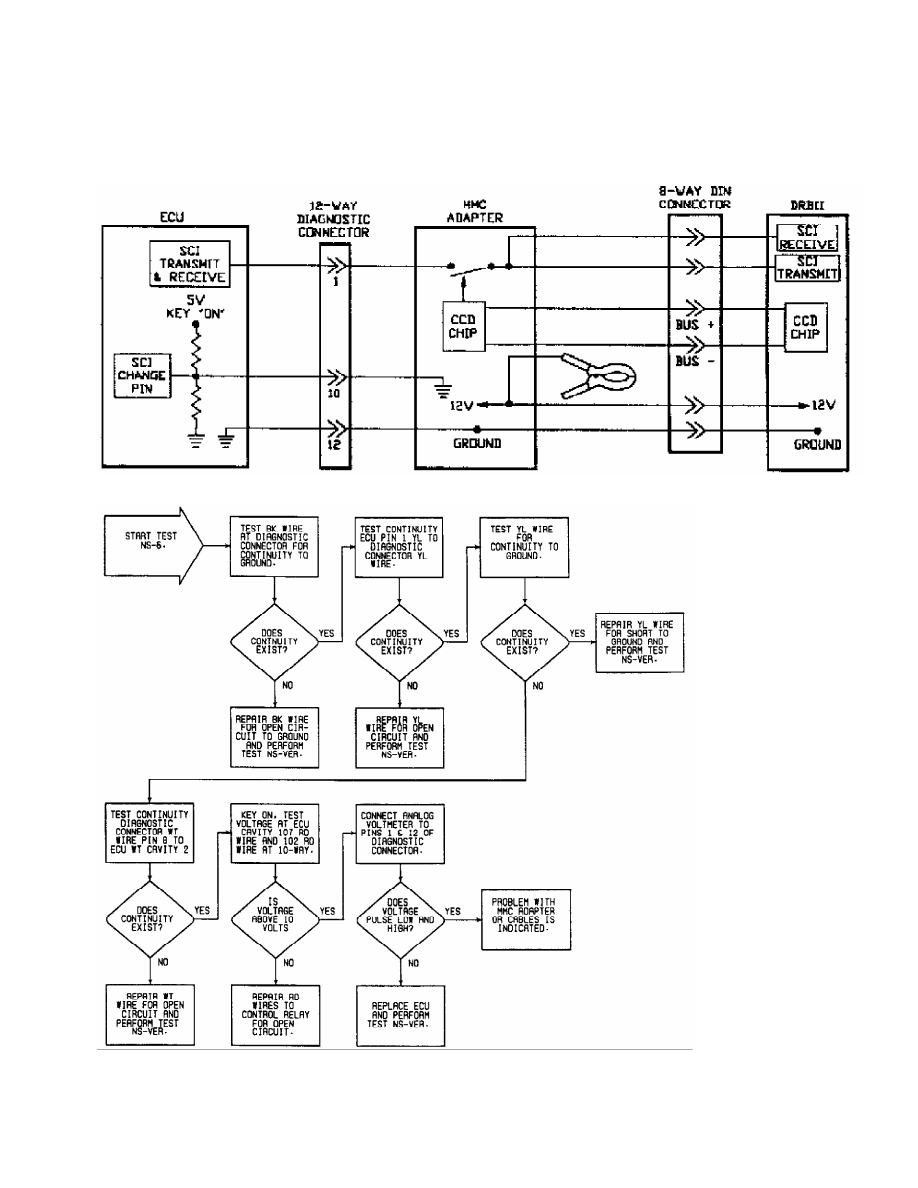

Fig. 95:  Circuit Diagram NS-6 (1.6L)

Fig. 96:  Flow Chart NS-6 (1.6L)

         DR-1: CHECKING FOR FAULT CODES - 1.6L

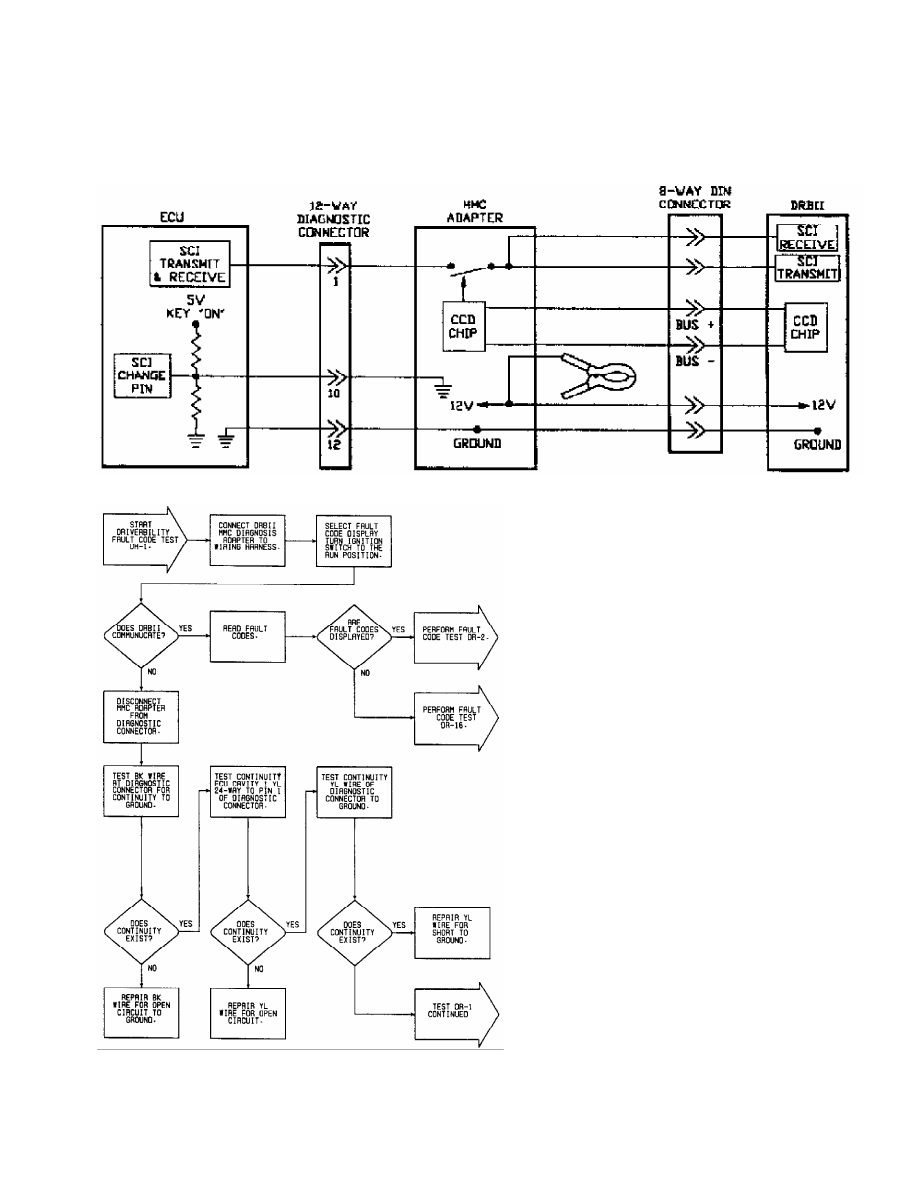

Fig. 97:  Circuit Diagram DR-1 (1.6L)

Fig. 98:  Flow Chart DR-1 (1.6L) (1 of 2)

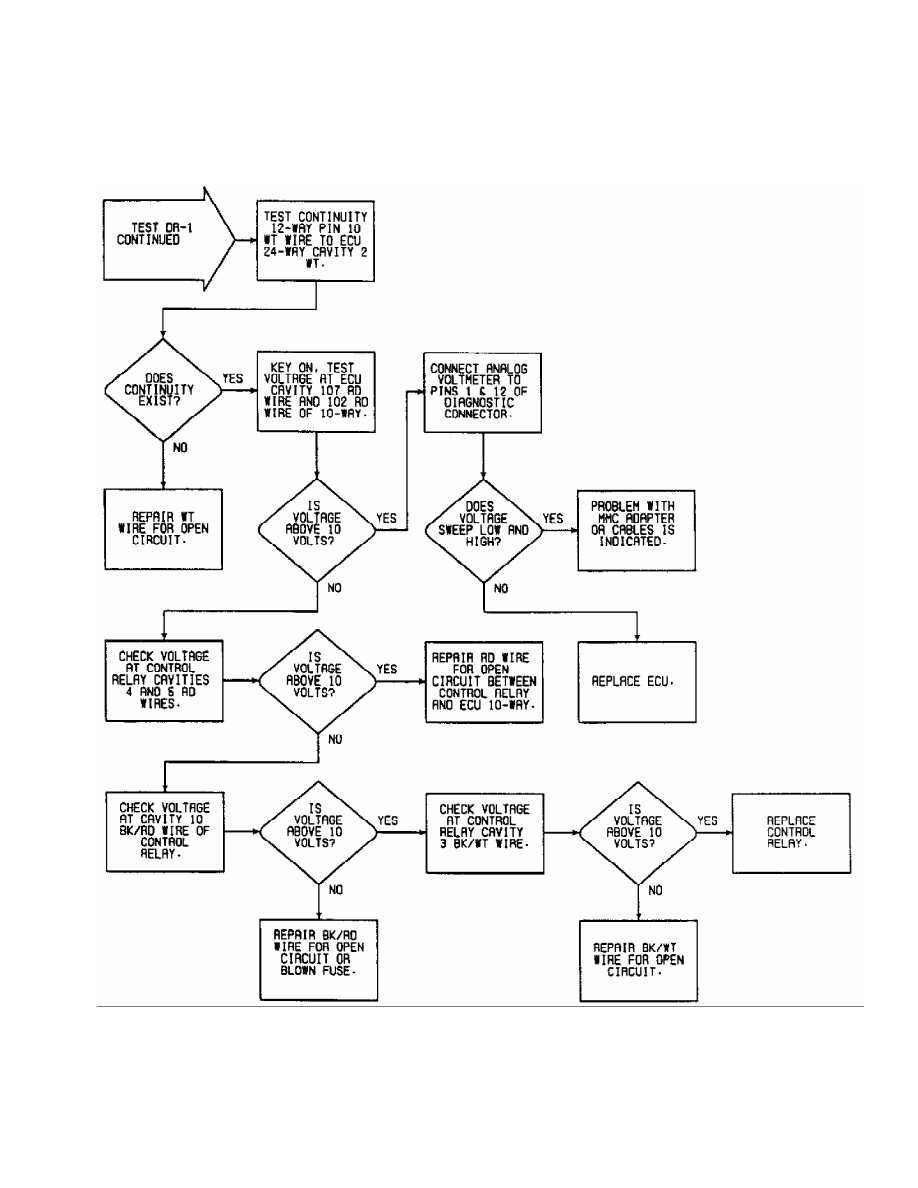

Fig. 99:  Flow Chart DR-1 (1.6L) (2 of 2)

         DR-2: FAULT CODE TESTS - 1.6L

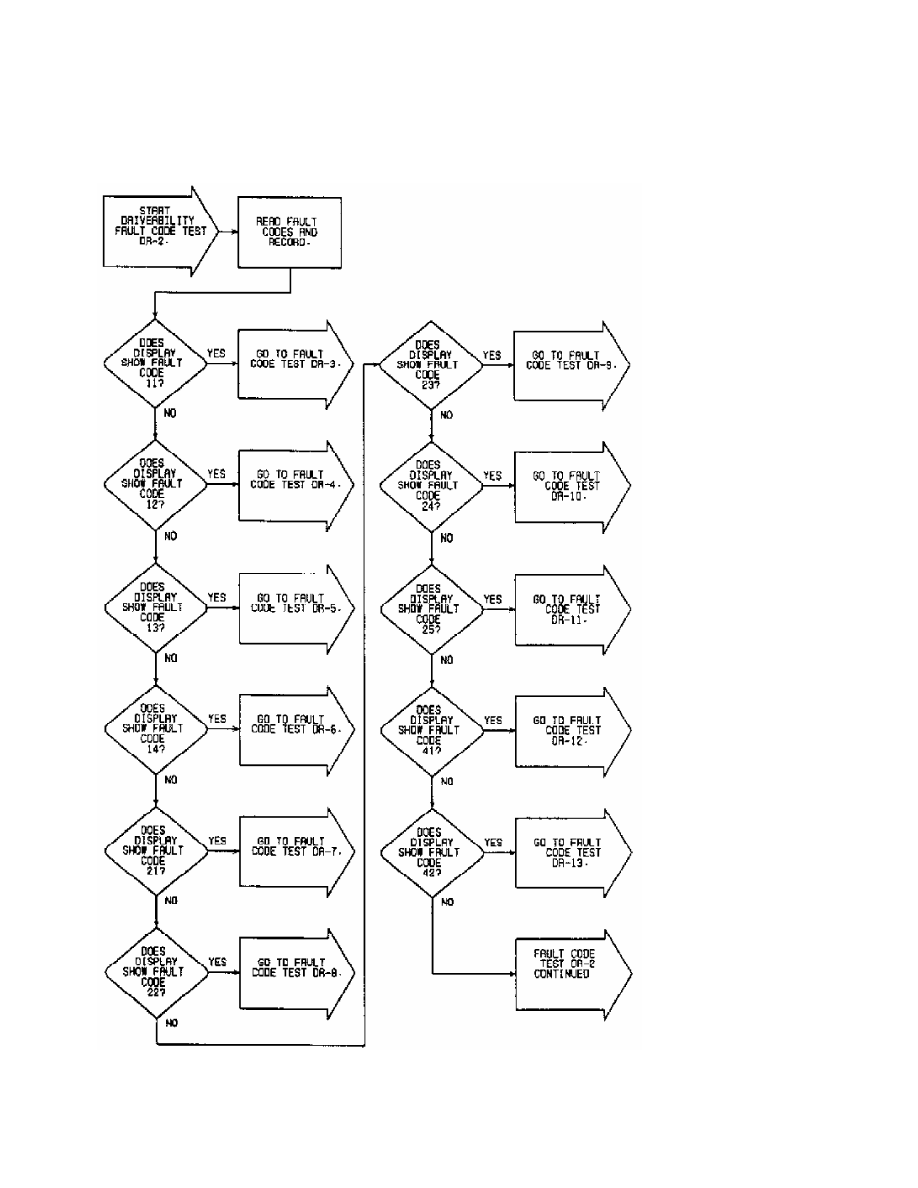

Fig. 100:  Flow Chart DR-2 (1.6L) (1 of 2)
