Mitsubishi Montero (1991+). Manual - part 231

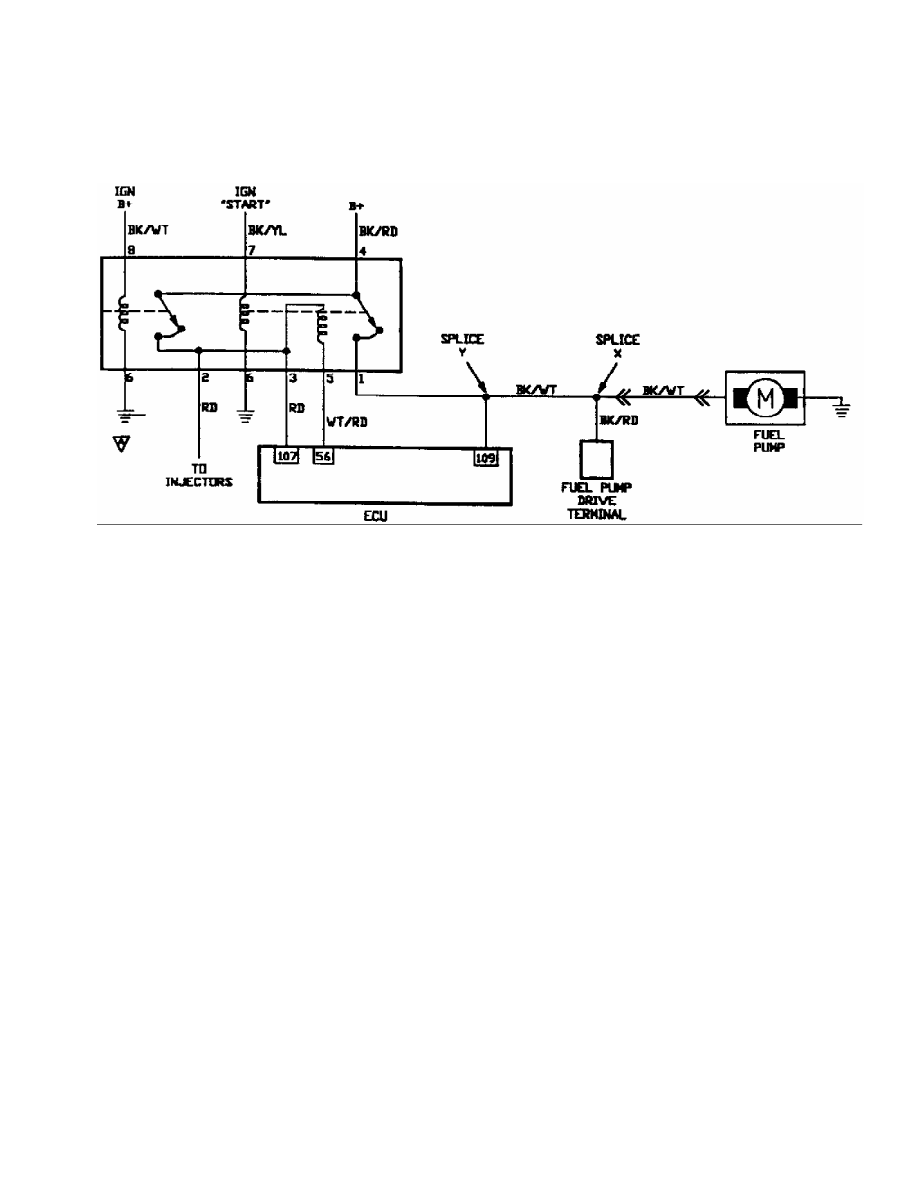

Fig. 56:  Circuit Diagram DR-13 (1.5L)

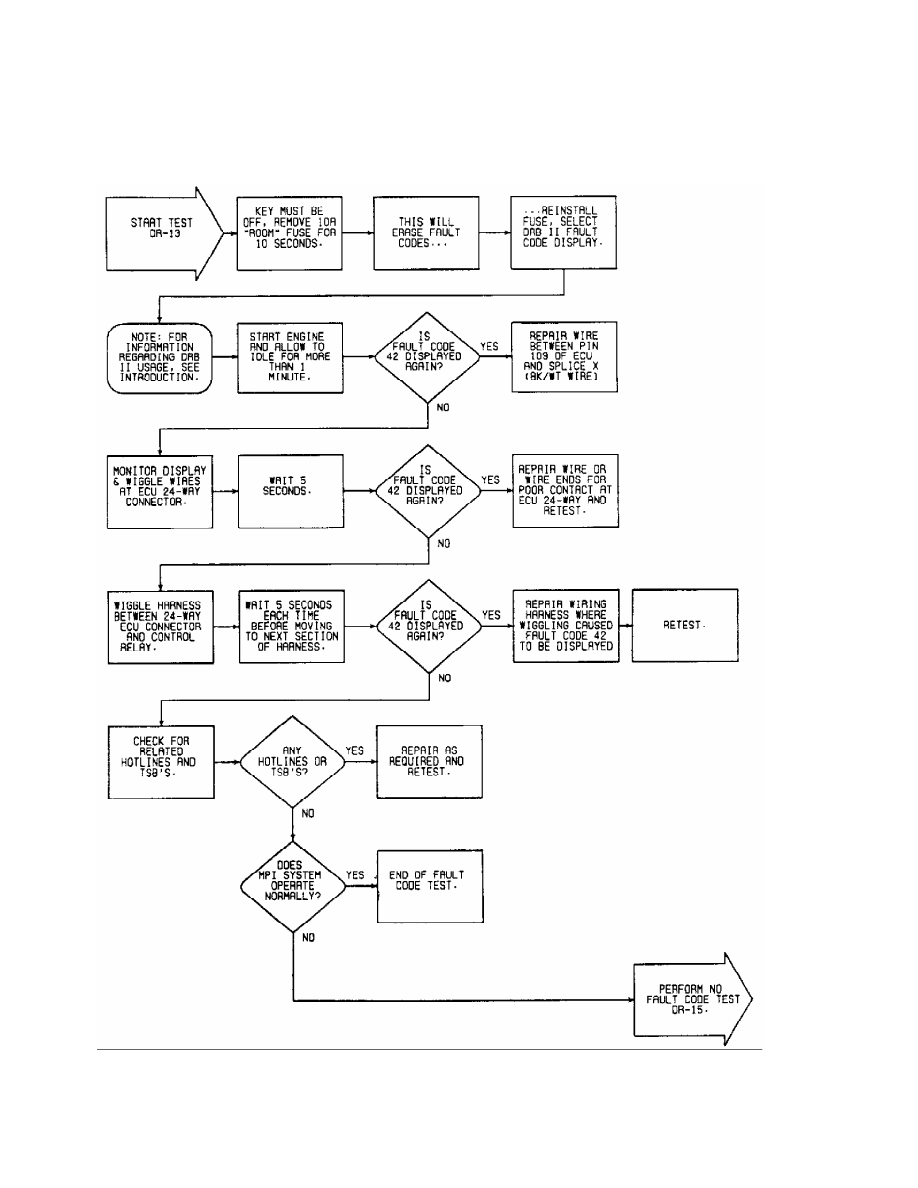

Fig. 57:  Flow Chart DR-13 (1.5L)

         DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.5L

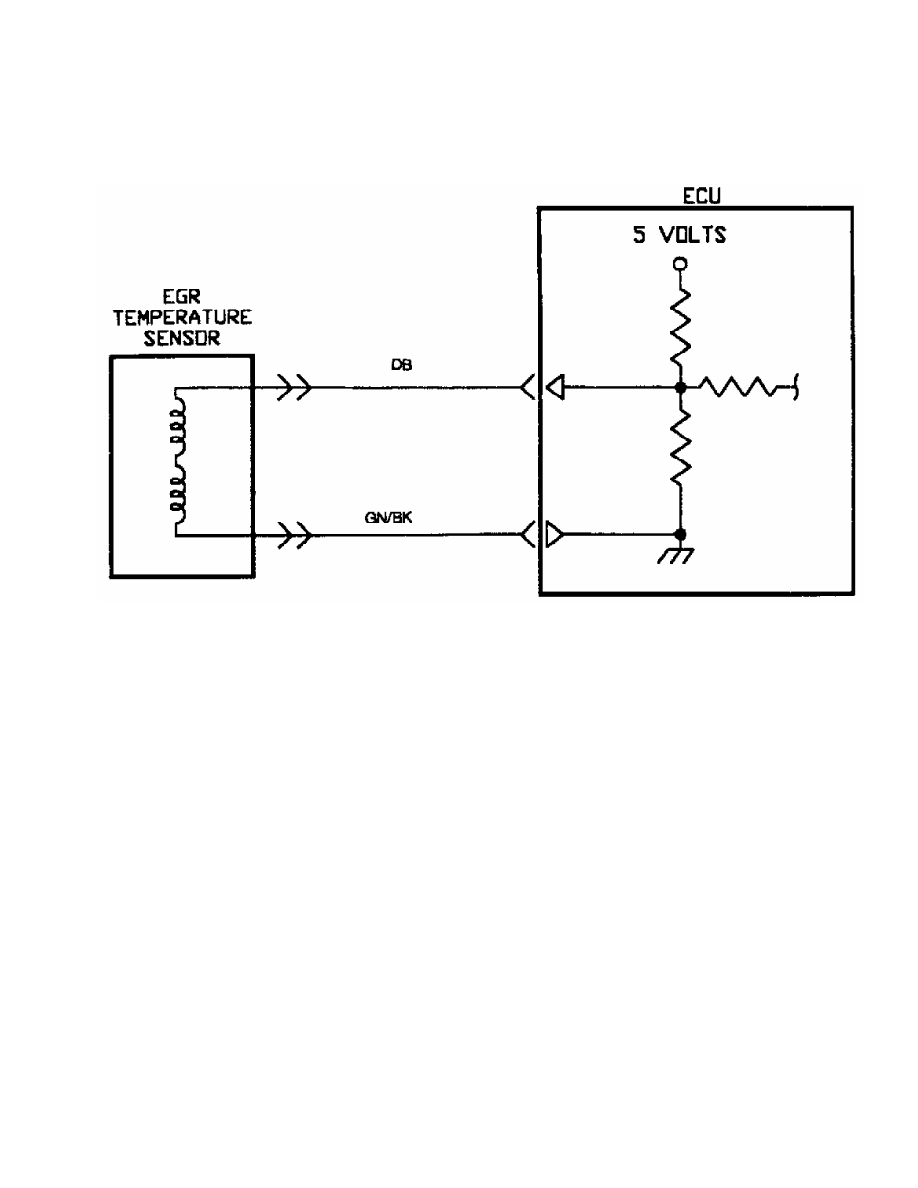

Fig. 58:  Circuit Diagram DR-14 (1.5L) Circuit

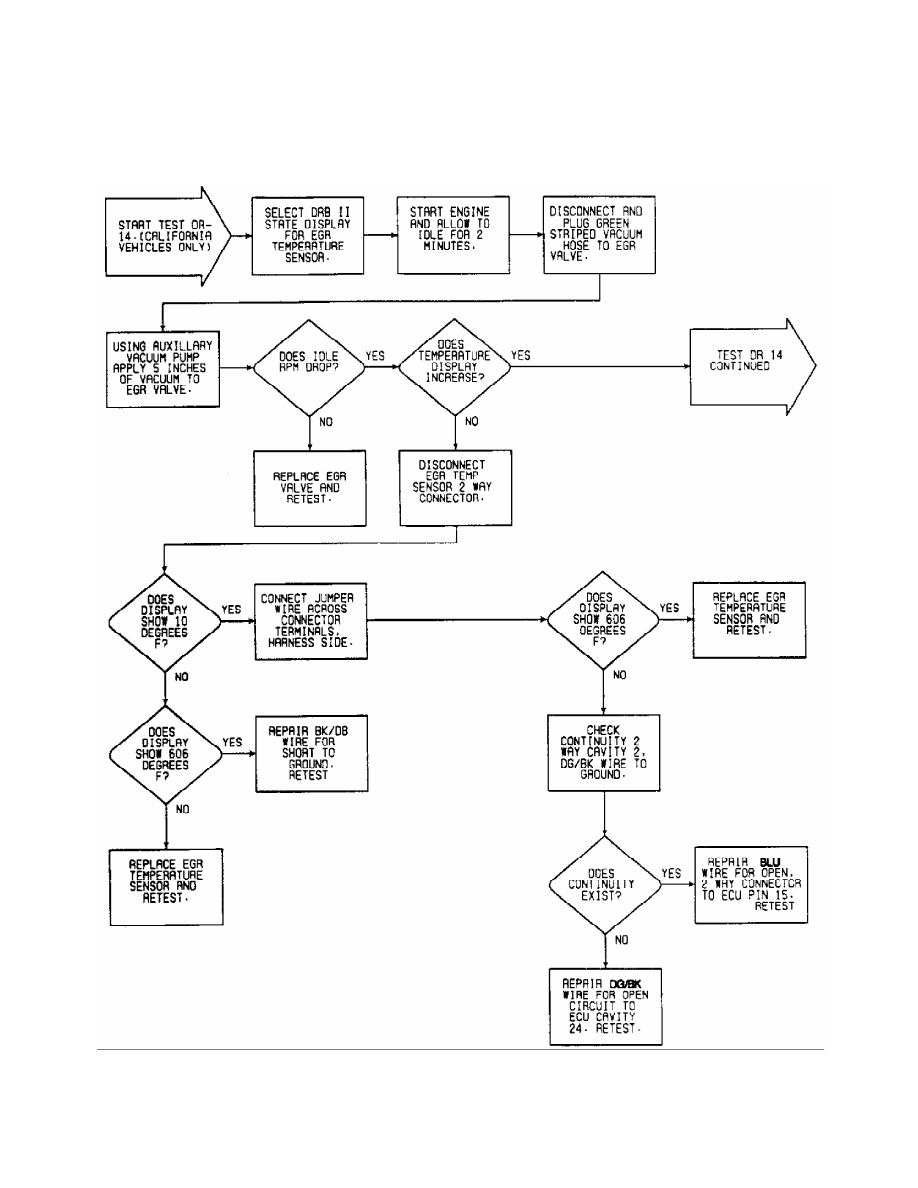

Fig. 59:  Flow Chart DR-14 (1.5L) (1 of 3)
