Mitsubishi Montero (1991+). Manual - part 223

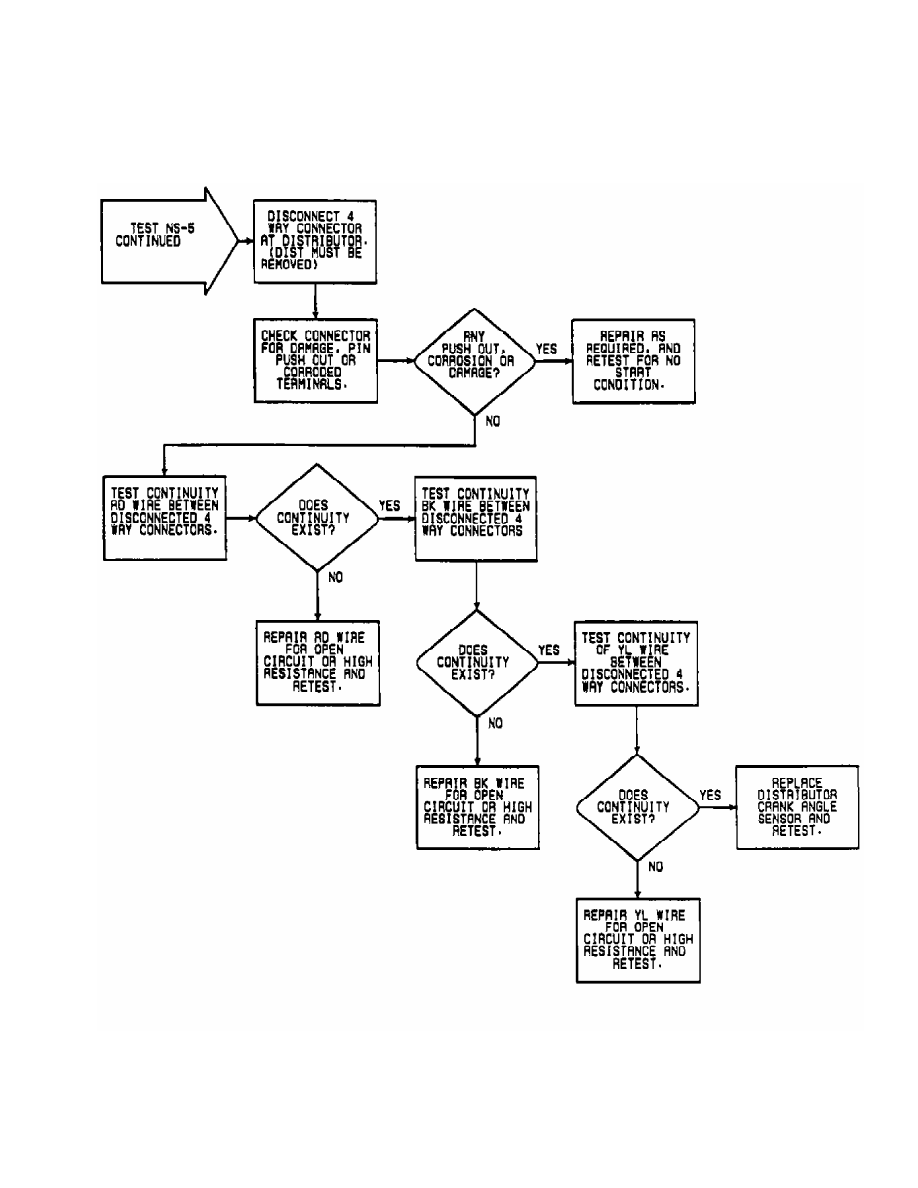

Fig. 20:  Flow Chart NS-5 (1.5L) (2 of 2)

         NS-6: TESTING CONTROL RELAY - 1.5L

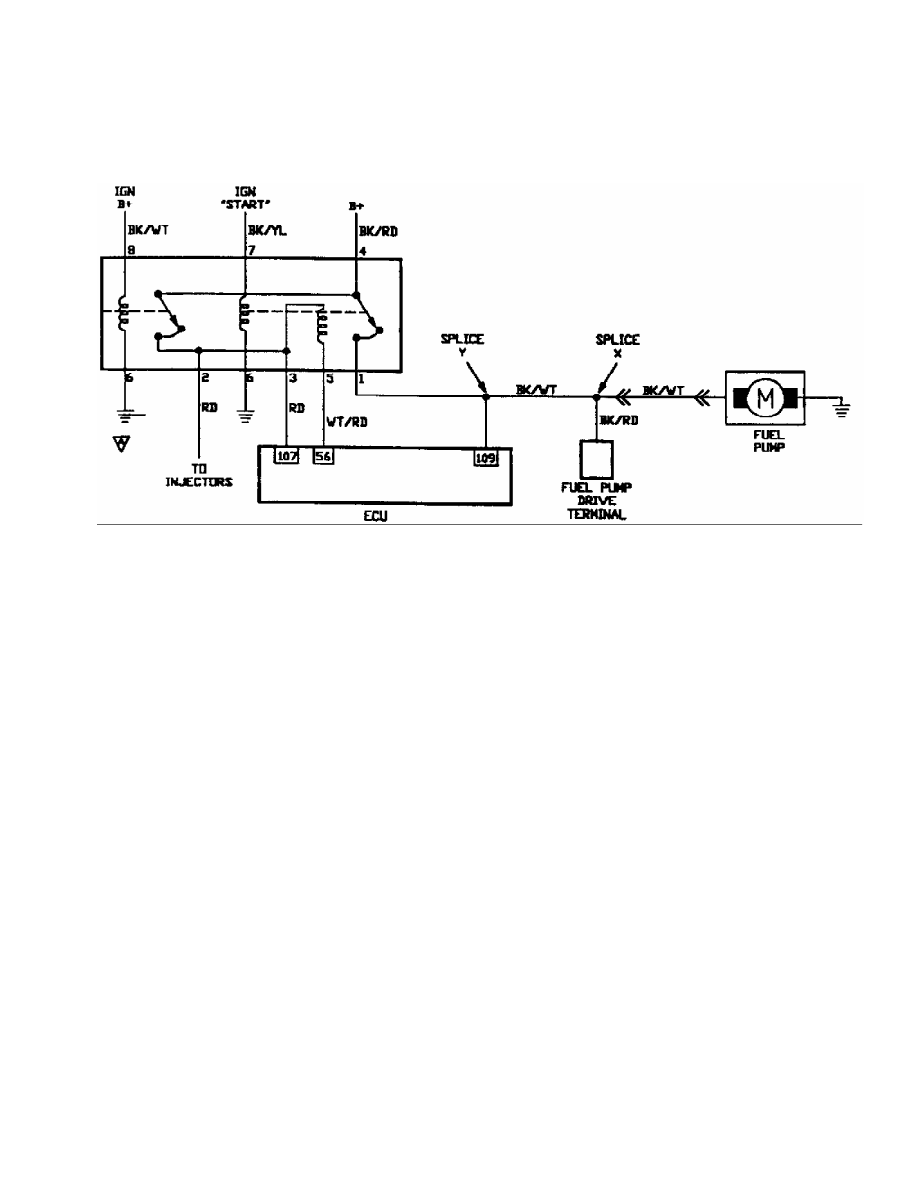

Fig. 21:  Circuit Diagram NS-6 (1.5L)

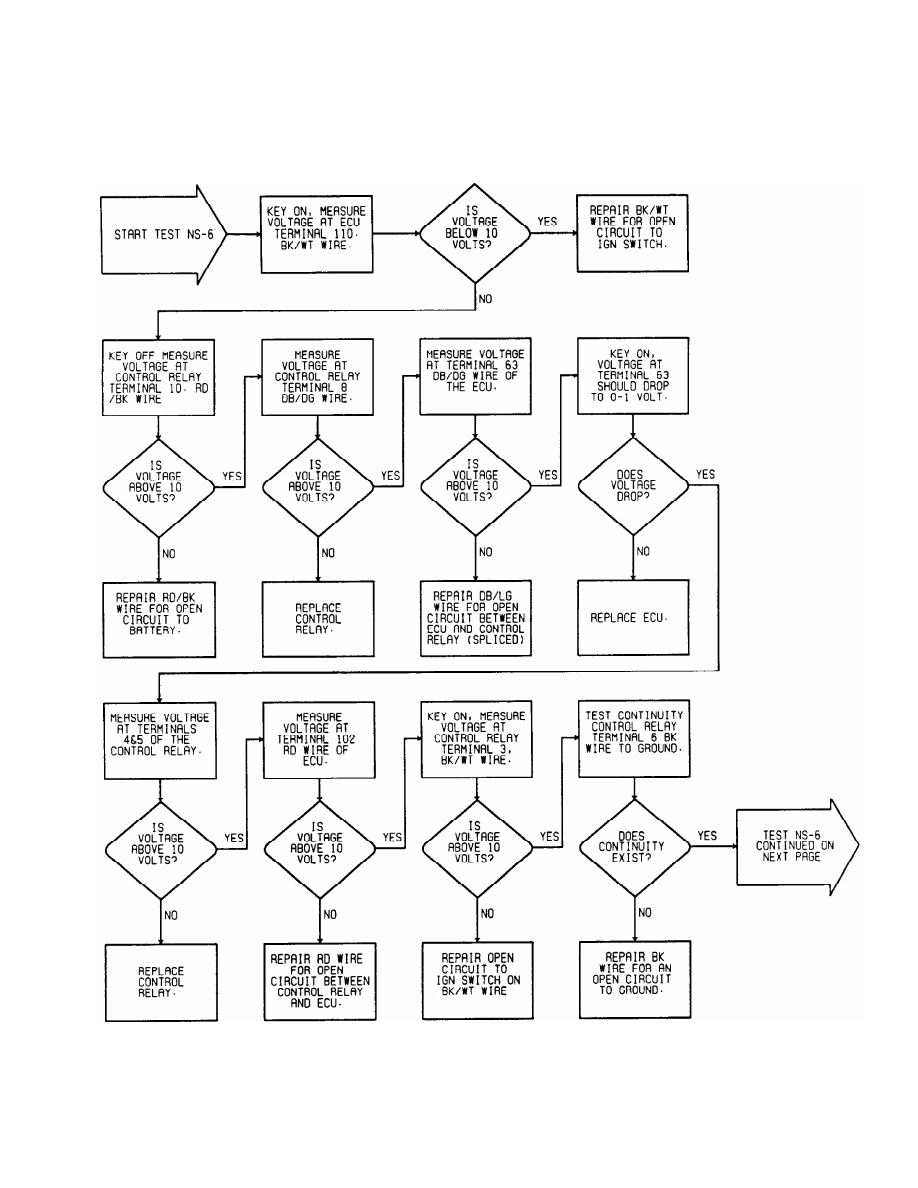

Fig. 22:  Flow Chart NS-6 (1.5L)

         DR-1: CHECKING FOR FAULT CODES - 1.5L

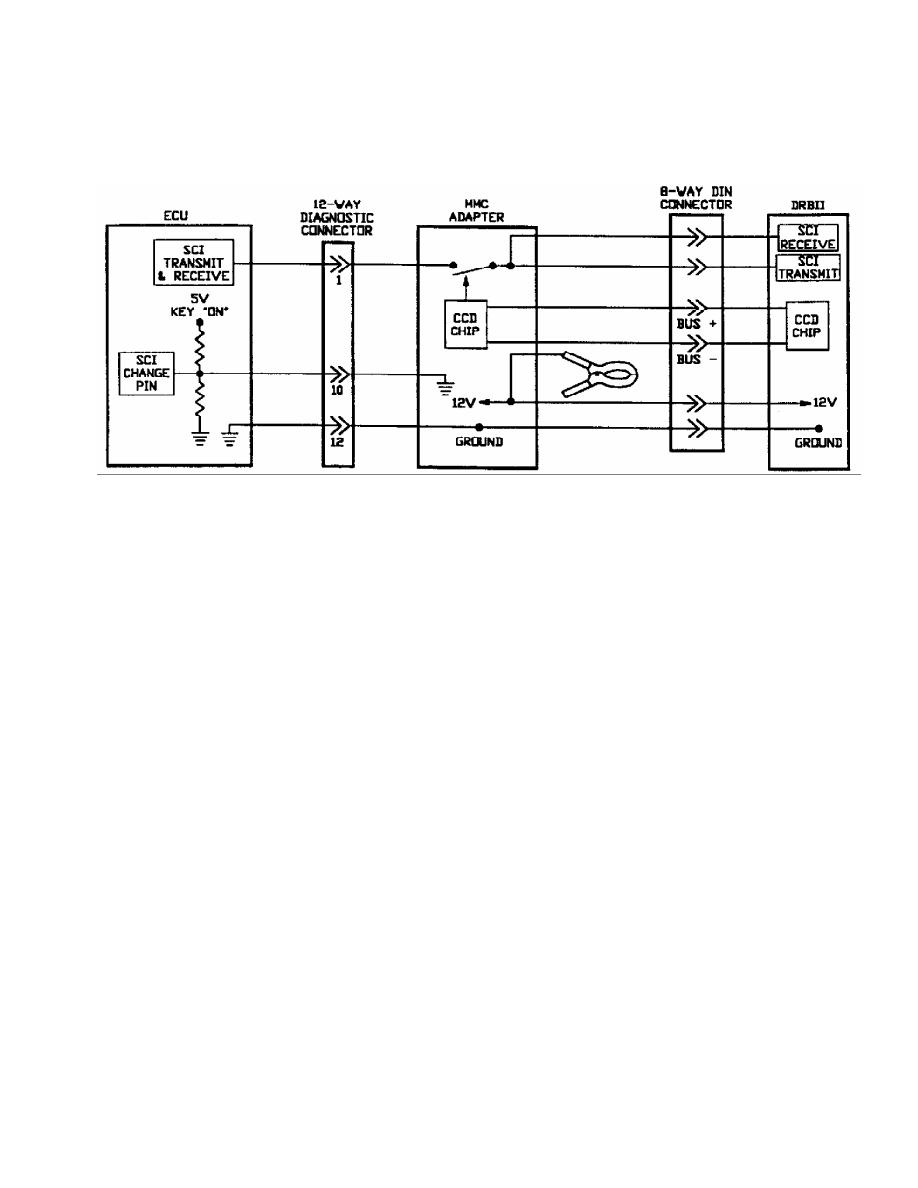

Fig. 23:  Circuit Diagram DR-1 (1.5L)
