Mitsubishi Montero (1991+). Manual - part 222

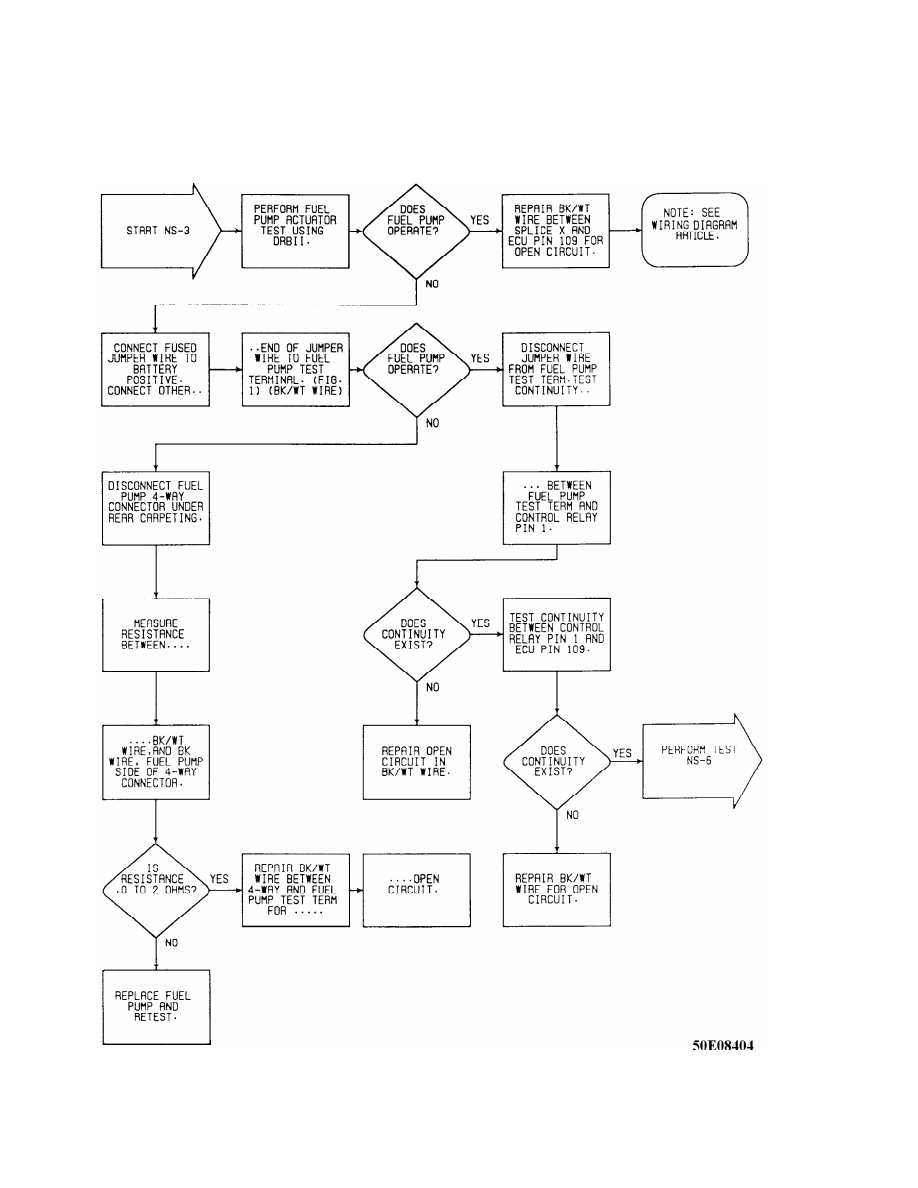

Fig. 15:  Flow Chart NS-3 (1.5L)

         NS-4: TESTING SELF-DIAGNOSTIC CONNECTOR - 1.5L

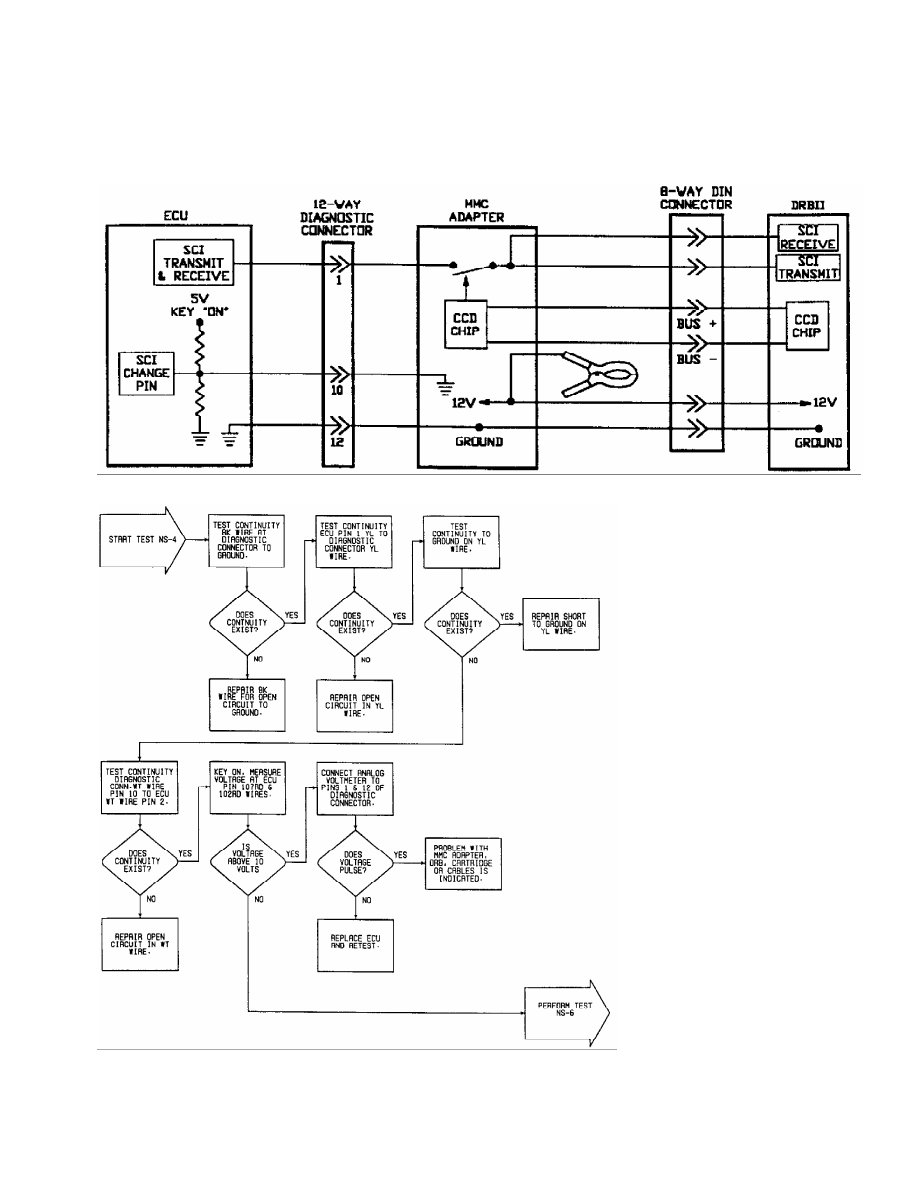

Fig. 16:  Circuit Diagram NS-4 (1.5L)

Fig. 17:  Flow Chart NS-4 (1.5L)

         NS-5: TESTING CRANK ANGLE SENSOR CIRCUIT - 1.5L

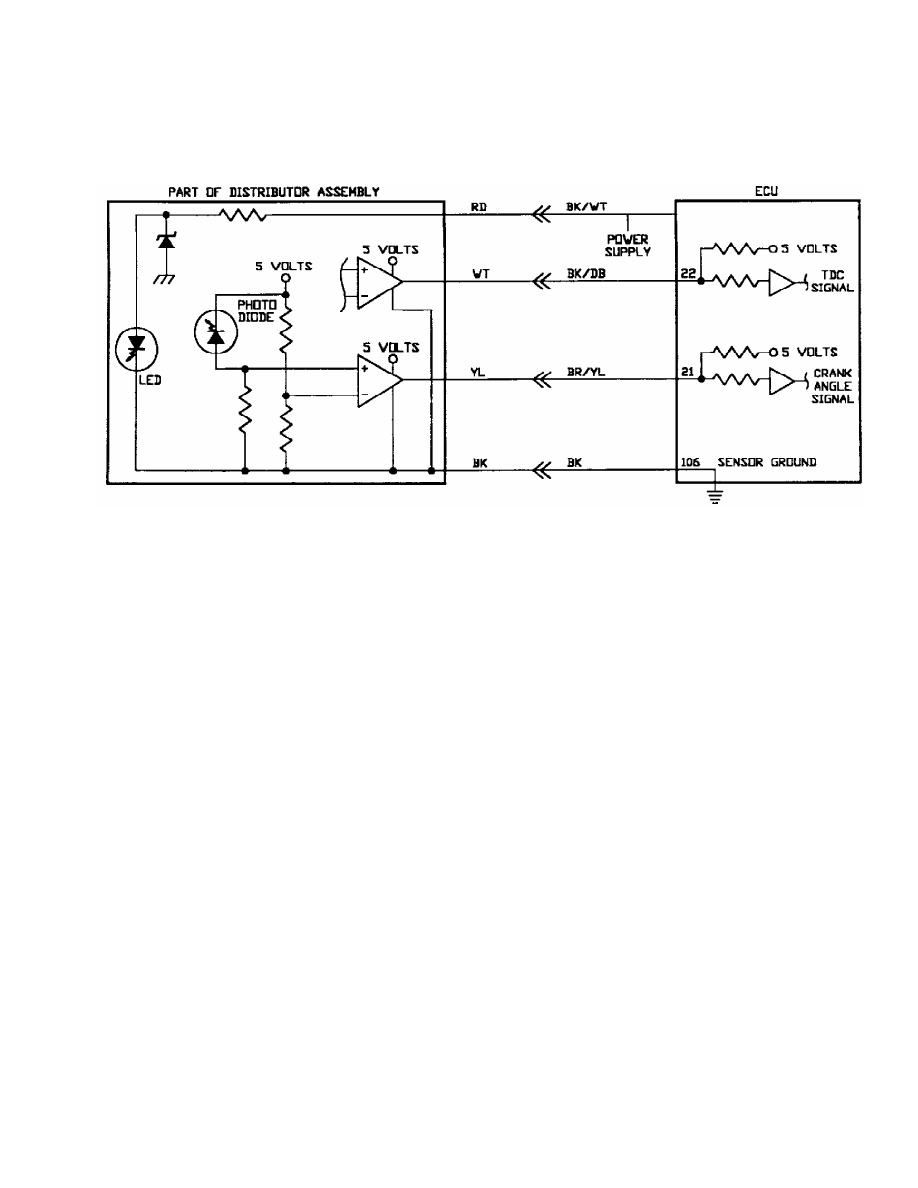

Fig. 18:  Circuit Diagram NS-5 (1.5L)

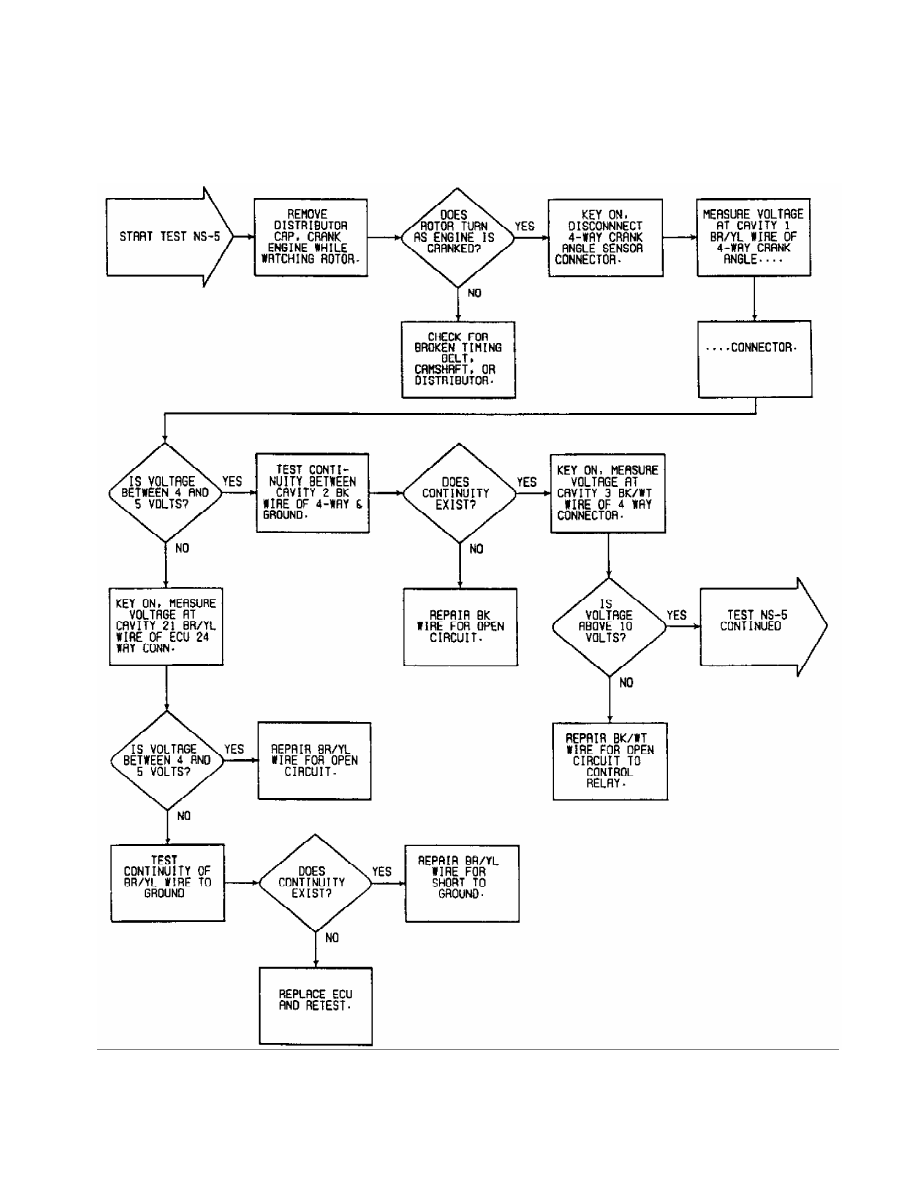

Fig. 19:  Flow Chart NS-5 (1.5L) (1 of 2)
