Mitsubishi Montero (1991+). Manual - part 189

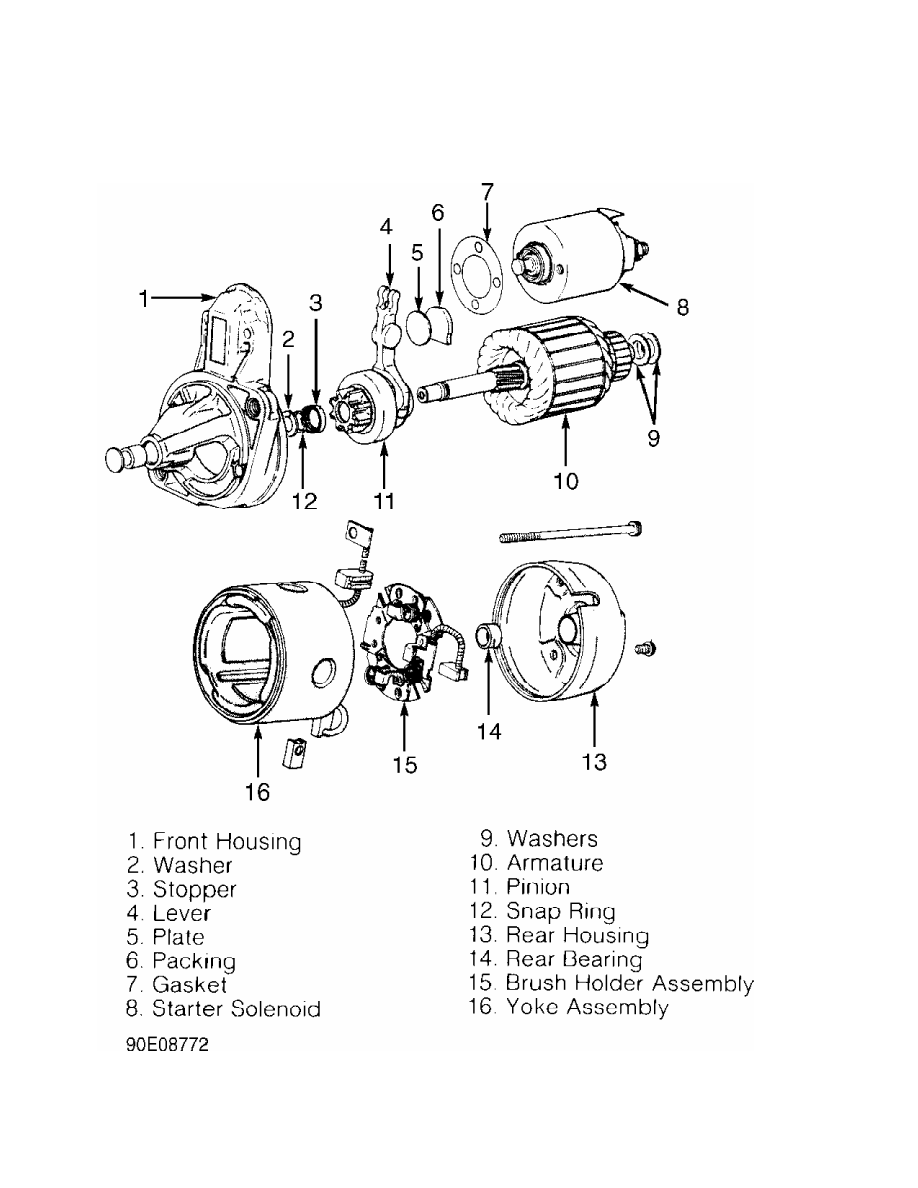

Fig. 6:  Exploded View of Direct Drive Starter

Courtesy of Mitsubishi Motor Sales of America.

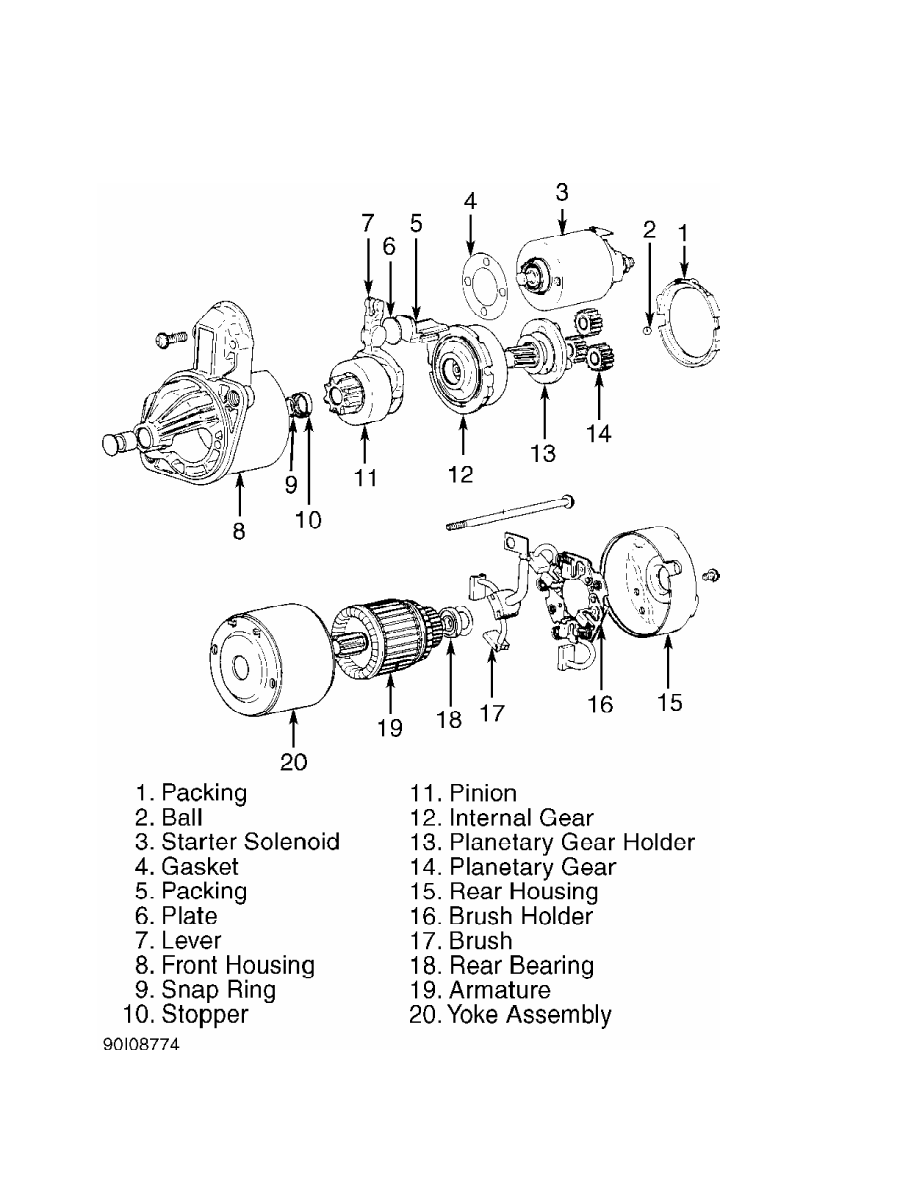

Fig. 7:  Exploded View of Gear Reduction Starter

Courtesy of Chrysler Motors.

         STARTER SPECIFICATIONS

STARTER SPECIFICATIONS

Application                                    In. (mm)

Commutator Maximum Runout (1)  ............  .004 (.10)

Commutator Minimum Diameter (1)

  Diamante  ............................  1.118 (28.40)

  Eclipse & Expo/Expo LRV

   1.8L  ...............................  1.220 (30.99)

   2.0L  ...............................  1.118 (28.40)

  Galant

   DOHC & SOHC A/T  ....................  1.118 (28.40)

   SOHC M/T  ...........................  1.220 (30.99)

  Mirage

   1.5L  ...............................  1.220 (30.99)

   1.6L  ...............................  1.118 (28.40)

  Montero  .............................  1.134 (28.80)

  Pickup

   2.4L A/T & 3.0L  ....................  1.134 (28.80)

   2.4L M/T  ...........................  1.236 (31.39)

  3000GT  ..............................  1.118 (28.40)

Commutator Undercut Depth (1)  ............  .020 (.51)

Pinion Gap  ......................  020-.079 (.51-2.01)

(1) - Information not available on Precis models.

STEERING COLUMN SWITCHES



1991 Mitsubishi Montero

         1991 ACCESSORIES & SAFETY EQUIPMENT

         Chrysler Motors/Eagle/Mitsubishi Steering Column Switches

         Dodge;  Colt, Colt Vista, Colt 200, Ram-50, Stealth

         Eagle;  Summit

         Mitsubishi:  Eclipse, Galant, Mirage, Montero, Pickup, 3000Gt

         Plymouth;  Colt, Colt Vista, Colt 200

         TESTING

         For steering column switch testing, see STEERING COLUMN

SWITCH TESTING/REMOVAL & INSTALLATION table for figure reference.

STEERING COLUMN SWITCH TESTING/REMOVAL & INSTALLATION TABLE

Model                                          Figure Number

Colt, Colt 200, Mirage & Summit  ...............  See  Fig. 1

Colt Vista  ....................................  See  Fig. 2

Eclipse  .......................................  See  Fig. 3

Galant  ........................................  See  Fig. 4

Montero  .......................................  See  Fig. 5

Pickup & Ram-50  ...............................  See  Fig. 6

Stealth & 3000GT  ..............................  See  Fig. 7

         REMOVAL & INSTALLATION

         IGNITION SWITCH

         Removal (Colt, Colt 200, Eclipse, Mirage & Summit)

         1) Remove steering column switch. See STEERING COLUMN SWITCH

under REMOVAL & INSTALLATION. On automatic transaxle vehicles,

disconnect key interlock cable, and remove spring and slide lever.

         2) On all vehicles, insert key and turn ignition switch to

ACC position. Push steering lock cylinder lock pin inward and pull

steering lock cylinder away from dash. Remove ignition switch and key

reminder switch.

         Installation

         1) Place ignition switch in LOCK position. Install slide

lever to steering lock cylinder. Install spring to inner cable of key

interlock cable (if used).

         2) Connect key interlock cable to slide lever and steering

lock cylinder. Lightly grease around slide lever. To complete

installation, reverse removal procedure. Ensure key interlock system

functions properly.

         Removal & Installation (Colt Vista, Galant, Montero, Pickup,

Ram-50, Stealth & 3000GT)

         Remove knee protector (if necessary). Remove upper and lower

column covers. Remove air ducts and cable bands as necessary. Remove

ignition switch and key reminder switch. To install, reverse removal

procedure.

         STEERING COLUMN SWITCH

         Removal & Installation (Except Stealth & 3000GT)
