Mitsubishi Montero (1991+). Manual - part 108

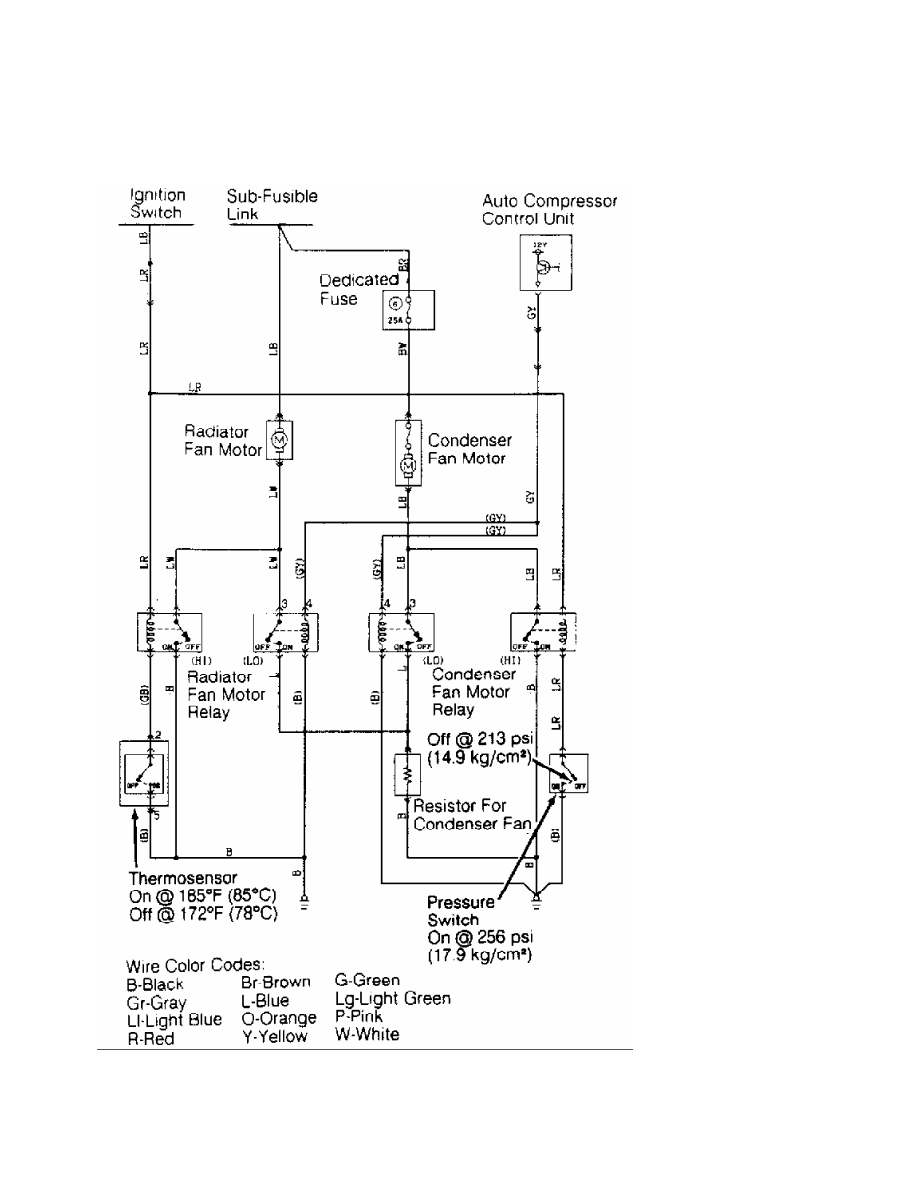

Fig. 5:  Radiator Cooling Fan Wiring Diagram (Eclipse)

Courtesy of Mitsubishi Motor Sales of America.

Fig. 6:  Radiator Cooling Fan Wiring Diagram (Galant AWD A/T)

Courtesy of Mitsubishi Motor Sales of America.

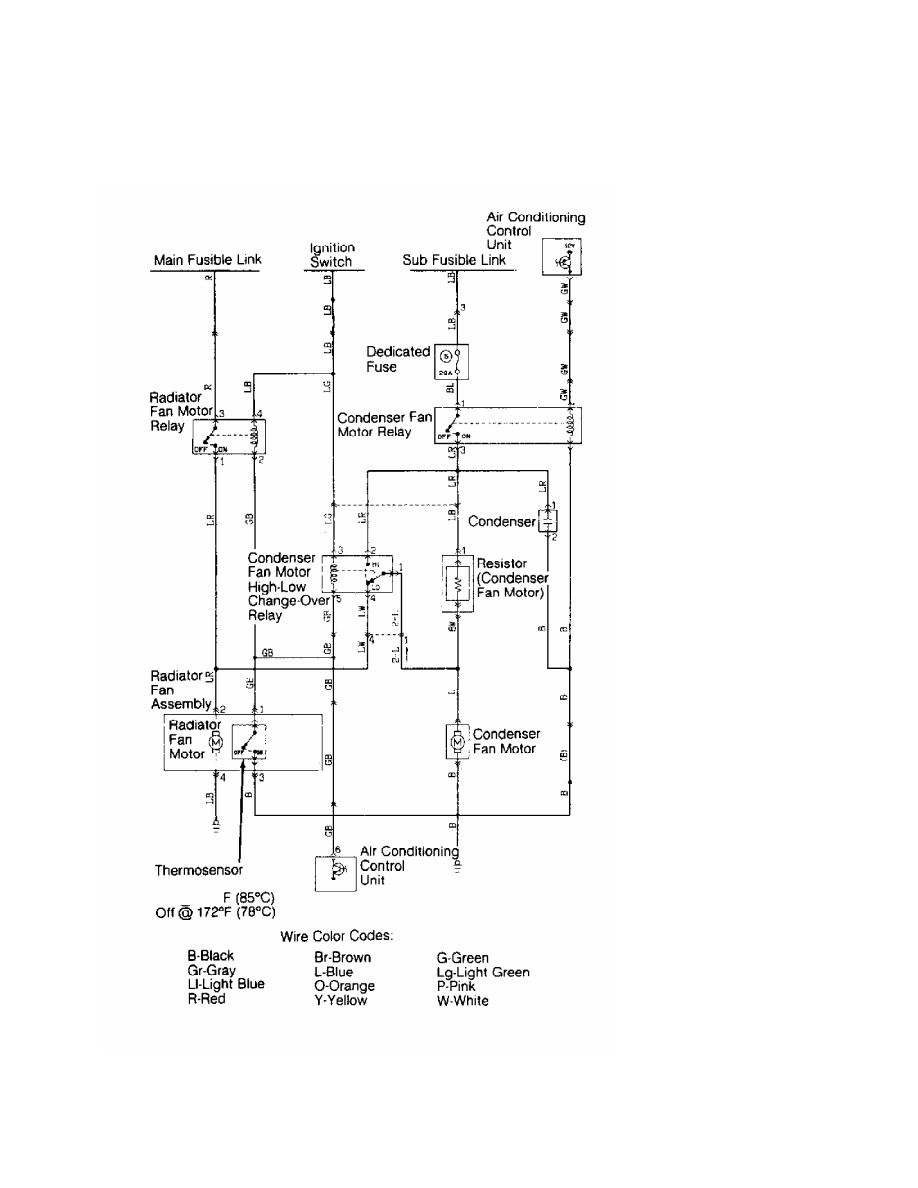

Fig. 7:  Radiator Cooling Fan Wiring Diagram (Galant FWD & AWD M/T)

Courtesy of Mitsubishi Motor Sales of America.

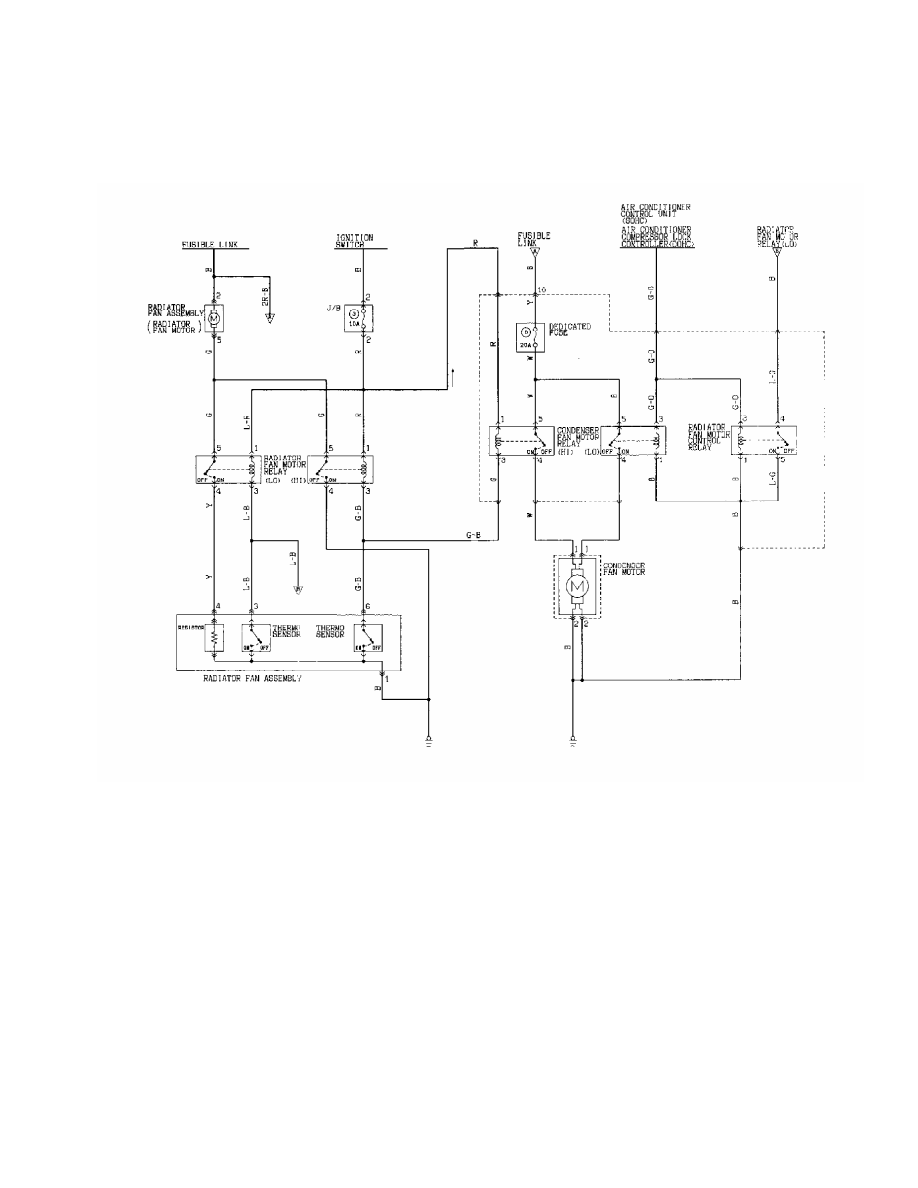

Fig. 8:  Radiator Cooling Fan Wiring Diagram (3000GT)

Courtesy of Mitsubishi Motor Sales of America.
