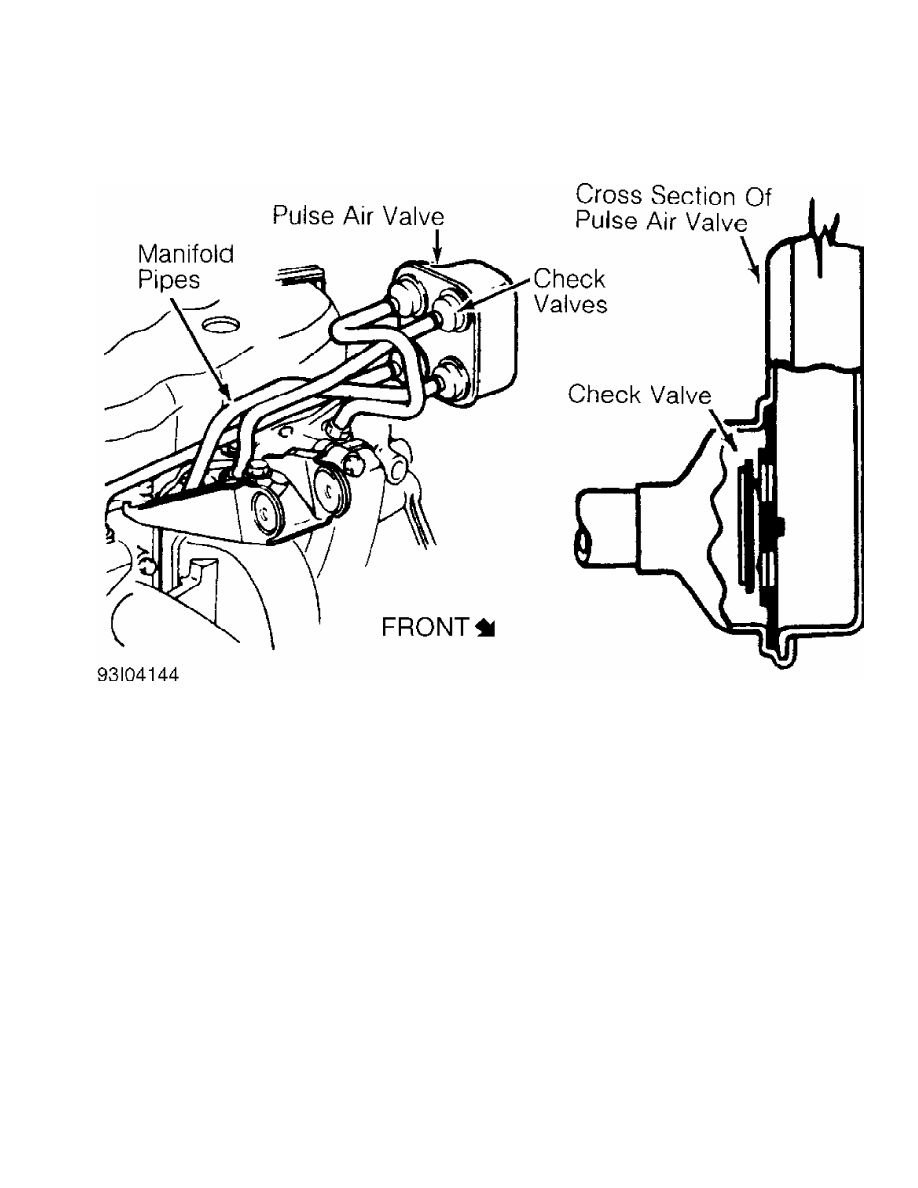

Fig. 14:  Typical Pulsed Secondary Air Injection System

Courtesy of General Motors Corp.

         OXYGEN SENSOR (O2)

         The O2 sensor is mounted in the exhaust system where it

monitors oxygen content of exhaust gases. Some vehicles may use 2 O2

sensors. The O2 sensor produces a voltage signal which is proportional

to exhaust gas oxygen concentration (0-3%) compared to outside oxygen

(20-21%). This voltage signal is low (about .1 volt) when a lean

mixture is present and high (1.0 volt) when a rich mixture is present.

         As ECM compensates for a lean or rich condition, this voltage

signal constantly fluctuates between high and low, crossing a

reference voltage supplied by the ECM on the O2 signal line. This is

referred to as cross counts. A problem in the O2 sensor circuit should

set a related trouble code.

         COMPUTERIZED ENGINE CONTROLS (CEC)

         The CEC system monitors and controls a variety of

engine/vehicle functions. The CEC system is primarily an emission

control system designed to maintain a 14.7:1 air/fuel ratio under most

operating conditions. When the ideal air/fuel ratio is maintained, the

catalytic converter can control oxides of nitrogen (NOx), hydrocarbon

(HC) and carbon monoxide (CO) emissions.

         The CEC system consists of the following sub-systems:

Electronic Control Module (ECM), input devices (sensors and switches)

and output signals.

         EARLY FUEL EVAPORATION (EFE)

         The EFE valve is actuated by either a vacuum actuator or a

bimetal spring (heat-riser type). The EFE valve is closed when engine

is cold. The closed valve restricts exhaust gas flow from the exhaust

manifold. This forces part of the exhaust gas to flow up through a

passage below the carburetor. As the exhaust gas quickly warms the

intake mixture, distribution is improved. This results in better cold

engine driveability, shorter choke periods and lower emissions.

         Ensure EFE valve in exhaust manifold is not frozen or rusted

in a fixed position. On vacuum-actuated EFE system, check EFE thermal

vacuum valve and check valve(s). Also check for proper vacuum hose

routing. See Fig. 15.

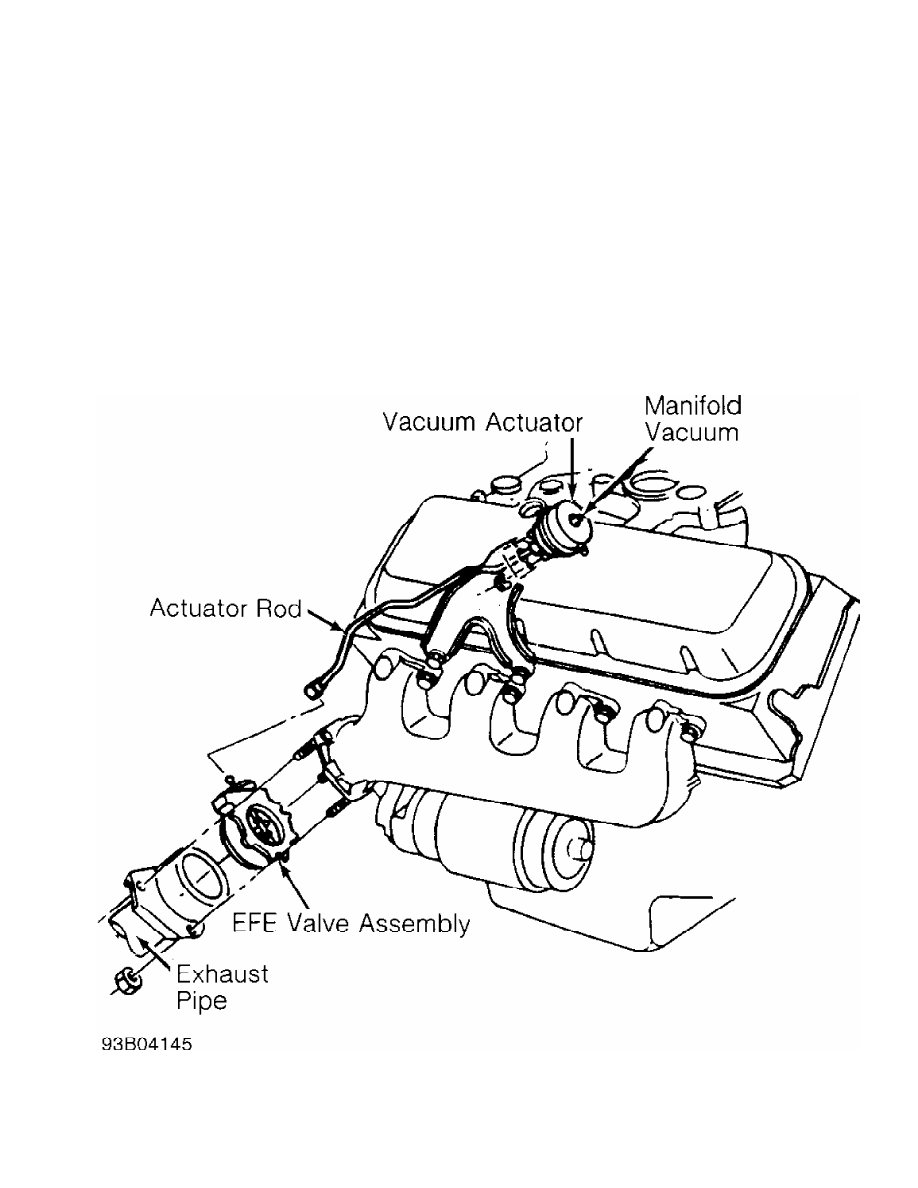

Fig. 15:  Typical Vacuum-Actuated EFE System

Courtesy of General Motors Corp.

         EMISSION MAINTENANCE REMINDER LIGHT (EMR) (IF EQUIPPED)

         If equipped, the EMR light (some models may use a reminder

flag) reminds vehicle operator that an emission system maintenance is

required. This indicator is activated after a predetermined

time/mileage.

         When performing a smog check inspection, ensure EMR indicator

is not activated. On models using an EMR light, light should glow when

ignition switch is turned to ON position and should turn off when

engine is running.

         If an EMR flag is present or an EMR light stays on with

engine running, fail vehicle and service or replace applicable

emission-related components. To reset an EMR indicator, refer to

appropriate MAINTENANCE REMINDER LIGHTS in the MAINTENANCE section.

         MALFUNCTION INDICATOR LIGHT (MIL)

         The Malfunction Indicator Light (MIL) is used to alert

vehicle operator that the computerized engine control system has

detected a malfunction (when it stays on all the time with engine

running). On some models, the MIL may also be used to display trouble

codes.

         As a bulb and system check, malfunction indicator light will

glow when ignition switch is turned to ON position and engine is not

running. When engine is started, light should go out.

ENGINE COOLING FAN



1991 Mitsubishi Montero

        1991 ENGINE COOLING

        Mitsubishi Engine Cooling Fans

         Mitsubishi:  Eclipse, Galant, Mirage,

         Montero, Pickup, Precis, 3000GT

         ELECTRIC COOLING FAN - COMPONENT TESTING

         MOTOR

         Disconnect electric cooling fan motor at junction. Using 2

jumper wires, ground one lead and apply battery voltage to other. Fan

should rotate. If fan does not rotate, replace motor.

         RADIATOR FAN SWITCH

         Using an ohmmeter, check switch continuity in hot water.

Switch should be open at less than 180 F (82 C) and continuity should

exist at more than 185 F (85 C). Replace radiator fan switch if it

does not test as specified.

         ELECTRIC COOLING FAN RELAY

         1) Remove relay from relay box in front of right suspension

tower. Using jumper wires, connect battery to indicated terminals.

         2) On 3000GT, continuity should exist between terminals No. 1

and 3. With battery disconnected, continuity should exist between

terminals No. 2 and 4 and should not exist between terminals No. 1 and

3.

         3) On all other models, continuity should exist between

terminals No. 3 and 4. With battery disconnected, continuity should

exist between terminals No. 1 and 2 and should not exist between

terminals No. 3 and 4. Replace relay if it does not test as specified.

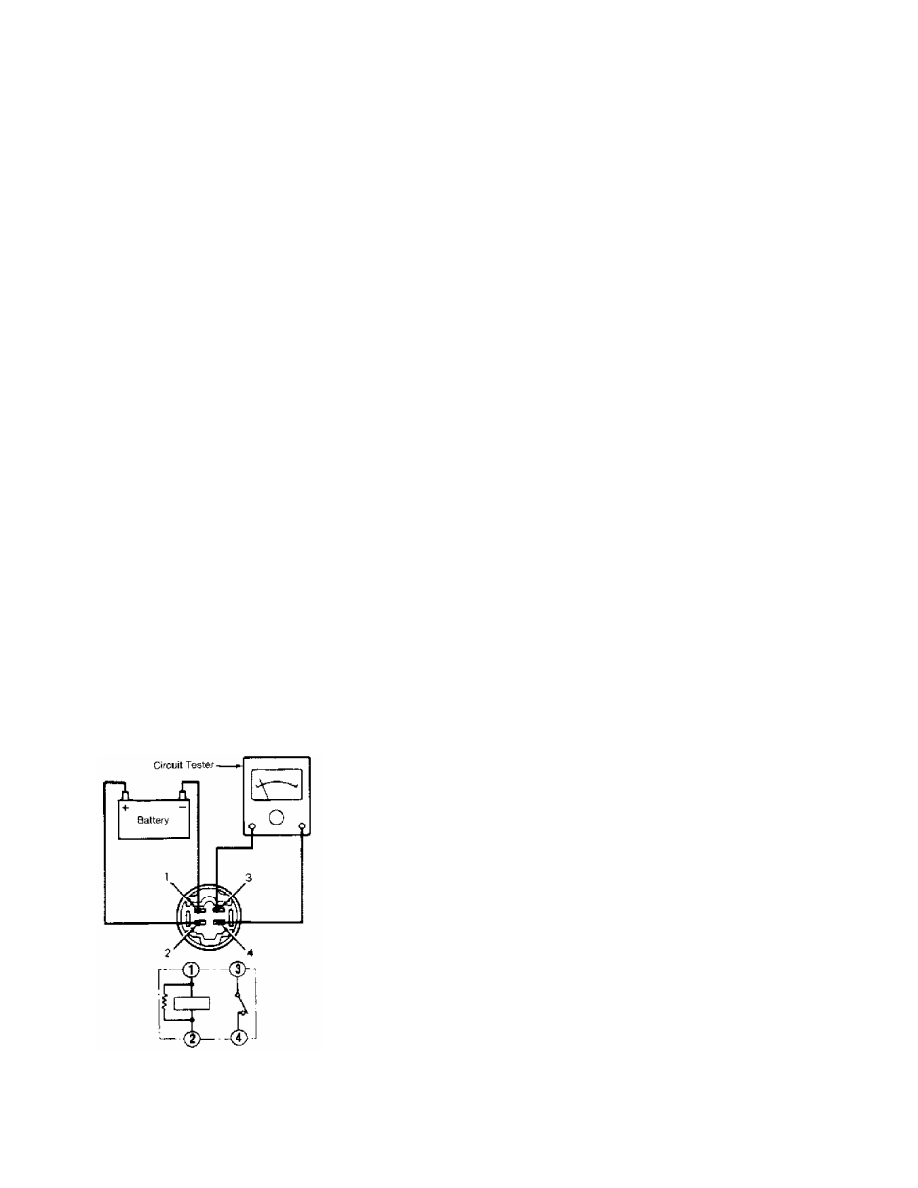

Fig. 1:  Testing Electric Cooling Fan Relay (except 3000GT)

Courtesy of Mitsubishi Motor Sales of America.
