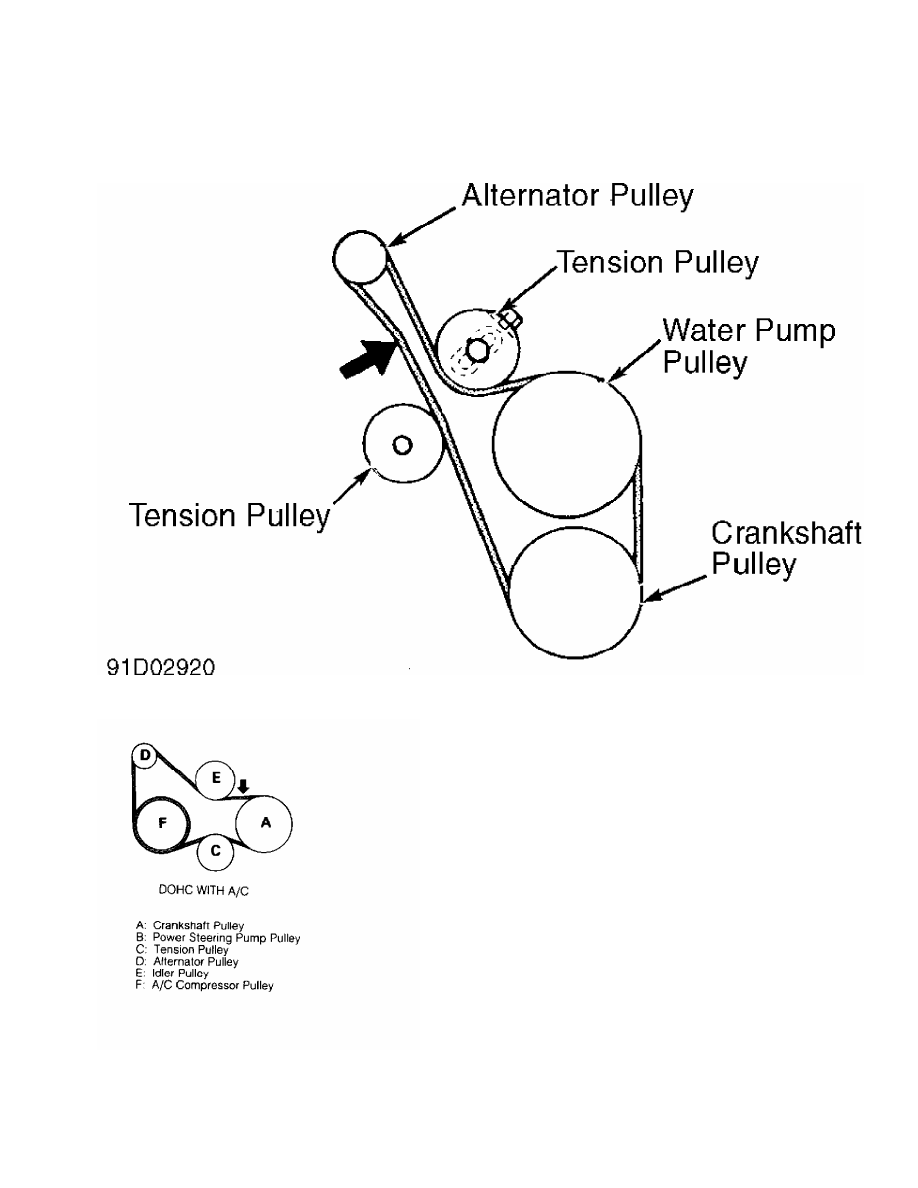

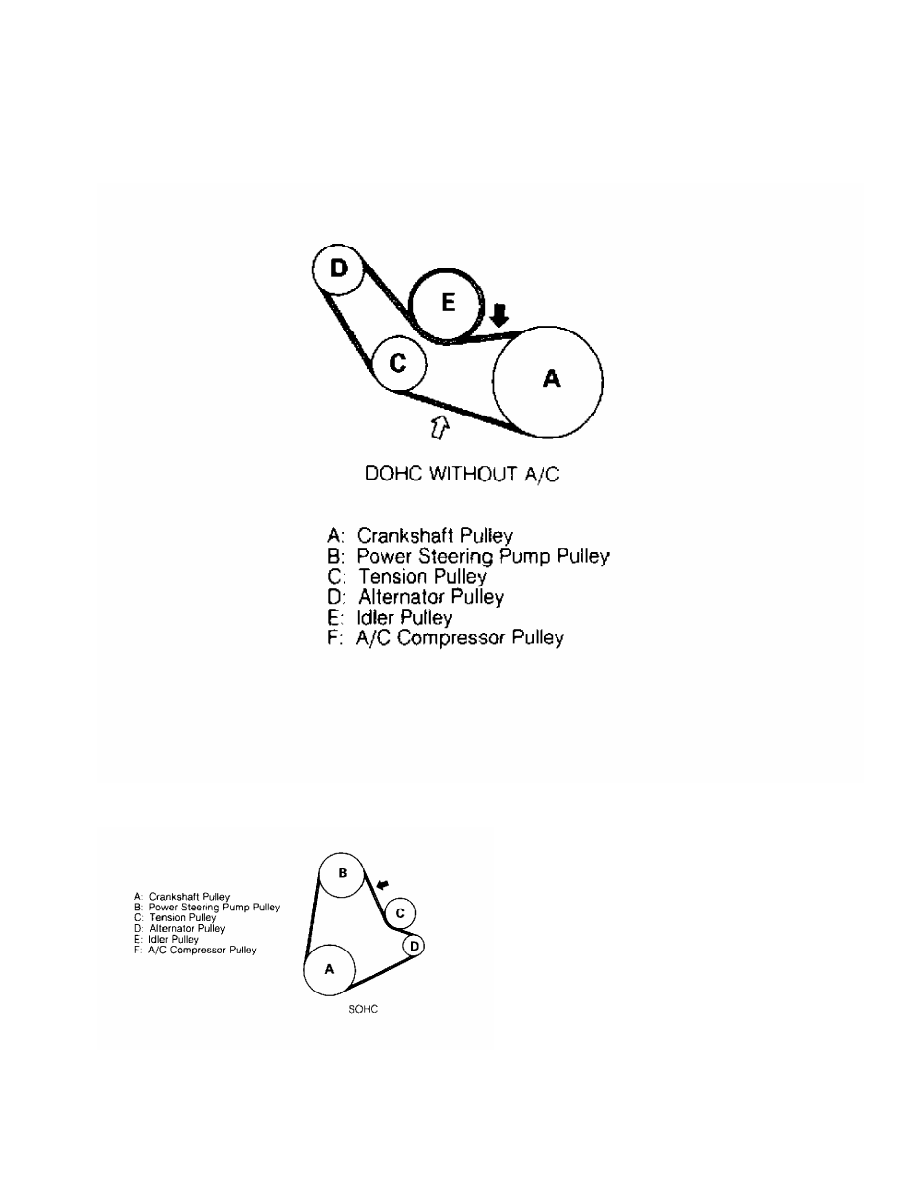

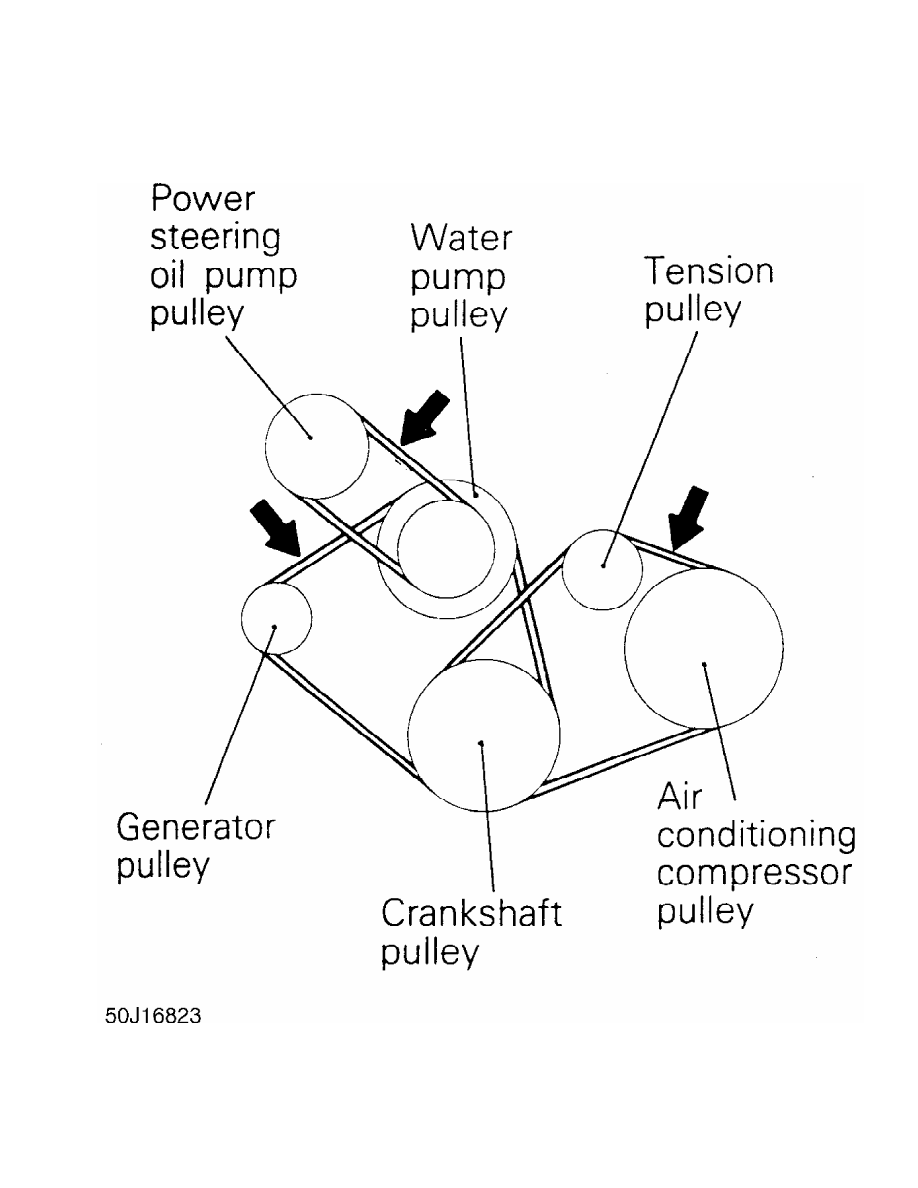

DRIVE BELT ROUTING 1991 Mitsubishi Montero 1991 ENGINE COOLING Mitsubishi Drive Belt Routing Mitsubishi; Eclipse, Galant, Mirage, Montero, Pickup, Precis, 3000GT BELT ADJUSTMENT SPECIFICATIONS BELT ADJUSTMENT TABLE Deflection Application ( 1) In. (mm) Eclipse 1.8L .......................................... .32-.43 (8.1-10.9) 2.0L .......................................... .35-.45 (8.9-11.4) Galant (2) Alternator Belt ............................... .35-.45 (8.9-11.4) A/C Belt ............................................... .32 (8.1) Power Steering Belt ............................ .24-.35 (6.1-8.9) Montero (3) ...................................... .20-.24 (5.1-6.1) Pickup 2.4L ........................................... .27-.39 (6.8-9.9) 3.0L (3) ....................................... .32-.39 (8.1-9.9) Precis A/C Belt ...................................... .32-.40 (8.1-10.2) Alternator Belt ................................ .28-.32 (7.1-8.1) 3000GT (4) DOHC Alternator Belt ............................... .16-.22 (4.1-5.6) Power Steering Belt .......................... .35-.43 (8.9-10.9) SOHC Alternator & Power Steering Belt .............. .24-.35 (6.1-8.9) A/C Belt ...................................... .28-.37 (7.1-9.5) (1) - With 22 lbs. (10 kg) pressure applied midway on belt run. (2) - For belt routing, see Fig. 1. (3) - For belt routing, see Fig. 2. (4) - For belt routing, see Figs. 3, 3 or 4. |
