recovery/recycling equipment. Remove glove box with lower frame

attached. Loosen duct joint bolt to free duct joint. Disconnect A/C

switch harness. Disconnect evaporator drain hose.

         2) Disconnect refrigerant lines at firewall side of engine

compartment. Remove evaporator top attaching bolts in passenger

compartment. Remove evaporator assembly. See  Fig. 12 or 13. To

install, reverse removal procedure.

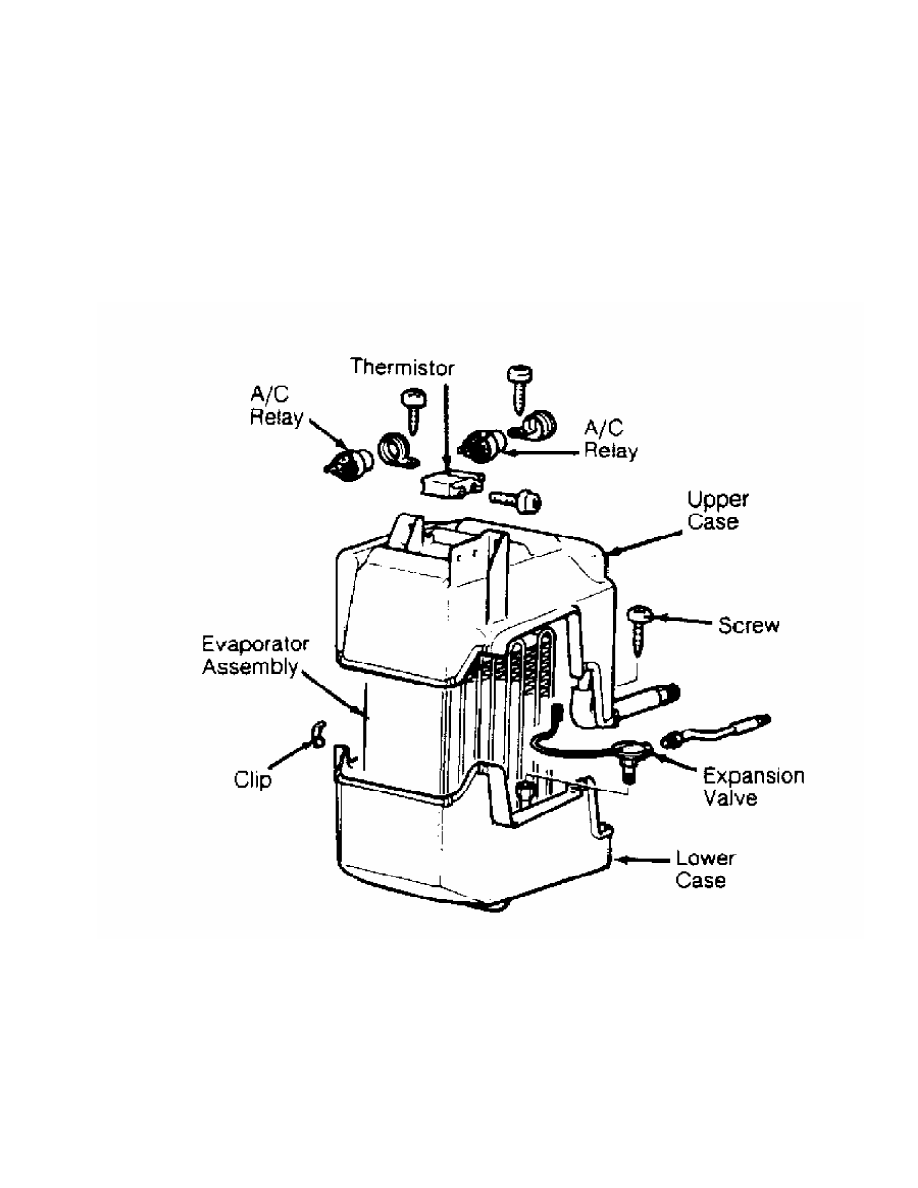

Fig. 12:  Exploded View of Front Evaporator (Montero)

Courtesy of Mitsubishi Motor Sales of America.

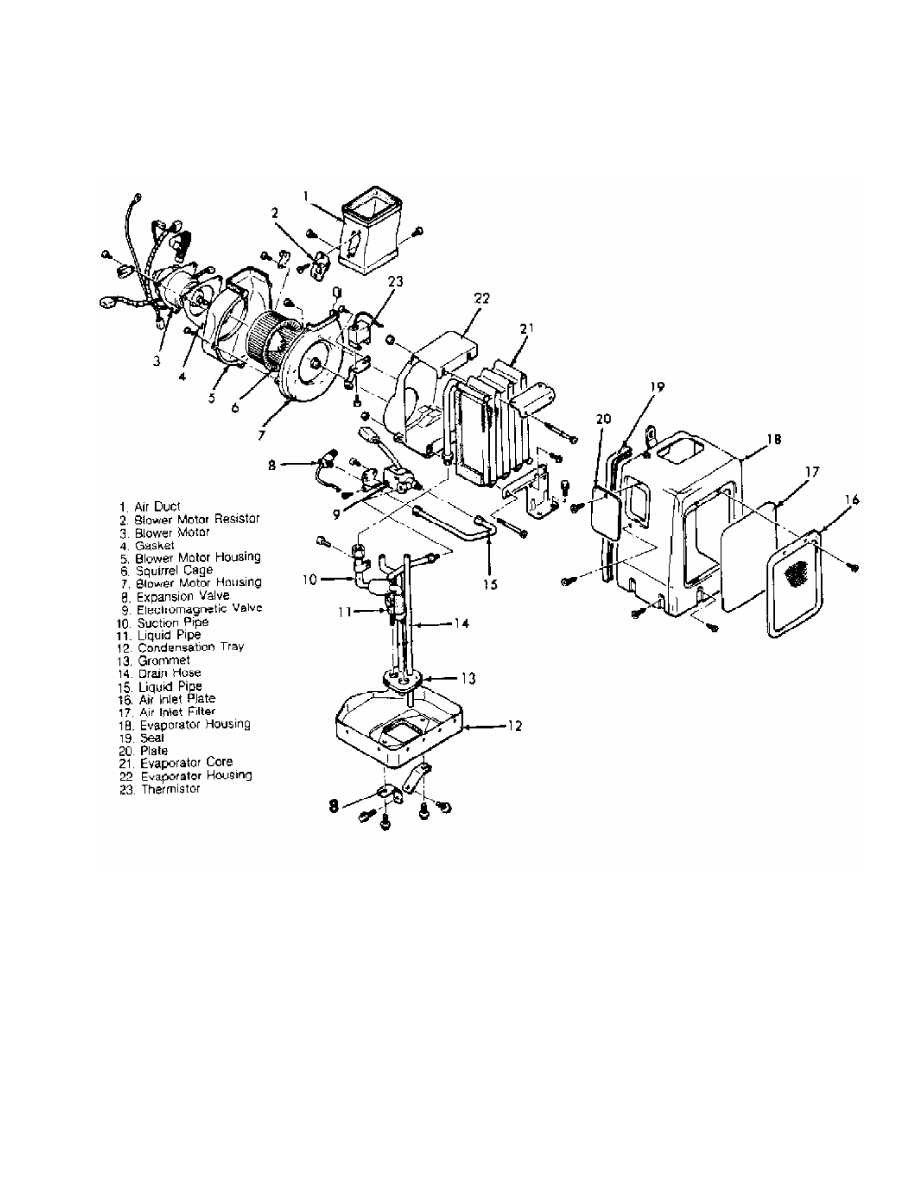

Fig. 13:  Exploded View of Rear Evaporator Assembly (Montero)

Courtesy of Mitsubishi Motor Sales of America.

         Removal & Installation (Pickup & Ram-50)

         Discharge A/C system using approved refrigerant

recovery/recycling equipment. Disconnect liquid pipe and suction hose

connections. Remove glove box assembly. Remove air and defroster

ducts. Remove evaporator drain hose and clamp. Disconnect wiring

connectors. Remove nut from firewall evaporator assembly mounting

bracket. Remove evaporator assembly. To install, reverse removal

procedure.

         WIRING DIAGRAMS

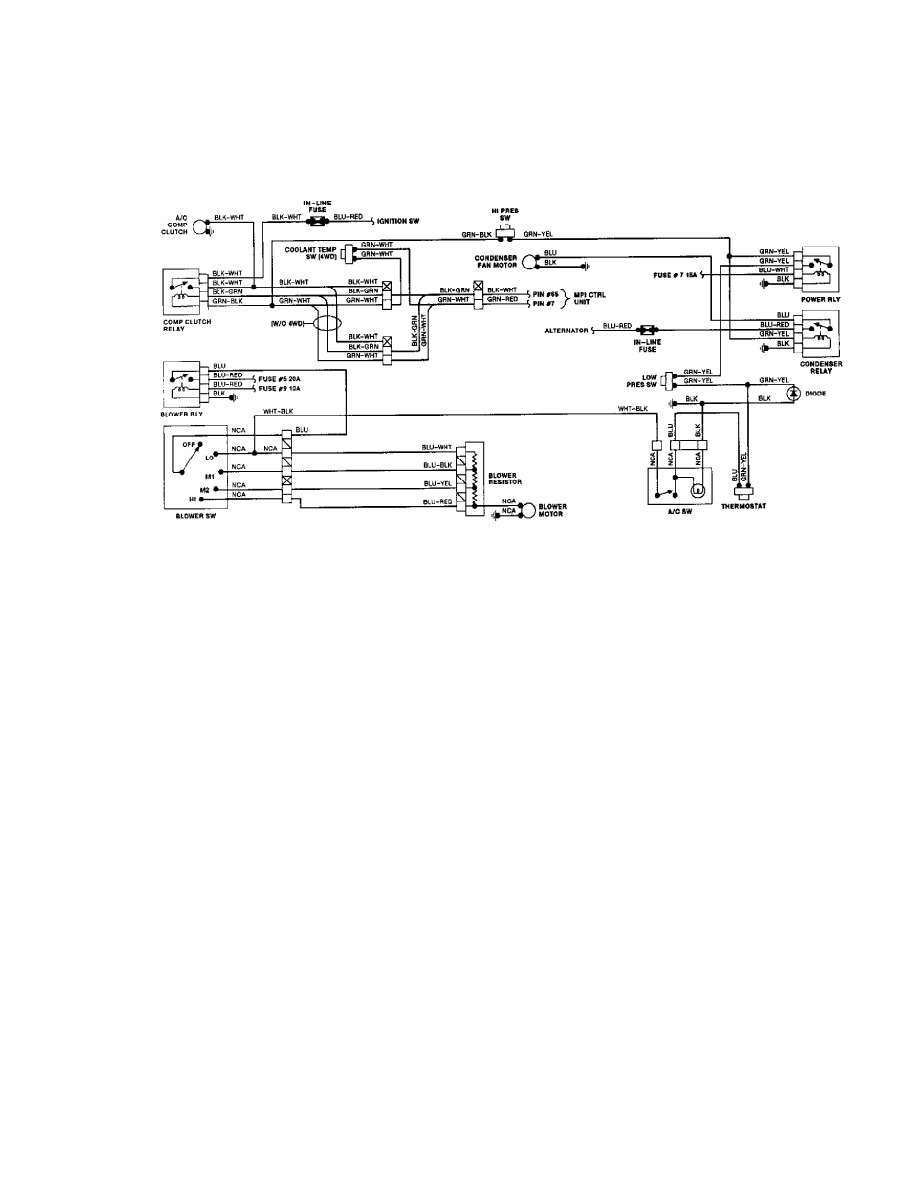

Fig. 14:  Manual A/C-Heater Wiring Diagram (Colt Vista)

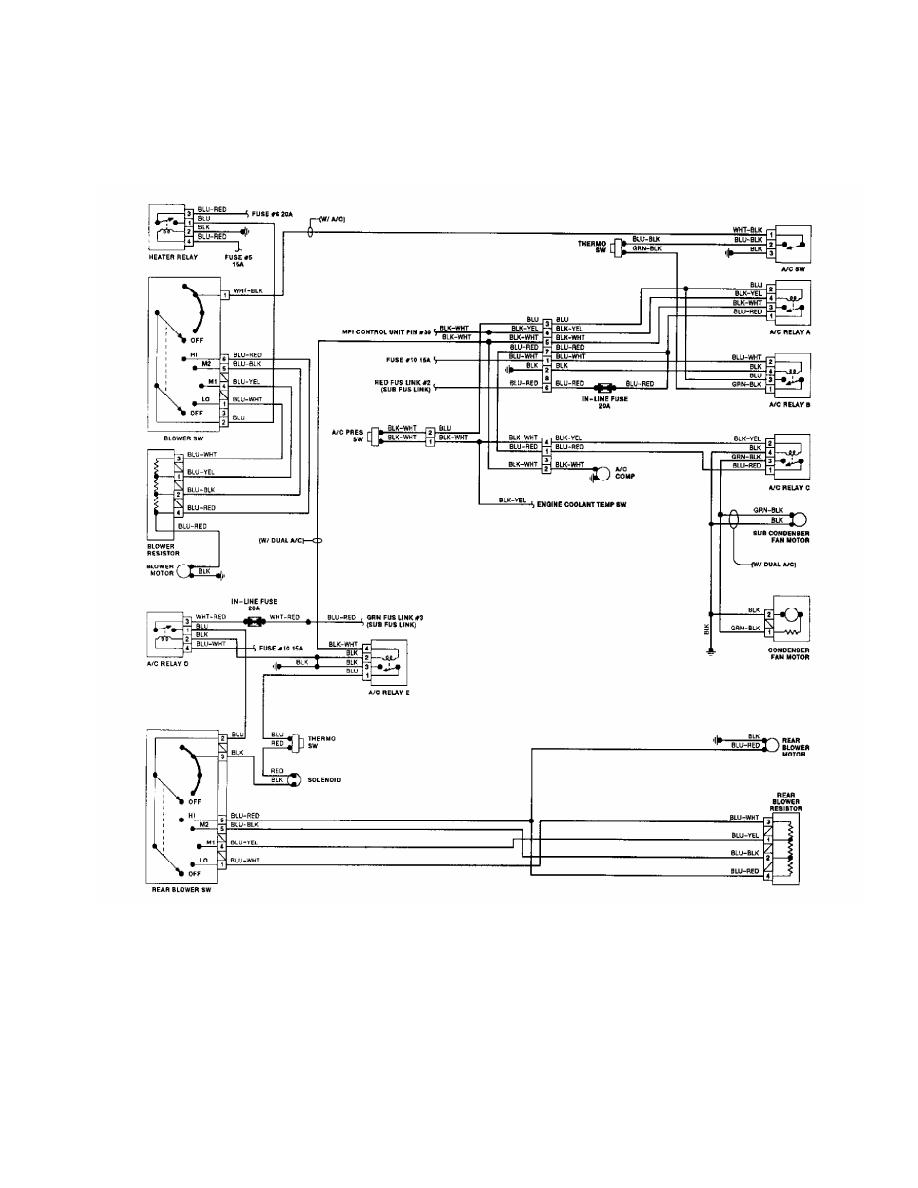

Fig. 15:  Manual A/C-Heater Wiring Diagram (Montero)
