77



F (25



C) resistance should be approximately 80,470 ohms. If

resistance deviates greatly, replace sensor.

         RELAYS

         4-Terminal Relay

         1) Either round or square relays may be used. Testing is same

for either relay. Remove relay from holder. Using an ohmmeter, ensure

continuity exists between terminals No. 2 and 4 and does not exist

between terminals No. 1 and 3. See Fig. 9.

         2) Connect battery voltage to terminal No. 2, and ground

terminalNo. 4. Ensure continuity exists between terminals No. 1 and 3.

If continuity is not as specified, replace relay.

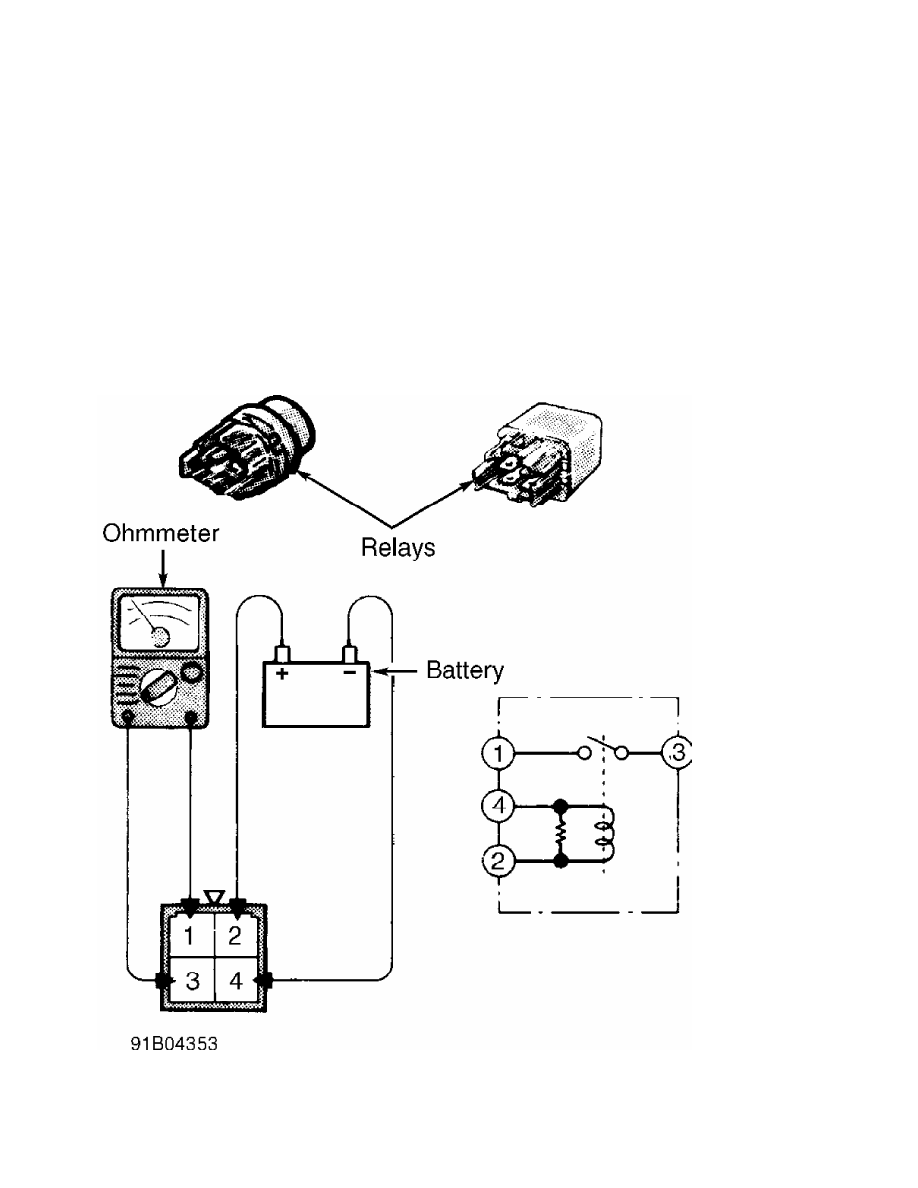

Fig. 9:  Testing 4-Terminal Relays

Courtesy of Mitsubishi Motor Sales of America.

         6-Terminal Relay

         Remove relay from holder. Using an ohmmeter, ensure

continuity exists between terminals No. 2 and 5 and terminals No. 1

and 3 and does not exist between terminals No. 3 and 6. Connect

battery voltage to terminal No. 2, and ground terminal No. 5. Ensure

continuity exists between terminals No. 3 and 6 and does not exist

between terminals No. 1 and 3. See Fig. 10. If continuity is not as

specified, replace relay.

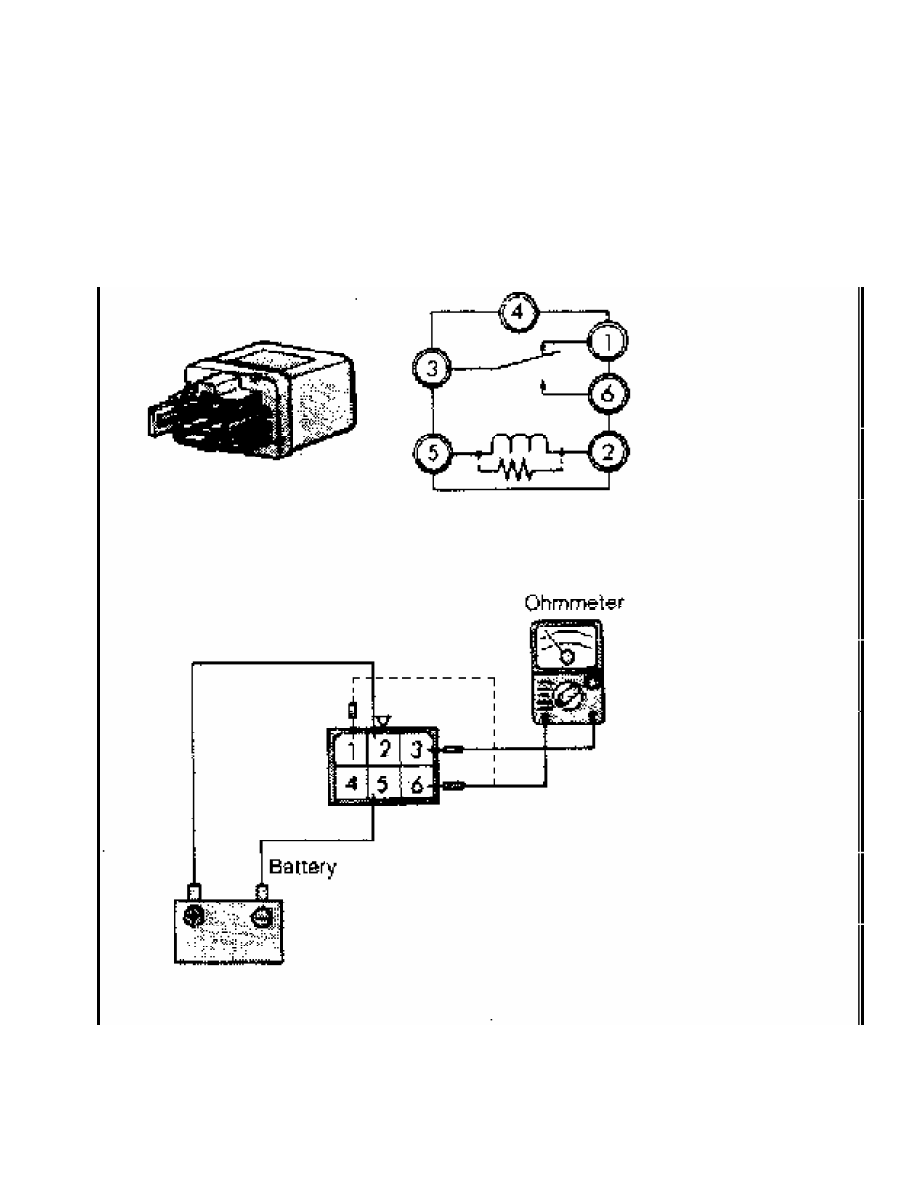

Fig. 10:  Testing 6-Terminal Relay

Courtesy of Mitsubishi Motor Sales of America.

         REMOVAL & INSTALLATION

NOTE:    For removal and installation procedures not covered in this

         article, see appropriate HEATER SYSTEM article in the AIR

         CONDITIONING & HEAT Section.

         A/C SWITCH

         Removal & Installation (Colt Vista)

         From back side of control panel, push right control panel

clip right while pushing control panel out of dash panel. Allow

control panel to hang. Remove side bracket. Press temperature switch

control assembly left, and then remove A/C switch. To install, reverse

removal procedure.

         Removal & Installation (Montero)

         Remove lap heater duct. Remove glove box stoppers and glove

box. Remove heater control knobs. Remove center panel screw hole

plugs, and remove screws. Remove center panel. Disconnect center panel

wiring harness. Remove A/C switch. To install, reverse removal

procedure.

         Removal & Installation (Pickup & Ram-50)

         Remove heater control knobs. Remove glove box. Remove center

panel mounting screws. Use a trim stick to remove upper side of panel.

Remove A/C switch assembly mounting screws. Pull switch assembly

toward vehicle interior. Remove switch. To install, reverse removal

procedure.

         COMPRESSOR

         Removal & Installation (Colt Vista)

         Discharge A/C system using approved refrigerant

recovery/recycling equipment. Disconnect high tension cable from

ignition coil. Remove distributor cap. Loosen idler pulley adjusting

bolt, and remove belt. Disconnect compressor electrical connector.

Remove high and low pressure lines and "O" rings from compressor.

Remove compressor mounting bolts. Remove compressor. To install,

reverse removal procedure.

         Removal & Installation (Montero, Pickup & Ram-50)

         DischargeA/C system using approved refrigerant

recovery/recycling equipment. Loosen idler pulley, and remove belt.

Disconnect compressor electrical connector. Disconnect high and low

pressure lines from compressor. Remove compressor mounting bolts.

Remove compressor. To install, reverse removal procedure.

         CONDENSER

         Removal & Installation (Colt Vista)

         Discharge A/C system using approved refrigerant

recovery/recycling equipment. Remove front grille and grille brackets.

Remove front end cover and condenser harness. Disconnect electrical

fan connector. Slowly disconnect pressure lines from condenser. Remove

2 condenser mounting bolts. Lift up and remove condenser from vehicle.

To install, reverse removal procedure.

         Removal & Installation (Montero)

         Discharge A/C system using approved refrigerant

recovery/recycling equipment. Remove radiator grille. Slowly

disconnect pressure lines from condenser. Disconnect condenser fan

motor connector. Remove condenser fan mounting bolts and motor. Remove

condenser mounting bolts. Remove condenser from vehicle. To install,

reverse removal procedure.

         Removal & Installation (Pickup & Ram-50)

         Discharge A/C system using approved refrigerant

recovery/recycling equipment. Remove grille. Slowly disconnect

pressure lines at condenser. Remove upper condenser mounting bolts.

Remove condenser. To install, reverse removal procedure.

         EVAPORATOR ASSEMBLY

         Removal & Installation (Colt Vista)

         1) Discharge A/C system using approved refrigerant

recovery/recycling equipment. Remove drain hose from evaporator.

Disconnect refrigerant line connections. Discard "O" ring seals.

         2) Remove lower glove box and dash insert (or reinforcement).

See Fig. 11 Remove upper glove box and duct joint. Remove defroster

ducts and duct joints from right side of evaporator. Disconnect A/C

harness connector and main harness connector. Remove evaporator

assembly. To install, reverse removal procedure.

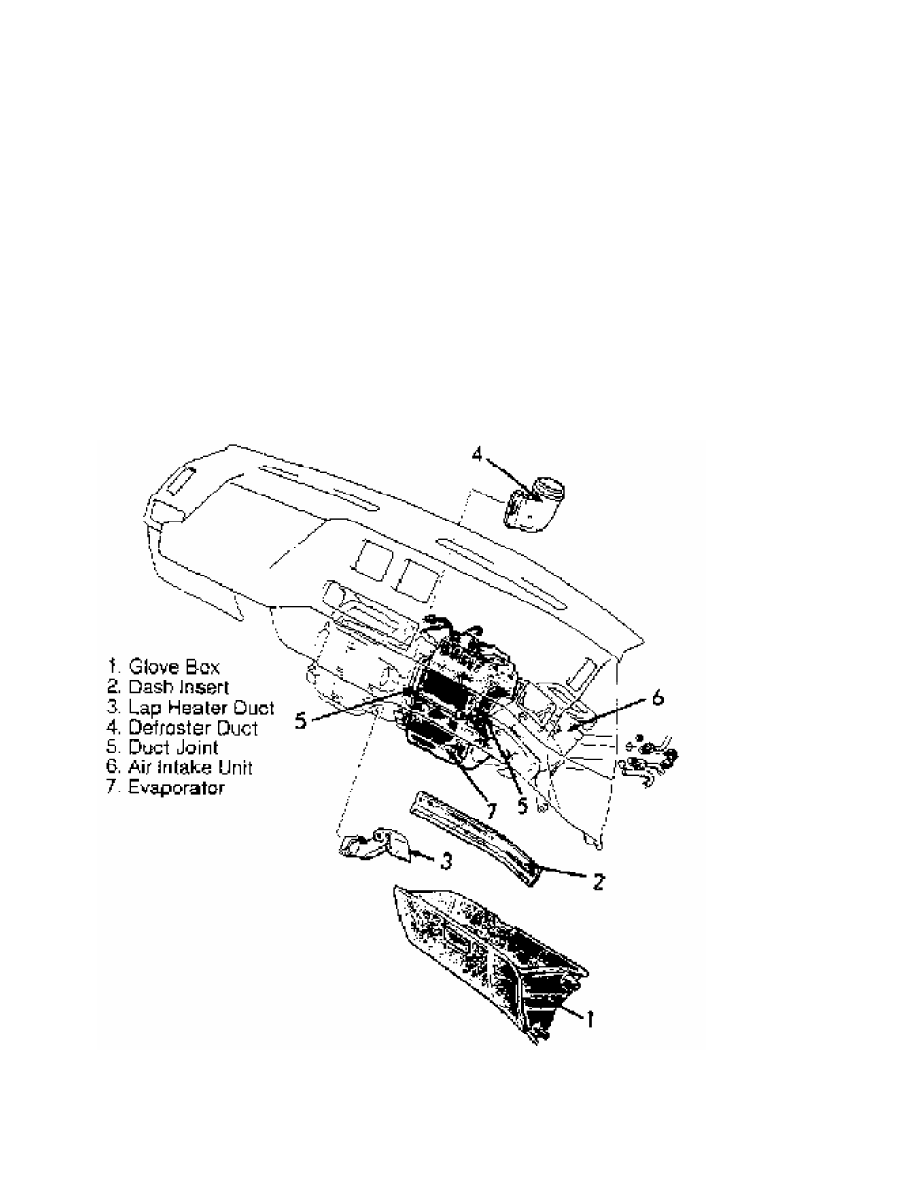

Fig. 11:  Removing Evaporator Assembly (Colt Vista)

Courtesy of Mitsubishi Motor Sales of America.

         Removal & Installation (Montero)

         1) Discharge A/C system using approved refrigerant
