MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-641

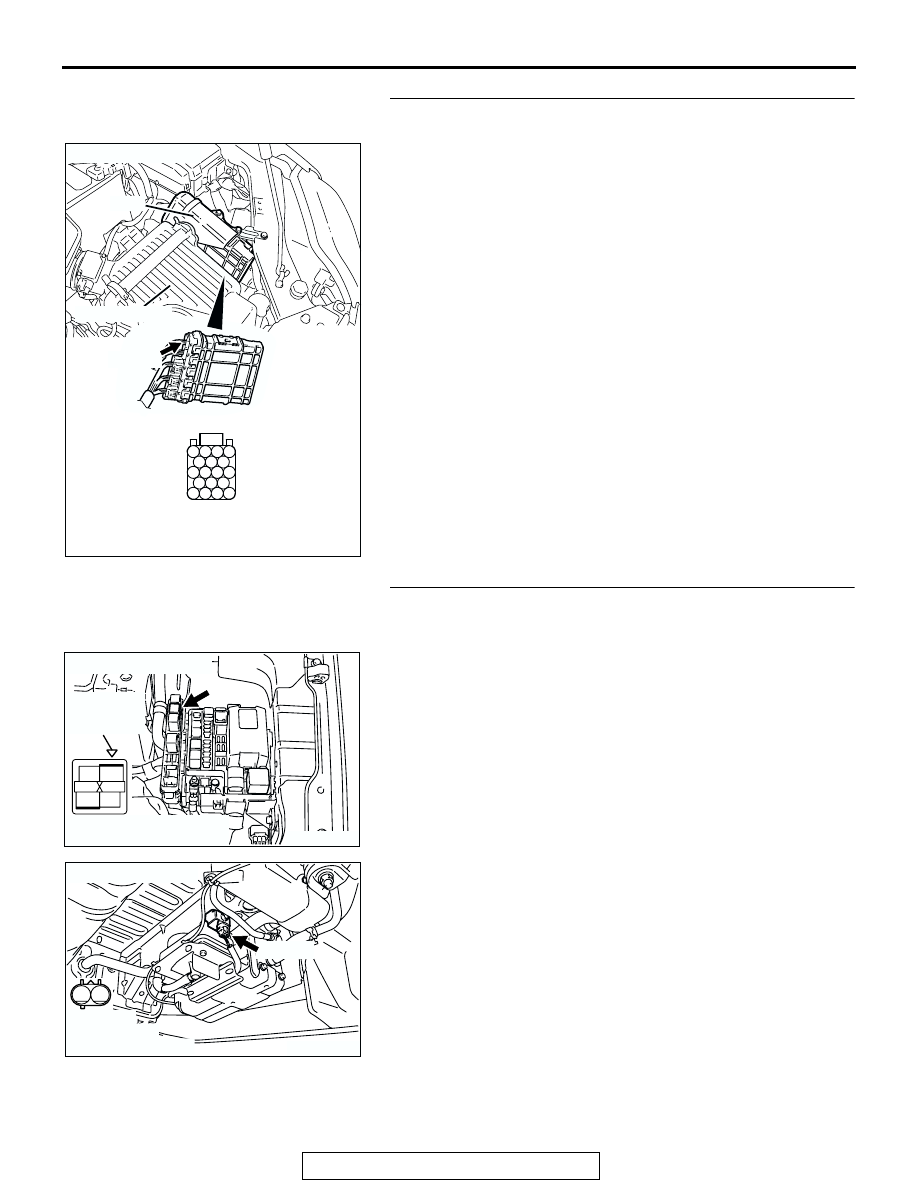

STEP 8. Check for open circuit and short circuit to ground
between evaporative emission ventilation solenoid
connector F-08 (terminal No. 1) and PCM connector B-19
(terminal No. 11).

NOTE: Check harness after checking intermediate connector
C-25. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 12.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK303873

1

2

AB

CONNECTOR: F-08

F-08 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303153

4 3 2 1

7 6 5

9 8

11 10

14 13 12

18 17 16 15

CONNECTOR: B-19

PCM

AB

AIR CLEANER

HARNESS CONNECTOR:
COMPONENT SIDE

B-19 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-642

STEP 9. Check harness connector B-19 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

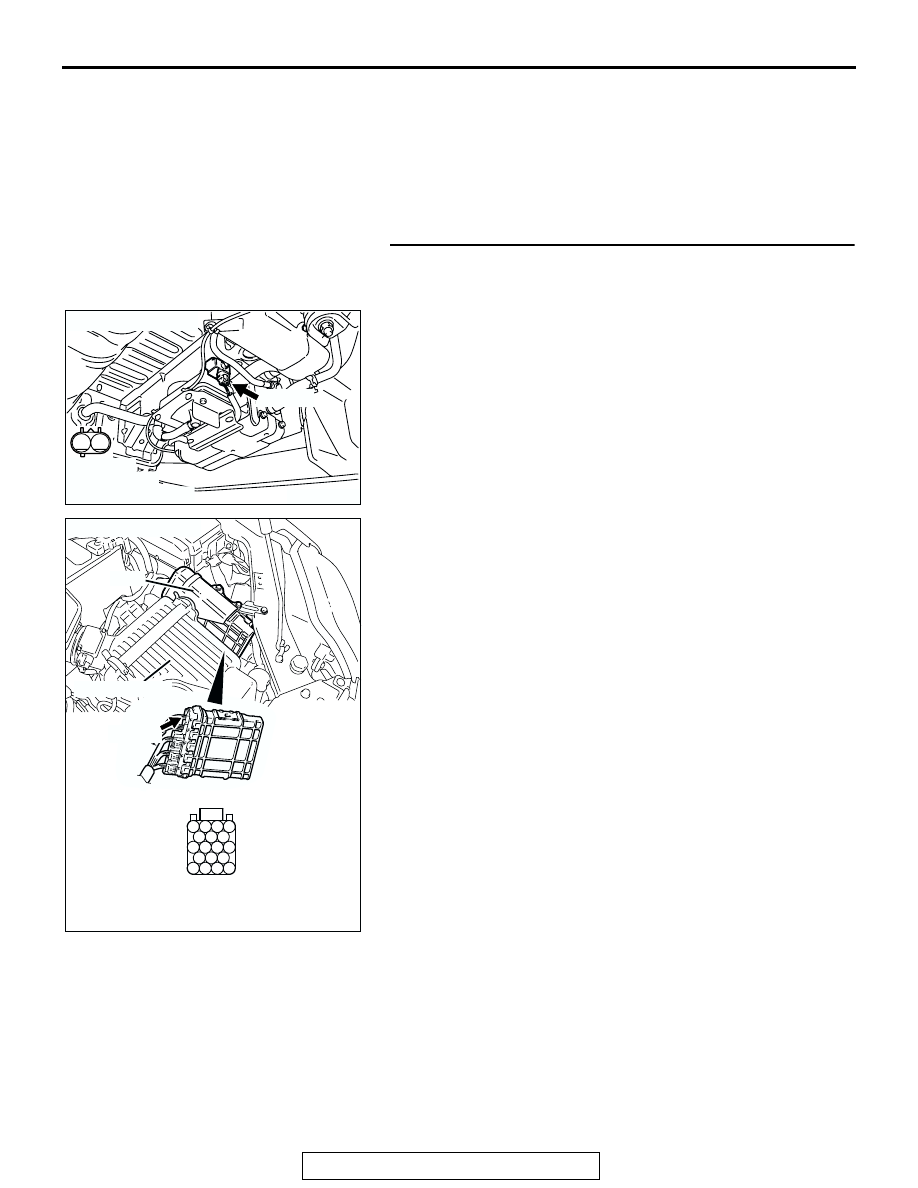

STEP 10. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and evaporative emission

ventilation solenoid connector F-08 (terminal No. 2).

AK303153

4 3 2 1

7 6 5

9 8

11 10

14 13 12

18 17 16 15

CONNECTOR: B-19

PCM

AB

AIR CLEANER

HARNESS CONNECTOR:
COMPONENT SIDE

B-19 (B)

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303873

1

2

AB

CONNECTOR: F-08

F-08 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-643

NOTE: Check harness after checking intermediate connectors
A-13 and C-25. If intermediate connectors are damaged, repair
or replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then go to Step 12.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

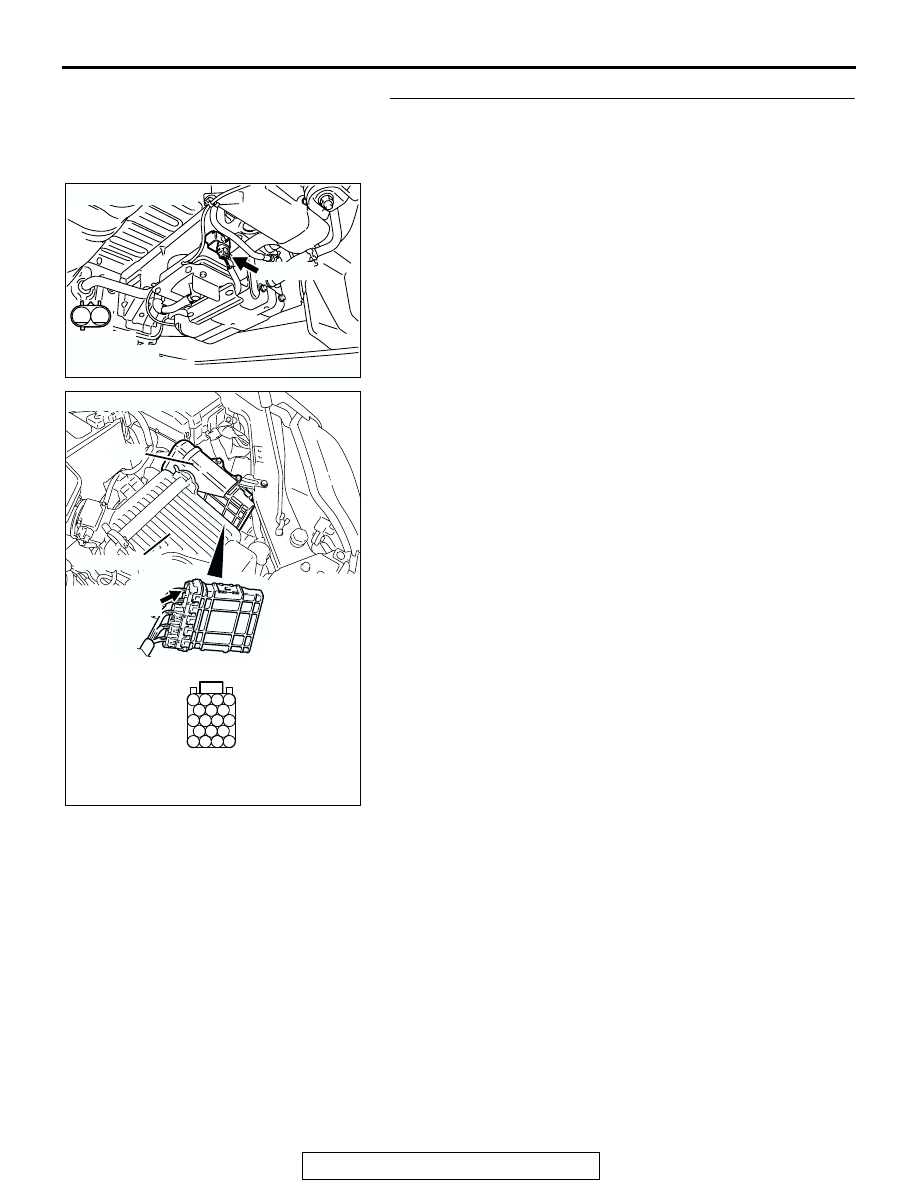

STEP 11. Check for harness damage between evaporative
emission ventilation solenoid connector F-08 (terminal No.

1) and PCM connector B-19 (terminal No. 2).

NOTE: Check harness after checking intermediate connector
C-25. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 12.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK303873

1

2

AB

CONNECTOR: F-08

F-08 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303153

4 3 2 1

7 6 5

9 8

11 10

14 13 12

18 17 16 15

CONNECTOR: B-19

PCM

AB

AIR CLEANER

HARNESS CONNECTOR:
COMPONENT SIDE

B-19 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-644

STEP 12. Test the OBD-II drive cycle.

(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0446 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0451: Evaporative Emission System Pressure Sensor Range/Performance

AC306277

A

B

C

D

E

F

G

H

P

Q

R

O

N

M

I

J

K

L

AC

INTAKE MANIFOLD

FUEL TANK

EVAPORATIVE EMISSION
VENTILATION SOLENOID

CHECK VALVE

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

ONBOARD REFUELING
VAPOR RECOVERY(ORVR)
VENT VALVE MODULE

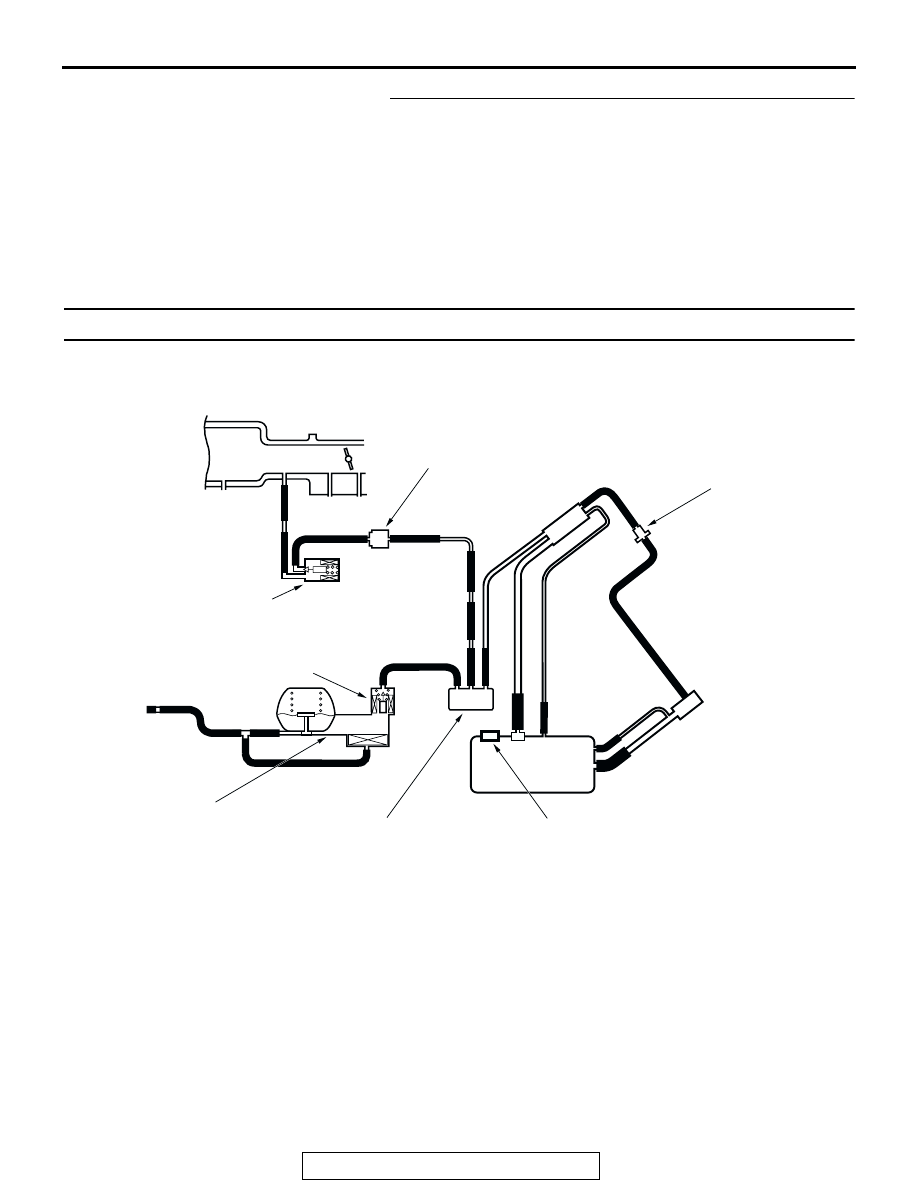

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

SYSTEM DIAGRAM

CHAMBER
