MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-617

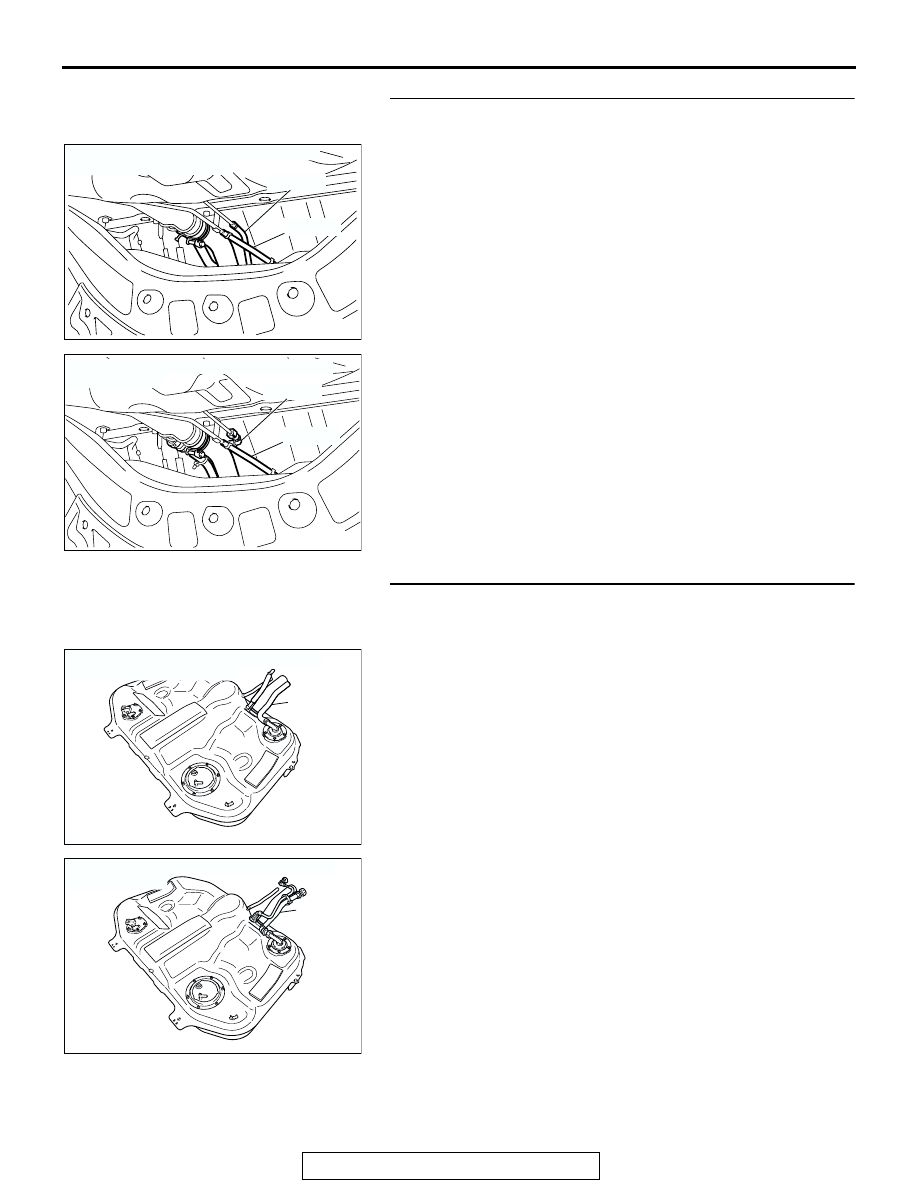

STEP 10. Check for leaks in evaporative emission hoses L
and M.

Use a hand vacuum pump to test each hose L and M.

Q: Do the hoses hold vacuum?

YES :  Go to Step 11.
NO :  Replace any damaged hose. Then go to Step 15.

STEP 11. Check for leaks in evaporative emission hose N.
(1) Remove the fuel tank assembly (Refer to GROUP 13C,

Fuel Tank

P.13C-10

).

(2) Use the hand vacuum pump to check the hose N.
Q: Is the hose hold vacuum?

YES :  Go to Step 12.
NO :  Replace the hose and reinstall the fuel tank assembly

(Refer to GROUP 13C, Fuel Tank

P.13C-10

). Then go

to Step 15.

AC306776

AB

HOSE M

HOSE L

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC306776

AC307258AB

HOSE M

HOSE L

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

AC305683AB

HOSE N

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307255AB

HOSE N

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-618

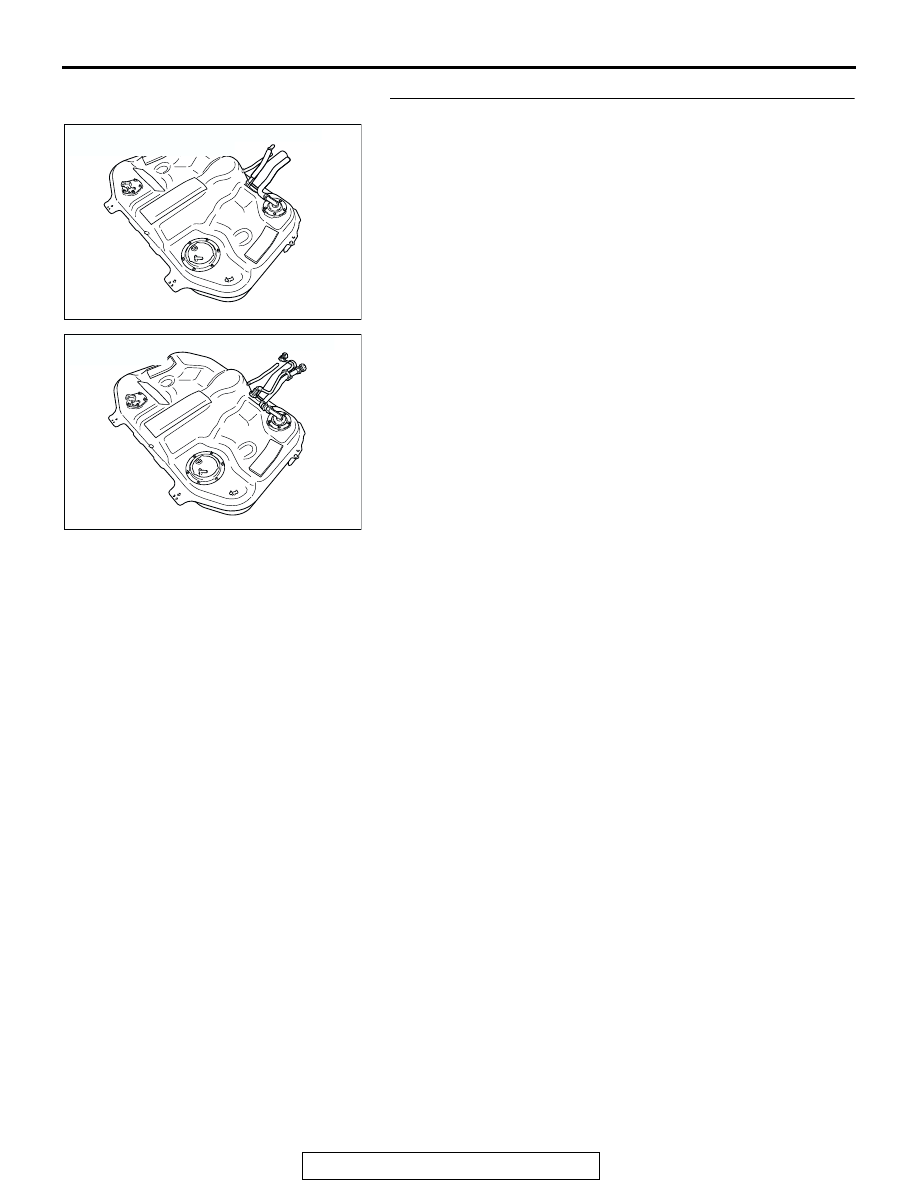

STEP 12. Check for leaks in the fuel tank.

(1) Visually check for cracks or other leaks in the fuel tank.

NOTE: Carefully check the fuel pump module and the fuel
tank differential pressure sensor installation in the fuel tank.

AC305683AD

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307255AC

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-619

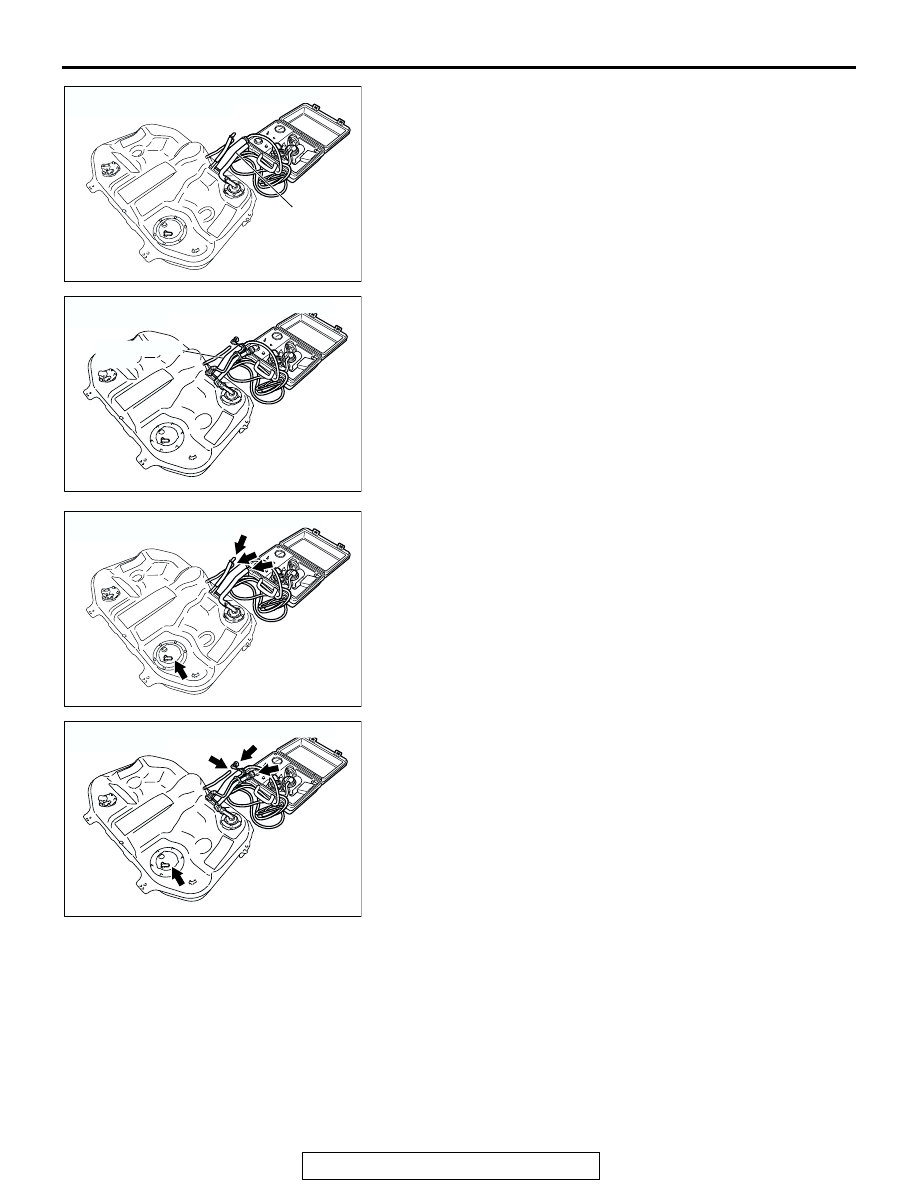

(2) Connect the evaporative emission system pressure pump

(Miller number 6872A) to the fuel filler hose.

(3) Plug the hose and the nipple shown in the illustration.

NOTE: If these items are not securely plugged now, the fuel
could leak in the next step.

(4) Pressurize the fuel tank with the evaporative emission

system pressure pump.

(5) In the pressurized state, check for leaks by applying a

soapy water solution to each section and look for bubbles.

Q: Are any leaks found?

YES <When there is a leak from the attachment points of
the fuel pump module, fuel tank differential pressure
sensor, fuel level sensor (sub) or leveling valve.> :

Reassemble the leaked parts and check again that
there are no leaks. Then reinstall the fuel tank (Refer
to GROUP 13C, Fuel Tank

P.13C-10

). Then go to

Step 15     .

YES <When there is a leak from the fuel tank.> : Replace

the fuel tank (Refer to GROUP 13C, Fuel Tank

P.13C-10

). Go to Step 15.

NO :  When there is no leak, reinstall the fuel tank (Refer to

GROUP 13C, Fuel Tank

P.13C-10

). Then go to Step

14.

AC305684

FUEL FILLER
HOSE

AD

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307256AB

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

FUEL FILLER
HOSE

AC305684AE

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307256AC

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-620

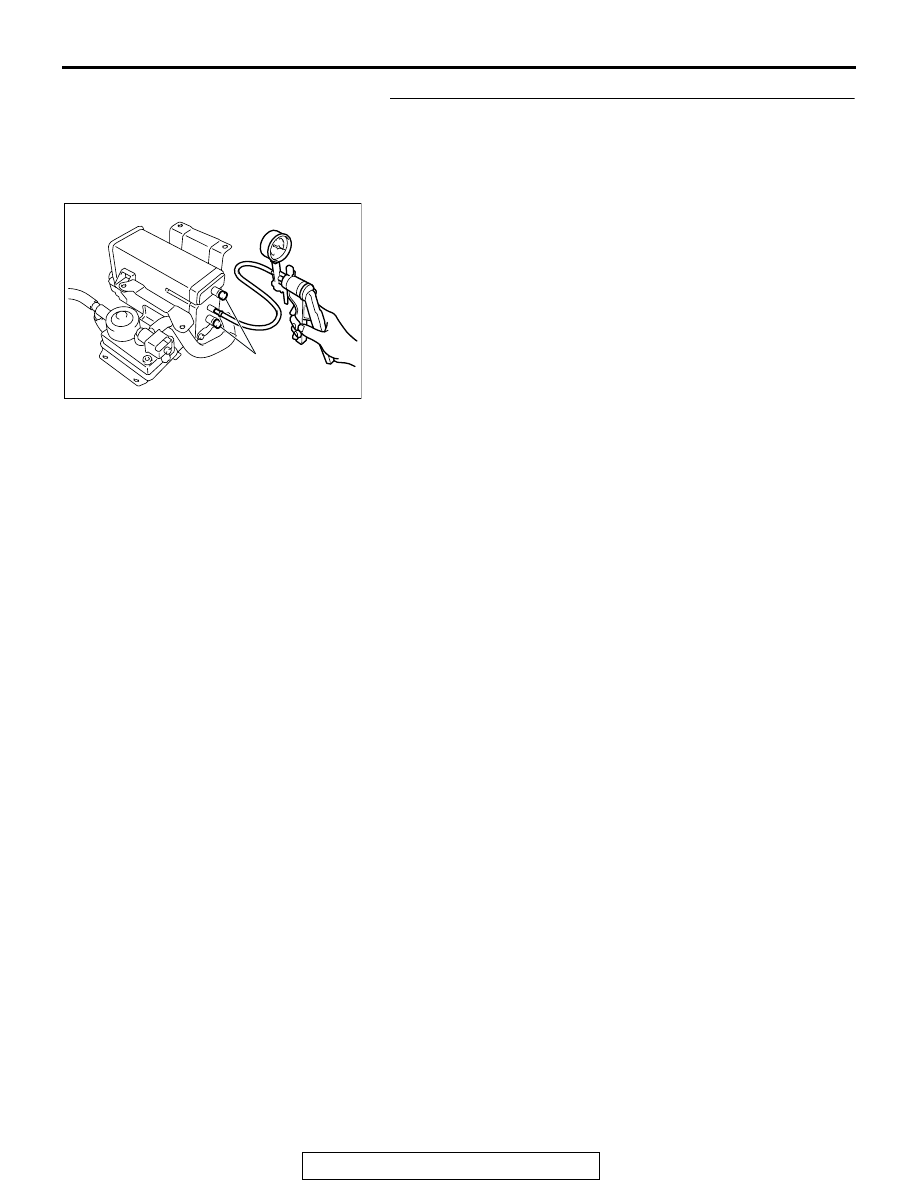

STEP 13. Check the evaporative emission canister for
vacuum leaks.

(1) Remove the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valve

P.17-97

).

(2) Connect a hand vacuum pump to the evaporative emission

canister and plug the other nipples.

(3) Apply a pressure on the hand vacuum pump, and confirm

that air is maintained.

(4) Disconnect the hand vacuum pump and remove the plugs,

and then install the evaporative emission canister (Refer to
GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valve

P.17-97

).

Q: Is the evaporative emission canister in good condition?

YES : Go to Step 14.
NO :  Replace the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel
Tank Pressure Relief Valve

P.17-97

). Then go to Step

15    .

AC305682

AB

PLUGS
