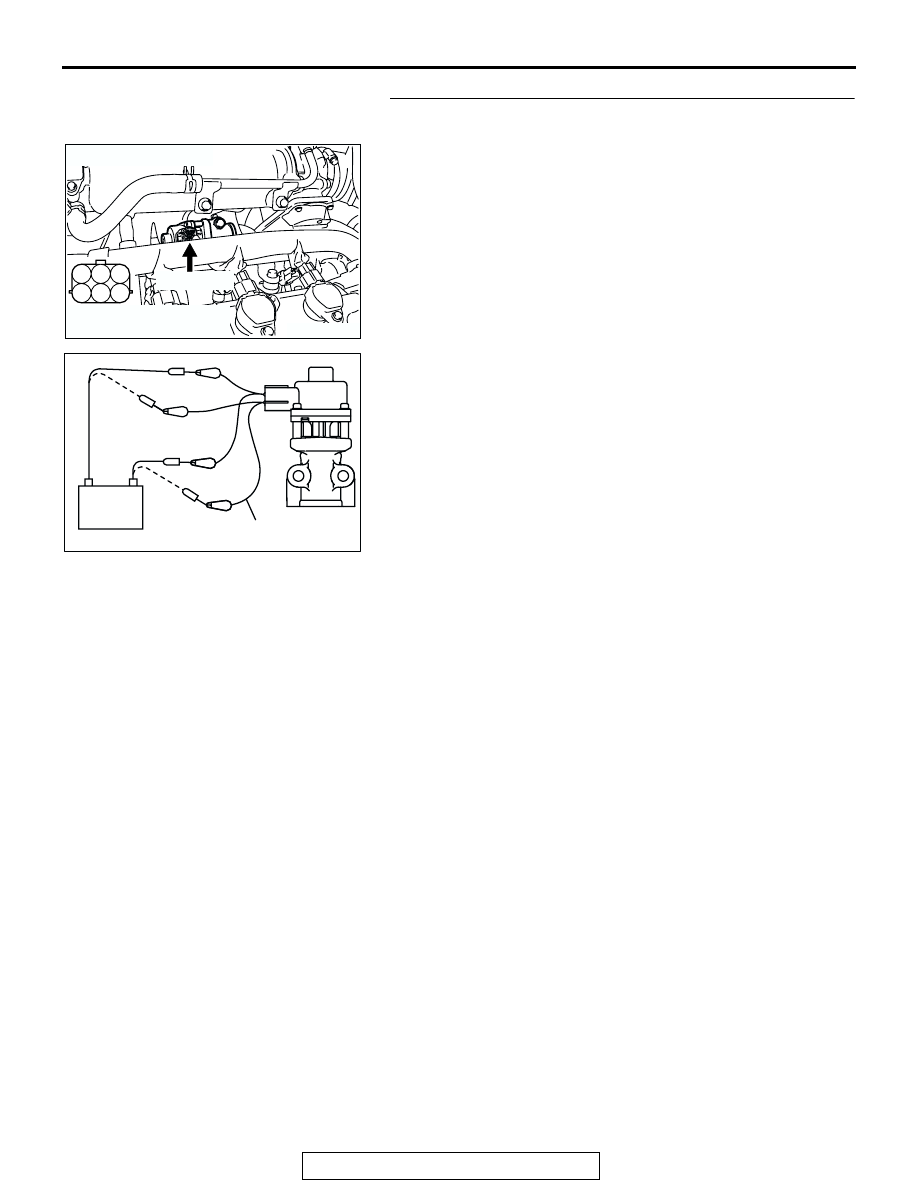

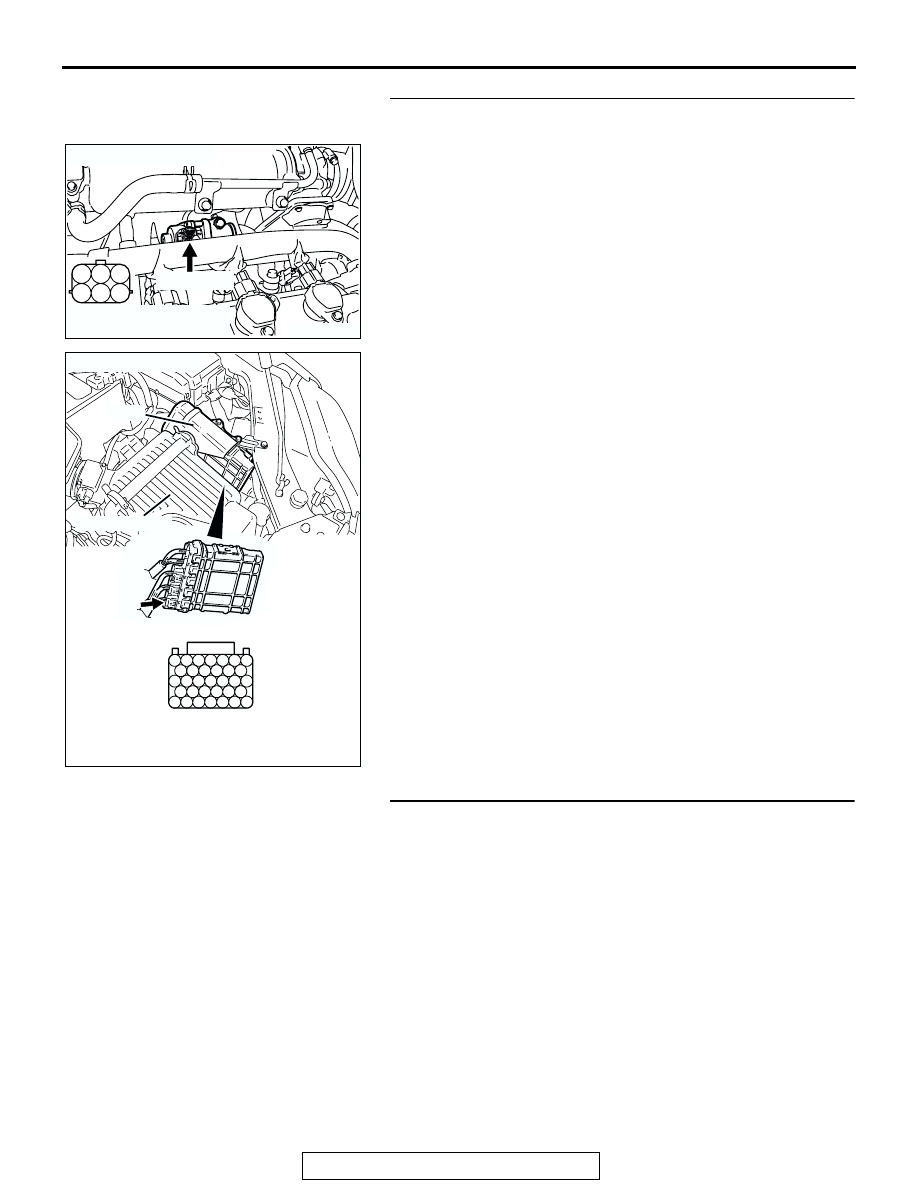

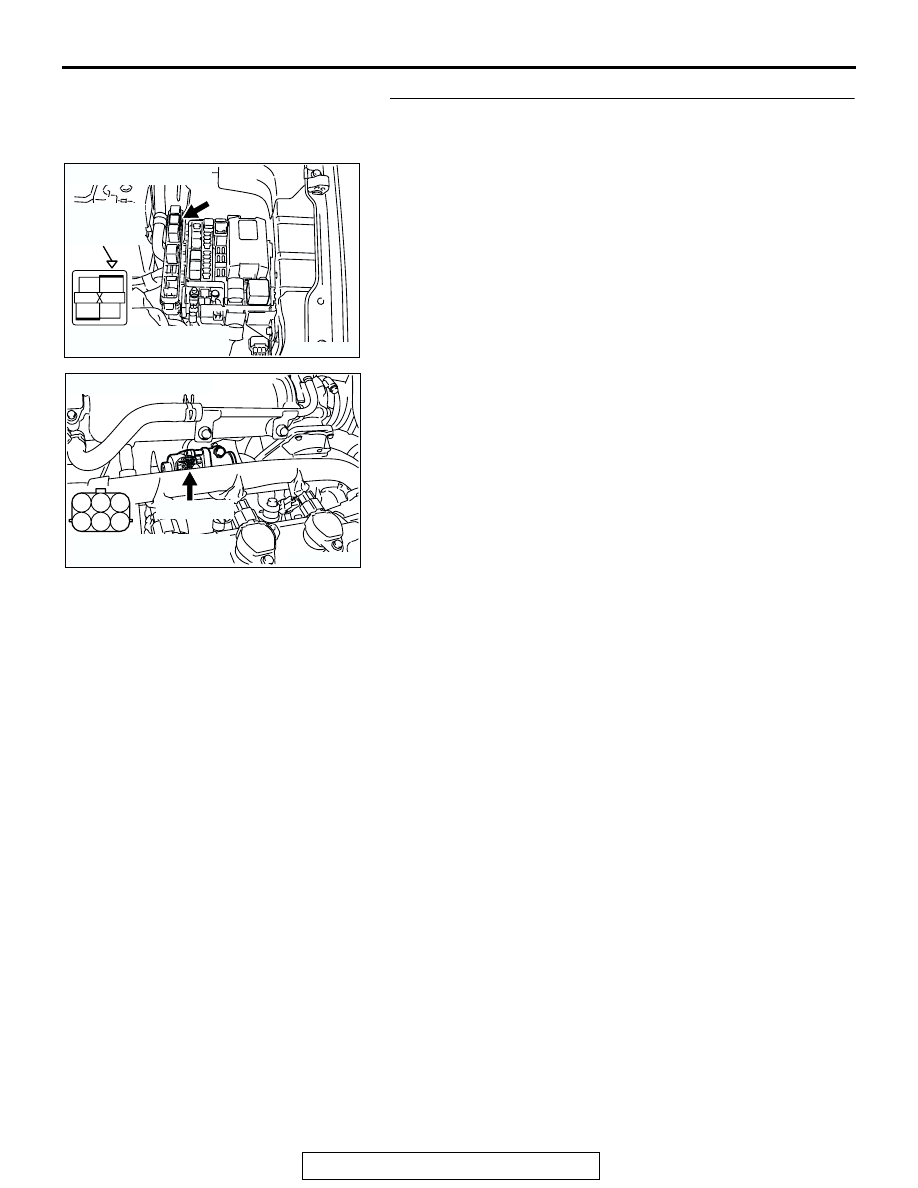

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-589 STEP 9. Check the EGR valve operation using special tool (1) Remove the EGR valve. (2) Connect special tool MB991658 to the EGR valve. (All terminals should be connected.) (3) Use the jumper wires to connect terminal No. 5 of the EGR valve connector to the positive battery terminal. (4) Check to ensure that the motor operates when the terminal No. 1 and No. 3 of the EGR valve connector are • Vibration should be present at each application of volt- age to test clip combination. (5) Then, use jumper wires to connect the terminal No. 2 of the EGR valve connector to the positive battery terminal. (6) Check to ensure that the motor operates when terminal No. 4 and No. 6 of the EGR valve connector are respectively • Vibration should be present at each application of volt- age to test clip combination. (7) Reinstall the EGR valve, using a new gasket, and tighten to the specified torque. Tighten torque: 24 ± 3 N⋅m [17 ± 3 ft⋅Ib] Q: Is the EGR valve operating properly? YES : Go to Step 10. AK303866 1 2 3 4 5 6 AB CONNECTOR: B-105 B-105 (GR) HARNESS CONNECTOR: AK203699 + - AB BATTERY MB991658 |
