MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-557

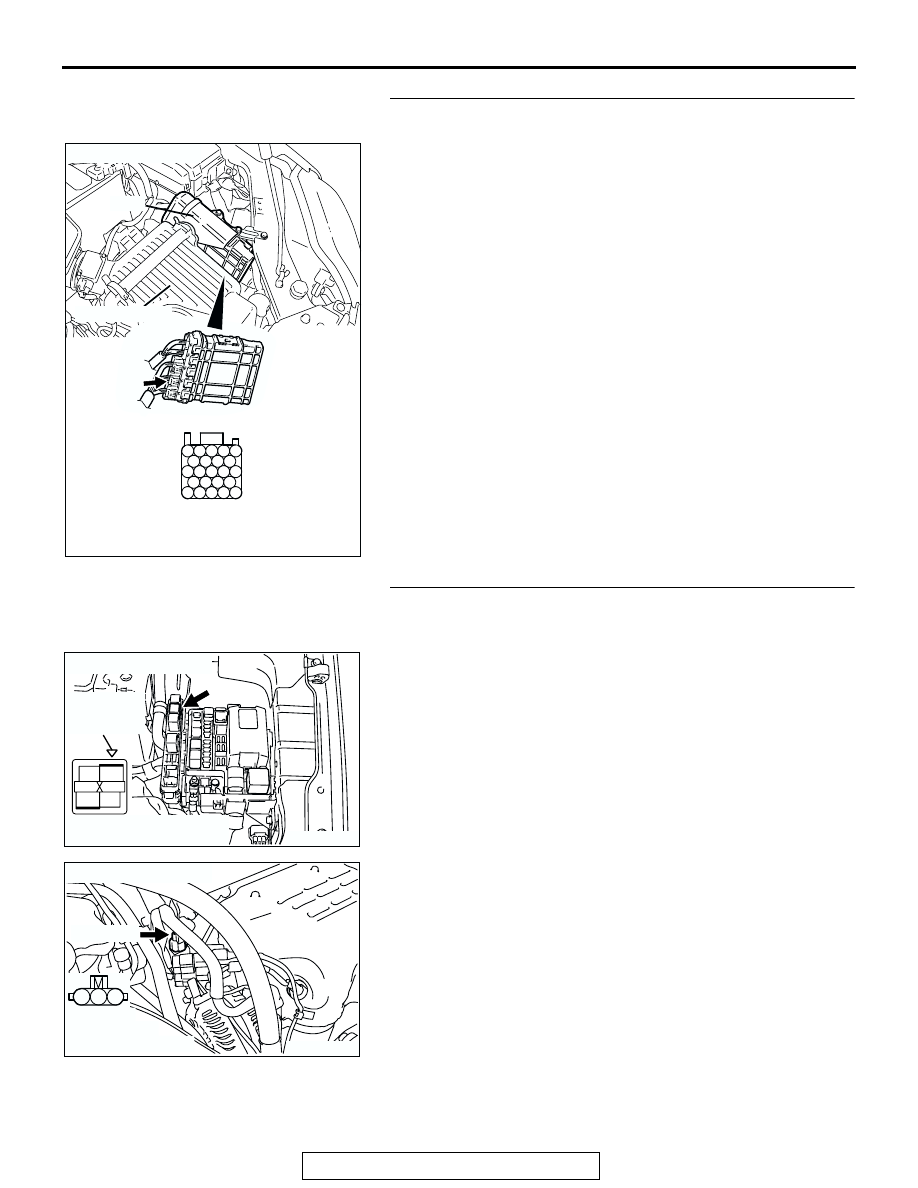

STEP 17. Check harness connector B-22 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 18.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

STEP 18. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and crankshaft position
sensor intermediate connector B-119 (terminal No. 1).

Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 22.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-558

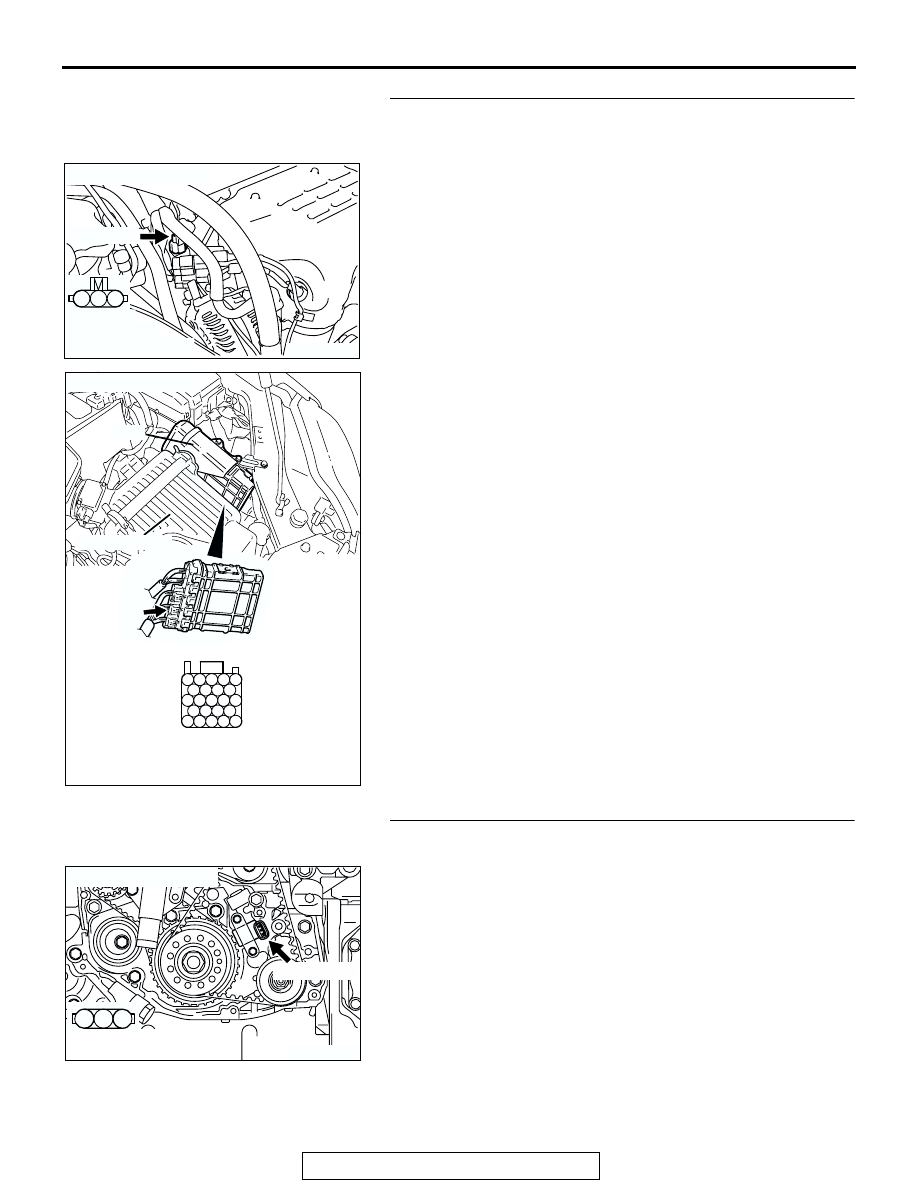

STEP 19. Check for harness damage between crankshaft
position sensor intermediate connector B-119 (terminal
No. 2) and PCM connector B-22 (terminal No. 103).

Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair it. Then go to Step 22.

STEP 20. Check harness connector B-119-1 at crankshaft
position sensor for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 21.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

AK302167

1

2

3

1

2

3

B-119-1 (GR)

CONNECTOR: B-119-1

AC

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-559

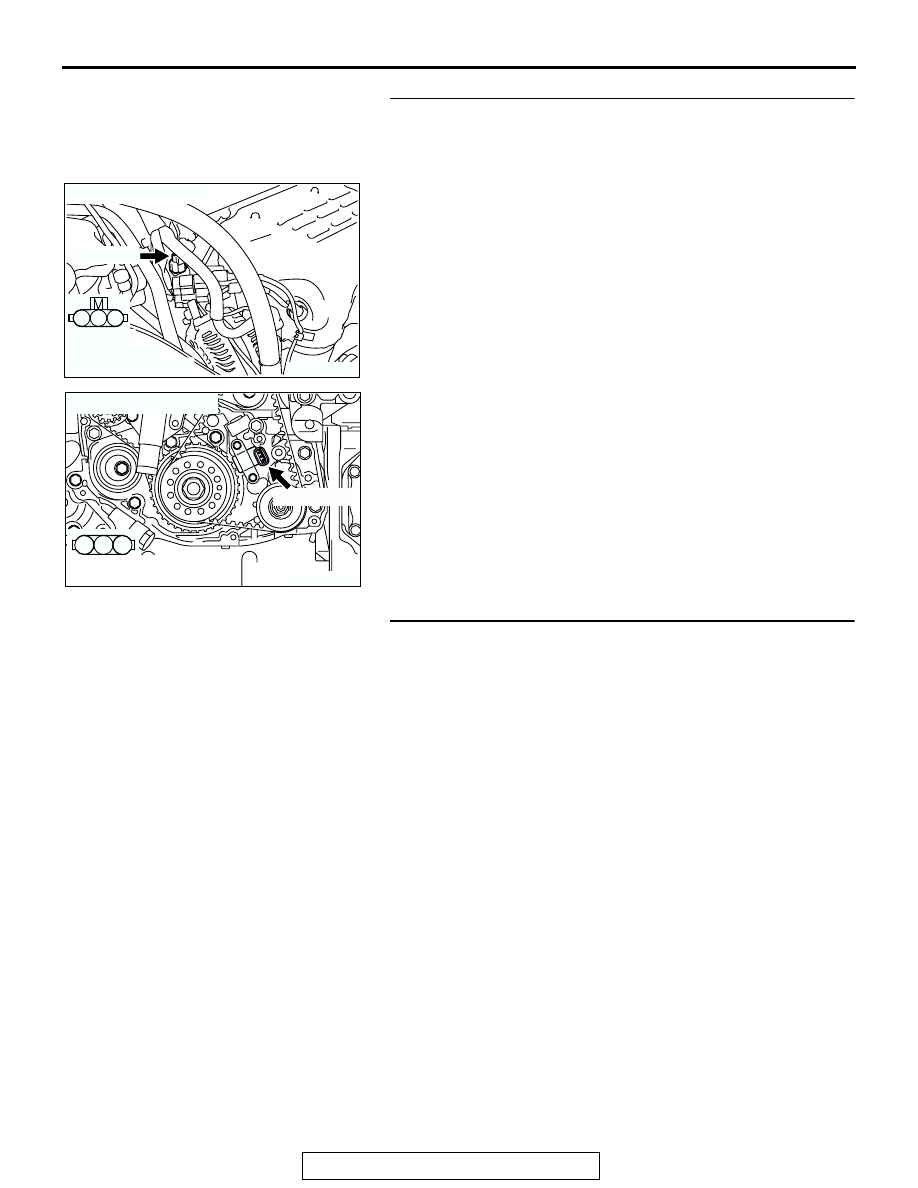

STEP 21. Check for open circuit and short circuit to
ground and harness damage between crankshaft position
sensor intermediate connector B-119 and crankshaft
position sensor connector B-119-1.

Q: Is the harness wire in good condition?

YES : Replace the crankshaft position sensor. Then go to

Step 22.

NO :  Replace the timing belt cover (lower). Then go to Step

22.

STEP 22. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0335 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK302167

1

2

3

1

2

3

B-119-1 (GR)

CONNECTOR: B-119-1

AC

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-560

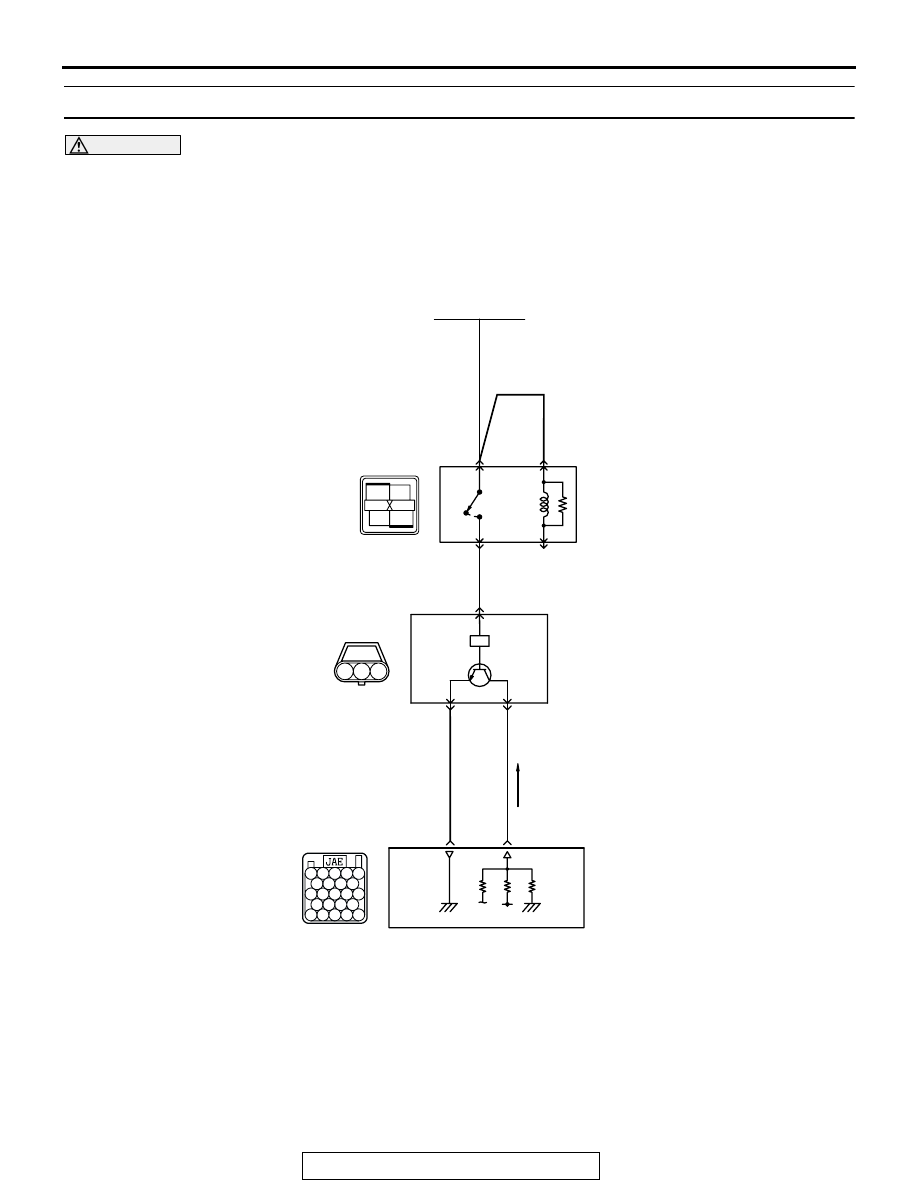

DTC P0340: Camshaft Position Sensor Circuit

CAUTION

If DTC P0340 has been set, TCL related DTC
U1120 is also set. After P0340 has been diag-
nosed, don't forget to erase DTC U1120.

2

1

3

1

2

3

4

AK303861

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

RED

BLUE-

YELLOW

MFI RELAY

CAMSHAFT
POSITION
SENSOR

B-106

MU802337

104

5 V

1

4

2

3

3

POWERTRAIN CONTROL
MODULE (PCM)

Camshaft Position Sensor Circuit

113

B-22

BROWN

B-17X

RED-

WHITE

RED-

WHITE

BATTERY

1

2
