MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-293

STEP 8. Check harness connector B-23 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-294

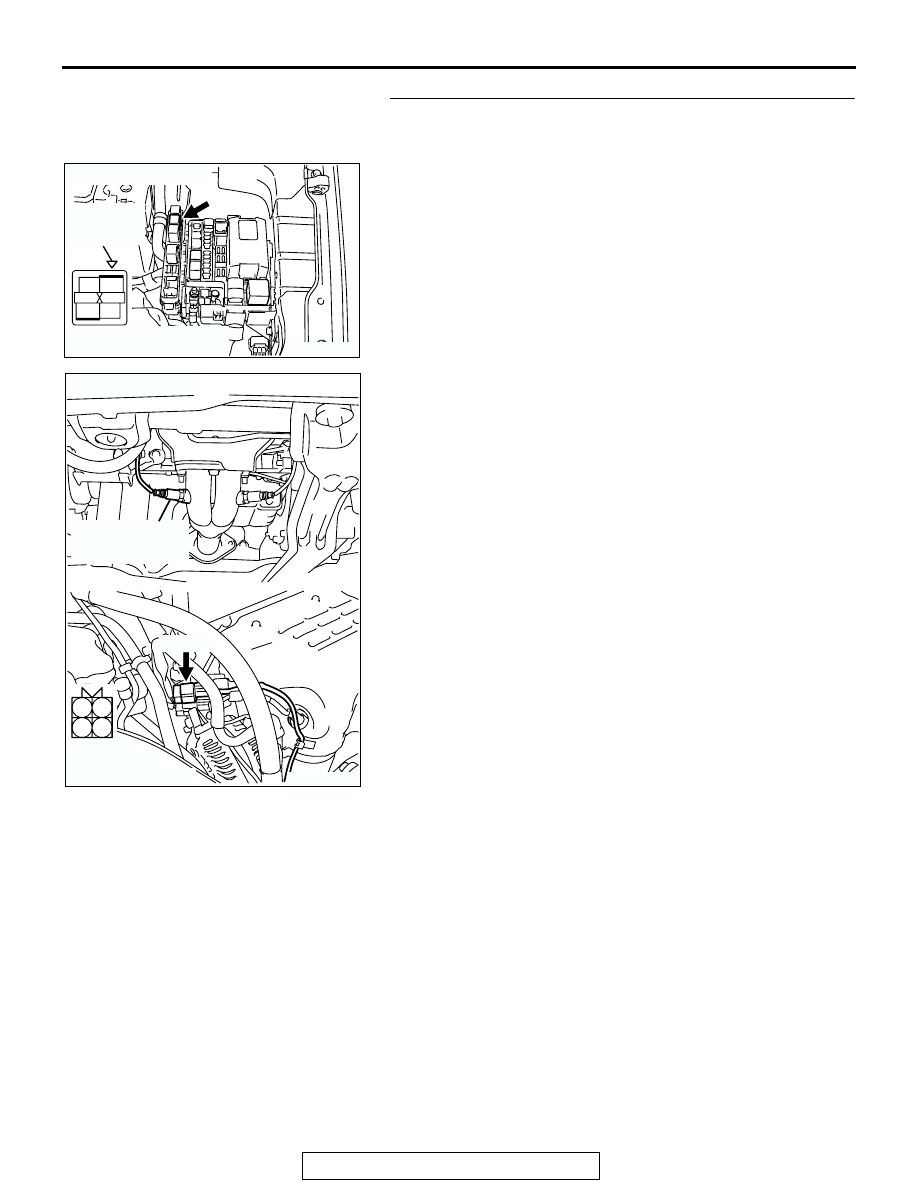

STEP 9. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and cylinder 1, 4 heated
oxygen sensor (rear) connector B-38 (terminal No. 1).
Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 12.

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303826

1

2

3

4

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-38

B-38 (B)

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-295

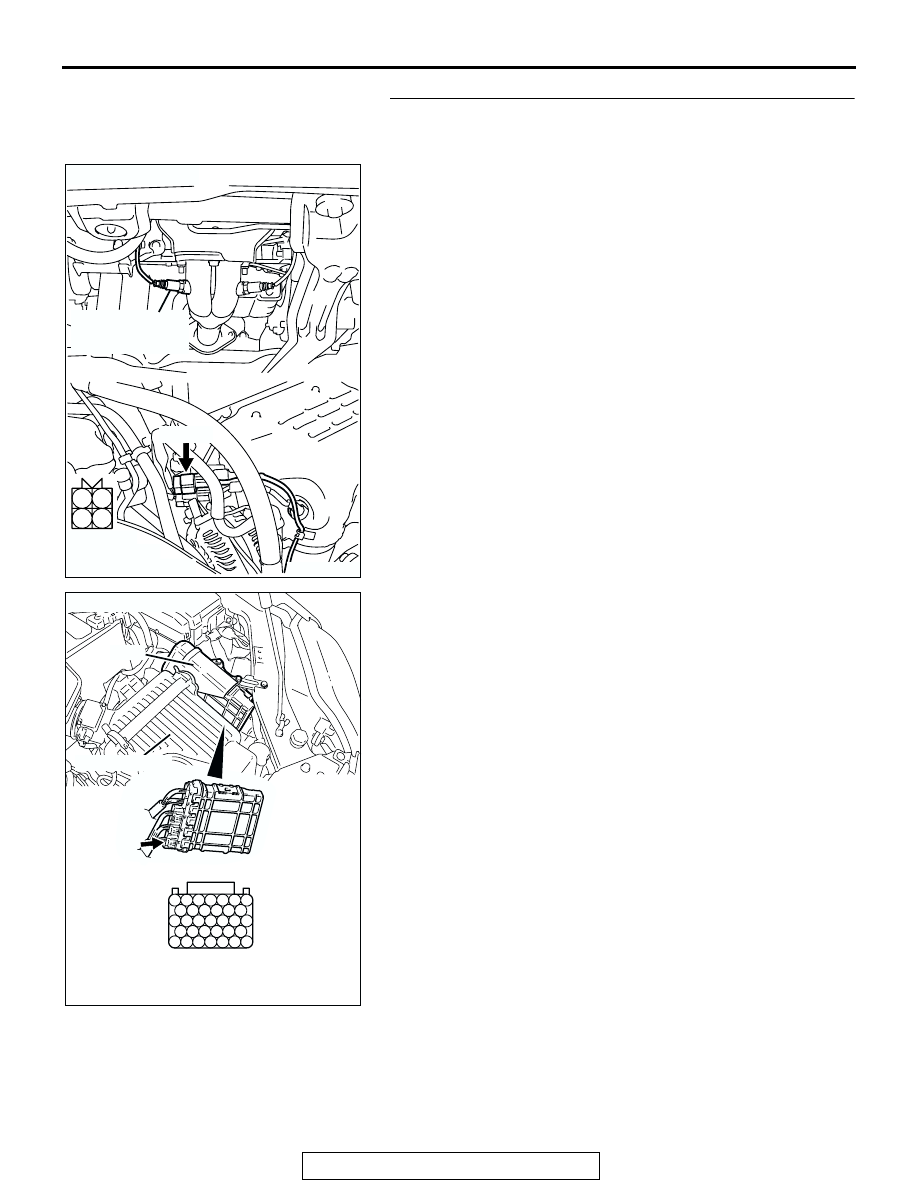

STEP 10. Check for harness damage between cylinder 1, 4
heated oxygen sensor (rear) connector B-38 (terminal No.
3) and PCM connector B-23 (terminal No. 138).
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

AK303826

1

2

3

4

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-38

B-38 (B)

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-296

STEP 11. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0141 set?

YES : Replace the PCM. Then go to Step 12.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0141 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.
