MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-89

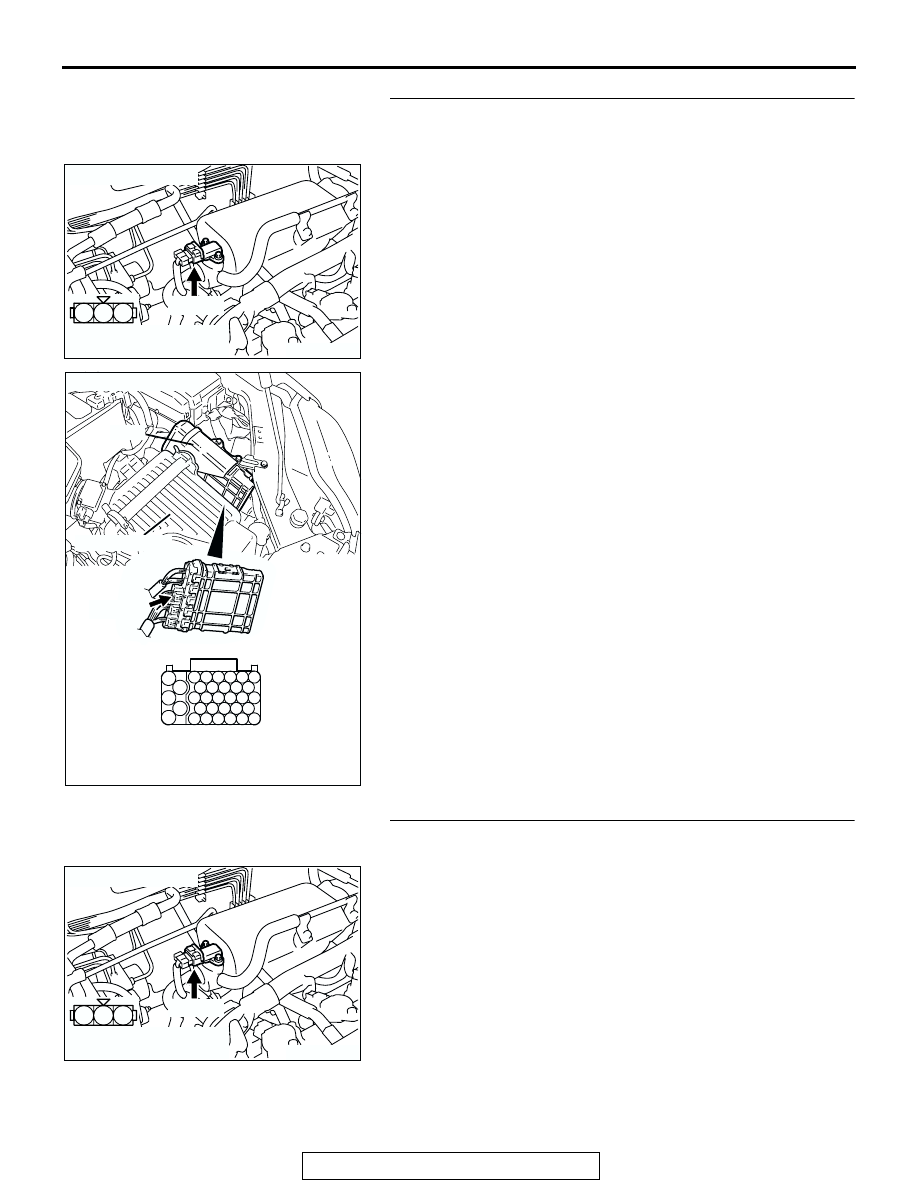

STEP 6. Check for short circuit to ground between
manifold absolute pressure sensor connector B-02
(terminal No. 3) and PCM connector B-21 (terminal No. 68).
Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

STEP 7. Check harness connector B-02 at the manifold
absolute pressure sensor for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between manifold absolute

pressure sensor connector B-02 (terminal No. 3) and
PCM connector B-21 (terminal No. 68) because of
open circuit. Then go to Step 12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK303809

1

2

3

AB

CONNECTOR: B-02

B-02 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

AK303809

1

2

3

AB

CONNECTOR: B-02

B-02 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-90

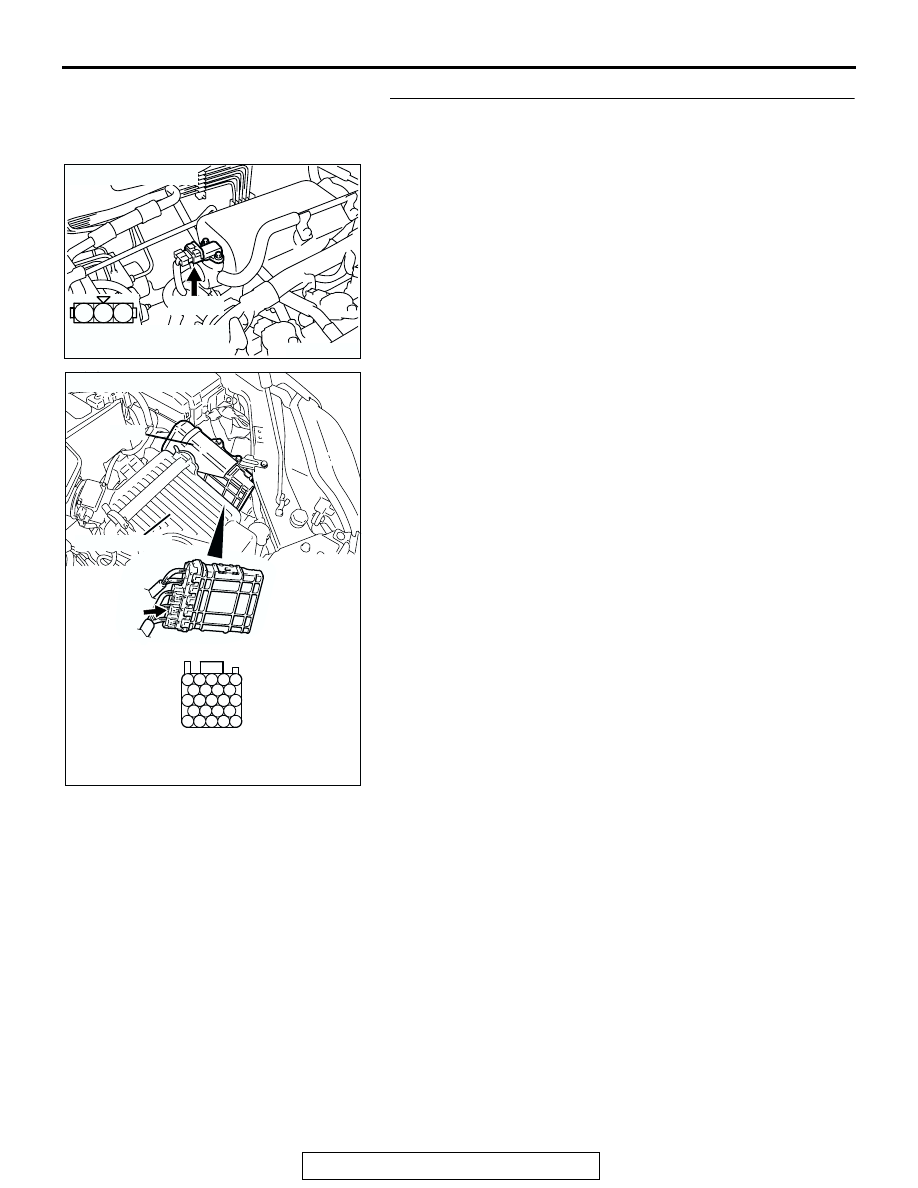

STEP 8. Check harness connector B-02 at the manifold
absolute pressure sensor and connector B-22 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK303809

1

2

3

AB

CONNECTOR: B-02

B-02 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-91

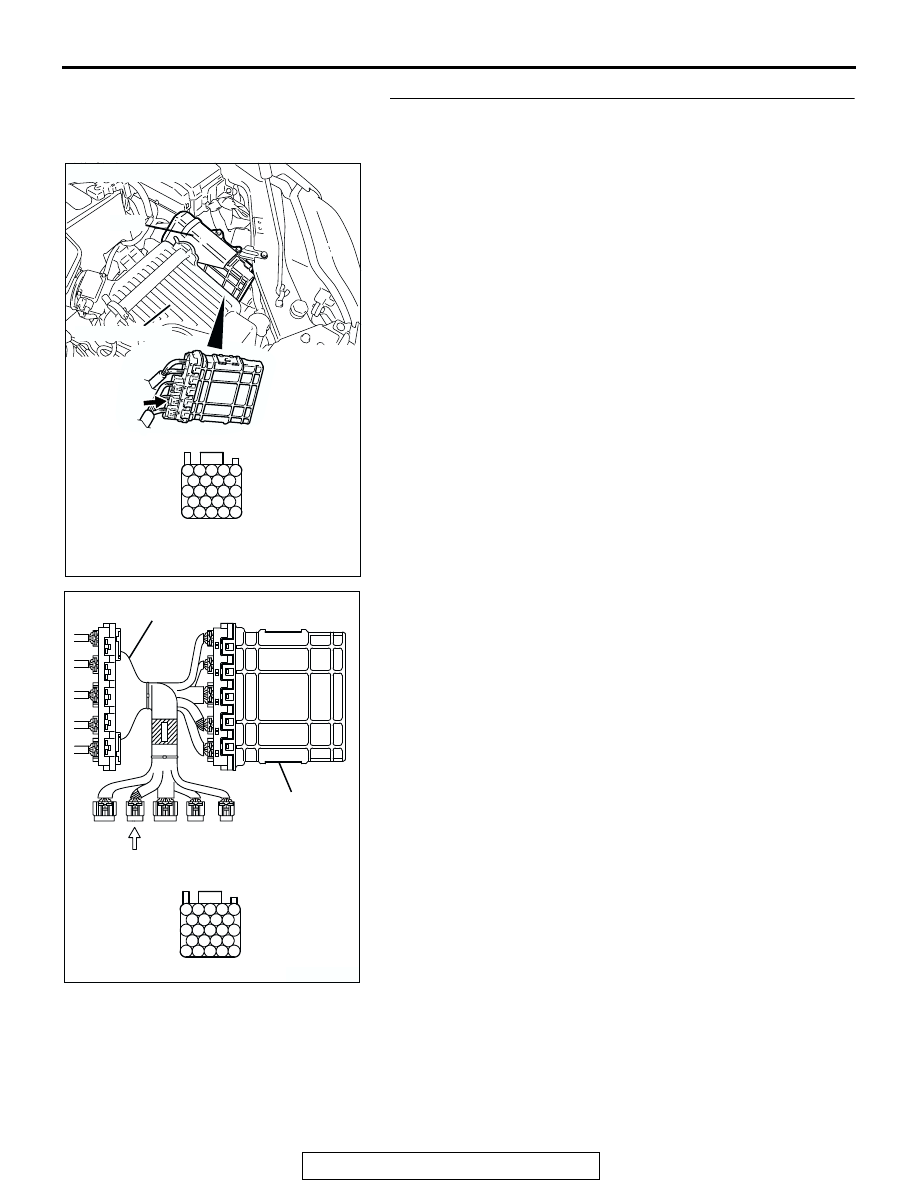

STEP 9. Measure the sensor output voltage at PCM
connector B-22 by using power plant ECU check harness
special tool MB991923.
(1) Disconnect the all PCM connectors and connect power

plant ECU check harness special tool MB991923 between
the separated connectors.

(2) Turn the ignition switch to the "ON" position.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

AK202956

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AB

POWER PLANT ECU
CHECK HARNESS CONNECTOR

MB991923

PCM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-92

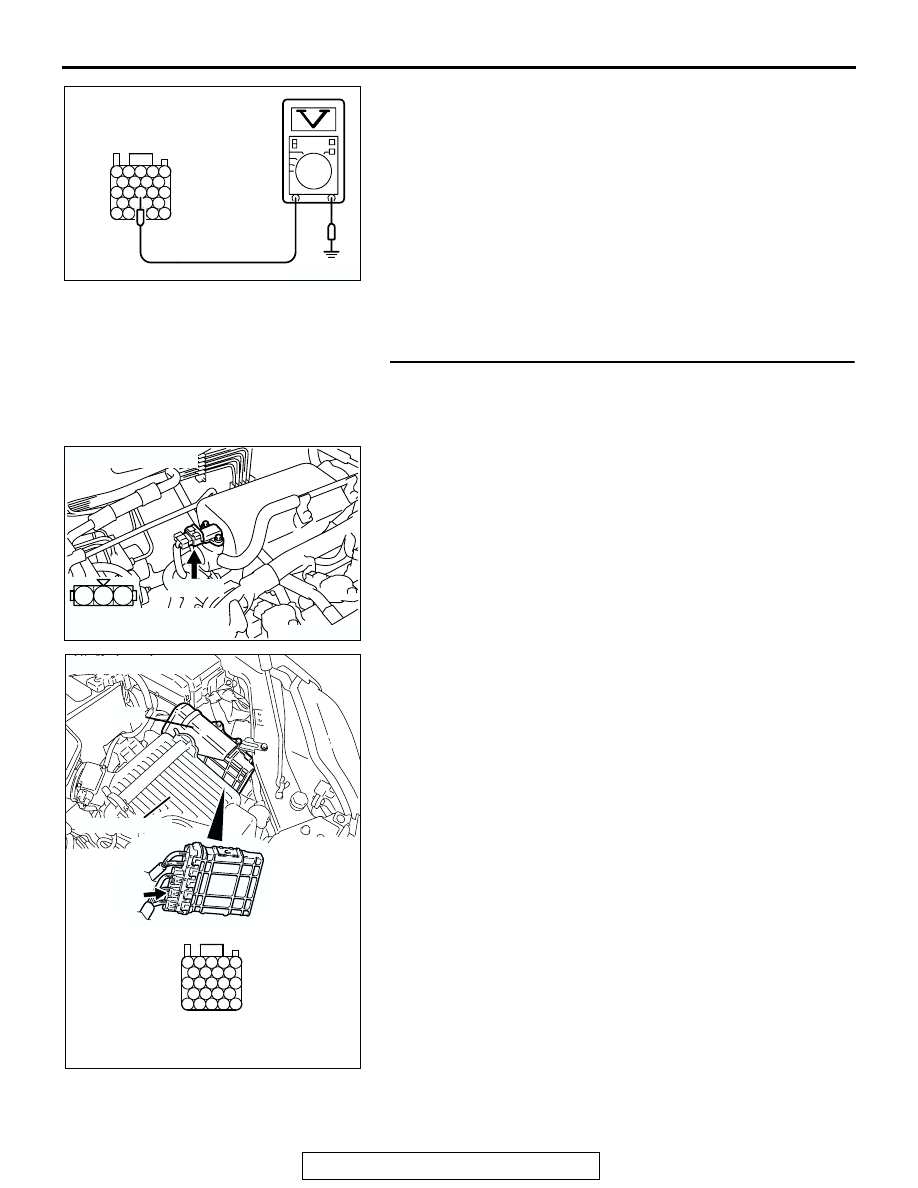

(3) Measure the voltage between terminal No. 102 and ground.

• When altitude is 0 m (0 foot), voltage should be 3.7 and

4.3 volts.

• When altitude is 600 m (1,969 feet), voltage should be

3.4 and 4.0 volts.

• When altitude is 1,200 m (3,937 feet), voltage should be

3.2 and 3.8 volts.

• When altitude is 1,800 m (5,906 feet), voltage should be

2.9 and 3.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage normal?

YES : Go to Step 11.
NO :  Go to Step 10.

STEP 10. Check for open or short circuit to ground
between manifold absolute pressure sensor connector
B-02 (terminal No. 1) and PCM connector B-22 (terminal
No. 102).
Q: Is the harness wire in good condition?

YES : Replace the manifold absolute pressure sensor. Then

go to Step 12.

NO :  Repair it. Then go to Step 12.

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AK203035AB

POWER PLANT ECU
CHECK HARNESS
CONNECTOR

AK303809

1

2

3

AB

CONNECTOR: B-02

B-02 (B)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
