MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-61

DTC P0103: Mass Airflow Circuit High Input

CAUTION

If DTC P0103 has been set, TCL related DTC
U1120 is also set. After P0103 has been diag-
nosed, don't forget to erase DTC U1120.

1

2

3

4

1

2

3 4

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

AK303801

RED

WHITE-GREEN

BLA

CK

RED-
WHITE

RED-

WHITE

B-10

B-17X

MFI
RELAY

BATTERY

MASS AIRFLOW
SENSOR

HET
SENSITIZING
RESISTANCE

POWERTRAIN CONTROL
MODULE (PCM)

108

3

69

2

1

2

4

4

3

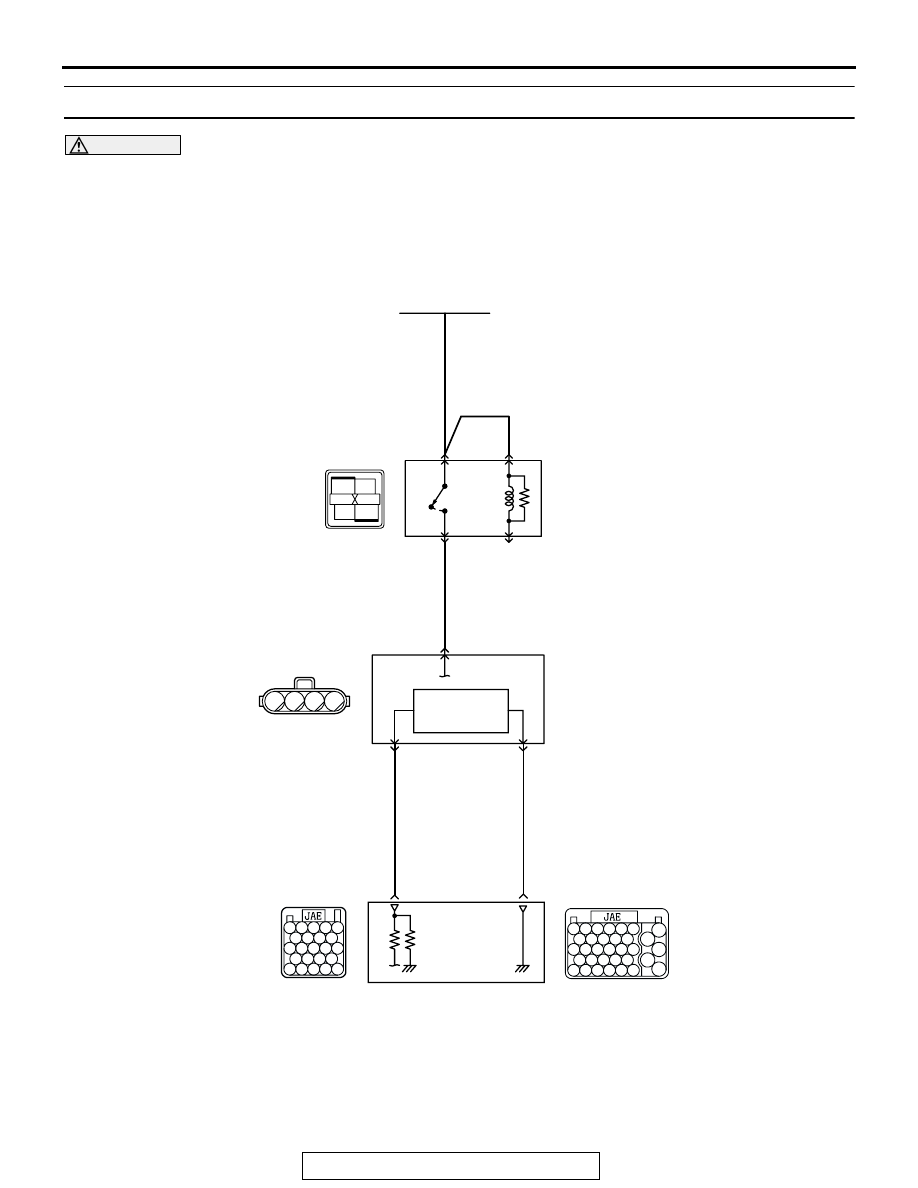

Mass Airflow Sensor Circuit

B-21

B-22

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-62

.

CIRCUIT OPERATION

• The mass airflow sensor power is supplied from

the MFI relay (terminal No. 4), and the ground is
provided on the PCM (terminal No. 69).

• A voltage that is according to the mass airflow

rate is sent to the PCM (terminal No. 108) from
the mass airflow sensor output terminal (terminal
No. 3).

.

TECHNICAL DESCRIPTION

• While the engine is running, the mass airflow

sensor outputs voltage which corresponds to the
mass airflow rate.

• The PCM checks whether the voltage output by

the mass airflow sensor while the engine is run-
ning is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Mass airflow sensor output voltage is out of specified

range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AK303802AB

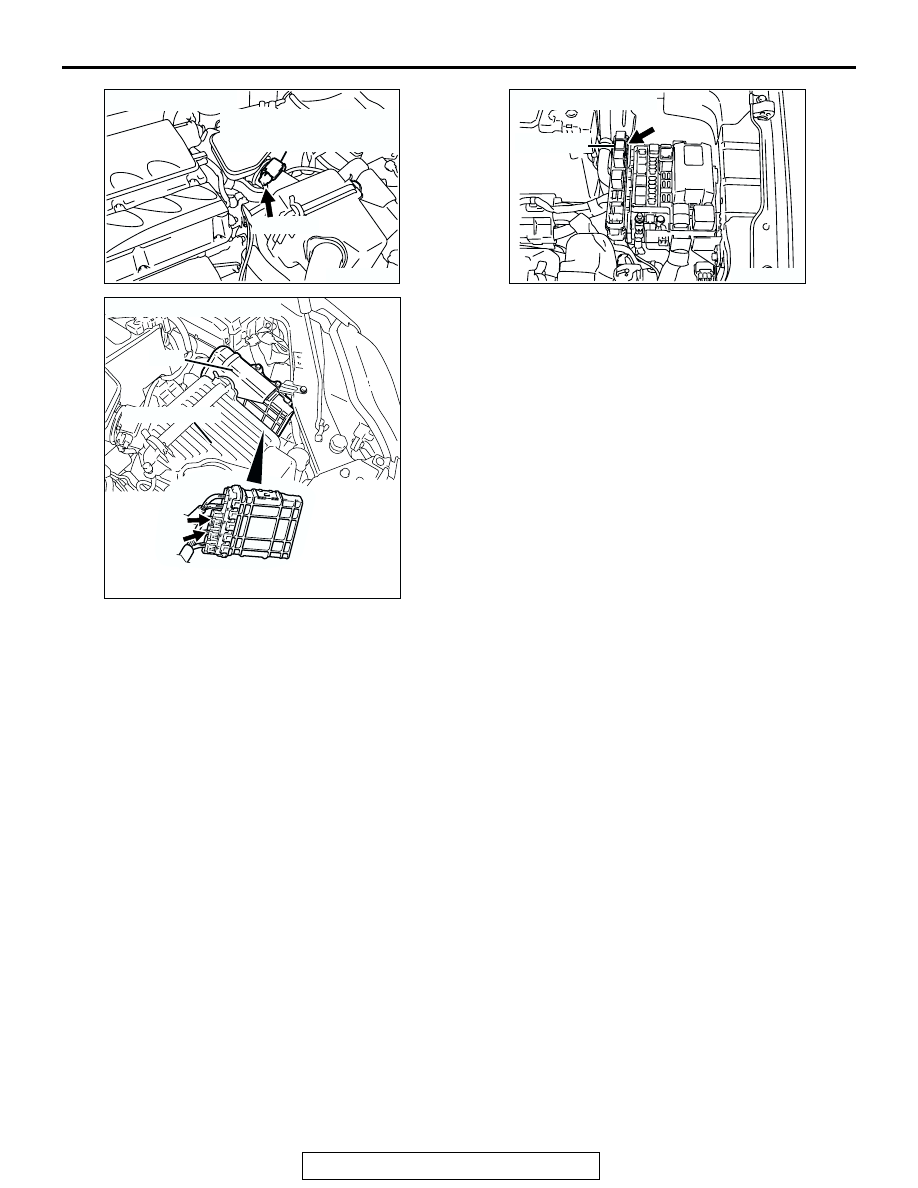

CONNECTOR: B-10

MASS AIRFLOW SENSOR
(WITH BUILT-IN INTAKE AIR
TEMPERATURE SENSOR)

B-10 (GR)

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)

AK303803AB

CONNECTOR: B-17X

MFI RELAY

B-17X

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-63

DTC SET CONDITIONS

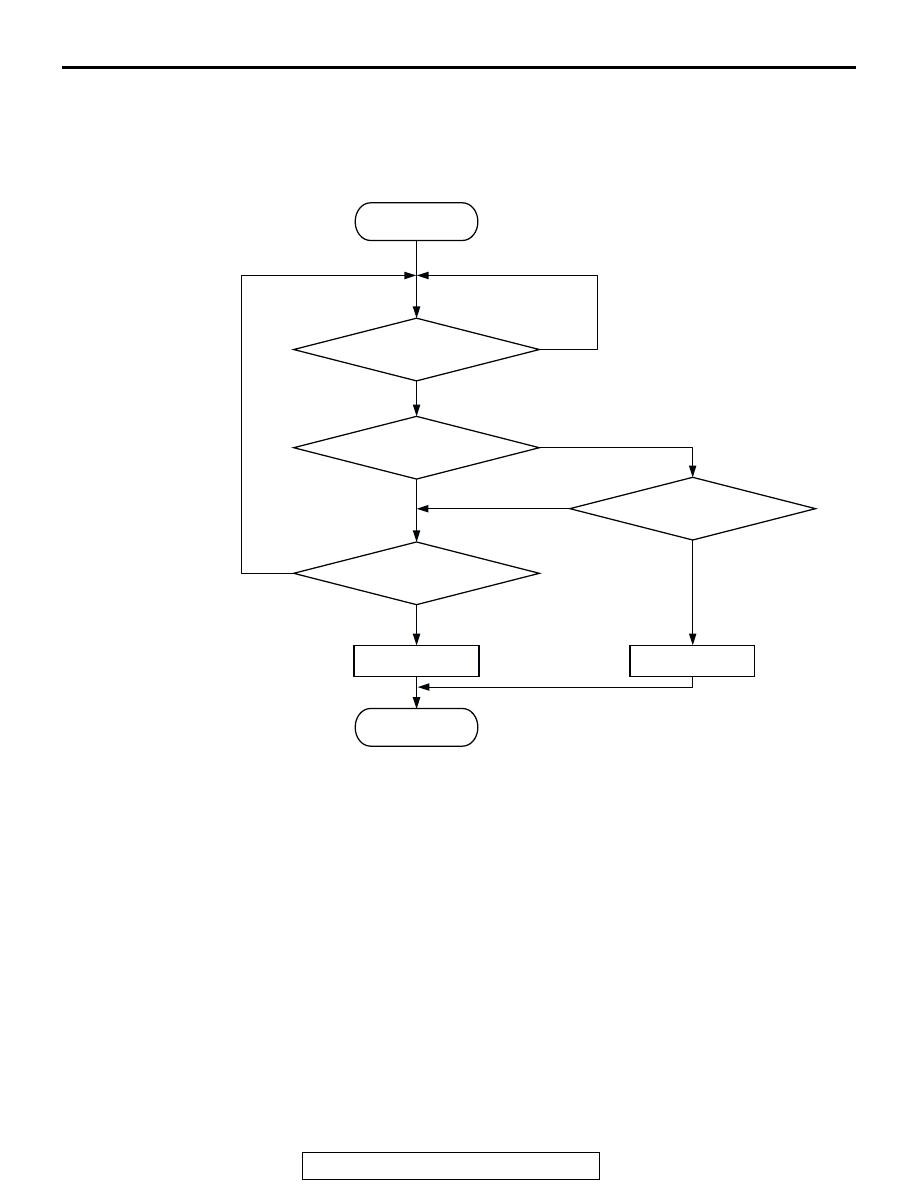

Logic Flow Chart

Check Conditions

• 3 seconds or more have passed since the ignition

switch was turned to "ON" position.

Judgement Criteria

• Mass airflow sensor output voltage has continued

to be higher than 4.9 volts for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Mass airflow sensor failed.

• Open mass airflow sensor circuit, or connector

damage.

• PCM failed.

END

MALFUNCTION

YES

YES

YES

NO

NO

NO

CONTINUOUS

FAILURE FOR 2secs

OUTPUT VOLTAGE

< 0.2V

OUTPUT VOLTAGE

> 4.9V

MONITORING

CONDITIONS

GOOD

START

AK302008

YES

NO

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-64

DIAGNOSIS

Required Special Tool:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, check data list item 12:
Mass Airflow Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

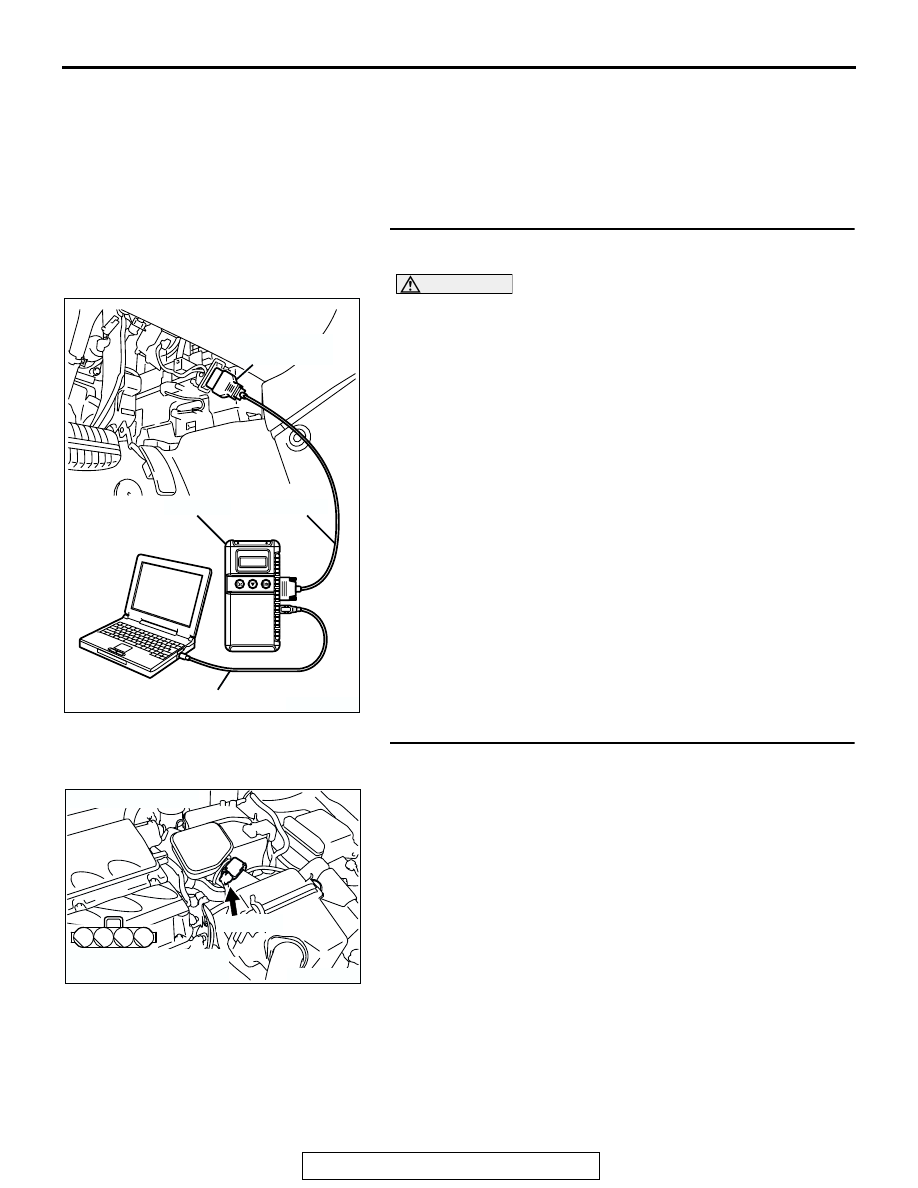

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

12, Mass Airflow Sensor.

(4) Warm up the engine to normal operating temperature: 80

°C

to 95

°C (176°F to 203°F).

• The standard value during idling should be between 2.0

and 6.0 g/sec.

• When the engine is revved, the mass airflow rate should

increase according to the increase in engine speed.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check harness connector B-10 at mass airflow
sensor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303805

2

1

3

4

AB

CONNECTOR: B-10

B-10 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE
