Mitsubishi Galant (2004+). Manual - part 782

ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-267

ADJUSTMENT

1. Select a quiet area for testing. Duplicate

conditions as much as possible. Switch the
compressor on and off several times to clearly
identify compressor noise. To duplicate high
ambient conditions (high head pressure), restrict
air flow through the condenser. Install a manifold
gauge set to make sure discharge pressure
doesn't exceed 2,070 kPa (300.2 psi).

2. Tighten all compressor mounting bolts, clutch

mounting bolt, and compressor drive belt. Check
to assure clutch coil is tight (no rotation or
wobble).

3. Check refrigerant hoses for rubbing or

interference that can cause unusual noises.

4. Check refrigerant charge. (Refer to

P.55A-264

).

5. Recheck compressor noise as in Step 1.
6. If noise still exists, loosen compressor mounting

bolts and retighten. Repeat Step 1.

7. If noise continues, replace compressor and repeat

from Step 1.

POWER RELAY CHECK

M1552008800321

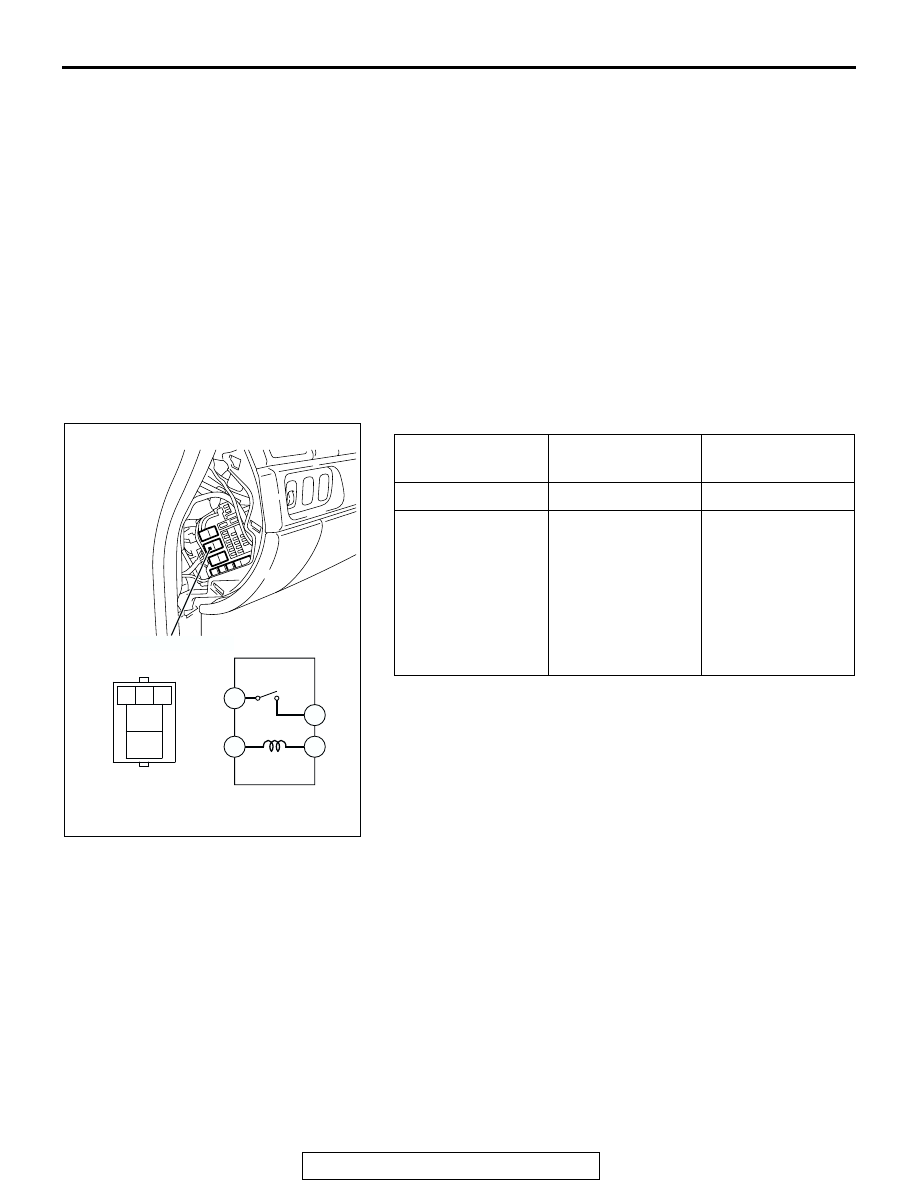

BLOWER RELAY CONTINUITY CHECK

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 3 to the
negative battery
terminal

4

− 5

Less than 2 ohms

AC306657

AB

4

5

1 2 3

5

1

4

3

BLOWER RELAY

ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-268

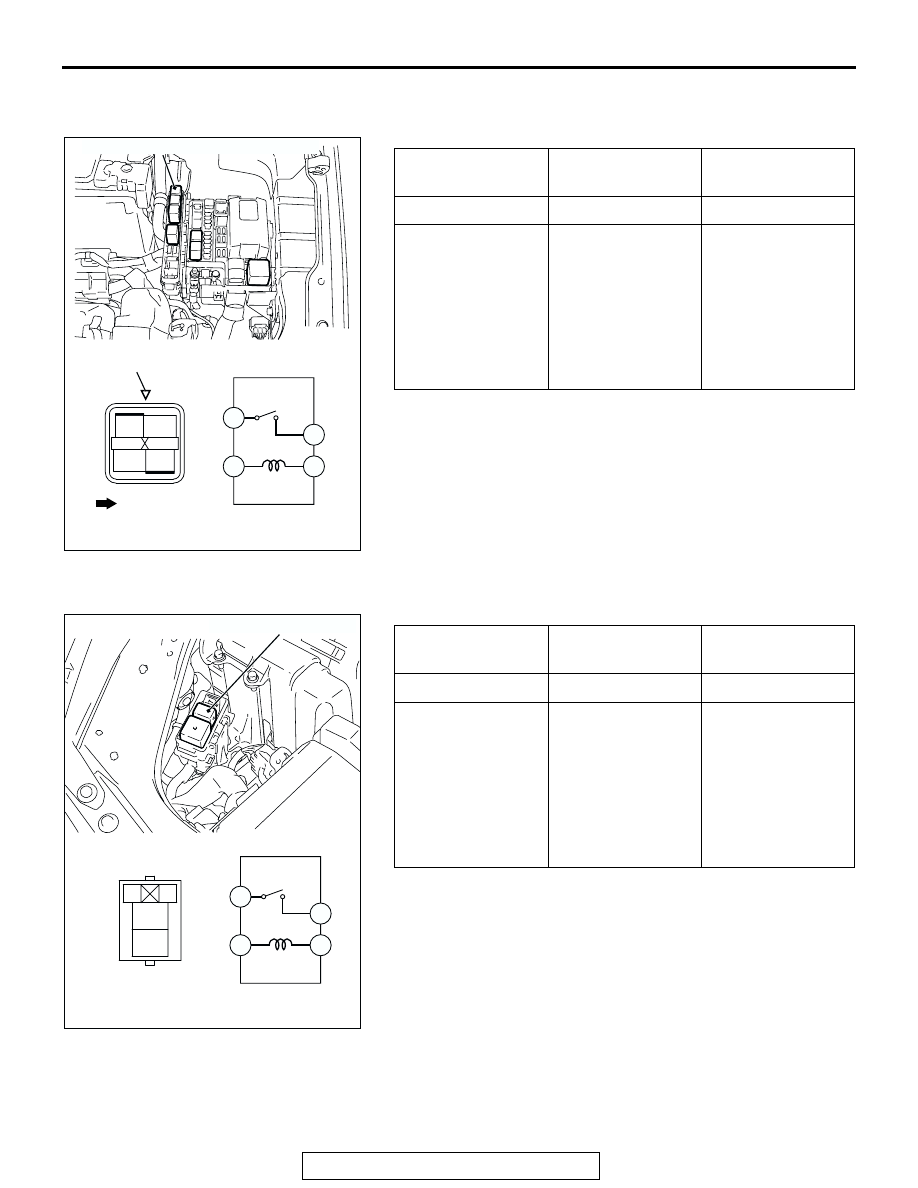

A/C COMPRESSOR CLUTCH RELAY CONTINUITY
CHECK

FAN CONTROL RELAY CONTINUITY CHECK

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1

− 4

Open circuit

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 3 to the
negative battery
terminal

1

− 4

Less than 2 ohms

AC306655

2

1

3

4

1

2

4

3

AB

A/C COMPRESSOR CLUTCH RELAY

FRONT OF
VEHICLE

JUNCTION BLOCK
TRIANGLE MARK

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

3

− 4

Open circuit

• Connect

terminal 2 to the
positive battery
terminal

• Connect

terminal 1 to the
negative battery
terminal

3

− 4

Less than 2 ohms

AC306658

FAN CONTROL RELAY

AB

4

1

2

3

3

1

4

2

ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-269

IDLE-UP OPERATION CHECK

M1552001600401

<2.4 L engine>

1. Before inspection and adjustment, set vehicle in the

following condition:

• Engine coolant temperature: 80 − 90 °C (176.0 − 194.0 °F)

• Lights, electric cooling fan and accessories: OFF

• Transmission: Neutral ("N" or "P" position)

• Steering wheel: Straightforward

2. Check whether or not the idle speed is the standard value.

Refer to GROUP 11A, On-vehicle Service

− Idle Speed

Check

P.11A-13

.

Standard value: 700

± 50 r/min

3. Turn on the air conditioning switch and the blower speed

selection dial. Engine idling speed should be within the
standard value:

Standard value: 700

± 50 r/min

NOTE: It is not necessary to make an adjustment, because
the idling speed is automatically adjusted by the ISC sys-
tem. If, however, a deviation from the standard value occurs
for some reason, check the ISC system. (Refer to GROUP
11A, On-vehicle Service

−

 Idle Speed Check

P.11A-13

)

<3.8 L engine>

1. Before inspection and adjustment, set vehicle in the

following condition:

• Engine coolant temperature: 80 − 90 °C (176.0 − 194.0 °F)

• Lights, electric cooling fan and accessories: OFF

• Transmission: Neutral ("N" or "P" position)

• Steering wheel: Straightforward

2. Check whether or not the idle speed is the standard value.

Refer to GROUP 11C, On-vehicle Service

− Idle Speed

Check

P.11C-9

.

Standard value: 680

± 50 r/min

3. Turn on the air conditioning switch and the blower speed

selection dial. Engine idling speed should be within the
standard value:

Standard value: 680

± 50 r/min

NOTE: The powertrain control module determines whether
the A/C load is low or high according to the output signal
from the A/C-ECU.
NOTE: It is not necessary to make an adjustment, because
the idling speed is automatically adjusted by the ISC sys-
tem. If, however, a deviation from the standard value occurs
for some reason, check the ISC system. (Refer to GROUP
11C, On-vehicle Service

−

 Idle Speed Check

P.11C-9

)

HEATER CONTROL ASSEMBLY AND A/C SWITCH

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-270

HEATER CONTROL ASSEMBLY AND A/C SWITCH

REMOVAL AND INSTALLATION

M1552002400369

INSPECTION

M1552014301146

BLOWER SWITCH CONTINUITY CHECK

AC306519

1

2

3

AB

<LOW TYPE>

AC306801

1

2

3

AB

<LOW TYPE>

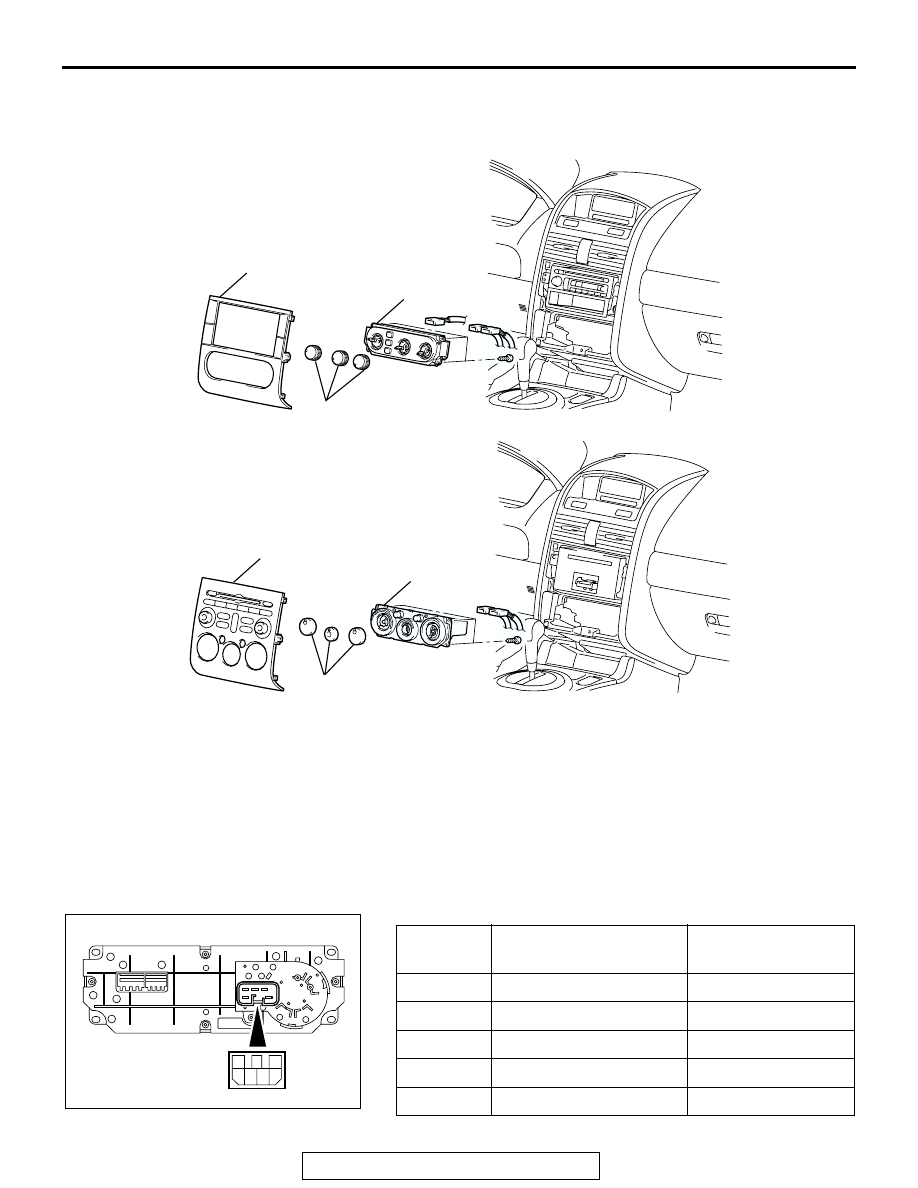

REMOVAL STEPS

1.

CENTER PANEL ASSEMBLY
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-3

)

2.

KNOB

3.

HEATER CONTROL (A/C-ECU)

REMOVAL STEPS (Continued)

SWITCH
POSITION

TESTER CONNECTION
(CONNECTOR A)

SPECIFIED
CONDITION

0 (OFF)

1

− 4, 2− 4, 4 − 5, 4 − 6

Open circuit

1 (LO)

1

− 4

Less than 2 ohms

2 (ML)

4

− 6

Less than 2 ohms

3 (MH)

2

− 4

Less than 2 ohms

4 (HI)

4

− 5

Less than 2 ohms

AC306526

1
3 4 5 6

2
