MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-227

STEP 2. Using scan tool MB991958, check data list item 04:
A/C pressure sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Assemble a manifold gauge onto the high pressure service

valve.

(3) Turn ON the engine and then turn ON the air conditioner

switch.

(4) Set scan tool MB991958 to the data reading mode for item

04: A/C pressure sensor.

• Check that the refrigerant pressure matches the dis-

played value on the scan tool.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES : Go to Step 7.
NO :  Go to Step 3.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-228

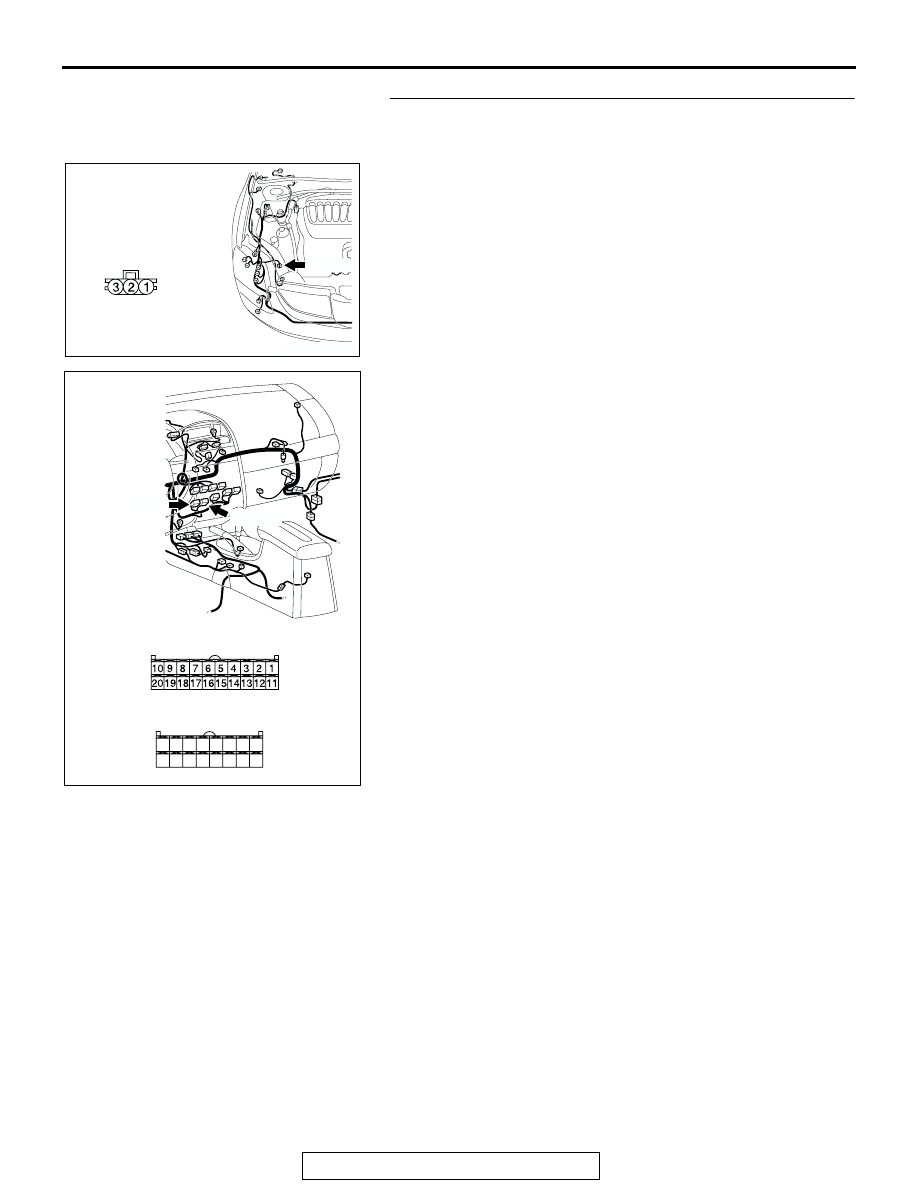

STEP 3. Check A/C pressure sensor connector A-30 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is A/C pressure sensor connector A-30 in good

condition?
YES : Go to Step 4.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305206

CONNECTOR: A-30

AY

HARNESS SIDE

A-30 (B)

AC305234

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

AG

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-229

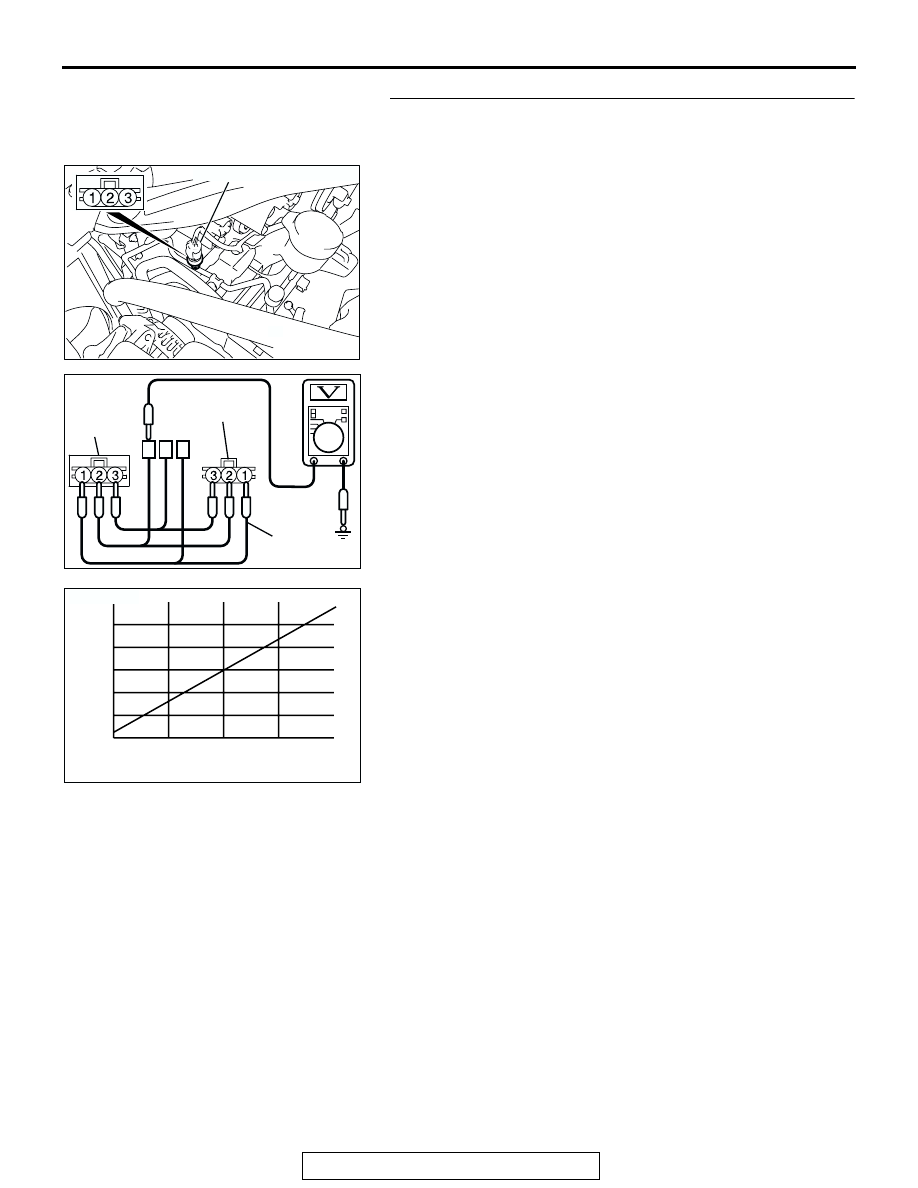

STEP 4. Check the A/C pressure sensor.

1. Assemble a gauge manifold on the high pressure service

valve.

2. Disconnect the A/C pressure sensor connector and connect

special tool test harness MB991658 as shown in the illustra-
tion.

3. Turn ON the engine and then turn ON the air conditioner

switch.

4. At this time, check to see that the voltage of A/C pressure

sensor terminal No. 2 reflects the specifications of the fig-
ure.
NOTE: The allowance shall be defined as

±

5%.

Q: Is the A/C pressure sensor in good condition?

YES : Go to Step 5.
NO :  Replace the A/C pressure sensor. Check that the air

conditioning works normally.

AC305034

A/C PRESSURE SENSOR

AD

AC307368

A/C
PRESSURE
SENSOR
SIDE

MB991658

AB

HARNESS SIDE

AC208297AB

REFRIGERANT PRESSURE (MPa)

OUTPUT VOLTAGE

(V)

0

1

2

3

5

4

1

2

3

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-230

STEP 5. Check A/C-ECU C-15 and C-16 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.

Q: Are A/C-ECU C-15 and C-16 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the air conditioning works normally.

AC305206

CONNECTOR: A-30

AY

HARNESS SIDE

A-30 (B)

AC305234

CONNECTORS: C-15, C-16

C-16 (B)

HARNESS SIDE

C-16

C-15

C-15 (B)

HARNESS SIDE

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

AG
